porsche 1997 (986 boxster) oil pump parts diagram

104-000 - oil pump

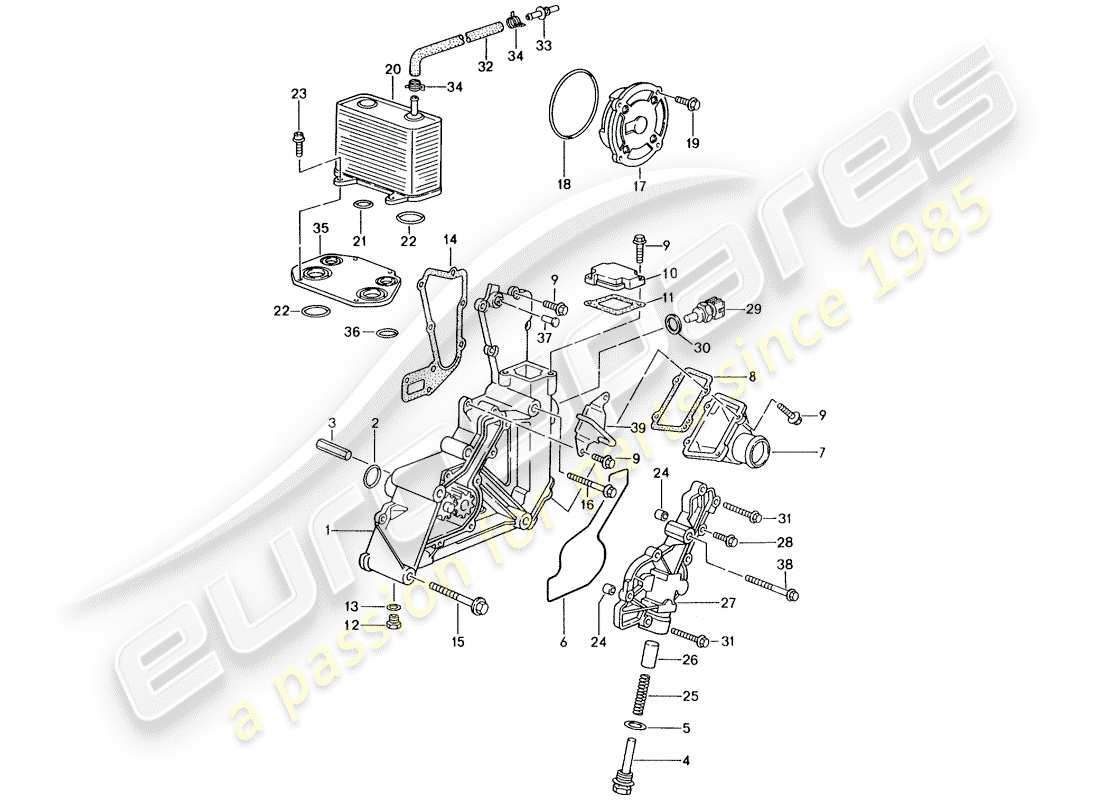

Porsche 1997 (986 Boxster) oil pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 99610701254
                                                              OIL PUMP D >>- MJ 1997
                                                              OIL PUMP D >>- MJ 1997
                                                              oil pump - D >> - MJ 1997 - Discontinued part Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701255
                                                              OIL PUMP D >>- MJ 1997
                                                              OIL PUMP D >>- MJ 1997
                                                              oil pump - D >> - MJ 1997 - Discontinued part Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701256
                                                              OIL PUMP D >>- MJ 1998
                                                              OIL PUMP D >>- MJ 1998
                                                              oil pump - D >> - MJ 1998 - Discontinued part Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701257
                                                              oil pump
                                                              oil pump
                                                              OIL PUMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701258
                                                              oil pump
                                                              oil pump
                                                              OIL PUMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701260
                                                              oil pump
                                                              oil pump
                                                              OIL PUMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 99610701261
                                                              OIL PUMP (COMPLETE)
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 1
                                                              -
                                                              SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1740 / 08A / 97
                                                              # 2
                                                              MPN: 99610710351
                                                              O-RING 29,1 X 2,55 ALSO USE: 1X 999 917 788 00
                                                              from £12.13
                                                              from £12.13
                                                              O-Ring - 29,1 X 2,55 - also use: Genuine Porsche Part - New (to order)
                                                              # 3
                                                              MPN: 99610712150
                                                              FOLLOWER
                                                              from £5.64
                                                              from £5.64
                                                              CARRIER Genuine Porsche Part - New (to order)
                                                              # 4
                                                              MPN: 99610710551
                                                              SEALING PLUG
                                                              from £25.69
                                                              from £25.69
                                                              THREADED PLUG Genuine Porsche Part - New (to order)
                                                              # 5
                                                              MPN: 99610712350
                                                              SEAL
                                                              from £0.54
                                                              from £0.54
                                                              GASKET Genuine Porsche Part - New (to order)
                                                              # 6
                                                              MPN: 99610726150
                                                              SEAL RING
                                                              from £14.53
                                                              from £14.53
                                                              SEAL RING Genuine Porsche Part - New (to order)
                                                              # 7
                                                              MPN: 99610621500
                                                              CONNECTION PIECE
                                                              P249 (Tiptronic transmission)
                                                              from £21.12
                                                              from £21.12
                                                              ADAPTER Genuine Porsche Part - New (to order)
                                                              # 7
                                                              MPN: 99610621602
                                                              CONNECTION PIECE
                                                              CONNECTION PIECE
                                                              ADAPTER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 7
                                                              MPN: 99610621603
                                                              CONNECTION PIECE
                                                              P480 (6-speed manual transmission) | P481 (5th-speed manual transmission)
                                                              from £21.12
                                                              from £21.12
                                                              ADAPTER Genuine Porsche Part - New (to order)
                                                              # 8
                                                              MPN: 99610631651
                                                              SEAL
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 10
                                                              MPN: 99610621701
                                                              END CAP
                                                              from £14.78
                                                              from £14.78
                                                              SEALING CAP Genuine Porsche Part - New (to order)
                                                              # 11
                                                              MPN: 99610632150
                                                              SEAL
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 12
                                                              MPN: 90021900702
                                                              SEALING PLUG M 10 X 1
                                                              SEALING PLUG M 10 X 1
                                                              THREADED PLUG - M 10 X 1 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 12
                                                              MPN: 90021900701
                                                              SEALING PLUG M 10 X 1
                                                              from £5.33
                                                              from £5.33
                                                              THREADED PLUG - M 10 X 1 Genuine Porsche Part - New In stock
                                                              # 13
                                                              MPN: 90012314430
                                                              SEAL RING A 10 X 13,5
                                                              from £0.59
                                                              from £0.59
                                                              SEAL RING - A 10 X 35 Genuine Porsche Part - New In stock
                                                              # 14
                                                              MPN: 99610733750
                                                              SEAL FOR OIL PUMP
                                                              from £7.76
                                                              from £7.76
                                                              SEAL FOR OIL PUMP Genuine Porsche Part - New (to order)
                                                              # 15
                                                              MPN: 99907202709
                                                              HEXAGON BOLT M 10 X 120
                                                              SCREW, HEX. HD. - M 10 X 120 Genuine Porsche Part - New (to order)
                                                              # 16
                                                              MPN: 90037809509
                                                              HEXAGON BOLT M 10 X 100
                                                              SCREW, HEX. HD. - M 10 X 100 Genuine Porsche Part - New (to order)
                                                              # 18
                                                              MPN: 99610722151
                                                              O-RING 95 X 2,5 ALSO USE: 1X 999 917 788 00
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 19
                                                              MPN: 90037815609
                                                              HEXAGON BOLT M 6 X 20
                                                              HEXAGON BOLT M 6 X 20
                                                              SCREW, HEX. HD. - M 6 X 20 - SEE MAIN GROUP 1 (ENGINE) - NR. 8/00 - NO LONGER USE THE PART HERE Genuine Porsche Part - New (to order)
                                                              # 19
                                                              MPN: 99907331602
                                                              FLAT ROUND HEAD BOLT M 6 X 20
                                                              from £6.00
                                                              from £6.00
                                                              screw, round hd. - M 6 X 20 Genuine Porsche Part - New (to order)
                                                              # 20
                                                              MPN: 99610702505
                                                              heat exchanger D >>- MJ 1997
                                                              heat exchanger D >>- MJ 1997
                                                              heater core - D >> - MJ 1997 - Discontinued part Genuine Porsche Part - New (to order)
                                                              # 20
                                                              MPN: 99610702507
                                                              HEAT EXCHANGER
                                                              9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999) | 9622 (2.7 Litre 6 Cyliner Engine (217 Horsepower / 160 Kilowatt with Engine Code: 9622 and installed 08/1999-07/2000) 9622 (2.7 Litre 6 Cyliner Engine (220 Horsepower / 162 Kilowatt with Engine Code: 9622 and installed 08/2000-07/2002) | 9623 (2.7 Litre 6 Cyliner Engine (228 Horsepower / 168 Kilowatt with Engine Code: 9623 and installed 08/2002-07/2004)
                                                              HEATER CORE Genuine Porsche Part - New (to order)
                                                              # 20
                                                              MPN: 99610702557
                                                              HEAT EXCHANGER
                                                              9621 (3.2 Litre 6 Cyliner Engine (251 Horsepower / 185 Kilowatt with Engine Code: 9621 and installed 08/1999-07/2002) | 9624 (3.2 Litre 6 Cyliner Engine (259 Horsepower / 191 Kilowatt with Engine Code: 9624 and installed 08/2002-07/2004)
                                                              HEATER CORE Genuine Porsche Part - New (to order)
                                                              # 21
                                                              MPN: 99970740940
                                                              O-RING 26 X 3
                                                              from £3.33
                                                              from £3.33
                                                              O-Ring - 26,00 X 3,00 Genuine Porsche Part - New In stock
                                                              # 22
                                                              MPN: 99970738940
                                                              O-RING 35 X 4
                                                              from £1.10
                                                              from £1.10
                                                              O-RING - 35 X 4 Genuine Porsche Part - New In stock
                                                              # 22
                                                              MPN: 99970734440
                                                              O-RING 18,77 X 1,78 SEE TECHNICAL INFORMATION GROUP: 1 NR. 8/97
                                                              from £10.50
                                                              from £10.50
                                                              O-Ring - 18,77 X 1,78 - See technical information - Group: - NR. 10/00 Genuine Porsche Part - New In stock
                                                              # 23
                                                              MPN: 90006726909
                                                              SOCKET HEAD BOLT M 6 X 16
                                                              from £0.82
                                                              from £0.82
                                                              SCREW, CHEESE HD. - M 6 X 16 Genuine Porsche Part - New (to order)
                                                              # 23
                                                              MPN: 90006735402
                                                              SOCKET HEAD BOLT M 6 X 25
                                                              SCREW, CHEESE HD. - M 6 X 25 Genuine Porsche Part - New (to order)
                                                              # 24
                                                              MPN: 99610610350
                                                              DOWEL SLEEVE 8,2 X 7
                                                              from £1.99
                                                              from £1.99
                                                              SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                                              # 25
                                                              MPN: 99610712753
                                                              SPRING FOR OIL PRESSURE RELIEF VALVE
                                                              from £8.57
                                                              from £8.57
                                                              SPRING FOR - OIL PRESSURE RELIEF VALVE Genuine Porsche Part - New (to order)
                                                              # 26
                                                              MPN: 99610712551
                                                              PISTON
                                                              PISTON Genuine Porsche Part - New (to order)
                                                              # 27
                                                              MPN: 99610721252
                                                              OIL PUMP COVER FOR 996 107 012 54
                                                              from £141.28
                                                              from £141.28
                                                              OIL PUMP COVER - FOR - 996 107 012 54 Genuine Porsche Part - New (to order)
                                                              # 27
                                                              MPN: 99610721253
                                                              OIL PUMP COVER FOR 996 107 012 55/56
                                                              OIL PUMP COVER - FOR - 996 107 012 56 Genuine Porsche Part - New (to order)
                                                              # 27
                                                              MPN: 99610721254
                                                              OIL PUMP COVER FOR 996 107 012 57/58
                                                              from £115.94
                                                              from £115.94
                                                              OIL PUMP COVER - FOR - 996 107 012 57/58 Genuine Porsche Part - New (to order)
                                                              # 28
                                                              MPN: 90007533302
                                                              BOLT WITH WASHER M 6 X 25
                                                              BOLT WITH WASHER M 6 X 25
                                                              Bolt with washer - M 6 X 25 Z2 - Discontinued part Genuine Porsche Part - New (to order)
                                                              # 28
                                                              MPN: 90007533301
                                                              BOLT WITH WASHER M 6 X 25
                                                              from £9.41
                                                              from £9.41
                                                              Bolt with washer - M 6 X 25 Z2 Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 99660641000
                                                              TEMPERATURE SENSOR
                                                              9621 (3.2 Litre 6 Cyliner Engine (251 Horsepower / 185 Kilowatt with Engine Code: 9621 and installed 08/1999-07/2002) | 9622 (2.7 Litre 6 Cyliner Engine (217 Horsepower / 160 Kilowatt with Engine Code: 9622 and installed 08/1999-07/2000) 9622 (2.7 Litre 6 Cyliner Engine (220 Horsepower / 162 Kilowatt with Engine Code: 9622 and installed 08/2000-07/2002) | 9623 (2.7 Litre 6 Cyliner Engine (228 Horsepower / 168 Kilowatt with Engine Code: 9623 and installed 08/2002-07/2004) | 9624 (3.2 Litre 6 Cyliner Engine (259 Horsepower / 191 Kilowatt with Engine Code: 9624 and installed 08/2002-07/2004)
                                                              from £26.82
                                                              from £26.82
                                                              TEMPERATURE SENSOR Genuine Porsche Part - New In stock
                                                              # 29
                                                              MPN: 99660640501
                                                              TEMPERATURE SENSOR
                                                              9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999)
                                                              from £28.61
                                                              from £28.61
                                                              TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 99965016840
                                                              PUSH-ON CONNECTOR
                                                              from £5.33
                                                              from £5.33
                                                              PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 99965021412
                                                              FLAT CONTACT
                                                              from £1.15
                                                              from £1.15
                                                              FLAT CONTACT Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 99965021540
                                                              SEAL
                                                              GASKET Genuine Porsche Part - New (to order)
                                                              # 29
                                                              -
                                                              SEE TECHNICAL INFORMATION GROUP: 1 NR. 8 A/97
                                                              # 30
                                                              -
                                                              SEAL RING
                                                              # 31
                                                              MPN: 90037815109
                                                              HEXAGON BOLT M 6 X 70
                                                              HEXAGON BOLT M 6 X 70
                                                              SCREW, HEX. HD. - M 6 X 70 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 31
                                                              MPN: 90038502701
                                                              TORX SCREW M 6 X 70
                                                              from £1.73
                                                              from £1.73
                                                              Torx screw - M 6 X 70 Genuine Porsche Part - New (to order)
                                                              # 32
                                                              MPN: 99610624900
                                                              VENT HOSE
                                                              from £28.62
                                                              from £28.62
                                                              VENT HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 99610625500
                                                              PUSH-ON SLEEVE
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 34
                                                              MPN: 99951258409
                                                              Hose clamp 14 X 12 D >>- MJ 1998
                                                              Hose Clamp - 14 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                                                              # 34
                                                              MPN: 99951265009
                                                              Hose clamp 14 X 12 D - MJ 1999>>
                                                              from £0.91
                                                              from £0.91
                                                              Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                                                              # 35
                                                              MPN: 99610712900
                                                              SPACER PLATE
                                                              from £145.07
                                                              from £145.07
                                                              INTERMEDIATE PLATE Genuine Porsche Part - New (to order)
                                                              # 36
                                                              MPN: 99970719340
                                                              O-RING 28 X 2,5
                                                              from £5.32
                                                              from £5.32
                                                              O-Ring - 28,00X2,5 SB Genuine Porsche Part - New (to order)
                                                              # 37
                                                              MPN: 99610711900
                                                              SEALING CAP
                                                              from £15.28
                                                              from £15.28
                                                              SEALING CAP Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: 90037809809
                                                              HEXAGON BOLT AM 10 X 60
                                                              Supersession
                                                              Supersession
                                                              Genuine Porsche Part (no longer available to order)
                                                              # 39
                                                              MPN: 99610223500
                                                              ARM
                                                              ARM
                                                              BOW - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                              # 39
                                                              MPN: 99610223501
                                                              ARM
                                                              P573 (Air conditioner)
                                                              from £13.45
                                                              from £13.45
                                                              BOW Genuine Porsche Part - New (to order)
