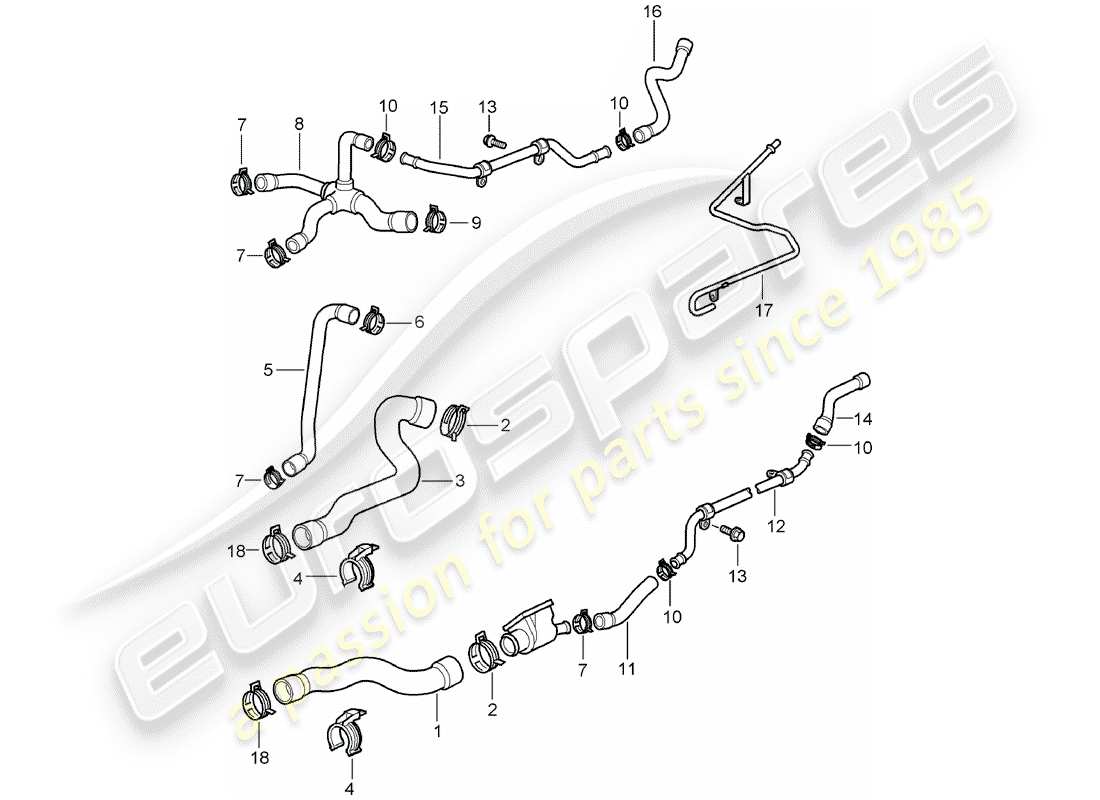

105-005 - COOLANT COOLING SYSTEM

Porsche 1998 (986 Boxster) Coolant cooling system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 2
              MPN: 99951259409
              Hose clamp 53 X 12 D >>- MJ 1998

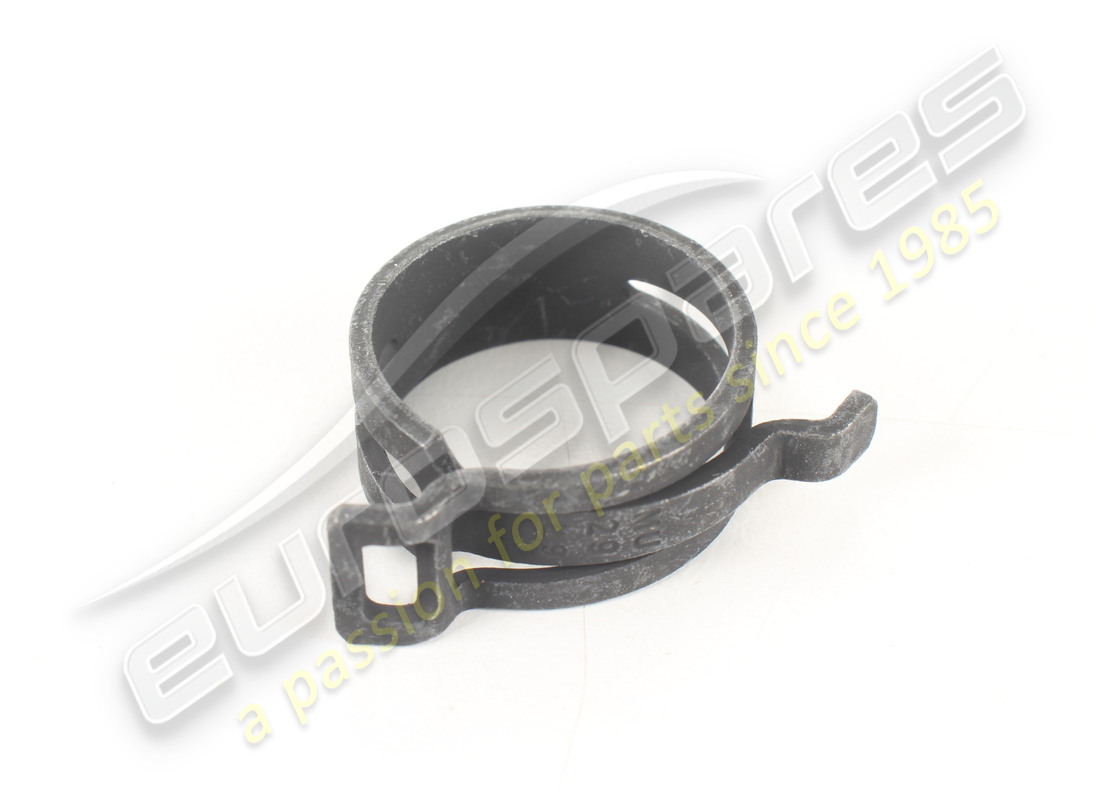

              Hose Clamp - 53 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 2
              MPN: 99951266909
              Hose clamp 53 X 12 D - MJ 1999>>
              from £5.81
              from £5.81
              Hose Clamp - 53 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
              # 2
              MPN: 99951234802
              HOSE CLAMP 40 - 70
              from £4.09
              from £4.09
              This part replaces part number 99951266809
              Hose Clamp - SGT. 40-60/9 Genuine Porsche Part - New (to order)
              # 4
              MPN: 99610642502
              BRACKET
              from £3.93
              from £3.93
              BRACKET Genuine Porsche Part - New (to order)
              # 5
              MPN: 99610621203
              Hose D >>- MJ 1998
              Hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 5
              MPN: 99610621204
              Hose D >>- MJ 1999
              9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999)
              Hose - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 5
              MPN: 99610621204
              Hose D - MJ 2000>>
              P480 (6-speed manual transmission) | P481 (5th-speed manual transmission)
              Hose - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 5
              MPN: 99610621206
              Hose D - MJ 2000>>
              P249 (Tiptronic transmission)
              Hose - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 6
              MPN: 99951260609
              Hose clamp 29 X 12 D >>- MJ 2002
              Hose clamp 29 X 12 D >>- MJ 2002
              Hose Clamp - 29 X 12 - D >> - MJ 2002 - Discontinued part Genuine Porsche Part - New (to order)
              # 6
              MPN: 99951266009
              Hose clamp 29 X 12 D >>- MJ 2002
              from £2.29
              from £2.29
              Hose Clamp - B 29 X 12 Genuine Porsche Part - New In stock
              HOSE CLAMP Genuine Bentley Part - New (to order)
              # 6
              MPN: 99951255100
              Hose clamp 25 - 40 D - MJ 2003>>
              Hose clamp 25 - 40 D - MJ 2003>>
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 6
              MPN: 99951255101
              Hose clamp 25 - 40 D - MJ 2003>>
              from £4.52
              from £4.52
              This part replaces part number 99951255100 - and 1 more. Click to view details
              HOSE CLAMP - 36 X 12 Genuine Porsche Part - New (to order)
              # 7
              MPN: 99951258909
              HOSE CLAMP 25 X 12
              HOSE CLAMP 25 X 12
              Hose Clamp - 25 X 12 - Discontinued part Genuine Porsche Part - New (to order)
              # 7
              MPN: 99951265609
              Hose clamp 25 X 12 D >>- MJ 2002
              from £2.29
              from £2.29
              Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New (to order)
              HOSE CLAMP Genuine Bentley Part - New (to order)
              # 7
              MPN: 99951255200
              Hose clamp 24 X 12 D - MJ 2003>>
              Hose clamp 24 X 12 D - MJ 2003>>
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 7
              MPN: 99951255201
              Hose clamp 24 X 12 D - MJ 2003>>
              from £2.29
              from £2.29
              This part replaces part number 99951250702 - and 1 more. Click to view details
              Hose Clamp - S25/9ZY Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622207
              RETURN HOSE
              RETURN HOSE
              RETURN HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622210
              RETURN HOSE
              RETURN HOSE
              RETURN HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622212
              RETURN HOSE
              RETURN HOSE
              RETURN HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622217
              COOLANT HOSE
              P480 (6-speed manual transmission) | P481 (5th-speed manual transmission)
              from £36.34
              from £36.34
              WATER HOSE Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622209
              HOSE
              HOSE
              HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622211
              RETURN HOSE
              RETURN HOSE
              RETURN HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622213
              RETURN HOSE
              RETURN HOSE
              RETURN HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610622216
              RETURN HOSE D >>- MJ 1999
              P249 (Tiptronic transmission)
              from £73.40
              from £73.40
              return hose - D >> - MJ 1999 Genuine Porsche Part - New (to order)
              # 8
              MPN: 99610652202
              RETURN HOSE D - MJ 2000>>
              P249 (Tiptronic transmission)
              return hose - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 9
              MPN: 99951260909
              Hose clamp 36 X 12 D >>- MJ 1998
              Hose Clamp - 36 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 9
              MPN: 99951266409
              Hose clamp 36 X 12 D - MJ 1999>>
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 10
              MPN: 99951258709
              Hose clamp 21 X 12 D >>- MJ 1998
              P249 (Tiptronic transmission)
              from £2.17
              from £2.17
              Hose Clamp - 21 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 10
              MPN: 99610655200
              HOSE 21 X 12 D - MJ 1999>>
              P249 (Tiptronic transmission)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 11
              MPN: 99610655200
              HOSE
              HOSE
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 11
              MPN: 99610655201
              HOSE
              HOSE
              HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
              # 11
              MPN: 99610655202
              HOSE
              from £25.19
              from £25.19
              This part replaces part number 99610655200
              HOSE Genuine Porsche Part - New (to order)
              # 12
              MPN: 99610665502
              Coolant pipe D >>- MJ 1999
              P249 (Tiptronic transmission)
              from £19.90
              from £19.90
              water tube - D >> - MJ 1999 Genuine Porsche Part - New (to order)
              # 12
              MPN: 99610667401
              Coolant pipe D - MJ 2000>>
              P249 (Tiptronic transmission)
              from £39.40
              from £39.40
              water tube - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 13
              MPN: 90037803609
              HEXAGON BOLT M 6 X 12
              P249 (Tiptronic transmission)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 14
              MPN: 99610655500
              Hose D >>- MJ 1998
              P249 (Tiptronic transmission)
              Hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 14
              MPN: 99610655501
              Hose D - MJ 1999>>
              P249 (Tiptronic transmission)
              Hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
              # 15
              MPN: 99610665703
              RETURN LINE D >>- MJ 1999
              P249 (Tiptronic transmission)
              from £26.28
              from £26.28
              return line - D >> - MJ 1999 Genuine Porsche Part - New (to order)
              # 15
              MPN: 99610667201
              Coolant pipe D - MJ 2000>>
              P249 (Tiptronic transmission)
              from £42.62
              from £42.62
              water tube - D - MJ 2000>> Genuine Porsche Part - New (to order)
              # 16
              MPN: 99610655701
              RETURN HOSE D >>- MJ 1998
              P249 (Tiptronic transmission)
              return hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
              # 16
              MPN: 99610655702
              RETURN HOSE D - MJ 1999>>
              P249 (Tiptronic transmission)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 17
              MPN: 99610621002
              breather line
              from £47.93
              from £47.93
              breather line Genuine Porsche Part - New (to order)
              # 18
              MPN: 99951266809
              HOSE CLAMP 49 X 12
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 19
              -
              CONNECTION PIECE SEE ILLUSTRATION: 104-000
