G8600 (5S Gearbox with Transmission Code: G8600 and installed 08/96-07/99)
porsche 2000 (986 boxster) gears and shafts -1999 parts diagram

303-000 - gears and shafts -1999

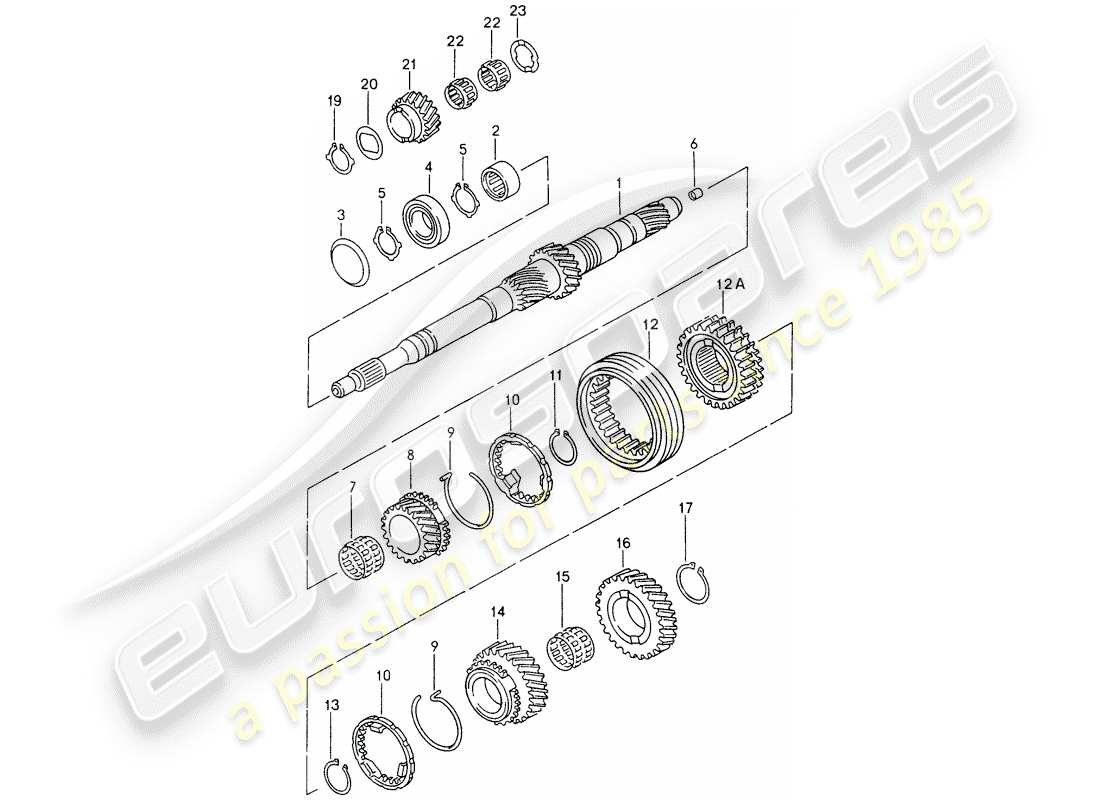

Porsche 2000 (986 Boxster) gears and shafts -1999 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # -
                                  -
                                  GEARBOX 2000- FOR GEARBOX CODE:
                                  G8601 (5S Gearbox with Transmission Code: G8601 and installed 08/99-07/04) | CWA/DVY/EFD, GDW/GFW
                                  # 1
                                  MPN: 012311105AG
                                  INPUT SHAFT
                                  from £438.80
                                  from £438.80
                                  DRIVE SHAFT Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 012311123D
                                  NEEDLE BUSH 27 X 41 X 23
                                  from £16.90
                                  from £16.90
                                  NEEDLE SLEEVE - 27 X 41 X 23 Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 012311443
                                  BELLEVILLE SPRING 42 X 58 X 2
                                  from £3.02
                                  from £3.02
                                  CONCAVE WASHER - 42 X 58 X 2 Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 012311445E
                                  GROOVED BALL BEARING -03 25 X 58 X 16
                                  BALL BEARING - 25 X 58 X 16 Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 012311445G
                                  GROOVED BALL BEARING 04- 25 X 58 X 16
                                  BALL BEARING - 25 X 58 X 16 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294102
                                  Securing ring 24,9 X 1,45
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,45 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294114
                                  Securing ring 24,9 X 1,54
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,54 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294115
                                  Securing ring 24,9 X 1,63
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,63 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294116
                                  Securing ring 24,9 X 1,72
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,72 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294117
                                  Securing ring 24,9 X 1,81
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,81 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294118
                                  Securing ring 24,9 X 1,9
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,9 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294119
                                  Securing ring 24,9 X 1,99
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 1,99 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294120
                                  Securing ring 24,9 X 2,08
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 2,08 Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: N 90294111
                                  Securing ring 24,9 X 2,17
                                  from £3.83
                                  from £3.83
                                  LOCK RING - 24,9 X 2,17 Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 012311111A
                                  SLEEVE 13 X 14 X 10,8
                                  from £5.33
                                  from £5.33
                                  SLEEVE - 13 X 14 X 10,8 Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 012311213J
                                  NEEDLE CAGE 38 X 43 X 29,5
                                  from £15.06
                                  from £15.06
                                  NEEDLE CAGE - 38 X 43 X 29,5 Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 012311285BJ
                                  CHANGE GEAR 3.GEAR Z = 40 : 28
                                  CWA/DVY/EFD, GDW
                                  from £162.50
                                  from £162.50
                                  GEAR - Z = 40 : 28 Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 012311131CB
                                  CHANGE GEAR 3.GEAR Z = 40 : 28
                                  GFW
                                  from £180.94
                                  from £180.94
                                  GEAR - Z = 40 : 28 Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 012311312A
                                  SPRING 3./4.GEAR G >>10 05 8
                                  CWA
                                  spring - G >> 10 05 8 Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 012311312D
                                  SPRING 3./4.GEAR G 11 05 8 >>
                                  DVY/EFD/GDW
                                  from £2.28
                                  from £2.28
                                  spring - G 11 05 8 >> Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 01X311312A
                                  SECURING SPRING 3./4.GEAR
                                  GFW
                                  from £0.70
                                  from £0.70
                                  RETAINING SPRING Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 012311295D
                                  SYNCHRONIZER RING 3./4.GEAR G >>10 05 8
                                  CWA
                                  synchronizer ring - G >> 10 05 8 Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 012311295F
                                  SYNCHRONIZER RING 3./4.GEAR G 11 05 8 >>
                                  DVY/EFD/GDW
                                  from £78.33
                                  from £78.33
                                  synchronizer ring - G 11 05 8 >> Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 01X311295J
                                  synchronizer ring 3./4.gear
                                  GFW
                                  from £57.71
                                  from £57.71
                                  SYNCHRONIZER RING Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: N 90294501
                                  SECURING RING 38 X 2
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 38 X 2 Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 012311315B
                                  SLIDING SLEEVE 3./4.GEAR
                                  CWA/DVY/EFD, GDW
                                  from £98.32
                                  from £98.32
                                  OPERATING SLEEVE Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 01X311315
                                  SLIDING SLEEVE 3./4.GEAR
                                  SLIDING SLEEVE 3./4.GEAR
                                  OPERATING SLEEVE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 01X311315B
                                  SLIDING SLEEVE 3./4.GEAR
                                  GFW
                                  from £96.85
                                  from £96.85
                                  OPERATING SLEEVE Genuine Porsche Part - New (to order)
                                  # 12A
                                  MPN: 012311309B
                                  SYNCHRONIZING HUB 3./4.GEAR
                                  CWA/DVY/EFD, GDW
                                  from £175.46
                                  from £175.46
                                  SYNCHRONIZING HUB Genuine Porsche Part - New (to order)
                                  # 12A
                                  MPN: 01X311309
                                  SYNCHRONIZING HUB 3./4.GEAR
                                  GFW
                                  from £105.10
                                  from £105.10
                                  SYNCHRONIZING HUB Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294401
                                  SECURING RING 37 X 1,9
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 37 X 1,90 Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294402
                                  SECURING RING 37 X 1,93
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 37 X 1,93 Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294403
                                  SECURING RING 37 X 1,96
                                  from £5.65
                                  from £5.65
                                  LOCK RING - 37 X 1,96 Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294404
                                  SECURING RING 37 X 1,99
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 37 X 1,99 Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294405
                                  SECURING RING 37 X 2,02
                                  from £5.63
                                  from £5.63
                                  LOCK RING - 37 X 2,02 Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: N 90294406
                                  SECURING RING 37 X 2,05
                                  from £5.63
                                  from £5.63
                                  LOCK RING - 37 X 2,05 Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 012311351AH
                                  CHANGE GEAR 4-speed Z = 35 : 34
                                  CHANGE GEAR 4-speed Z = 35 : 34
                                  GEAR - Z = 35 : 34 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 012311351AN
                                  CHANGE GEAR 4-speed Z = 35 : 34
                                  CWA
                                  GEAR - Z = 35 : 34 Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 012311351AT
                                  CHANGE GEAR 4-speed Z = 35 : 34
                                  DVY
                                  from £291.58
                                  from £291.58
                                  GEAR - Z = 35 : 34 Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 012311351BK
                                  CHANGE GEAR 4-SPEED Z = 36 : 33
                                  EFD/GDW
                                  from £224.01
                                  from £224.01
                                  GEAR - Z = 36 : 33 Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 012311149CQ
                                  CHANGE GEAR 4-SPEED Z = 36 : 33
                                  GFW
                                  from £240.34
                                  from £240.34
                                  GEAR - Z = 36 : 33 Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 012311115F
                                  NEEDLE CAGE 37 X 42 X 29,8
                                  from £10.32
                                  from £10.32
                                  NEEDLE CAGE - 37 X 42 X 29,8 Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 012311159DL
                                  GEAR 5-SPEED Z = 30 : 38
                                  CWA/DVY
                                  from £176.55
                                  from £176.55
                                  GEAR - Z = 30 : 38 Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 012311159CH
                                  GEAR 5-SPEED Z = 31 ; 37
                                  EFD/GDW/GFW
                                  from £166.19
                                  from £166.19
                                  GEAR - Z = 31 ; 37 Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: N 90294202
                                  SECURING RING 36 X 1,9
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 36 X 1,9 Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: N 90294203
                                  SECURING RING 36 X 1,93
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 36 X 1,93 Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: N 90294204
                                  SECURING RING 36 X 1,96
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 36 X 1,96 Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: N 90294205
                                  SECURING RING 36 X 1,99
                                  from £4.16
                                  from £4.16
                                  LOCK RING - 36 X 1,99 Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: N 90294206
                                  SECURING RING 36 X 2,02
                                  from £5.63
                                  from £5.63
                                  LOCK RING - 36 X 2,02 Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 012311429M
                                  ROLLER SLEEVE 23 X 37 X 28,3
                                  CWA/DVY/EFD, GDW
                                  from £23.42
                                  from £23.42
                                  SLEEVE - 23 X 37 X 28,3 - FOR - TRANSMISSION COVER - 012 301 205 N Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 012311429P
                                  ROLLER SLEEVE 23 X 39 X 28,2
                                  GFW
                                  from £16.50
                                  from £16.50
                                  SLEEVE - 23 X 39 X 28,3 - FOR - TRANSMISSION COVER - 012 301 205 P Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: N 90295101
                                  SECURING RING 4-SPEED 22 X 1,7
                                  from £2.53
                                  from £2.53
                                  LOCK RING - 22 X 1,7 Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 012311518
                                  SUPPORT PLATE 3.GEAR
                                  from £14.24
                                  from £14.24
                                  SUPPORT PLATE Genuine Porsche Part - New (to order)
                                  # 21
                                  MPN: 012311531E
                                  REVERSE GEAR
                                  from £295.44
                                  from £295.44
                                  REVERSE GEAR Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 012311523G
                                  NEEDLE BEARING - 22 X 30 X 16
                                  from £12.85
                                  from £12.85
                                  NEEDLE BEARING - - 22 X 30 X 16 Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 012311517
                                  THRUST WASHER
                                  from £11.98
                                  from £11.98
                                  THRUST WASHER Genuine Porsche Part - New (to order)
