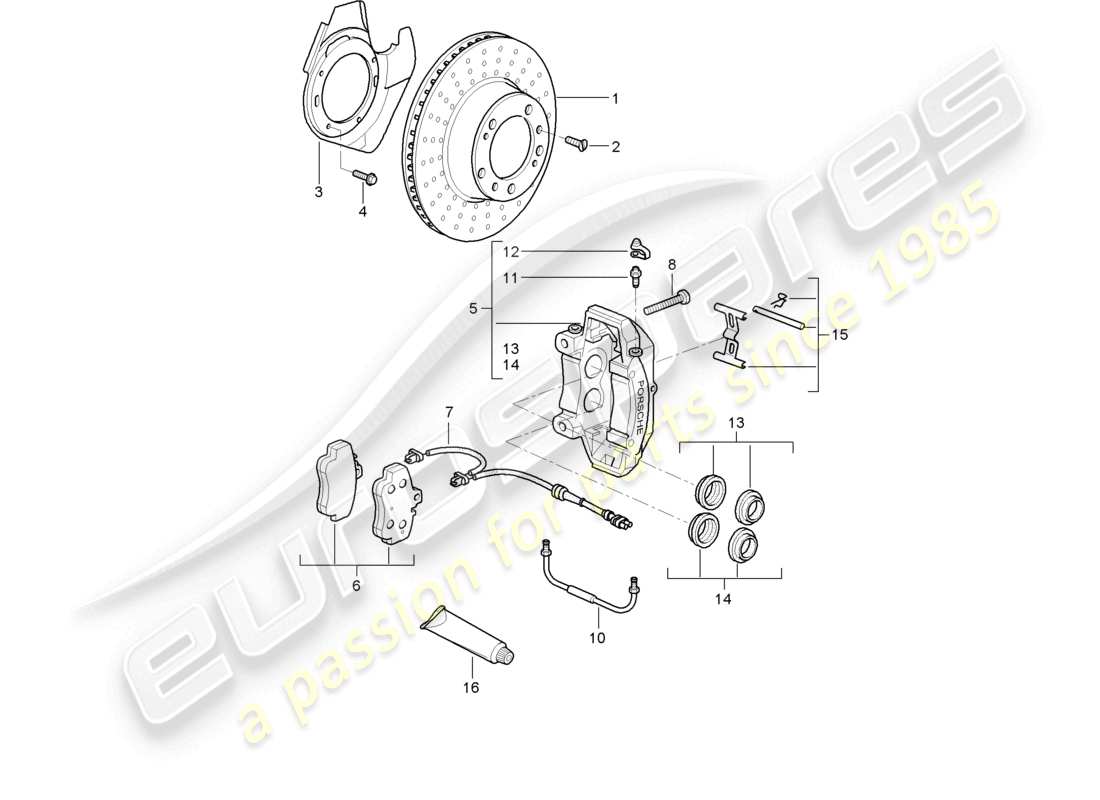

602-000 - Disc Brake Front Axle
Porsche 2003 (986 Boxster) Disc brake Front axle Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98635140105
BRAKE DISC ALSO USE: 1X 986 351 939 15 2X 996 612 365 00 1X 996 352 959 01 4X 900 269 047 01 4X 999 073 402 01 1X 000 043 305 08
from £212.51
from £212.51
# 1
MPN: 99635140501
BRAKE DISC LEFT D - MJ 2000>>ALSO USE: 1X 996 352 949 03 1X 996 612 365 00 1X 996 351 959 01 1X 996 351 406 01 4X 900 269 047 01 4X 999 073 402 01 1X 000 043 305 08
P008 (986 S 3,2 litres displacement)
from £274.40
from £274.40
# 1
MPN: 99635140601
BRAKE DISC RIGHT D - MJ 2000>>ALSO USE: 1X 99635294903 1X 99661236500 4X 900 269 047 01
P008 (986 S 3,2 litres displacement)
from £274.40
from £274.40
# 2
MPN: 90026904709
countersunk bolt M 6 X 12
countersunk bolt M 6 X 12
Supersession
Supersession
# 2
MPN: 90026904701
countersunk bolt M 6 X 12
from £0.59
from £0.59
This part replaces part number 90026904709
# 2
MPN: 90026910609
COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
# 2
MPN: 90026910601
COUNTERSUNK BOLT M 6 X 16 D - MJ 2001>>
PXRP (5-mm spacers, front/rear)
from £2.29
from £2.29
# 2
MPN: 900 269 106 90
countersunk bolt M 6 X 16 See technical information See main group 4 NR.1/04 NR.2/04 D - MJ 2004>>- MJ 2004
P091 (Special model '50 years Spyder')
# 3
MPN: 996 351 081 02
COVER PLATE LEFT
COVER PLATE LEFT
# 3
MPN: 99635108103
COVER PLATE LEFT F >>98-XS601 524
from £18.72
from £18.72
# 3
MPN: 99635180104
COVER PLATE LEFT F 98-XS601 525>>
from £28.28
from £28.28
# 3
MPN: 996 351 082 02
COVER PLATE RIGHT
COVER PLATE RIGHT
# 3
MPN: 99635108203
COVER PLATE RIGHT F >>98-XS601 186
from £18.72
from £18.72
# 3
MPN: 99635180204
COVER PLATE F 98-XS601 187>>
from £28.28
from £28.28
# 4
MPN: 99921711609
HEXAGON BOLT M 6 X 16
# 5
MPN: 98635142103
caliper without brake pads left
from £486.93
from £486.93
# 5
MPN: 99635142511
CALIPER WITHOUT BRAKE PADS LEFT D - MJ 2000>>
P008 (986 S 3,2 litres displacement)
from £747.05
from £747.05
# 5
MPN: 99635142522
CALIPER WITHOUT BRAKE PADS LEFT D - MJ 2004>>- MJ 2004
P091 (Special model '50 years Spyder')
from £673.46
from £673.46
# 5
MPN: 98635142203
caliper without brake pads right
from £486.93
from £486.93
# 5
MPN: 99635142611
CALIPER WITHOUT BRAKE PADS RIGHT D - MJ 2000>>
P008 (986 S 3,2 litres displacement)
from £747.05
from £747.05
# 5
MPN: 99635142622
CALIPER WITHOUT BRAKE PADS RIGHT D - MJ 2004>>- MJ 2004
P091 (Special model '50 years Spyder')
from £673.46
from £673.46
# 6
MPN: 986 351 939 11
1 SET OF BRAKE PADS FOR DISK BRAKE
1 SET OF BRAKE PADS FOR DISK BRAKE
# 6
MPN: 986 351 939 13
1 SET OF BRAKE PADS FOR DISK BRAKE
1 SET OF BRAKE PADS FOR DISK BRAKE
# 6
MPN: 98635193915
1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 1X 000 043 305 08 2X 996 612 365 01 1X 996 352 959 01
from £129.32
from £129.32
# 6
MPN: 996 352 949 02
1 set of brake pads for disk brake D >>- MJ 2004
1 set of brake pads for disk brake D >>- MJ 2004
# 6
MPN: 99635294903
1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 1X 000 043 305 08 1X 996 352 959 01 2X 996 612 365 01
P008 (986 S 3,2 litres displacement)
Supersession
Supersession
# 6
MPN: 99635108802
DAMPING PLATE $ 36/40 MM D - MJ 2000>>
P008 (986 S 3,2 litres displacement)
from £11.24
from £11.24
# 7
MPN: 99661236500
SENDER WIRE (PAD WEAR INDICATOR)
Supersession
Supersession
# 8
MPN: 99906704109
SOCKET HEAD BOLT M 12 X 1,5 X 72
SOCKET HEAD BOLT M 12 X 1,5 X 72
# 8
MPN: 99906704101
SOCKET HEAD BOLT M 12 X 1,5 X 72
# 8
MPN: 99950753000
CABLE HOLDER FOR BRAKE PAD WEAR DISPLAY
from £7.97
from £7.97
# 10
MPN: 99635296200
Connecting line left
# 10
MPN: 99635196100
Connecting line left
P008 (986 S 3,2 litres displacement)
from £39.98
from £39.98
# 10
MPN: 99635296100
Connecting line right
from £32.62
from £32.62
# 10
MPN: 99635196200
Connecting line right
P008 (986 S 3,2 litres displacement)
from £39.98
from £39.98
# 11
MPN: 93035191900
BREATHER VALVE
from £13.16
from £13.16
# 12
MPN: 93035192700
DUST CAP
DUST CAP
# 12
MPN: 93035192701
DUST CAP
from £1.73
from £1.73
# 13
MPN: 95135191701
REPAIR SET 1 SET PROTECTIVE CAPS 40 MM $
from £20.05
from £20.05
# 14
MPN: 95135191700
REPAIR SET 1 SET PROTECTIVE CAPS 36 MM $
from £20.05
from £20.05
# 15
MPN: 99635295901
REPAIR SET FASTENERS PIN 2X CUP EXPANDER SPRING 2X SECURING BARS 2X
from £37.82
from £37.82
# 15
MPN: 99635195901
REPAIR SET FASTENERS PIN 2X CUP EXPANDER SPRING 2X SECURING BARS 2X
P008 (986 S 3,2 litres displacement)
from £20.54
from £20.54
# 16
MPN: 00004311700
BRAKE CYLINDER PASTE 50 G
BRAKE CYLINDER PASTE 50 G
# 16
MPN: 00004330511
BRAKE CYLINDER PASTE 50 G
from £22.38
from £22.38
# 16
MPN: 00004302000
ASSEMBLY PASTE 100 G
Supersession
Supersession
# 16
MPN: 00004330508
ASSEMBLY PASTE 100 GRAM
from £17.99
from £17.99
This part replaces part number 00004302000
