porsche 2003 (986 boxster) refrigerant circuit parts diagram

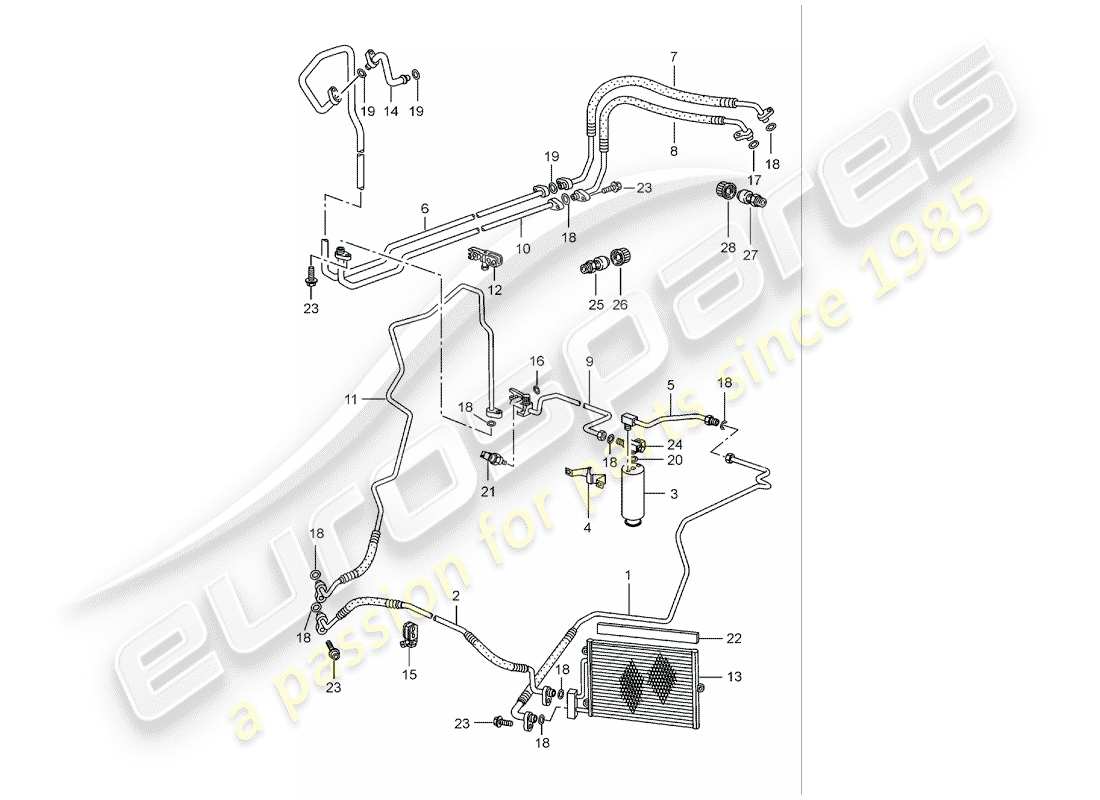

813-025 - REFRIGERANT CIRCUIT

Porsche 2003 (986 Boxster) refrigerant circuit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 99657310503
                                                    REFRIGERANT LINE D >>- MJ 1997
                                                    from £285.58
                                                    from £285.58
                                                    refrigerant line - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 99657310503
                                                    REFRIGERANT LINE D - MJ 1998>>
                                                    from £285.58
                                                    from £285.58
                                                    refrigerant line - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 99657310402
                                                    REFRIGERANT LINE D >>- MJ 1997
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 2
                                                    MPN: 99657310402
                                                    REFRIGERANT LINE D - MJ 1998>>
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 3
                                                    MPN: 94457314301
                                                    DRIER
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 4
                                                    MPN: 99657345100
                                                    BRACKET FOR DRIER
                                                    from £11.39
                                                    from £11.39
                                                    BRACKET FOR DRIER Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 99657310600
                                                    REFRIGERANT LINE
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 6
                                                    MPN: 99657309101
                                                    SUCTION LINE
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 7
                                                    MPN: 98657309904
                                                    SUCTION LINE
                                                    9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999)
                                                    from £305.83
                                                    from £305.83
                                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 98657309903
                                                    SUCTION LINE D - MJ 1998>>
                                                    from £302.00
                                                    from £302.00
                                                    suction pipe - D - MJ 1998>> Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 98657309701
                                                    PRESSURE LINE D >>- MJ 2001
                                                    from £215.35
                                                    from £215.35
                                                    Pressure line - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 98657309702
                                                    PRESSURE LINE D - MJ 2002>>
                                                    from £329.76
                                                    from £329.76
                                                    Pressure line - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 99657310802
                                                    PRESSURE LINE LHD D >>- MJ 2001
                                                    from £428.54
                                                    from £428.54
                                                    Pressure line - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 99657310803
                                                    Pressure line lhd D - MJ 2002>>- MJ 2002
                                                    Pressure line - D - MJ 2002>> - MJ 2002 Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 99657310801
                                                    Pressure line rhd
                                                    PRESSURE LINE Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 99657309201
                                                    PRESSURE LINE
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 11
                                                    MPN: 99657309402
                                                    REFRIGERANT LINE
                                                    from £261.29
                                                    from £261.29
                                                    REFRIGERANT LINE - D >>- MJ 2001 Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 99634754300
                                                    CABLE HOLDER
                                                    from £4.86
                                                    from £4.86
                                                    CABLE HOLDER Genuine Porsche Part - New In stock
                                                    # 13
                                                    MPN: 99657311100
                                                    CONDENSER
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 14
                                                    MPN: 99657309302
                                                    SUCTION LINE LHD
                                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: 99657309303
                                                    SUCTION LINE RHD
                                                    SUCTION PIPE Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: 99634754300
                                                    CABLE HOLDER
                                                    from £4.86
                                                    from £4.86
                                                    CABLE HOLDER Genuine Porsche Part - New In stock
                                                    # 16
                                                    MPN: 99970724740
                                                    O-RING 7,5X2
                                                    from £2.68
                                                    from £2.68
                                                    O-Ring - NW 8 Genuine Porsche Part - New In stock
                                                    # 17
                                                    MPN: 99970738240
                                                    O-RING 23,8X2,4
                                                    O-RING - 23,8X2,4 Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 99970725040
                                                    O-RING 10,6X2
                                                    O-RING 10,6X2
                                                    O-Ring - NW 10 - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 99970743441
                                                    O-RING 10,6X2
                                                    from £5.61
                                                    from £5.61
                                                    O-Ring - NW 10 Genuine Porsche Part - New In stock
                                                    # 20
                                                    MPN: 99970726240
                                                    O-RING 6,7X1,8
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 21
                                                    MPN: 96461313701
                                                    PRESSURE SWITCH
                                                    from £74.69
                                                    from £74.69
                                                    pressure switch - D - MJ 1993>> Genuine Porsche Part - New (to order)
                                                    # 22
                                                    MPN: 99657371100
                                                    COVER TRIM
                                                    from £6.96
                                                    from £6.96
                                                    COVER STRIP Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 90006724702
                                                    BOLT WITH WASHER
                                                    BOLT WITH WASHER
                                                    Bolt with washer - M8X30 - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 90006724701
                                                    BOLT WITH WASHER
                                                    from £14.61
                                                    from £14.61
                                                    Bolt with washer - M8X30 Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 99657346500
                                                    VALVE SUCTION LINE
                                                    from £25.07
                                                    from £25.07
                                                    VALVE - SUCTION PIPE Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: 94457366302
                                                    CAP
                                                    from £7.46
                                                    from £7.46
                                                    cap - for - valve Genuine Porsche Part - New (to order)
                                                    # 27
                                                    MPN: 99657346600
                                                    PRESSURE VALVE PRESSURE LINE
                                                    from £25.66
                                                    from £25.66
                                                    PRESSURE VALVE / PRESSURE LINE Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: 94457366301
                                                    CAP
                                                    from £7.46
                                                    from £7.46
                                                    cap - for - valve - fuel radiator Genuine Porsche Part - New (to order)
