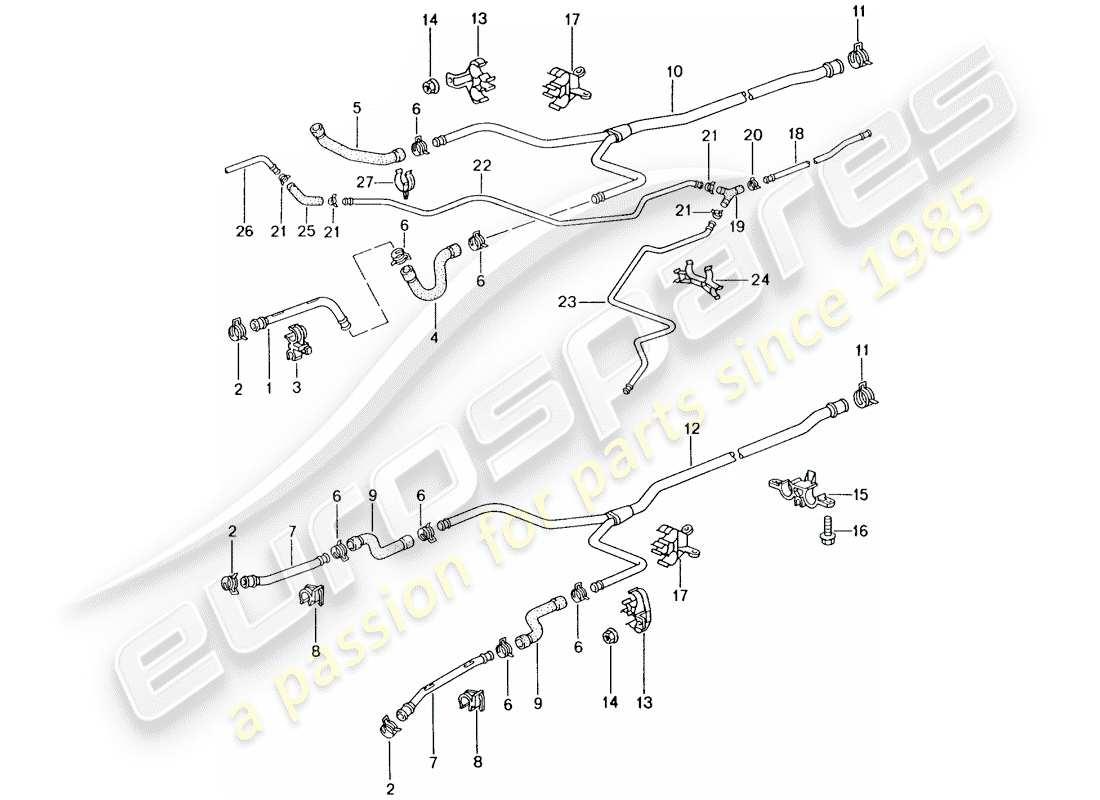

105-010 - COOLANT COOLING SYSTEM

Porsche 2004 (986 Boxster) Coolant cooling system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 99610661100
                            WATER PIPE
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 1
                            MPN: 99610661101
                            WATER PIPE D - MJ 2003>>
                            from £26.90
                            from £26.90
                            This part replaces part number 99610661100
                            Water pipe - D - MJ 2003>> Genuine Porsche Part - New (to order)
                            # 1
                            MPN: 99610661153
                            WATER PIPE FEED
                            P008 (986 S 3,2 litres displacement)
                            from £60.26
                            from £60.26
                            Water pipe - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 99951263409
                            HOSE CLAMP 34 X 12
                            HOSE CLAMP 34 X 12
                            Hose Clamp - 34 X 12 - Discontinued part Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 99951264009
                            HOSE CLAMP 34 X 12
                            HOSE CLAMP 34 X 12
                            Hose Clamp - 34 X 12 - Discontinued part Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 99951267109
                            HOSE CLAMP 34 X 12
                            HOSE CLAMP 34 X 12
                            from £2.14
                            from £2.14
                            HOSE CLAMP - 34 X 12 - NO LONGER USE THE PART HERE Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 99951255100
                            HOSE CLAMP 25 - 40
                            HOSE CLAMP 25 - 40
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 2
                            MPN: 99951255101
                            HOSE CLAMP 25 - 40
                            from £4.52
                            from £4.52
                            This part replaces part number 99951255100 - and 1 more. Click to view details
                            HOSE CLAMP - 36 X 12 Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 99610641403
                            BRACKET
                            BRACKET Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 99610641404
                            BRACKET
                            from £2.77
                            from £2.77
                            BRACKET Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 99610641455
                            BRACKET
                            9621 (3.2 Litre 6 Cyliner Engine (251 Horsepower / 185 Kilowatt with Engine Code: 9621 and installed 08/1999-07/2002)
                            from £2.54
                            from £2.54
                            BRACKET Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99610662301
                            Hose left D >>- MJ 1998 feed
                            Hose left D >>- MJ 1998 feed
                            Hose - D >> - MJ 1998 - Discontinued part Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99610662302
                            Hose left D >>- MJ 2000 feed
                            9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999) | 9622 (2.7 Litre 6 Cyliner Engine (217 Horsepower / 160 Kilowatt with Engine Code: 9622 and installed 08/1999-07/2000) 9622 (2.7 Litre 6 Cyliner Engine (220 Horsepower / 162 Kilowatt with Engine Code: 9622 and installed 08/2000-07/2002)
                            Hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99610662302
                            HOSE LEFT D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P480 (6-speed manual transmission)
                            Hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99610662353
                            COOLANT HOSE LEFT D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 99610662353
                            COOLANT HOSE LEFT D - MJ 1999>>FEED
                            P008 (986 S 3,2 litres displacement)
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99610662401
                            Hose right feed D >>- MJ 1998
                            Hose right feed D >>- MJ 1998
                            Hose - - D >> - MJ 1998 - Discontinued part Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99610662402
                            Hose right feed D >>- MJ 2000
                            9620 (2.5 Litre 6 Cyliner Engine (204 Horsepower / 150 Kilowatt with Engine Code: 9620 and installed 08/1996-07/1999) | 9622 (2.7 Litre 6 Cyliner Engine (217 Horsepower / 160 Kilowatt with Engine Code: 9622 and installed 08/1999-07/2000) 9622 (2.7 Litre 6 Cyliner Engine (220 Horsepower / 162 Kilowatt with Engine Code: 9622 and installed 08/2000-07/2002)
                            from £12.21
                            from £12.21
                            Hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99610662402
                            HOSE RIGHT D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P480 (6-speed manual transmission)
                            from £12.21
                            from £12.21
                            Hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99610662453
                            COOLANT HOSE RIGHT D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            from £9.90
                            from £9.90
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99610662453
                            COOLANT HOSE RIGHT D - MJ 1999>>FEED
                            P008 (986 S 3,2 litres displacement)
                            from £9.90
                            from £9.90
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99951260709
                            Hose clamp 30 X 12 D >>- MJ 1998
                            Hose Clamp - 30 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99951266109
                            Hose clamp 30 X 12 D - MJ 1999>>
                            from £0.59
                            from £0.59
                            Hose Clamp - B 30 X 12 Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99951267209
                            Hose clamp 40 X 12 D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            Hose Clamp - 40 X 12 - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99951249900
                            HOSE CLAMP 32 - 50 MM D - MJ 1999>>
                            P008 (986 S 3,2 litres displacement)
                            from £8.23
                            from £8.23
                            This part replaces part number 99951266609
                            HOSE CLAMP - 45 X 9 Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 99610661501
                            WATER PIPE RETURN
                            WATER PIPE Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 99610661502
                            WATER PIPE RETURN D - MJ 2003>>
                            from £26.90
                            from £26.90
                            Water pipe - D - MJ 2003>> Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 99610661554
                            WATER PIPE RETURN
                            P008 (986 S 3,2 litres displacement)
                            from £38.54
                            from £38.54
                            WATER PIPE Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 99610641902
                            BRACKET
                            from £2.28
                            from £2.28
                            BRACKET Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 99610641952
                            BRACKET D - MJ 2000>>
                            P008 (986 S 3,2 litres displacement) | P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            from £2.28
                            from £2.28
                            bracket - - D - MJ 2000>> Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662701
                            COOLANT HOSE D >>- MJ 1998
                            water hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662702
                            COOLANT HOSE D - MJ 1999>>
                            water hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662752
                            COOLANT HOSE
                            COOLANT HOSE
                            from £8.78
                            from £8.78
                            WATER HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662755
                            COOLANT HOSE
                            P008 (986 S 3,2 litres displacement)
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662752
                            COOLANT HOSE D - MJ 2001>>
                            COOLANT HOSE D - MJ 2001>>
                            from £8.78
                            from £8.78
                            WATER HOSE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99610662755
                            COOLANT HOSE D - MJ 2001>>
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            water hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 99610665102
                            DISTRIBUTOR D >>- MJ 1998
                            distributor piece - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 99610665103
                            Distributor D - MJ 1999>>
                            Distributor D - MJ 1999>>
                            distributor piece - D - MJ 1999>> - Discontinued part Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 99610665104
                            DISTRIBUTOR
                            P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P481 (5th-speed manual transmission)
                            from £352.27
                            from £352.27
                            DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 99610665154
                            DISTRIBUTOR
                            P008 (986 S 3,2 litres displacement) | P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            from £217.26
                            from £217.26
                            DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 99951259309
                            Hose clamp 49 X 12 D >>- MJ 1998
                            Hose Clamp - 49 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 99951266809
                            Hose clamp 49 X 12 D - MJ 1999>>
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 11
                            MPN: 99951234802
                            HOSE CLAMP 40 - 60 MM
                            from £4.09
                            from £4.09
                            This part replaces part number 99951266809
                            Hose Clamp - SGT. 40-60/9 Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99610665202
                            DISTRIBUTOR RETURN D >>- MJ 1998
                            distributor piece - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99610665203
                            DISTRIBUTOR RETURN D - MJ 1999>>
                            distributor piece - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99610665204
                            DISTRIBUTOR RETURN D - MJ 2003>>
                            from £352.27
                            from £352.27
                            distributor piece - D - MJ 2003>> Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99610665254
                            DISTRIBUTOR RETURN
                            from £221.07
                            from £221.07
                            DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 99610641301
                            BRACKET
                            from £2.28
                            from £2.28
                            BRACKET Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 99610641352
                            BRACKET D - MJ 2000>>
                            P008 (986 S 3,2 litres displacement) | P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            from £2.28
                            from £2.28
                            bracket - - D - MJ 2000>> Genuine Porsche Part - New (to order)
                            # 15
                            MPN: 99610641502
                            BRACKET
                            from £3.93
                            from £3.93
                            BRACKET Genuine Porsche Part - New (to order)
                            # 16
                            MPN: 90037803501
                            HEXAGON BOLT M 6 X 16
                            from £0.91
                            from £0.91
                            screw, hex. hd. - M 6 X 16 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 17
                            MPN: 99610642002
                            BRACKET
                            from £1.62
                            from £1.62
                            BRACKET Genuine Porsche Part - New (to order)
                            # 17
                            MPN: 99610642052
                            BRACKET D - MJ 2000>>
                            P008 (986 S 3,2 litres displacement) | P009 (986 2.5 litres displacement -- MY 1999 986 2.7 litres displacement MY 2000 --) | P249 (Tiptronic transmission)
                            from £3.93
                            from £3.93
                            bracket - - D - MJ 2000>> Genuine Porsche Part - New (to order)
                            # 18
                            MPN: 99610612751
                            BREATHER LINE D >>- MJ 1998
                            Breather line - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 18
                            MPN: 99610612752
                            BREATHER LINE D - MJ 1999>>
                            Breather line - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 18
                            MPN: 99610612753
                            BREATHER LINE D - MJ 2003>>
                            from £81.90
                            from £81.90
                            Breather line - D - MJ 2003>> Genuine Porsche Part - New (to order)
                            # 19
                            MPN: 99610654651
                            Y-PIECE D >>- MJ 1998
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 19
                            MPN: 99610654652
                            Y-PIECE D - MJ 1999>>
                            y-piece - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 19
                            MPN: 99610654654
                            Y-PIECE
                            Y-PIECE Genuine Porsche Part - New (to order)
                            # 19
                            MPN: 99610654655
                            Y-PIECE
                            Y-PIECE
                            Y-PIECE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                            # 19
                            MPN: 99610654656
                            Y-PIECE
                            from £36.13
                            from £36.13
                            This part replaces part number 99610654651
                            Y-PIECE Genuine Porsche Part - New (to order)
                            # 20
                            MPN: 99951258609
                            Hose clamp 20 X 12 D >>- MJ 1998
                            Hose Clamp - 20 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 20
                            MPN: 99951265309
                            Hose clamp 20 X 12 D - MJ 1999>>
                            from £2.29
                            from £2.29
                            Hose Clamp - 20 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 21
                            MPN: 99951258409
                            Hose clamp 14 X 12 D >>- MJ 1998
                            Hose Clamp - 14 X 12 - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 21
                            MPN: 99951265009
                            HOSE CLAMP 14 X 12
                            from £0.91
                            from £0.91
                            Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                            # 21
                            MPN: 99951255400
                            Hose clamp 12 - 22 D - MJ 1999>>
                            from £2.68
                            from £2.68
                            This part replaces part number 90027200302
                            Hose Clamp - SGT 12-22/9 Genuine Porsche Part - New In stock
                            # 22
                            MPN: 99610612653
                            BREATHER LINE RIGHT
                            breather line Genuine Porsche Part - New (to order)
                            # 22
                            MPN: 99610612654
                            BREATHER LINE RIGHT
                            from £71.09
                            from £71.09
                            breather line Genuine Porsche Part - New (to order)
                            # 23
                            MPN: 99610622553
                            BREATHER LINE LEFT
                            breather line Genuine Porsche Part - New (to order)
                            # 23
                            MPN: 99610622554
                            BREATHER LINE LEFT
                            from £49.93
                            from £49.93
                            breather line Genuine Porsche Part - New (to order)
                            # 24
                            MPN: 99610641200
                            BRACKET
                            from £1.62
                            from £1.62
                            BRACKET Genuine Porsche Part - New (to order)
                            # 25
                            MPN: 99610613551
                            VENT HOSE D >>- MJ 1998
                            vent hose - D >> - MJ 1998 Genuine Porsche Part - New (to order)
                            # 25
                            MPN: 99610613552
                            VENT HOSE D - MJ 1999>>
                            vent hose - D - MJ 1999>> Genuine Porsche Part - New (to order)
                            # 26
                            MPN: 99610668552
                            breather line
                            breather line Genuine Porsche Part - New (to order)
                            # 26
                            MPN: 99610668553
                            breather line
                            from £27.81
                            from £27.81
                            breather line Genuine Porsche Part - New (to order)
                            # 27
                            MPN: 99950737840
                            BRACKET
                            from £2.14
                            from £2.14
                            BRACKET Genuine Porsche Part - New (to order)
                            # 27
                            MPN: 99610642503
                            HOSE BRACKET ENGINE RETAINER FOR COOLANT HOSE D - MJ 2001>>
                            from £2.79
                            from £2.79
                            bracket for hose - engine - Retainer for coolant - hose - D - MJ 2001>> Genuine Porsche Part - New (to order)
