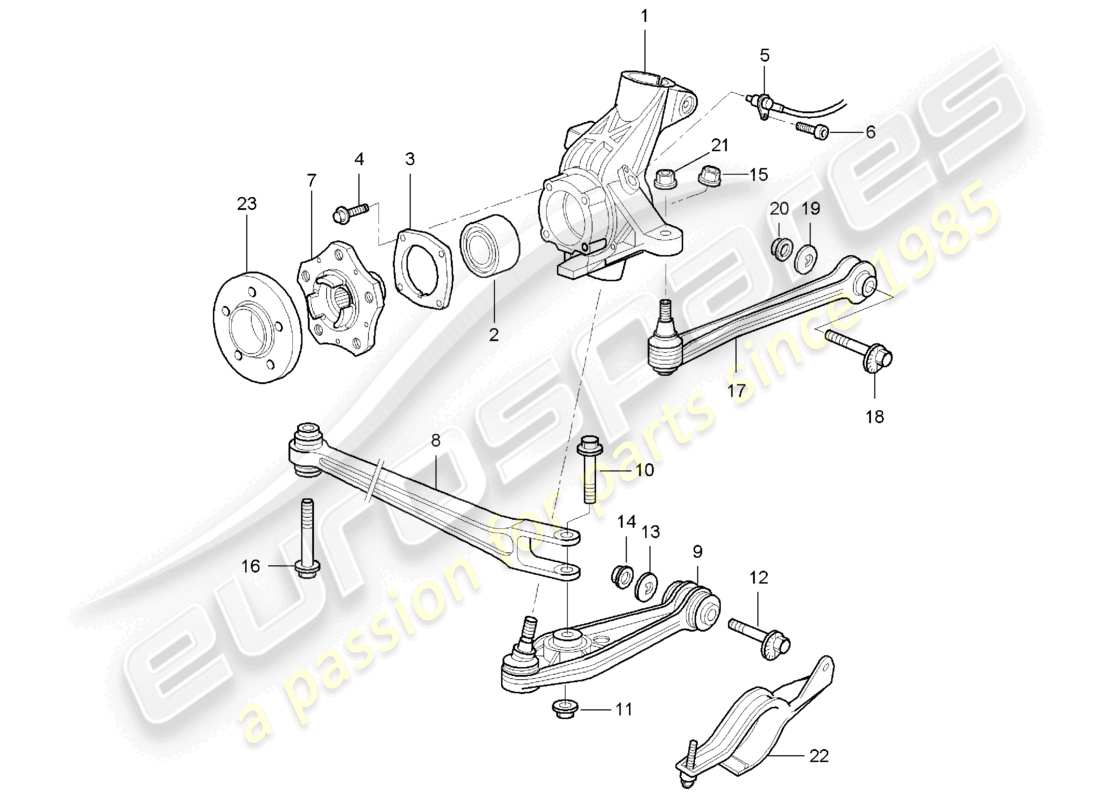

501-000 - Rear axle Wheel carrier Guide Wheel hub
Porsche 2006 (987 Boxster) Rear axle Wheel carrier Guide Wheel hub Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98733115705
WHEEL CARRIER LEFT
# 1
MPN: 98733115805
WHEEL CARRIER RIGHT
Supersession
Supersession
# 2
MPN: 99905305405
ANGULAR BALL BEARING
Supersession
Supersession
# 3
MPN: 98633166120
COVER
from £13.93
from £13.93
# 4
MPN: 99921704209
HEXAGON BOLT M 8 X 35
from £0.89
from £0.89
# 5
MPN: 99760640701
SPEED SENSOR
Supersession
Supersession
# 6
MPN: 90006711709
SOCKET HEAD BOLT M 6 X 16
# 7
MPN: 99734160501
WHEEL HUB
WHEEL HUB
Supersession
Supersession
# 7
MPN: 99134160502
WHEEL HUB
WHEEL HUB
# 7
MPN: 99134160503
WHEEL HUB
from £177.70
from £177.70
This part replaces part number 99734160501
# 8
MPN: 98733104302
GUIDE
Supersession
Supersession
# 9
MPN: 99634105317
WISHBONE F >>98-6U703 033 F >>98-6U722 298
Supersession
Supersession
# 9
MPN: 99634105318
WISHBONE F >>98-6U703 033 F >>98-6U722 298 SEE TECHNICAL INFORMATION 44/17 4X00
from £250.24
from £250.24
# 9
MPN: 99733105301
WISHBONE F 98-6U703 034>>F 98-6U722 299>>
Supersession
Supersession
# 10
MPN: 90037813509
HEXAGON BOLT M 14 X 1,5 X 75
HEXAGON BOLT M 14 X 1,5 X 75
Supersession
Supersession
# 10
MPN: 90037813501
HEXAGON BOLT M 14 X 1,5 X 75
from £7.97
from £7.97
This part replaces part number 90037813509
# 11
MPN: 90038001209
HEXAGON NUT M 14 X 1,5
HEXAGON NUT M 14 X 1,5
Supersession
Supersession
# 11
MPN: 90038001201
HEXAGON NUT M 14 X 1,5
from £1.62
from £1.62
# 12
MPN: 99633121703
ECCENTRIC BOLT M 12 X 100
Supersession
Supersession
# 12
MPN: 99633121704
ECCENTRIC BOLT M 12 X 105 SEE TECHNICAL INFORMATION GROUP: 4 NR.4238 20/07
# 13
MPN: 99633121900
ECCENTRIC WASHER
Supersession
Supersession
# 14
MPN: 99908444501
LOCKNUT M 12 X 1,5
from £2.29
from £2.29
This part replaces part number 99908444509
# 15
MPN: 99908444909
LOCKNUT M 12 X 1,5
from £2.29
from £2.29
# 16
MPN: 90037820909
HEXAGON BOLT M 14 X 1,5 X 90
# 16
MPN: 98633102300
SPEED NUT
from £14.68
from £14.68
# 17
MPN: 99633104512
Track rod D - MJ 2005>>- MJ 2005
Track rod D - MJ 2005>>- MJ 2005
Supersession
Supersession
# 17
MPN: 99733104504
TRACK ROD D - MJ 2006>>
Supersession
Supersession
# 18
MPN: 99633121702
ECCENTRIC BOLT M 12 X 83
# 19
MPN: 99633121900
ECCENTRIC WASHER
Supersession
Supersession
# 20
MPN: 99908444501
LOCKNUT M 12 X 1,5
from £2.29
from £2.29
This part replaces part number 99908444509
# 21
MPN: 99908444909
LOCKNUT M 12 X 1,5
from £2.29
from £2.29
# 22
MPN: 98733137102
BRACKET LEFT
P601 (Xenon lighting system)
from £7.25
from £7.25
# 23
MPN: 99736160590
SPACER RING 5 MM
PXRP (5-mm spacers, front/rear)
from £91.80
from £91.80
This part replaces part number 99736160592
