porsche 2007 (987 boxster) fuel collection pipe parts diagram

107-005 - FUEL COLLECTION PIPE

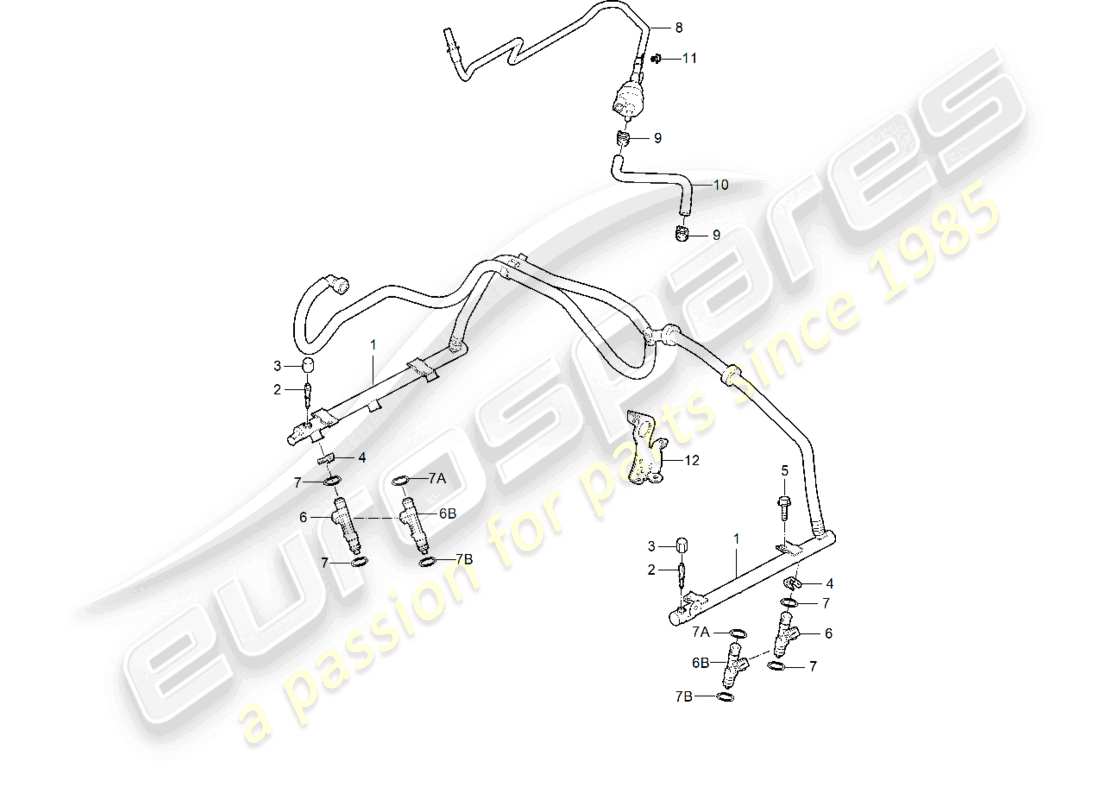

Porsche 2007 (987 Boxster) Fuel collection pipe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 98711003600
                      FUEL COLLECTION PIPE
                      9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006)
                      from £206.31
                      from £206.31
                      FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                      # 1
                      MPN: 98711003101
                      FUEL COLLECTION PIPE
                      9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                      FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                      # 2
                      MPN: 99311021700
                      VALVE
                      from £10.15
                      from £10.15
                      VALVE Genuine Porsche Part - New (to order)
                      # 3
                      MPN: 99711021800
                      CAP CLOSURE
                      from £7.65
                      from £7.65
                      CAP Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 99611011352
                      Retaining Clip
                      Retaining Clip Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 90038504109
                      TORX SCREW M 6 X 12
                      TORX SCREW - BM 6 X 12 Genuine Porsche Part - New (to order)
                      # 6
                      MPN: 99660612200
                      Injection valve also use: 12X 999 707 574 40
                      9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006)
                      from £255.97
                      from £255.97
                      injector - D - MJ 2001>> Genuine Porsche Part - New (to order)
                      # 6B
                      MPN: 99760512300
                      INJECTION VALVE ALSO USE: 6X 999 707 574 40 6X 999 707 573 40
                      9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                      from £177.54
                      from £177.54
                      INJECTOR Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99970757440
                      O-RING 7,52 X 3,51
                      from £6.77
                      from £6.77
                      O-RING Genuine Porsche Part - New In stock
                      # 7A
                      MPN: 99970757440
                      O-RING 7,52X3,51 FOR UPPER INJECTION VALVE (6A)
                      from £6.77
                      from £6.77
                      O-RING Genuine Porsche Part - New In stock
                      # 7B
                      MPN: 99970757340
                      O-RING 8,3X3,05 FOR LOWER INJECTION VALVE (6A)
                      from £5.17
                      from £5.17
                      O-RING Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 98711012800
                      breather line
                      breather line Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 99951265009
                      HOSE CLAMP B 14 X 12
                      from £0.91
                      from £0.91
                      Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 98711013702
                      VENT HOSE
                      9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006)
                      from £21.20
                      from £21.20
                      VENT HOSE Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 98711023700
                      HOSE TANK VENTILATION
                      9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                      from £33.28
                      from £33.28
                      HOSE Genuine Porsche Part - New (to order)
                      # 12
                      MPN: 99610121356
                      RETAINING BAR
                      9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006)
                      RETAINER - DISCONTINUED PART Genuine Porsche Part - New (to order)
