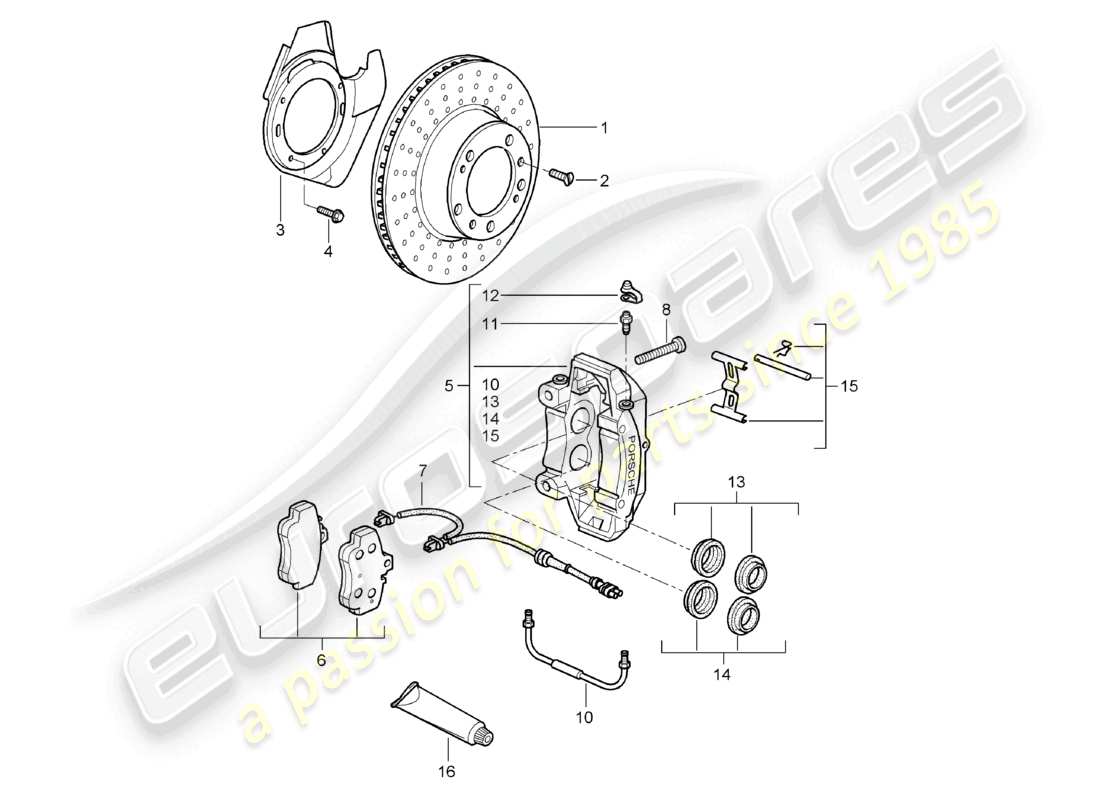

602-000 - Disc Brake Front Axle

Porsche 2007 (987 Boxster) Disc brake Front axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # -
        -
        BRAKE DISC (USE IN PAIRS ONLY) OBSERVE TECHNICAL SERVICE HANDBOOK:
        P450 (Ceramic brake (PCCB))
        # 1
        MPN: 98735140101
        BRAKE DISC LEFT FRONT ALSO USE: 1X 000 043 305 08 1X 987 351 402 01 4X 900 269 047 01 4X 999 073 402 01 1X 987 351 939 04 1X 997 612 755 01 1X 997 612 757 01 1X 996 352 959 01
        from £264.45
        from £264.45
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635140501
        Brake disc left front also use: 1X 996 351 406 01 1X 000 043 305 08 4X 900 269 047 01 1X 997 351 939 07 1X 997 612 756 01 1X 997 612 759 01 1X 955 352 960 00
        Boxster S
        from £274.40
        from £274.40
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635103103
        BRAKE DISC LEFT FRONT D >>- MJ 2007
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 98135103101
        BRAKE DISC LEFT FRONT ALSO USE: 1X 000 043 305 08 1X 981 351 032 01 4X 900 269 047 01 1X 997 351 948 03 1X 997 612 675 02 1X 997 612 679 01 1X 996 351 959 30 4X 999 067 053 09
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £4,335.82
        from £4,335.82
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635103104
        Brake disc left front D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99735103101
        Brake disc left front D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 98735140201
        brake disc right front
        from £264.45
        from £264.45
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635140601
        brake disc right front
        Boxster S
        from £274.40
        from £274.40
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635103203
        BRAKE DISC RIGHT FRONT D >>- MJ 2007
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99635103204
        Brake disc right front D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 1
        MPN: 99735103201
        Brake disc right front D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        BRAKE DISC Genuine Porsche Part - New (to order)
        # 2
        MPN: 90026904709
        countersunk bolt M 6 X 12
        countersunk bolt M 6 X 12
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 2
        MPN: 90026904701
        countersunk bolt M 6 X 12
        from £0.59
        from £0.59
        This part replaces part number 90026904709
        SCREW, COUNTERSUNK HD. - M 6 X 12 - D - MJ 2004>> Genuine Porsche Part - New In stock
        # 3
        MPN: 99735180102
        COVER PLATE LEFT
        from £29.42
        from £29.42
        COVER PLATE Genuine Porsche Part - New (to order)
        # 3
        MPN: 99735180202
        COVER PLATE RIGHT
        from £29.42
        from £29.42
        COVER PLATE Genuine Porsche Part - New (to order)
        # 3
        MPN: 99735180505
        COVER PLATE LEFT
        P450 (Ceramic brake (PCCB))
        from £29.42
        from £29.42
        COVER PLATE Genuine Porsche Part - New (to order)
        # 3
        MPN: 99735180605
        COVER PLATE RIGHT
        P450 (Ceramic brake (PCCB))
        from £29.42
        from £29.42
        COVER PLATE Genuine Porsche Part - New (to order)
        # 4
        MPN: 99921711609
        HEXAGON BOLT M 6 X 16
        SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
        # 5
        MPN: 98635142103
        caliper without brake pads left
        from £486.93
        from £486.93
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 5
        MPN: 99635142511
        caliper without brake pads left
        Boxster S
        from £747.05
        from £747.05
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 5
        MPN: 99635143130
        CALIPER WITHOUT BRAKE PADS LEFT D >>- MJ 2007
        BOXSTER S, P450 (Ceramic brake (PCCB))
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 5
        MPN: 99635143131
        CALIPER WITHOUT BRAKE PADS LEFT D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £1,153.82
        from £1,153.82
        This part replaces part number 99635143130
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 5
        MPN: 98635142203
        caliper without brake pads right
        from £486.93
        from £486.93
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 5
        MPN: 99635142611
        caliper without brake pads right
        Boxster S
        from £747.05
        from £747.05
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 5
        MPN: 99635143230
        CALIPER WITHOUT BRAKE PADS RIGHT D >>- MJ 2007
        BOXSTER S, P450 (Ceramic brake (PCCB))
        calliper without brake pads - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 5
        MPN: 99635143231
        CALIPER WITHOUT BRAKE PADS RIGHT D - MJ 2008>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £1,153.82
        from £1,153.82
        CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
        # 6
        MPN: 98735193902
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE
        from £104.88
        from £104.88
        1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
        # 6
        MPN: 98735193903
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE
        Boxster
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 6
        MPN: 99735193905
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE ALSO USE: 1X 997 612 756 00 1X 997 612 759 00 1X 955 352 960 00 SEE TECHNICAL MANUAL GROUP: 46 NR. 3619
        Boxster S
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 6
        MPN: 99735193907
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE FRONT AXLE 1X 997 612 756 00 ALSO USE: 1X 997 612 759 00 1X 955 352 960 00 SEE TECHNICAL MANUAL 46 GROUP: NR. 3619
        Boxster S
        from £185.96
        from £185.96
        This part replaces part number 99735193905
        1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New In stock
        # 6
        MPN: 99635194701
        1 set of brake pads for front disk brake See technical manual Group: 46 34 20 also use: Fasteners F >>98-6U722 485
        1 set of brake pads for front disk brake See technical manual Group: 46 34 20 also use: Fasteners F >>98-6U722 485
        1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
        # 6
        MPN: 99735194800
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE SEE TECHNICAL MANUAL GROUP: 46 34 20 ALSO USE: FASTENERS F 98-6U722 486>>
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE SEE TECHNICAL MANUAL GROUP: 46 34 20 ALSO USE: FASTENERS F 98-6U722 486>>
        1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
        # 6
        MPN: 99735194801
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE SEE TECHNICAL MANUAL GROUP: 46 34 20 ALSO USE: FASTENERS F 98-6U722 486>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 6
        MPN: 99735194803
        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE SEE TECHNICAL MANUAL GROUP: 46 34 20 ALSO USE: FASTENERS F 98-6U722 486>>
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £609.94
        from £609.94
        This part replaces part number 99735194801
        1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
        # 6
        MPN: 98735108800
        DAMPING PLATE
        DAMPING PLATE
        DAMPING PLATE Genuine Porsche Part - New (to order)
        # 6
        MPN: 98735108801
        DAMPING PLATE
        Boxster
        from £14.32
        from £14.32
        DAMPING PLATE Genuine Porsche Part - New (to order)
        # 6
        MPN: 99635108801
        DAMPING PLATE
        DAMPING PLATE
        from £14.85
        from £14.85
        DAMPING PLATE Genuine Porsche Part - New (to order)
        # 6
        MPN: 99635108802
        DAMPING PLATE
        Boxster S
        from £11.24
        from £11.24
        DAMPING PLATE Genuine Porsche Part - New (to order)
        # 6
        MPN: 99635208601
        Damping plate See technical manual Group: 46 34 20 F >>98-6U722 485
        Damping plate See technical manual Group: 46 34 20 F >>98-6U722 485
        Damping plate - D - MJ 2004>> - Discontinued part Genuine Porsche Part - New (to order)
        # 6
        MPN: 99635208602
        Damping plate See technical manual Group: 46 34 20 F >>98-6U722 485
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £12.79
        from £12.79
        Damping plate - D - MJ 2004>> Genuine Porsche Part - New In stock
        # 7
        MPN: 99761275500
        SENDER WIRE LEFT (PAD WEAR INDICATOR)
        Boxster
        from £30.35
        from £30.35
        SENDER WIRE Genuine Porsche Part - New (to order)
        # 7
        MPN: 99761275700
        SENDER WIRE RIGHT (PAD WEAR INDICATOR)
        Boxster
        from £30.35
        from £30.35
        SENDER WIRE Genuine Porsche Part - New (to order)
        # 7
        MPN: 99761275600
        SENDER WIRE LEFT (PAD WEAR INDICATOR) SEE TECHNICAL MANUAL GROUP: 46 3619
        Boxster S
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 7
        MPN: 99761275900
        SENDER WIRE RIGHT (PAD WEAR INDICATOR) SEE TECHNICAL MANUAL GROUP: 46 36 19
        Boxster S
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 7
        MPN: 99761267501
        SENDER WIRE LEFT (PAD WEAR INDICATOR)
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £30.35
        from £30.35
        SENDER WIRE Genuine Porsche Part - New (to order)
        # 7
        MPN: 99761267900
        SENDER WIRE RIGHT (PAD WEAR INDICATOR)
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £30.35
        from £30.35
        SENDER WIRE Genuine Porsche Part - New (to order)
        # 8
        MPN: 99906704109
        SOCKET HEAD BOLT M 12 X 1,5 X 72
        SOCKET HEAD BOLT M 12 X 1,5 X 72
        SCREW, CHEESE HD Genuine Porsche Part - New (to order)
        # 8
        MPN: 99906704101
        SOCKET HEAD BOLT M 12 X 1,5 X 72
        SCREW, CHEESE HD Genuine Porsche Part - New (to order)
        # 8
        MPN: 99906704709
        SOCKET HEAD BOLT M 12 X 1,5 X 85
        BOXSTER S, P450 (Ceramic brake (PCCB))
        screw, cheese hd. - M 12 X 1,5 X 85 - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 8
        MPN: 94461262700
        LINE HOLDER FOR SENDER WIRE (PAD WEAR INDICATOR)
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 10
        MPN: 99635296200
        Connecting line left
        connecting line Genuine Porsche Part - New (to order)
        # 10
        MPN: 99635296100
        Connecting line right
        from £32.62
        from £32.62
        connecting line Genuine Porsche Part - New (to order)
        # 10
        MPN: 99635196100
        Connecting line left
        Boxster S
        from £39.98
        from £39.98
        connecting line Genuine Porsche Part - New (to order)
        # 10
        MPN: 99635196200
        Connecting line right
        Boxster S
        from £39.98
        from £39.98
        connecting line Genuine Porsche Part - New (to order)
        # 10
        MPN: 99635196130
        connecting line
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £39.98
        from £39.98
        Connecting line - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 11
        MPN: 93035191900
        BREATHER VALVE
        from £13.16
        from £13.16
        bleeder valve - with: - dust cap Genuine Porsche Part - New (to order)
        # 12
        MPN: 93035192700
        DUST CAP
        DUST CAP
        dust cap - Discontinued part Genuine Porsche Part - New (to order)
        # 12
        MPN: 93035192701
        DUST CAP
        from £1.73
        from £1.73
        DUST CAP Genuine Porsche Part - New (to order)
        # 13
        MPN: 95135191701
        REPAIR SET 1 SET PROTECTIVE CAPS 40 MM $
        from £20.05
        from £20.05
        repair kit Genuine Porsche Part - New (to order)
        # 13
        MPN: 99635191501
        REPAIR SET 1 SET PROTECTIVE CAPS 38 MM $
        BOXSTER S, P450 (Ceramic brake (PCCB))
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
        # 13
        MPN: 95135291700
        REPAIR SET 1 SET PROTECTIVE CAPS 28 MM $
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £12.52
        from £12.52
        repair kit - Protection caps - 28 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 14
        MPN: 95135191700
        REPAIR SET 1 SET PROTECTIVE CAPS 36 MM $
        from £20.05
        from £20.05
        repair kit - Protection caps - 36 MM $ - D >> - MJ 2002 Genuine Porsche Part - New (to order)
        # 14
        MPN: 99635191500
        REPAIR SET 1 SET PROTECTIVE CAPS 32 MM $
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £13.98
        from £13.98
        repair kit - Protection caps - 32 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 15
        MPN: 99635295901
        REPAIR SET FASTENERS PIN 2X CUP EXPANDER SPRING 2X SECURING BARS 2X
        from £37.82
        from £37.82
        repair kit Genuine Porsche Part - New In stock
        # 15
        MPN: 95535296000
        REPAIR SET FOR REAR AXLE FASTENERS PIN 2X CUP EXPANDER SPRING 2X SECURING BARS 2X SEE TECHNICAL MANUAL GROUP: 46 36 19
        Boxster S
        from £44.78
        from £44.78
        Clip & pin repair set Genuine Porsche Part - New (to order)
        # 15
        MPN: 99635195930
        repair set Fasteners Pin 2X Cup expander spring 2X Socket head bolt 2X
        BOXSTER S, P450 (Ceramic brake (PCCB))
        from £54.54
        from £54.54
        repair kit - fasteners - pin - screw - speader spring - D - MJ 2004>> Genuine Porsche Part - New (to order)
        # 16
        MPN: 00004311700
        BRAKE CYLINDER PASTE 50 G
        brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
        # 16
        MPN: 00004302000
        ASSEMBLY PASTE 100 G
        Supersession
        Supersession
        Genuine Porsche Part (no longer available to order)
