porsche 2008 (987 boxster) crankshaft parts diagram

102-000 - crankshaft

Porsche 2008 (987 Boxster) Crankshaft Parts Diagram

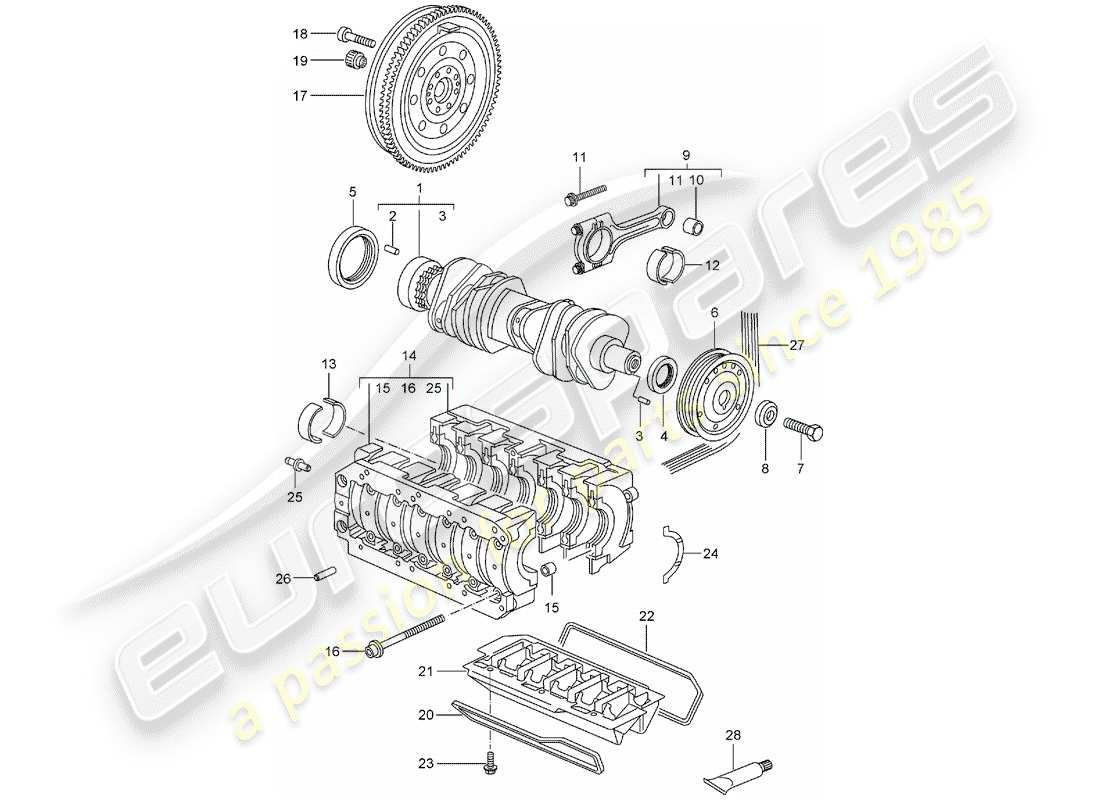

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 99610201158
                                          crankshaft
                                          from £4,038.82
                                          from £4,038.82
                                          crankshaft - ZAHNKETTE - See technical information - see main group 1 (engine) - NR. 8/00 - D - MJ 2001>> - MJ 2002 Genuine Porsche Part - New (to order)
                                          # 1
                                          MPN: 98710201003
                                          crankshaft
                                          9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                          from £4,345.01
                                          from £4,345.01
                                          crankshaft Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: 90009503101
                                          SPRING PIN 6,0 X 16
                                          from £1.73
                                          from £1.73
                                          PIN - 6,0 X 16 Genuine Porsche Part - New (to order)
                                          # 3
                                          MPN: 90030202100
                                          CYLINDER PIN A 4,0 X 10
                                          from £2.77
                                          from £2.77
                                          dowel pin - A 4,0 X 10 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 4
                                          MPN: 99911347540
                                          SHAFT OIL SEAL 40 X 62 X 10
                                          from £24.81
                                          from £24.81
                                          seal - 40 X 62 X10 Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 99911349040
                                          SHAFT OIL SEAL 85X105X11
                                          SHAFT OIL SEAL 85X105X11
                                          SEAL - NO LONGER USE THE PART HERE Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 99710121200
                                          SHAFT OIL SEAL 85X105X11
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 6
                                          MPN: 99610211563
                                          PULLEY
                                          from £141.77
                                          from £141.77
                                          PULLEY Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: 90008208509
                                          HEXAGON BOLT M 16 X 1,5 X 60
                                          SCREW, HEX. HD. - M 16 X 1,5 X 60 Genuine Porsche Part - New (to order)
                                          # 8
                                          MPN: 99610231551
                                          PRESSURE WASHER
                                          THRUST WASHER Genuine Porsche Part - New (to order)
                                          # 9
                                          MPN: 99610397502
                                          CONROD 1 SET: CONNECTING RODS COMPRISING: 6 X CONROD SEE WORKSHOP MANUAL 987 GR.1-1
                                          from £1,184.41
                                          from £1,184.41
                                          CONNECTING ROD Genuine Porsche Part - New (to order)
                                          # 10
                                          MPN: 99610311151
                                          BUSH - CONNECTING ROD REWORK REQUIRED
                                          from £22.11
                                          from £22.11
                                          BUSHING-CONNECTING ROD Genuine Porsche Part - New (to order)
                                          # 11
                                          MPN: 99710311501
                                          BOLT - CONNECTING ROD
                                          from £5.78
                                          from £5.78
                                          BOLT - CONNECTING ROD Genuine Porsche Part - New In stock
                                          # 12
                                          MPN: 99610312162
                                          CONNECTING ROD BEARING SHELL
                                          from £9.69
                                          from £9.69
                                          CONNECTING ROD BEARING SHELL Genuine Porsche Part - New In stock
                                          # 13
                                          MPN: 98710120501
                                          CRANKSHAFT BEARING
                                          CRANKSHAFT BEARING
                                          CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 99610120510
                                          CRANKSHAFT BEARING
                                          9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006) | 9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008)
                                          from £19.44
                                          from £19.44
                                          CRANKSHAFT BEARING - RASTZUNGE Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 99610120510
                                          CRANKSHAFT BEARING ALSO USE: 996 101 007 09
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006)
                                          from £19.44
                                          from £19.44
                                          CRANKSHAFT BEARING - RASTZUNGE Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 99610120904
                                          CRANKSHAFT BEARING
                                          9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                          from £33.93
                                          from £33.93
                                          CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 98710100720
                                          Bearing housing only in conj. with: 987.101.205.01
                                          Bearing housing only in conj. with: 987.101.205.01
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 99610100709
                                          BEARING HOUSING
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006) | 9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008)
                                          from £2,049.17
                                          from £2,049.17
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 99610100722
                                          BEARING HOUSING
                                          BEARING HOUSING
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 99610100723
                                          BEARING HOUSING
                                          9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                          from £2,074.86
                                          from £2,074.86
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 15
                                          MPN: 99909506400
                                          DOWEL SLEEVE 12 M 6 X 13
                                          from £2.68
                                          from £2.68
                                          SLEEVE - 12 M 6 X 13 Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 99610111560
                                          SCREW M >>615 06313
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006)
                                          from £5.31
                                          from £5.31
                                          SCREW Genuine Porsche Part - New In stock
                                          # 16
                                          MPN: 99610111561
                                          12-point head bolt M 615 06314 >>
                                          12-point head bolt M 615 06314 >>
                                          SCREW Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 99610111561
                                          12-point head bolt for Bearing housing
                                          12-point head bolt for Bearing housing
                                          SCREW Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 99610111559
                                          12-point head bolt for Bearing housing
                                          9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006)
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 17
                                          MPN: 98611401205
                                          DUAL-MASS FLYWHEEL
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) with, P481 (5th-speed manual transmission)
                                          from £993.59
                                          from £993.59
                                          DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                          # 17
                                          MPN: 98611401206
                                          DUAL-MASS FLYWHEEL
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006) | 9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) with, P480 (6-speed manual transmission)
                                          from £993.59
                                          from £993.59
                                          DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                          # 17
                                          MPN: 98611401206
                                          DUAL-MASS FLYWHEEL
                                          9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008) with, P480 (6-speed manual transmission)
                                          from £993.59
                                          from £993.59
                                          DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                          # 18
                                          MPN: 99907309209
                                          SOCKET HEAD BOLT M 10 X 1 X 50
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 19
                                          MPN: 034105313A
                                          NEEDLE BEARING -
                                          from £64.05
                                          from £64.05
                                          NEEDLE BEARING - Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 99610124151
                                          SEAL
                                          from £37.82
                                          from £37.82
                                          GASKET Genuine Porsche Part - New (to order)
                                          # 21
                                          MPN: 99610111000
                                          oil separator
                                          from £44.55
                                          from £44.55
                                          oil separator Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: 99610124251
                                          SEAL
                                          from £37.82
                                          from £37.82
                                          GASKET Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: 90038505009
                                          TORX SCREW M 6 X 16
                                          TORX SCREW M 6 X 16
                                          TORX SCREW Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: 90038505001
                                          HEXAGON HEAD BOLT M 6 X 16
                                          from £3.75
                                          from £3.75
                                          HEXAGON HEAD BOLT Genuine Porsche Part - New In stock
                                          # 24
                                          MPN: 99610112952
                                          THRUST WASHER
                                          9625 (2.7 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 9625 and installed 08/2004-07/2006) | 9626 (3.2 Litre 6 Cyliner Engine (280 Horsepower / 206 Kilowatt with Engine Code: 9626 and installed 08/2004-07/2006) | 9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008)
                                          from £9.37
                                          from £9.37
                                          thrust washer - D >> - MJ 2001 Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: 99610113200
                                          THRUST WASHER
                                          9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2006-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 25
                                          MPN: 99610111754
                                          CYLINDER PIN
                                          DOWEL PIN Genuine Porsche Part - New (to order)
                                          # 26
                                          MPN: 99610101851
                                          OIL SPRAY JET
                                          from £10.76
                                          from £10.76
                                          oil spray jet - M 20 X 1,5 Genuine Porsche Part - New (to order)
                                          # 27
                                          -
                                          POLY-V-BELT SEE ILLUSTRATION, ITEM: 101-010,23
