803-007 - REAR SPOILER

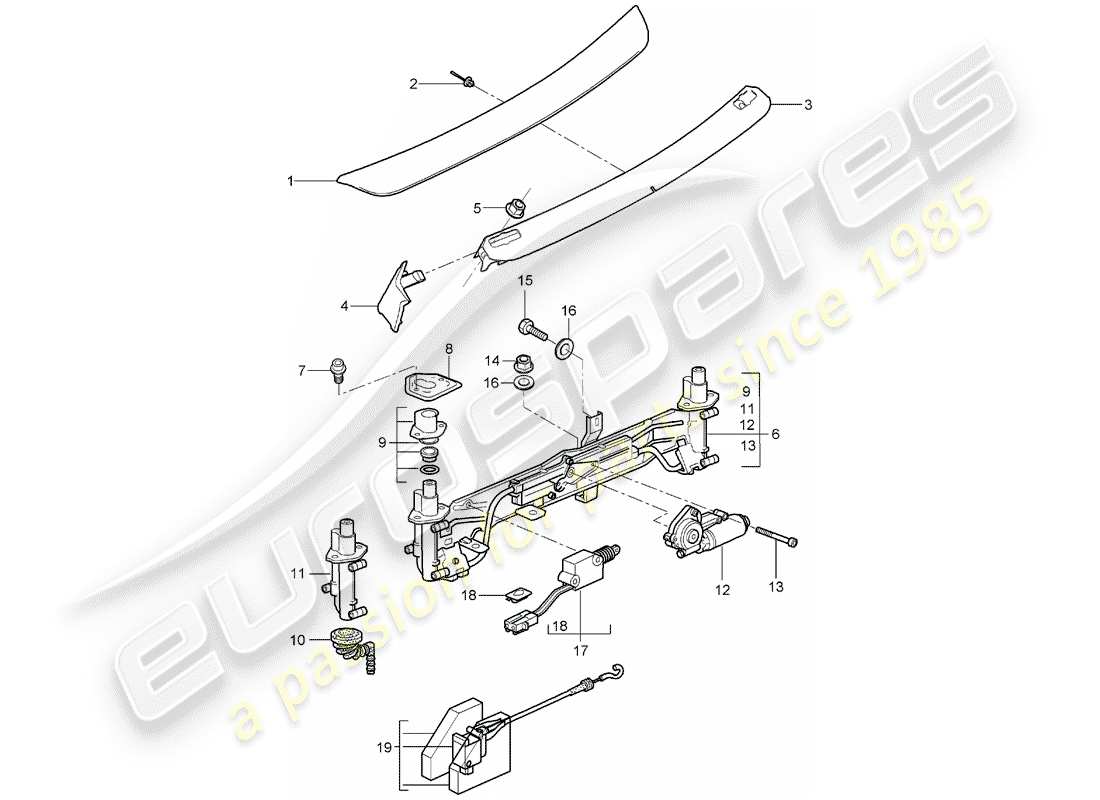

Porsche 2008 (987 Boxster) Rear spoiler Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98750460900G2X
SPOILER - PRIMED
from £149.74
from £149.74
This part replaces part number 98750460900
# 1
MPN: 98750498101
SPOILER PRIMED D - MJ 2006>>- MJ 2008
PXAL (Aerokit Boxster)
from £1,714.03
from £1,714.03
# 2
MPN: 99950749940
SPREADER RIVET 5,0 X 11,5
from £0.65
from £0.65
# 3
MPN: 98750461300
CARRIER D >>- MJ 2005
# 3
MPN: 98750461301
CARRIER UPPER PART D - MJ 2006>>
from £168.36
from £168.36
# 4
MPN: 98750461500
COVER LEFT CARRIER
from £5.66
from £5.66
# 4
MPN: 98750461600
COVER RIGHT CARRIER
from £5.66
from £5.66
# 5
MPN: 90037700302
HEXAGON NUT CARRIER M8
Supersession
Supersession
# 6
MPN: 98750410900
DRIVE UNIT (COMPLETE)
# 7
MPN: 99921801602
Bolt with washer M 6 X 16 Micro-self-locking
Bolt with washer M 6 X 16 Micro-self-locking
# 7
MPN: 99921801601
Bolt with washer M 6 X 16 Micro-self-locking
from £6.69
from £6.69
# 8
MPN: 98650425100
SECURING PLATE
from £54.48
from £54.48
# 9
MPN: 98750441300
GASKET SET TOGGLE CATCH
from £79.24
from £79.24
# 10
MPN: 98750441500
WATER DRAINAGE HOSE
from £19.63
from £19.63
# 11
MPN: 98750441100
TOGGLE CATCH
from £161.87
from £161.87
# 12
MPN: 99662415100
electric motor
from £327.76
from £327.76
# 13
MPN: 90007436402
HEXAGON BOLT M 5 X 55 MICRO-SELF-LOCKING
from £2.68
from £2.68
# 14
MPN: 99908462909
HEXAGON NUT M 6
# 15
MPN: 90007548509
HEXAGON BOLT M 6 X 16
from £1.04
from £1.04
# 16
MPN: 90003500109
WASHER
from £0.63
from £0.63
# 17
MPN: 99662411701
THROTTLE CONTROL ELEMENT REAR COVER
from £74.61
from £74.61
# 18
MPN: 99950743440
BRACKET FOR CONNECTOR HOUSING
from £1.04
from £1.04
# 19
MPN: 98751211700
THROTTLE CONTROL ELEMENT
