porsche 2008 (987 boxster) loudspeaker parts diagram

911-005 - loudspeaker

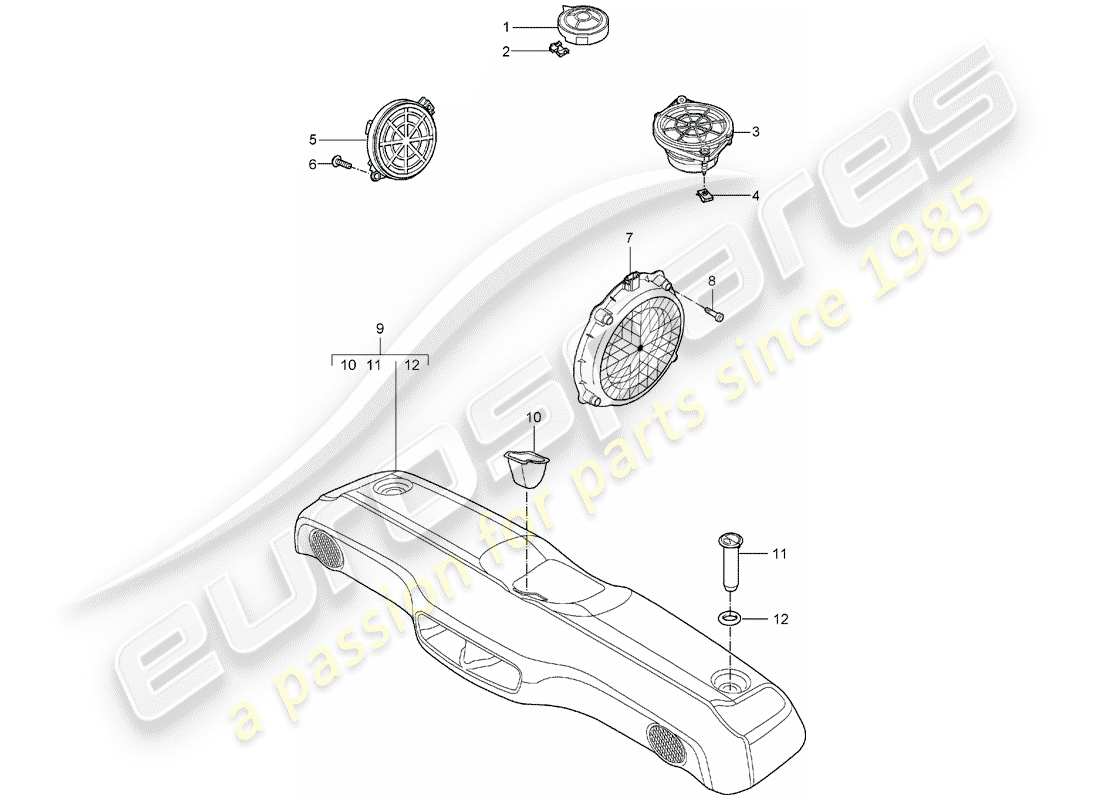

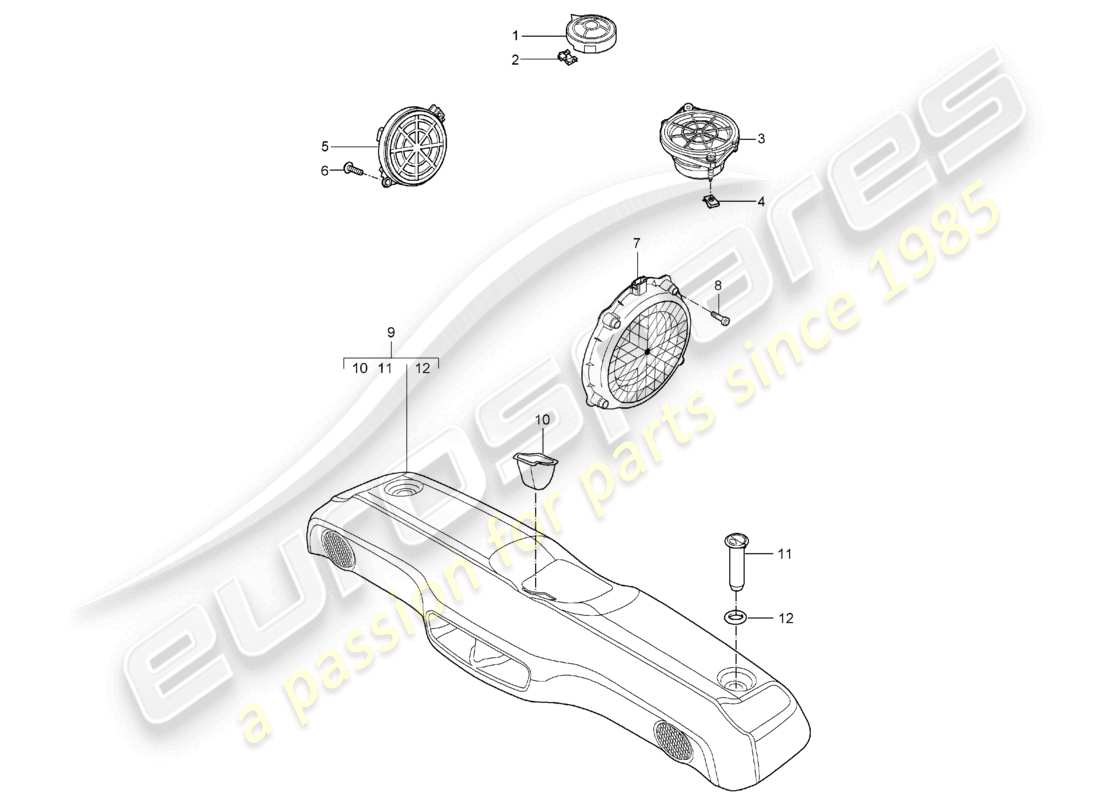

Porsche 2008 (987 Boxster) Loudspeaker Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 99764502100
          TREBLE SPEAKER DASHBOARD
          P441 (prepared for radio) | P490 (Sound system ASK)
          from £51.56
          from £51.56
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 1
          MPN: 99764502500
          TREBLE SPEAKER DASHBOARD
          P680 (BOSE sound package)
          from £77.39
          from £77.39
          LOUDSPEAKER TWEETER Genuine Porsche Part - New (to order)
          # 2
          MPN: 99959130301
          U-CLIP
          from £1.10
          from £1.10
          U-CLIP Genuine Porsche Part - New (to order)
          # 3
          MPN: 99764503300
          LOUDSPEAKER CENTER DASHBOARD
          P490 (Sound system ASK)
          from £64.53
          from £64.53
          loudspeaker Genuine Porsche Part - New (to order)
          # 3
          MPN: 99764503500
          LOUDSPEAKER CENTER DASHBOARD
          P680 (BOSE sound package)
          from £121.06
          from £121.06
          loudspeaker Genuine Porsche Part - New (to order)
          # 4
          MPN: 99950797101
          panel nut 4,2
          from £0.59
          from £0.59
          SPEED NUT Genuine Porsche Part - New (to order)
          # 5
          MPN: 99764554300
          MID TONE SPEAKER DOOR
          P490 (Sound system ASK)
          from £51.56
          from £51.56
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 5
          MPN: 99764554500
          MID TONE SPEAKER DOOR
          P680 (BOSE sound package)
          from £129.61
          from £129.61
          MID-RANGE SPEAKER Genuine Porsche Part - New (to order)
          # 6
          MPN: 99991916409
          FILLISTER HD. BOLT 5,0 X 12
          from £0.59
          from £0.59
          fillister hd. screw - M 5 X 12 Genuine Porsche Part - New (to order)
          # 7
          MPN: 99764555100
          BASS LOUDSPEAKER
          P441 (prepared for radio)
          from £51.56
          from £51.56
          WOOFER Genuine Porsche Part - New (to order)
          # 7
          MPN: 99764555300
          BASS LOUDSPEAKER
          P490 (Sound system ASK)
          from £85.92
          from £85.92
          WOOFER Genuine Porsche Part - New (to order)
          # 7
          MPN: 99764555500
          BASS LOUDSPEAKER
          P680 (BOSE sound package)
          from £313.14
          from £313.14
          WOOFER Genuine Porsche Part - New (to order)
          # 8
          MPN: 90006701203
          SOCKET HEAD BOLT M 6 X 30
          from £1.10
          from £1.10
          screw, cheese hd. - M 6 X 30 - D - MJ 1986>> Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401A10
          SUBWOOFER - BLACK
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          Black Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401B10
          SUBWOOFER - STONE GREY
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          STONE GREY Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401T10
          SUBWOOFER - SAND BEIGE
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          SAND BEIGE Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401E10
          SUBWOOFER - SEA BLUE
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          sea blue Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401J10
          SUBWOOFER - PALM GREEN
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          PALM GREEN Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401M10
          SUBWOOFER - TERRACOTTA
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          TERRACOTTA Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401R10
          SUBWOOFER - COCOA
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          COCOA Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401D11
          SUBWOOFER - DARK GREY/NATURAL
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          DARK GREY/NATURAL Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401T11
          SUBWOOFER - BROWN/NATURAL
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          BROWN/NATURAL Genuine Porsche Part - New (to order)
          # 9
          MPN: 98764556401N10
          SUBWOOFER - CARRERA RED
          P680 (BOSE sound package)
          from £962.30
          from £962.30
          This part replaces part number 98764556401
          CARRERA RED Genuine Porsche Part - New (to order)
          # 10
          MPN: 9865514270001C
          ROSETTE - SATIN BLACK FOR SUBWOOFER 987 645 564 00 ... F >>98-5S700 089 F >>98-5S720 072 F >>98-5U721 685
          P680 (BOSE sound package)
          from £4.48
          from £4.48
          This part replaces part number 98655142700
          SATIN BLACK Genuine Porsche Part - New (to order)
          # 10
          MPN: 9875514270001C
          ROSETTE - SATIN BLACK FOR SUBWOOFER 987 645 564 01 ... F 98-5S700 090>>F 98-5S720 073>>F 98-5U721 686>>
          P680 (BOSE sound package)
          from £3.14
          from £3.14
          This part replaces part number 98755142700
          SATIN BLACK Genuine Porsche Part - New (to order)
          # 11
          MPN: 9865514290001C
          CATCH - SATIN BLACK
          P680 (BOSE sound package)
          from £9.13
          from £9.13
          This part replaces part number 98655142900
          CATCH satin black Genuine Porsche Part - New (to order)
          # 12
          MPN: 9865515430001C
          PRESSURE WASHER - SATIN BLACK
          P680 (BOSE sound package)
          from £2.68
          from £2.68
          This part replaces part number 98655154300
          THRUST WASHER satin black Genuine Porsche Part - New (to order)
