202-000 - Exhaust System

Porsche 2009 (987 Boxster) exhaust system Parts Diagram

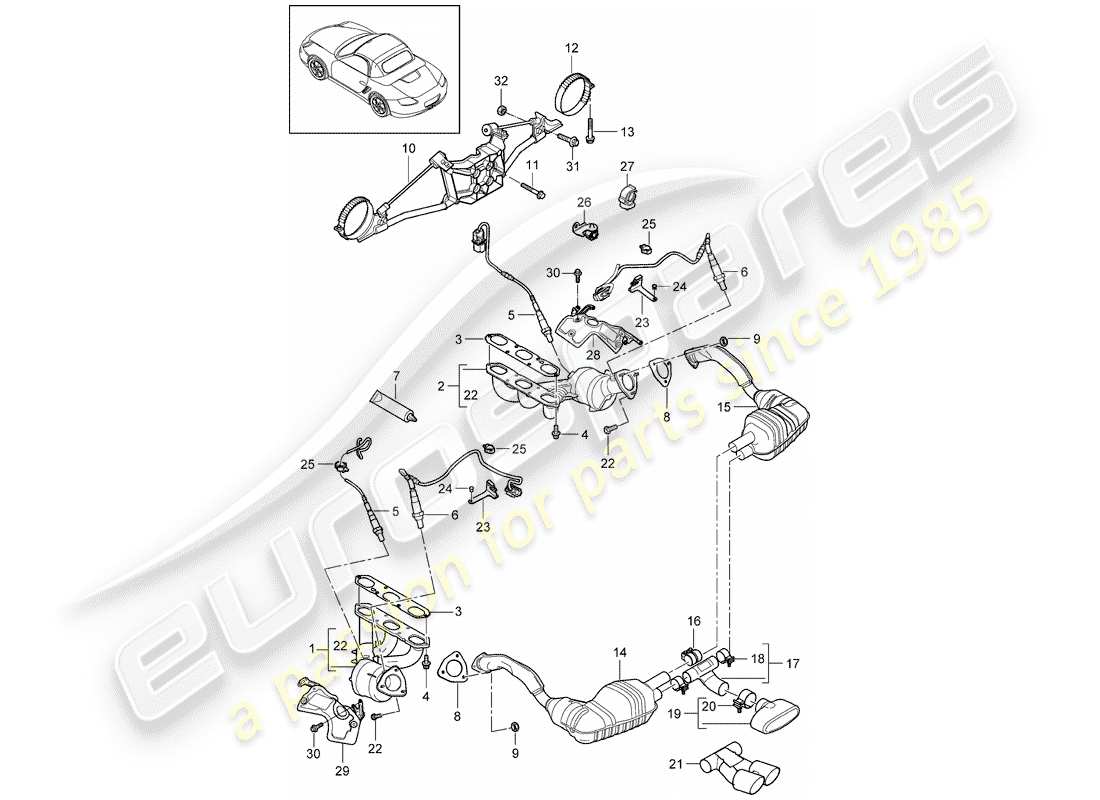

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 98711310133
                                                EXHAUST MANIFOLDS CYLINDERS 4-6
                                                from £1,362.24
                                                from £1,362.24
                                                EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                                # 1
                                                MPN: 987113101AX
                                                EXHAUST MANIFOLDS CYLINDERS 4-6
                                                from £2,264.21
                                                from £2,264.21
                                                EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                                # 2
                                                MPN: 98711310233
                                                EXHAUST MANIFOLDS CYLINDERS 1-3
                                                from £2,609.72
                                                from £2,609.72
                                                EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                                # 2
                                                MPN: 987113102AX
                                                EXHAUST MANIFOLDS CYLINDERS 1-3
                                                from £2,264.21
                                                from £2,264.21
                                                EXHAUST MANIFOLD Genuine Porsche Part - New (to order)
                                                # 3
                                                MPN: 99711110730
                                                SEAL EXHAUST MANIFOLDS
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 4
                                                MPN: 99907347101
                                                TORX SCREW M 8 X 21
                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                # 5
                                                MPN: 9A160612301
                                                LAMBDA PROBE (IN FRONT OF CATALYST) ALSO USE: 1X 997 113 209 30 LEFT 1X 987 113 208 30 RIGHT
                                                OXYGEN SENSOR Genuine Porsche Part - New (to order)
                                                # 6
                                                MPN: 9A160612400
                                                LAMBDA PROBE (DOWNSTR. OF CATALYTIC CONV.)
                                                from £237.36
                                                from £237.36
                                                OXYGEN SENSOR Genuine Porsche Part - New (to order)
                                                # 7
                                                MPN: 00004320707
                                                grease for lambda probe
                                                grease - for oxygen sensor Genuine Porsche Part - New (to order)
                                                # 8
                                                MPN: 99711111300
                                                SEAL
                                                from £7.66
                                                from £7.66
                                                GASKET Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 90091000303
                                                HEXAGON NUT M 8
                                                from £2.29
                                                from £2.29
                                                hex. nut - M 8 Genuine Porsche Part - New In stock
                                                # 10
                                                MPN: 98711104430
                                                RETAINER FOR EXHAUST SYSTEM
                                                A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012) with, P250 (PDK transmission (dual clutch))
                                                from £384.19
                                                from £384.19
                                                BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                                # 10
                                                MPN: 98711104530
                                                RETAINER FOR EXHAUST SYSTEM
                                                A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012) with, P480 (6-speed manual transmission)
                                                from £384.19
                                                from £384.19
                                                BRACKET FOR EXHAUST SYSTEM Genuine Porsche Part - New (to order)
                                                # 11
                                                MPN: 90038501101
                                                TORX SCREW M 10 X 45
                                                P250 (PDK transmission (dual clutch))
                                                from £2.29
                                                from £2.29
                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                # 11
                                                MPN: 90038509601
                                                TORX SCREW M 8 X 60
                                                P480 (6-speed manual transmission)
                                                from £2.17
                                                from £2.17
                                                TORX SCREW Genuine Porsche Part - New In stock
                                                # 12
                                                MPN: 98711121001
                                                CLIP
                                                from £28.27
                                                from £28.27
                                                CLAMP Genuine Porsche Part - New (to order)
                                                # 13
                                                MPN: 90037810801
                                                HEXAGON BOLT
                                                from £2.29
                                                from £2.29
                                                screw, hex. hd. - AM 8 X 35 - D - MJ 2001>> Genuine Porsche Part - New (to order)
                                                # 14
                                                MPN: 98711311731
                                                Silencer left cylinders 4-6
                                                P170 (Acoustic package RoW) | P171 (Acoustic package USA)
                                                muffler - exhaust Genuine Porsche Part - New (to order)
                                                # 14
                                                MPN: 98711313131
                                                Silencer left cylinders 4-6
                                                P172 (Acoustic package PAP, China, Korea)
                                                muffler - exhaust Genuine Porsche Part - New (to order)
                                                # 14
                                                -
                                                SILENCER LEFT CYLINDERS 4-6 SEE ILLUSTRATION: 202-005
                                                PXLF (Sports exhaust system) | Psports, Pversion
                                                # 15
                                                MPN: 98711311831
                                                Silencer right cylinders 1-3
                                                P170 (Acoustic package RoW) | P171 (Acoustic package USA)
                                                muffler - exhaust Genuine Porsche Part - New (to order)
                                                # 15
                                                MPN: 98711313231
                                                Silencer right cylinders 1-3
                                                P172 (Acoustic package PAP, China, Korea)
                                                muffler - exhaust Genuine Porsche Part - New (to order)
                                                # 15
                                                -
                                                SILENCER RIGHT CYLINDERS 1-3 SEE ILLUSTRATION: 202-005
                                                PXLF (Sports exhaust system) | Psports, Pversion
                                                # 16
                                                MPN: 98711122000
                                                CLAMPING SLEEVE
                                                from £38.35
                                                from £38.35
                                                CLAMPING SLEEVE Genuine Porsche Part - New (to order)
                                                # 17
                                                MPN: 98711135330
                                                EXHAUST PIPE
                                                A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                                from £195.63
                                                from £195.63
                                                EXHAUST PIPE Genuine Porsche Part - New (to order)
                                                # 18
                                                MPN: 00004330054
                                                CLAMP FOR EXHAUST PIPE (COMPLETE)
                                                from £36.89
                                                from £36.89
                                                CLAMP Genuine Porsche Part - New (to order)
                                                # 19
                                                MPN: 98711125730
                                                TAILPIPE (COMPLETE)
                                                A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                                from £404.94
                                                from £404.94
                                                TAILPIPE Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 00004330053
                                                CLAMP FOR TRIM (COMPLETE)
                                                A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                                from £36.89
                                                from £36.89
                                                CLAMP Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 98711125831
                                                TAILPIPE (COMPLETE)
                                                A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                                from £539.12
                                                from £539.12
                                                TAILPIPE Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 98711125860
                                                TAILPIPE (COMPLETE)
                                                A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012) with, P778 (Boxster Spyder) | P without XLF
                                                from £588.11
                                                from £588.11
                                                TAILPIPE Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 98711198130
                                                TAILPIPE (COMPLETE)
                                                A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012) with, P778 (Boxster Spyder) | PXLF (Sports exhaust system)
                                                from £441.67
                                                from £441.67
                                                SPORTS TAILPIPES Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 98711198130
                                                TAILPIPE (COMPLETE)
                                                PXLS (Sports tailpipe 98X)
                                                from £441.67
                                                from £441.67
                                                SPORTS TAILPIPES Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 98711125860
                                                TAILPIPE (COMPLETE)
                                                P178 (Twin tailpipes, Black)
                                                from £588.11
                                                from £588.11
                                                TAILPIPE Genuine Porsche Part - New (to order)
                                                # 22
                                                MPN: 90007536502
                                                Screw M 8 X 30
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 23
                                                MPN: 98760610501
                                                BRACKET CONNECTOR HOUSING LAMBDA PROBE
                                                from £5.57
                                                from £5.57
                                                BRACKET Genuine Porsche Part - New (to order)
                                                # 24
                                                MPN: 99959171240
                                                SPREADER RIVET 6,0 X 12,0
                                                from £0.59
                                                from £0.59
                                                RIVET - BRACKET - 6,0 X 12,0 - D >>- MJ 2002 Genuine Porsche Part - New In stock
                                                # 25
                                                MPN: 99950707540
                                                CABLE HOLDER 3,0 - 12,0
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 26
                                                MPN: 9A160615301
                                                BRACKET
                                                from £5.12
                                                from £5.12
                                                BRACKET Genuine Porsche Part - New (to order)
                                                # 27
                                                MPN: 99965132940
                                                CABLE HOLDER 8,0 - 12,0
                                                from £0.95
                                                from £0.95
                                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                                # 28
                                                MPN: 98711320830
                                                Heat insulation right Catalytic converter See technical manual exhaust system
                                                Heat insulation right Catalytic converter See technical manual exhaust system
                                                heat deflector Genuine Porsche Part - New (to order)
                                                # 28
                                                MPN: 99711320830
                                                Heat insulation right Catalytic converter See technical manual exhaust system
                                                from £146.74
                                                from £146.74
                                                heat deflector Genuine Porsche Part - New (to order)
                                                # 29
                                                MPN: 99711320930
                                                HEAT INSULATION LEFT CATALYTIC CONVERTER SEE TECHNICAL MANUAL EXHAUST SYSTEM
                                                from £146.74
                                                from £146.74
                                                heat deflector Genuine Porsche Part - New (to order)
                                                # 30
                                                MPN: 90038500901
                                                HEXAGON HEAD BOLT BM 6 X 16
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 31
                                                MPN: 90037807401
                                                HEXAGON BOLT M 8 X 16
                                                from £2.47
                                                from £2.47
                                                screw, hex. hd. - M 8 X 16 - D - MJ 2004>> Genuine Porsche Part - New (to order)
                                                # 32
                                                MPN: 90038000501
                                                Nut M 8
                                                from £0.59
                                                from £0.59
                                                This part replaces part number 90038000509
                                                nut - VM 8 Genuine Porsche Part - New In stock
