A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
porsche 2011 (987 boxster) intake air distributor throttle valve adapter parts diagram

107-010 - intake air distributor throttle valve adapter

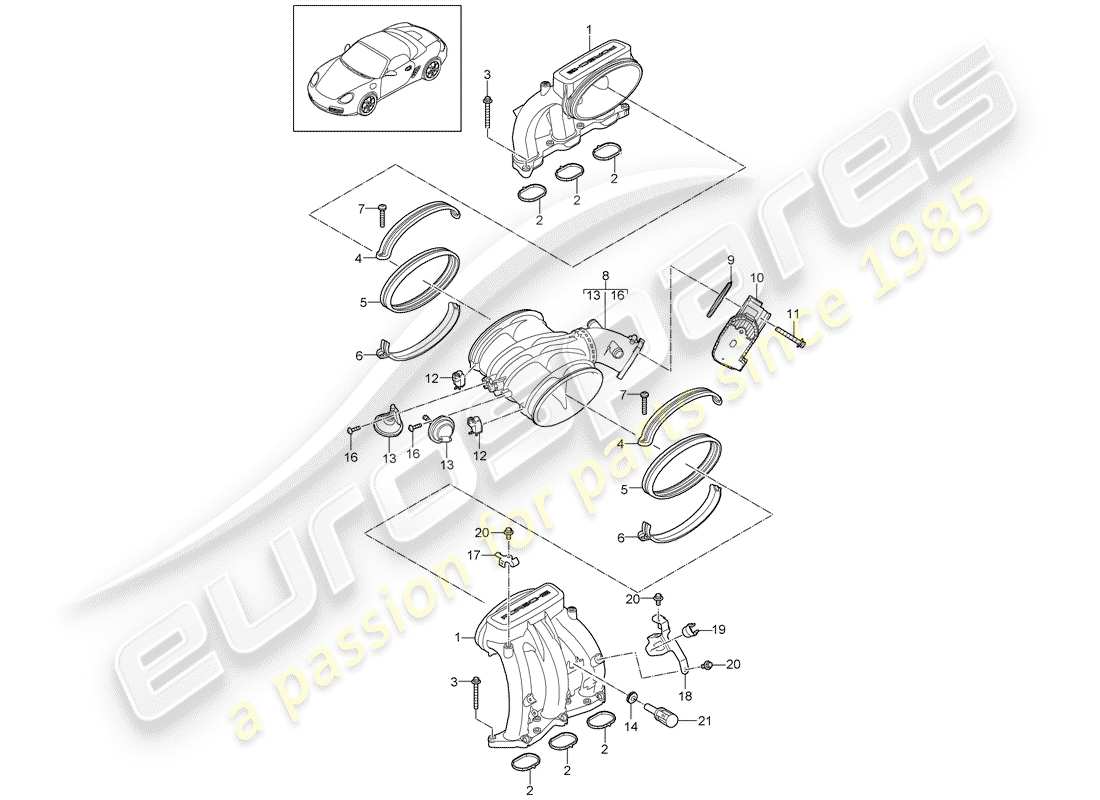

Porsche 2011 (987 Boxster) intake air distributor throttle valve adapter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 9A111011502
                                    intake air distributor
                                    A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                    intake air distributor Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: 9A111011522
                                    intake air distributor
                                    A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                    from £266.41
                                    from £266.41
                                    intake air distributor Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9A111021501
                                    SEAL
                                    A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                    from £5.26
                                    from £5.26
                                    GASKET Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9A111021521
                                    SEAL
                                    A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                    GASKET Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 90038527001
                                    HEXAGON HEAD BOLT M6 X 35
                                    HEXAGON HEAD BOLT - M 6 X 35 Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 9A111021201
                                    CLAMP UPPER PART
                                    from £6.87
                                    from £6.87
                                    CLAMP Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 9A111021001
                                    RUBBER SLEEVE
                                    from £23.40
                                    from £23.40
                                    RUBBER SLEEVE Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 9A111021301
                                    CLAMP LOWER PART
                                    from £16.14
                                    from £16.14
                                    CLAMP Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 99907335202
                                    FLAT ROUND HEAD BOLT M6 X 35
                                    from £0.91
                                    from £0.91
                                    SCREW, ROUND HD Genuine Porsche Part - New In stock
                                    # 8
                                    MPN: 9A111002022
                                    DISTRIBUTOR TUBE (COMPLETE)
                                    from £196.29
                                    from £196.29
                                    Distributor tube Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 99711031900
                                    SEAL DISTRIBUTOR TUBE
                                    from £12.35
                                    from £12.35
                                    This part replaces part number 99611031900
                                    GASKET Genuine Porsche Part - New In stock
                                    # 10
                                    MPN: 99760511501
                                    THROTTLE VALVE ADAPTER
                                    from £344.48
                                    from £344.48
                                    THROTTLE BODY Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: 90038507001
                                    TORX SCREW M6 X 50
                                    TORX SCREW Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: PAF00868500
                                    HEXAGON HEAD BOLT M6 X 50
                                    from £0.91
                                    from £0.91
                                    This part replaces part number 90038501009
                                    TORX SCREW Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: 99660512301
                                    Change-over valve
                                    P250 (PDK transmission (dual clutch)) | P480 (6-speed manual transmission)
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 13
                                    MPN: 99311046202
                                    VACUUM UNIT
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 14
                                    MPN: 99311053001
                                    GROMMET
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 15
                                    MPN: 99950715301
                                    CABLE FASTENER 5,2
                                    from £0.78
                                    from £0.78
                                    CABLE FASTENER Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 99991926501
                                    OVAL-HEAD SCREW 5 X 18
                                    from £0.59
                                    from £0.59
                                    OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: 9A111024603
                                    BRACKET TANK VENTILATION
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 9A111028301
                                    BRACKET TANK VENTILATION
                                    A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012)
                                    from £8.52
                                    from £8.52
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 9A111029301
                                    BRACKET TANK VENTILATION
                                    A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                    from £9.69
                                    from £9.69
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 19
                                    MPN: 99950745541
                                    CLIP TANK VENTILATION
                                    from £0.91
                                    from £0.91
                                    CLIP Genuine Porsche Part - New (to order)
                                    # 20
                                    MPN: 90038504101
                                    HEXAGON HEAD BOLT M6 X 12
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 21
                                    MPN: 99760621300
                                    TEMPERATURE SENSOR ENGINE BAY
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
