porsche 2011 (987 boxster) compressor parts diagram

813-015 - COMPRESSOR

Porsche 2011 (987 Boxster) Compressor Parts Diagram

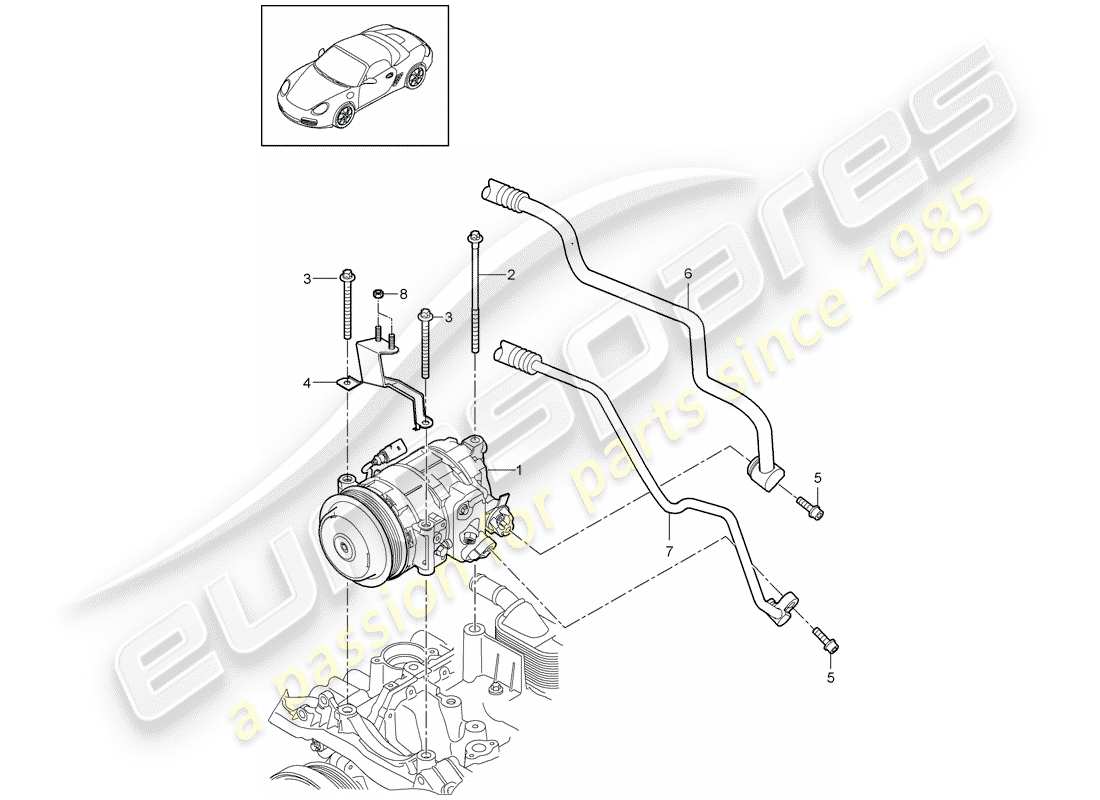

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 9A112601105
                  COMPRESSOR
                  from £1,375.57
                  from £1,375.57
                  COMPRESSOR Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 90038513401
                  HEXAGON HEAD BOLT M 8 X 170
                  from £2.62
                  from £2.62
                  HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                  # 3
                  MPN: 90038510201
                  TORX SCREW M 8 X 90
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 4
                  MPN: 9A160726001
                  BRACKET
                  from £12.80
                  from £12.80
                  BRACKET Genuine Porsche Part - New (to order)
                  # 5
                  MPN: N 10414402
                  SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M 8 X 28
                  from £1.62
                  from £1.62
                  BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                  HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                  # 6
                  -
                  SUCTION LINE SEE ILLUSTRATION, ITEM: 813-025,7
                  # 7
                  -
                  PRESSURE LINE SEE ILLUSTRATION, ITEM: 813-025,8
                  # 8
                  MPN: 90037701002
                  HEXAGON NUT M6
                  from £0.82
                  from £0.82
                  HEX. NUT Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 00004330579
                  COMPRESSOR OIL 250 ML
                  from £35.15
                  from £35.15
                  COMPRESSOR OIL Genuine Porsche Part - New (to order)
