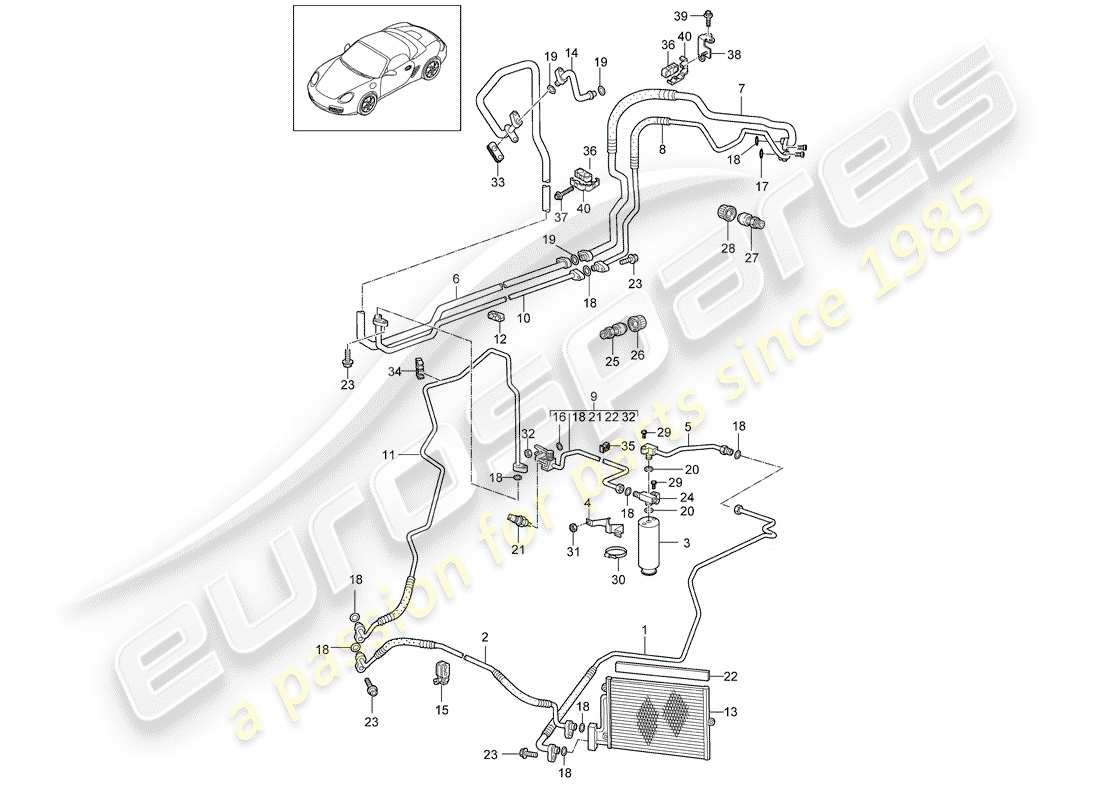

813-025 - REFRIGERANT CIRCUIT

Porsche 2011 (987 Boxster) refrigerant circuit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 1
                                                                          MPN: 99757310503
                                                                          PRESSURE LINE
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 2
                                                                          MPN: 99757310302
                                                                          PRESSURE LINE
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 3
                                                                          MPN: 94457314301
                                                                          DRIER
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 4
                                                                          MPN: 99657345100
                                                                          BRACKET FOR DRIER
                                                                          from £11.39
                                                                          from £11.39
                                                                          BRACKET FOR DRIER Genuine Porsche Part - New (to order)
                                                                          # 5
                                                                          MPN: 99657310600
                                                                          REFRIGERANT LINE
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 6
                                                                          MPN: 99657309101
                                                                          SUCTION LINE NW 16
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 7
                                                                          MPN: 9A157309904
                                                                          SUCTION LINE
                                                                          A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 8
                                                                          MPN: 9A157309704
                                                                          PRESSURE LINE
                                                                          A120 (2.9 Litre 6 Cyliner Engine (255 Horsepower / 188 Kilowatt with Engine Code: A120 and installed 08/2008-05/2012) | A121 (3.4 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: A121 and installed 08/2008-05/2012) A121 (3.4 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: A121 and installed 08/2010-05/2012)
                                                                          from £143.66
                                                                          from £143.66
                                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                                          # 9
                                                                          MPN: 99757310802
                                                                          PRESSURE LINE LHD NW8
                                                                          P098 (Left-hand drive version)
                                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                                          # 9
                                                                          MPN: 99757310803
                                                                          PRESSURE LINE RHD NW8
                                                                          P099 (Right-hand drive version)
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 10
                                                                          MPN: 99657309202
                                                                          PRESSURE LINE NW10
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 11
                                                                          MPN: 99757309402
                                                                          PRESSURE LINE
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 12
                                                                          MPN: 99951123040
                                                                          CABLE HOLDER ALSO USE:
                                                                          from £2.29
                                                                          from £2.29
                                                                          cable holder - also use: Genuine Porsche Part - New In stock
                                                                          # 12
                                                                          MPN: 99951123141
                                                                          RUBBER BUSH
                                                                          from £2.68
                                                                          from £2.68
                                                                          RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                                                                          # 13
                                                                          MPN: 99657311103
                                                                          CONDENSER
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 14
                                                                          MPN: 99657309306
                                                                          SUCTION LINE LHD NW16
                                                                          P098 (Left-hand drive version)
                                                                          from £83.97
                                                                          from £83.97
                                                                          SUCTION PIPE Genuine Porsche Part - New (to order)
                                                                          # 14
                                                                          MPN: 99657309307
                                                                          SUCTION LINE RHD NW16
                                                                          P099 (Right-hand drive version)
                                                                          from £135.40
                                                                          from £135.40
                                                                          SUCTION PIPE Genuine Porsche Part - New (to order)
                                                                          # 15
                                                                          MPN: 99634754300
                                                                          CABLE HOLDER
                                                                          from £4.86
                                                                          from £4.86
                                                                          CABLE HOLDER Genuine Porsche Part - New In stock
                                                                          # 16
                                                                          MPN: 99970724740
                                                                          O-RING 7,5X2
                                                                          from £2.68
                                                                          from £2.68
                                                                          O-Ring - NW 8 Genuine Porsche Part - New In stock
                                                                          # 17
                                                                          MPN: 99970755741
                                                                          O-RING 11X2,5
                                                                          from £2.29
                                                                          from £2.29
                                                                          O-RING - 11.00X2.50 Genuine Porsche Part - New In stock
                                                                          # 18
                                                                          MPN: 99970743441
                                                                          O-RING 10,6X2
                                                                          from £5.61
                                                                          from £5.61
                                                                          O-Ring - NW 10 Genuine Porsche Part - New In stock
                                                                          # 19
                                                                          MPN: 99970753441
                                                                          O-RING 17X2
                                                                          from £5.33
                                                                          from £5.33
                                                                          O-RING - 17X2,00 Genuine Porsche Part - New In stock
                                                                          # 20
                                                                          MPN: 99970726240
                                                                          O-RING 6,7X1,8
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 21
                                                                          MPN: 95561313701
                                                                          Pressure sensor use if required:
                                                                          Pressure sensor use if required:
                                                                          PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                                          # 21
                                                                          MPN: 95561313702
                                                                          Pressure sensor use if required:
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 21
                                                                          MPN: 99970755541
                                                                          O-RING 10,8 X 1,8
                                                                          from £2.29
                                                                          from £2.29
                                                                          O-RING - 10,80X1,82 Genuine Porsche Part - New (to order)
                                                                          # 22
                                                                          MPN: 99657371100
                                                                          COVER TRIM
                                                                          from £6.96
                                                                          from £6.96
                                                                          COVER STRIP Genuine Porsche Part - New (to order)
                                                                          # 23
                                                                          MPN: 90006724701
                                                                          BOLT WITH WASHER M8X30
                                                                          from £14.61
                                                                          from £14.61
                                                                          Bolt with washer - M8X30 Genuine Porsche Part - New (to order)
                                                                          # 24
                                                                          MPN: 99757324300
                                                                          DISTRIBUTOR
                                                                          from £107.62
                                                                          from £107.62
                                                                          DISTRIBUTOR PIECE Genuine Porsche Part - New (to order)
                                                                          # 25
                                                                          MPN: 99657346500
                                                                          VALVE SUCTION LINE
                                                                          from £25.07
                                                                          from £25.07
                                                                          VALVE - SUCTION PIPE Genuine Porsche Part - New (to order)
                                                                          # 26
                                                                          MPN: 94457366302
                                                                          CAP
                                                                          from £7.46
                                                                          from £7.46
                                                                          cap - for - valve Genuine Porsche Part - New (to order)
                                                                          # 27
                                                                          MPN: 99657346600
                                                                          PRESSURE VALVE PRESSURE LINE
                                                                          from £25.66
                                                                          from £25.66
                                                                          PRESSURE VALVE / PRESSURE LINE Genuine Porsche Part - New (to order)
                                                                          # 28
                                                                          MPN: 94457366301
                                                                          CAP
                                                                          from £7.46
                                                                          from £7.46
                                                                          cap - for - valve - fuel radiator Genuine Porsche Part - New (to order)
                                                                          # 29
                                                                          MPN: 90007534001
                                                                          BOLT WITH WASHER M6X22
                                                                          from £2.86
                                                                          from £2.86
                                                                          BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                                          # 30
                                                                          MPN: 99951234901
                                                                          HOSE CLAMP A50-70/9
                                                                          from £4.52
                                                                          from £4.52
                                                                          This part replaces part number 99951234902
                                                                          Hose Clamp - SGT 50-70/9 Genuine Porsche Part - New (to order)
                                                                          # 32
                                                                          MPN: 90037701009
                                                                          HEXAGON NUT M6
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 33
                                                                          MPN: 99657376901
                                                                          GROMMET
                                                                          from £4.59
                                                                          from £4.59
                                                                          GROMMET Genuine Porsche Part - New (to order)
                                                                          # 34
                                                                          MPN: 99635554701
                                                                          BRACKET
                                                                          from £4.37
                                                                          from £4.37
                                                                          BRACKET Genuine Porsche Part - New (to order)
                                                                          # 35
                                                                          MPN: 99959192240
                                                                          BRACKET
                                                                          from £4.52
                                                                          from £4.52
                                                                          bracket - for - hydraulic clutch pipe Genuine Porsche Part - New (to order)
                                                                          # 36
                                                                          MPN: 99951123141
                                                                          RUBBER BUSH
                                                                          from £2.68
                                                                          from £2.68
                                                                          RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                                                                          # 37
                                                                          MPN: 90038514901
                                                                          TORX SCREW M6X40
                                                                          from £1.73
                                                                          from £1.73
                                                                          TORX SCREW Genuine Porsche Part - New (to order)
                                                                          # 38
                                                                          MPN: 9A157334100
                                                                          BRACKET WITH: MOUNTING AND CLIP
                                                                          BRACKET Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 90038504101
                                                                          HEXAGON HEAD BOLT M6X12
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Porsche Part (no longer available to order)
                                                                          # 40
                                                                          MPN: 99951126040
                                                                          BRACKET
                                                                          from £1.28
                                                                          from £1.28
                                                                          BRACKET Genuine Porsche Part - New (to order)
                                                                          # 41
                                                                          MPN: 99970743941
                                                                          O-RING 23,80X2,40N*
                                                                          from £6.45
                                                                          from £6.45
                                                                          O-RING - 23,80X2,40 Genuine Porsche Part - New (to order)
