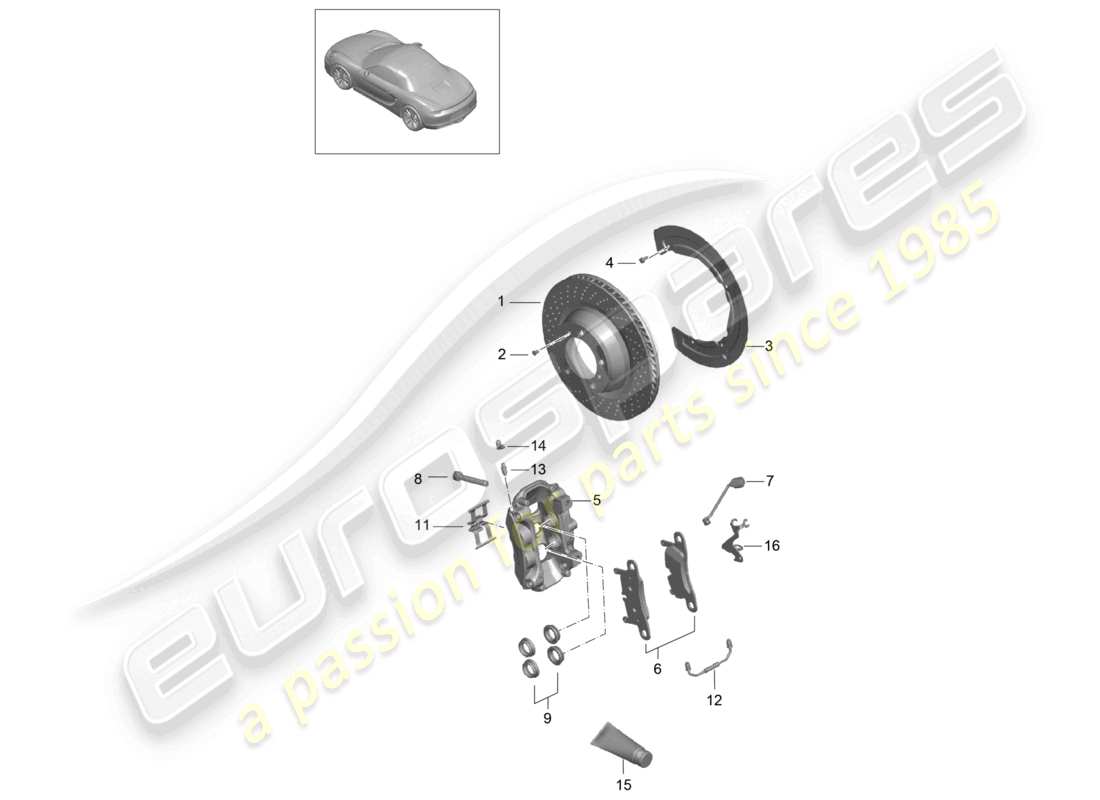

603-000 - Disc brake Rear axle
Porsche 2013 (981 Boxster) Disc brake Rear axle Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
-
BRAKE DISC (USE IN PAIRS ONLY) OBSERVE TECHNICAL SERVICE HANDBOOK:
# 1
MPN: 98735240101
BRAKE DISC REAR
P without 450
from £120.46
from £120.46
# 1
MPN: 98735203102
Brake disc left rear
Brake disc left rear
# 1
MPN: 98735203103
Brake disc left rear
Brake disc left rear
# 1
MPN: 98135203100
Brake disc left rear
P450 (Ceramic brake (PCCB))
# 1
MPN: 98735203202
Brake disc right rear
Brake disc right rear
# 1
MPN: 98735203203
Brake disc right rear
Brake disc right rear
# 1
MPN: 98135203200
Brake disc right rear
P450 (Ceramic brake (PCCB))
# 2
MPN: 90026904701
countersunk bolt M6X12
from £0.59
from £0.59
This part replaces part number 90026904709
# 3
MPN: 98135280102
COVER PLATE LEFT
from £25.44
from £25.44
# 3
MPN: 98135280202
COVER PLATE RIGHT
from £25.44
from £25.44
# 4
MPN: 99921711601
HEXAGON BOLT M6X16
Supersession
Supersession
# 5
MPN: 98635242302
caliper without brake pads left
P008 (Basic 981/991) | P without 450
# 5
MPN: 98635242310
caliper without brake pads left
P009 (s 981/991) | P without 450
# 5
MPN: 99635242331
caliper without brake pads left
P450 (Ceramic brake (PCCB))
from £580.44
from £580.44
# 5
MPN: 98635242402
caliper without brake pads right
P008 (Basic 981/991) | P without 450
# 5
MPN: 98635242410
caliper without brake pads right
P009 (s 981/991) | P without 450
# 5
MPN: 99635242431
caliper without brake pads right
P450 (Ceramic brake (PCCB))
# 6
MPN: 98735293901
1 SET OF BRAKE PADS FOR REAR DISK BRAKE
P without 450
Supersession
Supersession
# 6
MPN: 98735293903
1 SET OF BRAKE PADS FOR REAR DISK BRAKE REAR AXLE
P without 450
from £119.14
from £119.14
This part replaces part number 98735293901
# 6
MPN: 99735294800
1 SET OF BRAKE PADS FOR REAR DISK BRAKE
P450 (Ceramic brake (PCCB))
Supersession
Supersession
# 6
MPN: 982698451C
1 SET OF BRAKE PADS FOR REAR DISK BRAKE
P450 (Ceramic brake (PCCB))
from £373.14
from £373.14
This part replaces part number 99735294800
# 7
MPN: 98160916300
SENDER WIRE (PAD WEAR INDICATOR)
from £36.65
from £36.65
# 8
MPN: 99907340201
Socket head bolt M12X1,5X72
P without 450
from £4.52
from £4.52
# 8
MPN: 99906705309
Socket head bolt M12X1,5X85
P450 (Ceramic brake (PCCB))
Supersession
Supersession
# 9
MPN: 95135291700
REPAIR SET 1 SET PROTECTIVE CAPS 28MM
from £12.52
from £12.52
# 9
MPN: 95135291701
REPAIR SET 1 SET PROTECTIVE CAPS 30MM
from £10.88
from £10.88
# 11
MPN: 99635295901
REPAIR SET FASTENERS PIN 2 PARTS CUP EXPANDER SPRING 2 PARTS SECURING BARS 2 PARTS
from £37.82
from £37.82
# 12
MPN: 99635296100
Connecting line left
P008 (Basic 981/991) | P009 (s 981/991) | P without 450
from £32.62
from £32.62
# 12
MPN: 99635296200
Connecting line right
P008 (Basic 981/991) | P009 (s 981/991) | P without 450
# 12
MPN: 99635296130
connecting line
P450 (Ceramic brake (PCCB))
from £26.94
from £26.94
# 13
MPN: 99735291900
BREATHER VALVE
from £13.16
from £13.16
# 13
MPN: 99735291700
BREATHER VALVE
BREATHER VALVE
# 13
MPN: 99735291900
BREATHER VALVE
from £13.16
from £13.16
# 14
MPN: 93035192700
DUST CAP
# 15
MPN: 00004311700
BRAKE CYLINDER PASTE 50 GRAM
# 15
MPN: 00004302000
ASSEMBLY PASTE 100 GRAM
Supersession
Supersession
# 16
MPN: 94461262700
LINE HOLDER
Supersession
Supersession
