porsche 2016 (981 boxster spyder) window regulator parts diagram

804-030 - WINDOW REGULATOR

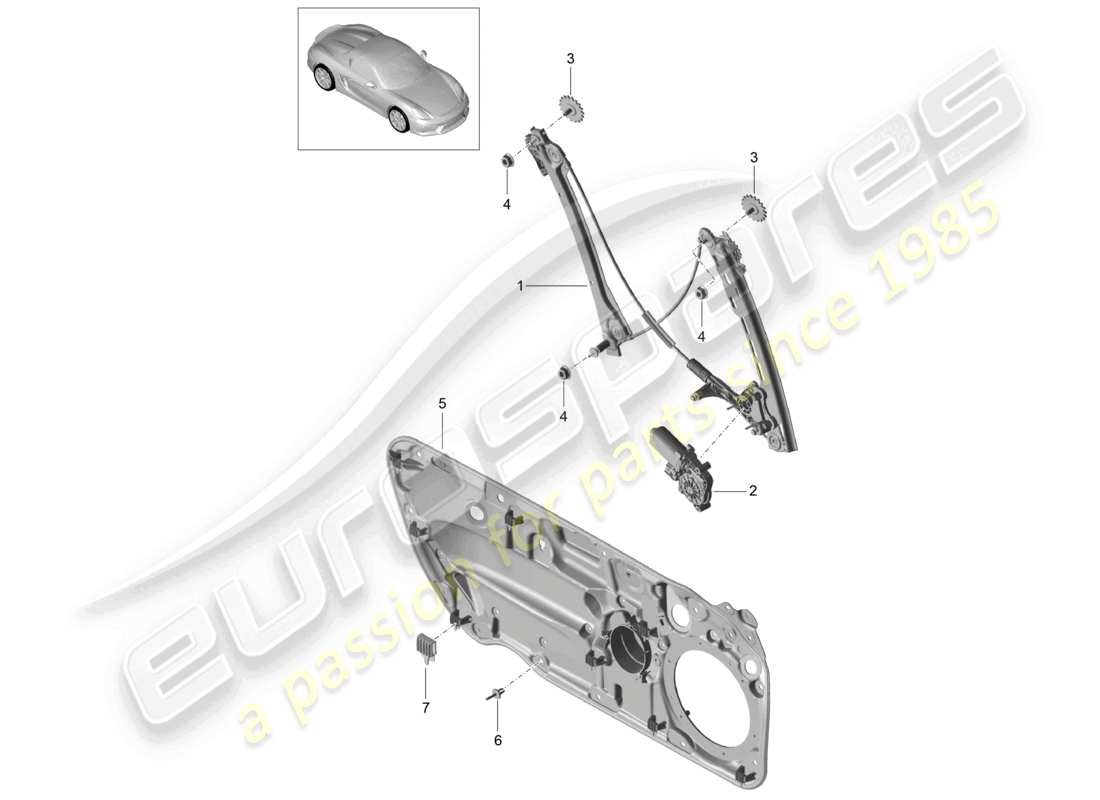

Porsche 2016 (981 Boxster Spyder) Window regulator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 99154297501
                WINDOW REGULATOR WITHOUT MOTOR LEFT
                from £192.11
                from £192.11
                window regulator without motor LH Genuine Porsche Part - New (to order)
                # 1
                MPN: 99154297601
                WINDOW REGULATOR WITHOUT MOTOR RIGHT
                from £192.11
                from £192.11
                This part replaces part number 99154297600
                window regulator without motor RH Genuine Porsche Part - New (to order)
                # 2
                MPN: 99162410102
                ELECTRIC MOTOR LEFT WINDOW REGULATOR CONNECTOR HOUSING 2 PIN
                from £222.28
                from £222.28
                electric motor Genuine Porsche Part - New (to order)
                # 2
                MPN: 99162410202
                Electric motor right Window regulator Connector housing 2 pin
                from £222.28
                from £222.28
                electric motor Genuine Porsche Part - New (to order)
                # 3
                MPN: 99154255102
                THREADED HOOK WINDOW REGULATOR
                from £2.61
                from £2.61
                THREADED HOOK Genuine Porsche Part - New (to order)
                # 4
                MPN: 90037701809
                HEXAGON NUT M6
                from £0.47
                from £0.47
                HEX. NUT Genuine Porsche Part - New (to order)
                # 5
                MPN: 99153722101
                ASSEMBLY FRAME LEFT
                from £111.88
                from £111.88
                Assembly frame Genuine Porsche Part - New (to order)
                # 5
                MPN: 99153722201
                ASSEMBLY FRAME RIGHT
                from £111.88
                from £111.88
                Assembly frame Genuine Porsche Part - New (to order)
                # 6
                MPN: 99959152540
                SPREADER RIVET 7,0X14,2
                from £0.59
                from £0.59
                RIVET Genuine Porsche Part - New (to order)
                # 7
                MPN: 99153755700
                RUBBER PACKING
                from £11.24
                from £11.24
                RUBBER PACKING Genuine Porsche Part - New (to order)
