porsche 2018 (718 boxster) timing chain parts diagram

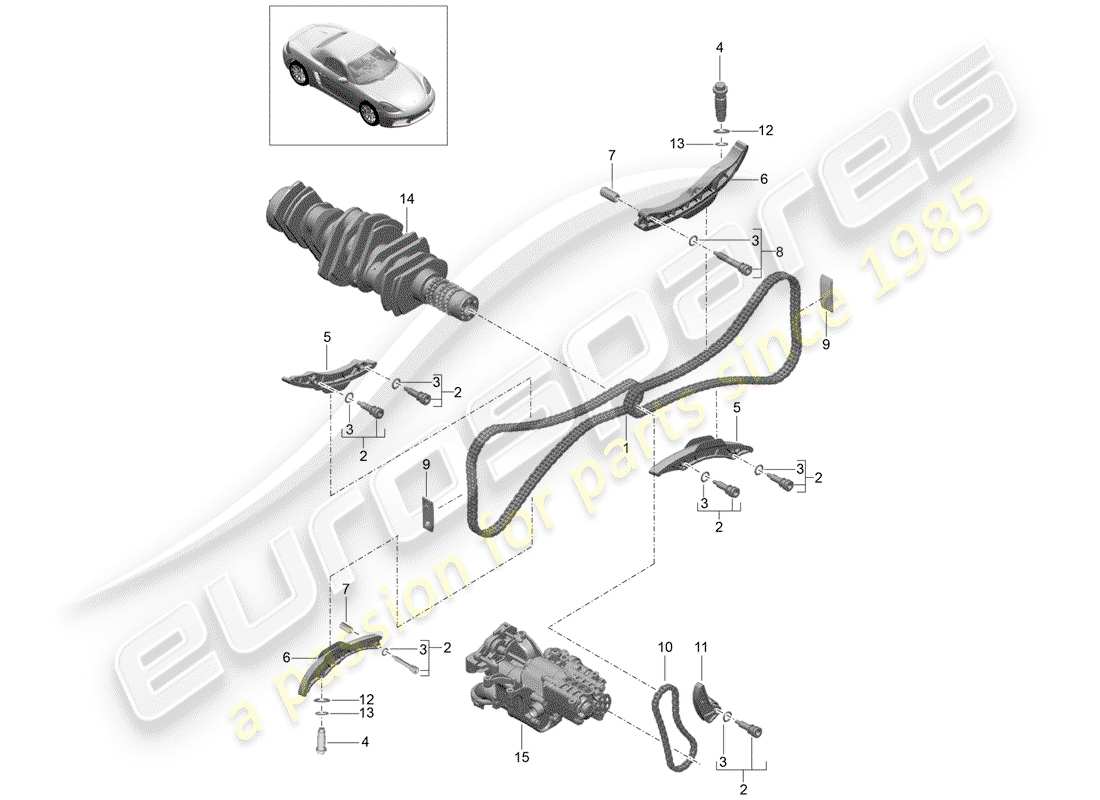

103-015 - TIMING CHAIN

Porsche 2018 (718 Boxster) timing chain Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 9A210514801
                      TIMING CHAIN CAMSHAFT CRANKSHAFT
                      from £160.01
                      from £160.01
                      TIMING CHAIN Genuine Porsche Part - New (to order)
                      # 2
                      MPN: 9A110506201
                      SOCKET HEAD BOLT TENSIONER BLADE
                      SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                      # 3
                      MPN: 99970734640
                      O-RING 15X3
                      O-RING 15X3
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 3
                      MPN: PAF008261
                      O-RING 15X3
                      from £2.29
                      from £2.29
                      This part replaces part number 99970734640
                      O-RING Genuine Porsche Part - New In stock
                      # 4
                      MPN: 9A210515701
                      CHAIN TENSIONER
                      CHAIN TENSIONER
                      TENSIONER - CHAIN Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 0PB109507
                      CHAIN TENSIONER
                      CHAIN TENSIONER
                      from £68.86
                      from £68.86
                      CHAIN TENSIONER Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 0PB109507B
                      CHAIN TENSIONER INCLUDED SEAL RING N 013.827.7
                      from £71.49
                      from £71.49
                      CHAIN TENSIONER Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 9A210512301
                      SLIDE RAIL
                      SLIDE RAIL
                      GUIDE RAIL Genuine Porsche Part - New (to order)
                      # 5
                      MPN: PAA109513
                      SLIDE RAIL
                      SLIDE RAIL
                      from £22.98
                      from £22.98
                      SLIDE RAIL Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 0PB109513B
                      SLIDE RAIL
                      from £19.71
                      from £19.71
                      SLIDE RAIL Genuine Porsche Part - New (to order)
                      # 6
                      MPN: 9A210512501
                      TENSIONER BLADE
                      TENSIONER BLADE Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9A110516502
                      SPACER SLEEVE
                      from £6.38
                      from £6.38
                      SPACER SLEEVE Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 9A110506301
                      BOLT WITH WASHER
                      from £8.26
                      from £8.26
                      SCREW Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 9A110510103
                      SLIDE RAIL
                      SLIDE RAIL
                      from £10.61
                      from £10.61
                      GUIDE RAIL Genuine Porsche Part - New (to order)
                      # 9
                      MPN: 0PB109514
                      SLIDE RAIL
                      from £11.65
                      from £11.65
                      SLIDE RAIL Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 9A110523302
                      TIMING CHAIN OIL PUMP CRANKSHAFT
                      from £47.14
                      from £47.14
                      TIMING CHAIN Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 9A110523502
                      TENSIONER BLADE
                      TENSIONER BLADE
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 11
                      MPN: 0PB109508
                      TENSIONER BLADE
                      from £13.07
                      from £13.07
                      This part replaces part number 9A110523502
                      TENSIONER BLADE Genuine Porsche Part - New (to order)
                      # 12
                      MPN: 90012301121
                      SEAL RING A22X27
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 13
                      MPN: 99970106640
                      O-RING CHAIN TENSIONER
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
                      # 14
                      -
                      CRANKSHAFT SEE ILLUSTRATION: 102-000
                      # 15
                      -
                      OIL PUMP SEE ILLUSTRATION: 104-000
