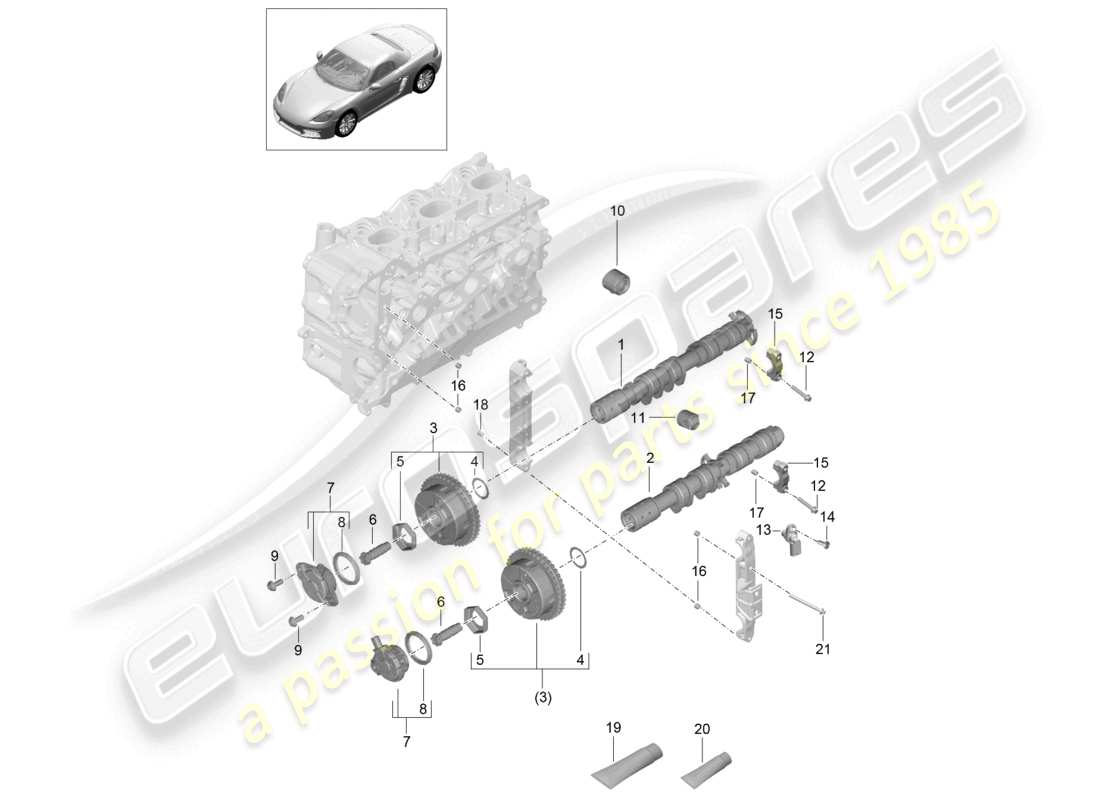

103-010 - Camshaft Hydraulic tappet camshaft adjuster unit
Porsche 2020 (718 Boxster) Camshaft Hydraulic tappet camshaft adjuster unit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 9A210550101
CAMSHAFT INLET CYLINDER 1, 2
DDPB (2.0 Litre 4 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: DDPB and installed 05/2016) | DDP (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DDP and installed 05/2016-05/2017) | DDPA (2.0 Litre 4 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: DDPA and installed 05/2016) | DNY (2.0 Litre 4 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: DNY and installed 05/2015) | DPG (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPG and installed 05/2015)
from £622.95
from £622.95
# 1
MPN: 9A210550301
CAMSHAFT INLET CYLINDER 1, 2
DDNC (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDNC and installed 05/2016-05/2017) | DDN (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDN and installed 05/2016-05/2017) | DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015) | DPH (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPH and installed 05/2015)
from £622.95
from £622.95
# 1
MPN: 9A210551101
CAMSHAFT INLET CYLINDERS 3,4
DDPB (2.0 Litre 4 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: DDPB and installed 05/2016) | DDP (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DDP and installed 05/2016-05/2017) | DDPA (2.0 Litre 4 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: DDPA and installed 05/2016) | DNY (2.0 Litre 4 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: DNY and installed 05/2015) | DPG (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPG and installed 05/2015)
from £622.95
from £622.95
# 1
MPN: 9A210551301
CAMSHAFT INLET CYLINDERS 3,4
DDNC (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDNC and installed 05/2016-05/2017) | DDN (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDN and installed 05/2016-05/2017) | DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015) | DPH (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPH and installed 05/2015)
from £622.95
from £622.95
# 2
MPN: 9A210552202
CAMSHAFT OUTLET CYLINDER 1, 2
DDPB (2.0 Litre 4 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: DDPB and installed 05/2016) | DDP (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DDP and installed 05/2016-05/2017) | DDPA (2.0 Litre 4 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: DDPA and installed 05/2016) | DNY (2.0 Litre 4 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: DNY and installed 05/2015) | DPG (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPG and installed 05/2015)
from £622.95
from £622.95
# 2
MPN: 9A210552302
CAMSHAFT OUTLET CYLINDER 1, 2
DDNC (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDNC and installed 05/2016-05/2017) | DDN (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDN and installed 05/2016-05/2017) | DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015) | DPH (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPH and installed 05/2015)
from £622.95
from £622.95
# 2
MPN: 9A210553202
CAMSHAFT OUTLET CYLINDERS 3,4
DDPB (2.0 Litre 4 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: DDPB and installed 05/2016) | DDP (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DDP and installed 05/2016-05/2017) | DDPA (2.0 Litre 4 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: DDPA and installed 05/2016) | DNY (2.0 Litre 4 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: DNY and installed 05/2015) | DPG (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPG and installed 05/2015)
from £622.95
from £622.95
# 2
MPN: 9A210553302
CAMSHAFT OUTLET CYLINDERS 3,4
DDNC (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDNC and installed 05/2016-05/2017) | DDN (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDN and installed 05/2016-05/2017) | DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015) | DPH (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DPH and installed 05/2015)
from £622.95
from £622.95
# 3
MPN: 94610505176
camshaft adjuster unit Inlet No longer use the part here
camshaft adjuster unit Inlet No longer use the part here
# 3
MPN: 0PB109083
camshaft adjuster unit Inlet Discontinued part
camshaft adjuster unit Inlet Discontinued part
Supersession
Supersession
# 3
MPN: 0PB109083A
camshaft adjuster unit Inlet D >>- 10.02.2022
camshaft adjuster unit Inlet D >>- 10.02.2022
from £315.48
from £315.48
# 3
MPN: 94610505177
camshaft adjuster unit Inlet D >>- 10.02.2022
from £340.45
from £340.45
This part replaces part number 0PB109083
# 3
MPN: 0PB 109 083 B
CAMSHAFT ADJUSTER UNIT INLET D - 11.02.2022>>
CAMSHAFT ADJUSTER UNIT INLET D - 11.02.2022>>
# 3
MPN: 0PB109083C
CAMSHAFT ADJUSTER UNIT INLET D - 11.02.2022>>
from £454.13
from £454.13
# 3
MPN: 94610505276
camshaft adjuster unit Outlet No longer use the part here
camshaft adjuster unit Outlet No longer use the part here
Supersession
Supersession
# 3
MPN: 0PB109084
camshaft adjuster unit Outlet Discontinued part
camshaft adjuster unit Outlet Discontinued part
Supersession
Supersession
# 3
MPN: 0PB109084C
camshaft adjuster unit Outlet
camshaft adjuster unit Outlet
from £320.28
from £320.28
# 3
MPN: 0PB 109 084 H
camshaft adjuster unit Outlet
camshaft adjuster unit Outlet
# 3
MPN: 0PB109084N
camshaft adjuster unit Outlet
from £454.13
from £454.13
# 4
MPN: 94610515575
FRICTION WASHER CAMSHAFT ADJUSTER UNIT
Supersession
Supersession
# 5
MPN: 94610515475
Sleeve camshaft adjuster unit
Sleeve camshaft adjuster unit
Supersession
Supersession
# 5
MPN: 9A700829900
Sleeve camshaft adjuster unit
from £7.18
from £7.18
This part replaces part number 94610515475
# 6
MPN: 94610505476
control valve camshaft adjuster unit
control valve camshaft adjuster unit
# 6
MPN: 94610505477
control valve camshaft adjuster unit
Supersession
Supersession
# 6
MPN: 0PB109257
control valve camshaft adjuster unit
control valve camshaft adjuster unit
# 6
MPN: 0PB109257A
control valve camshaft adjuster unit
from £181.52
from £181.52
This part replaces part number 94610505477
# 7
MPN: 94610505379
throttle control element Camshaft
Supersession
Supersession
# 8
MPN: 99970150641
SEAL RING 42X51,8X4,9
SEAL RING 42X51,8X4,9
Supersession
Supersession
# 8
MPN: 9A700834800
SEAL RING 42X51,8X4,9
from £7.33
from £7.33
This part replaces part number 99970150641
# 9
MPN: N 91126101
Hexagon socket flat M6X14 head bolt
from £0.65
from £0.65
# 10
MPN: 9A110507004
HYDRAULIC TAPPET
HYDRAULIC TAPPET
from £107.49
from £107.49
# 10
MPN: 9A710967302
HYDRAULIC TAPPET
DDPA (2.0 Litre 4 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: DDPA and installed 05/2016) | DDP (2.0 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DDP and installed 05/2016-05/2017) | DDPB (2.0 Litre 4 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: DDPB and installed 05/2016) | DNY (2.0 Litre 4 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: DNY and installed 05/2015)
Supersession
Supersession
# 10
MPN: 9A110507004
Hydraulic tappet Inlet
Hydraulic tappet Inlet
from £107.49
from £107.49
# 10
MPN: 9A710967302
Hydraulic tappet Inlet
DDNC (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDNC and installed 05/2016-05/2017) | DDN (2.5 Litre 4 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: DDN and installed 05/2016-05/2017) | DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015)
Supersession
Supersession
# 10
MPN: 9A710967300
Hydraulic tappet Outlet
Hydraulic tappet Outlet
# 10
MPN: 9A710967301
Hydraulic tappet Outlet
DJUA (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUA and installed 05/2017) | DJU (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJU and installed 05/2017) | DJUB (2.5 Litre 4 Cyliner Engine (365 Horsepower / 269 Kilowatt with Engine Code: DJUB and installed 05/2017) | DNZ (2.5 Litre 4 Cyliner Engine (1 Horsepower / 1 Kilowatt with Engine Code: DNZ and installed 05/2015)
from £114.48
from £114.48
# 11
MPN: 06L109311
TAPPETS
from £37.78
from £37.78
# 12
MPN: 99907370101
HEXAGON HEAD BOLT M6X38X25 BEARING COVER CYLINDER 1, 2
from £1.39
from £1.39
# 12
MPN: 99907370101
HEXAGON HEAD BOLT M6X38X25 BEARING COVER SHORT CYLINDERS 3,4
from £1.39
from £1.39
# 13
MPN: 94660610600
HALL SENSOR
from £100.46
from £100.46
# 14
MPN: 99907360101
flat round head bolt M6X14
flat round head bolt M6X14
Supersession
Supersession
# 14
MPN: PAF008923
flat round head bolt M6X14
from £0.85
from £0.85
This part replaces part number 99907360101
# 15
-
BEARING COVER WITH: CYLINDER HEAD
# 16
MPN: 99610411750
DOWEL SLEEVE
from £2.76
from £2.76
# 17
MPN: 99909507801
DOWEL SLEEVE 7,5H7X11
from £2.38
from £2.38
# 18
MPN: 99909507900
dowel sleeve 12M6X25
from £5.30
from £5.30
# 19
MPN: 00004330573
EXTREME-PRESSURE GREASE 80 GR. 1 TUBE FOR CAMSHAFT
from £12.09
from £12.09
This part replaces part number 00004302400
# 20
MPN: 00004320468
GREASE
Supersession
Supersession
# 21
MPN: 90038502701
TORX SCREW BM6X70 BEARING HOUSING LONG CYLINDERS 3,4
from £1.73
from £1.73
-part-diagram-103-011.webp "PORSCHE 2020 (718 BOXSTER) CAMSHAFT CAMSHAFT ADJUSTER UNIT PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2020 (718 BOXSTER) TIMING CHAIN PARTS DIAGRAM")
-part-diagram-103-016.webp "PORSCHE 2020 (718 BOXSTER) CHAIN TENSIONER TIMING CHAIN PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2020 (718 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 2020 (718 BOXSTER) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-002.webp "PORSCHE 2020 (718 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) OIL SUMP PARTS DIAGRAM")
-part-diagram-104-003.webp "PORSCHE 2020 (718 BOXSTER) OIL SUMP PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 2020 (718 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) OIL FILTER OIL FILLER PIPE HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-006.webp "PORSCHE 2020 (718 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) OIL FILLER PIPE ENGINE OIL PARTS DIAGRAM")
-part-diagram-104-007.webp "PORSCHE 2020 (718 BOXSTER) ENGINE (OIL PRESS./LUBRICA.) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2020 (718 BOXSTER) CRANKCASE HOUSING OIL SEPARATOR TANK VENTILATION VACUUM PUMP PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM COOLANT PUMP THERMOSTAT HOUSING ASSEMBLY CARRIER PARTS DIAGRAM")
-part-diagram-105-001.webp "PORSCHE 2020 (718 BOXSTER) COOLANT PUMP PARTS DIAGRAM")
-part-diagram-105-002.webp "PORSCHE 2020 (718 BOXSTER) ASSEMBLY CARRIER COOLANT PIPE PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM DISTRIBUTOR FOR COOLANT ENGINE PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM WATER PIPE PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM COOLANT PIPE BREATHER LINE PARTS DIAGRAM")
-part-diagram-105-011.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM COOLANT PIPE BREATHER LINE PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM COOLER FOR COOLANT RADIATOR FAN FRONT END PARTS DIAGRAM")
-part-diagram-105-017.webp "PORSCHE 2020 (718 BOXSTER) COOLER FOR COOLANT CENTER PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-021.webp "PORSCHE 2020 (718 BOXSTER) COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-025.webp "PORSCHE 2020 (718 BOXSTER) COOLANT COOLING SYSTEM RADIATOR FAN REAR END PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2020 (718 BOXSTER) AIR FILTER PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 2020 (718 BOXSTER) AIR FILTER PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2020 (718 BOXSTER) FUEL COLLECTION PIPE HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-006.webp "PORSCHE 2020 (718 BOXSTER) INJECTION SYSTEM HIGH PRESSURE PUMP HIGH-PRESSURE INJECTOR PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 2020 (718 BOXSTER) INTAKE AIR DISTRIBUTOR THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-011.webp "PORSCHE 2020 (718 BOXSTER) INTAKE AIR DISTRIBUTOR THROTTLE VALVE PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 2020 (718 BOXSTER) VACUUM SYSTEM ENGINE VACUUM PUMP PARTS DIAGRAM")
-part-diagram-107-016.webp "PORSCHE 2020 (718 BOXSTER) VACUUM SYSTEM ENGINE PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2020 (718 BOXSTER) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 2020 (718 BOXSTER) CONTROL LINE WASTEGATE COOLANT PUMP BYPASS VALVE PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 2020 (718 BOXSTER) SECONDARY AIR PUMP PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2020 (718 BOXSTER) ENGINE LIFTING TACKLE PARTS DIAGRAM")
-part-diagram-109-010.webp "PORSCHE 2020 (718 BOXSTER) ENGINE LIFTING TACKLE PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2020 (718 BOXSTER) FUEL TANK FUEL PUMP PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2020 (718 BOXSTER) FUEL LINE FRONT FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2020 (718 BOXSTER) FUEL LINE FRONT FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2020 (718 BOXSTER) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST SYSTEM SILENCER CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-202-002.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST SYSTEM SILENCER CATALYTIC CONVERTER FOR VEHICLES WITH A PETROL PARTICULATE FILTER PARTS DIAGRAM")
-part-diagram-202-003.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST SYSTEM PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST GAS TURBOCHARGER WITH: HEAT INSULATION OIL PIPE COOLANT PIPE PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST SYSTEM SPORT PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 2020 (718 BOXSTER) EXHAUST SYSTEM SPORT EXHAUST FLAP CONTROL UNIT PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 2020 (718 BOXSTER) PETROL PARTICULATE FILTER EXHAUST FLAP CONTROL UNIT PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 2020 (718 BOXSTER) COUPLING PARTS DIAGRAM")
-part-diagram-301-001.webp "PORSCHE 2020 (718 BOXSTER) COUPLING PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 2020 (718 BOXSTER) CLUTCH SLAVE CYLINDER PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-001.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX INDIVIDUAL PARTS LIMITED SLIP DIFFERENTIAL DRIVE FLANGE PARTS DIAGRAM")
-part-diagram-302-006.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX INDIVIDUAL PARTS SENSOR MODULE PARTS DIAGRAM")
-part-diagram-302-011.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-302-015.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX SELECTOR MECHANISM SELECTOR SHAFT PARTS DIAGRAM")
-part-diagram-302-020.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-302-021.webp "PORSCHE 2020 (718 BOXSTER) MANUAL GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2020 (718 BOXSTER) GEARBOX SECURING PARTS PARTS DIAGRAM")
-part-diagram-306-050.webp "PORSCHE 2020 (718 BOXSTER) GEARBOX SECURING PARTS PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2020 (718 BOXSTER) - PDK - GEARBOX PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2020 (718 BOXSTER) - PDK - GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-320-010.webp "PORSCHE 2020 (718 BOXSTER) - PDK - GEARBOX CLUTCH FOR DUAL CLUTCH GEARBOX PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2020 (718 BOXSTER) - PDK - GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2020 (718 BOXSTER) CROSS MEMBER WISHBONE PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2020 (718 BOXSTER) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2020 (718 BOXSTER) SUSPENSION SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2020 (718 BOXSTER) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2020 (718 BOXSTER) STEERING GEAR PARTS DIAGRAM")
-part-diagram-403-004.webp "PORSCHE 2020 (718 BOXSTER) STEERING WHEEL - PDK - PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 2020 (718 BOXSTER) STEERING WHEEL MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 2020 (718 BOXSTER) STEERING COLUMN INTERMEDIATE STEERING SHAFT PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 2020 (718 BOXSTER) STEERING WHEEL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-403-011.webp "PORSCHE 2020 (718 BOXSTER) STEERING WHEEL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2020 (718 BOXSTER) REAR AXLE WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 2020 (718 BOXSTER) REAR AXLE SIDE PART CARRIER GUIDE PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 2020 (718 BOXSTER) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 2020 (718 BOXSTER) DRIVE SHAFT WHEEL HUB PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2020 (718 BOXSTER) SHOCK ABSORBERS COIL SPRING PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2020 (718 BOXSTER) ALUMINIUM RIM SPARE WHEEL TYRE SEALANT PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 2020 (718 BOXSTER) TYRE PRESSURE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 2020 (718 BOXSTER) DISC BRAKE FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 2020 (718 BOXSTER) DISC BRAKE REAR AXLE ------------------------------ PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 2020 (718 BOXSTER) PARKING BRAKE ------------------------------ PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2020 (718 BOXSTER) BRAKE MASTER CYLINDER BRAKE SERVO PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2020 (718 BOXSTER) BRAKE LINE FRONT FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2020 (718 BOXSTER) BRAKE LINE CENTER UNDERBODY REAR PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 2020 (718 BOXSTER) VACUUM LINE FRONT BRAKE SERVO CENTER REAR PARTS DIAGRAM")
-part-diagram-604-050.webp "PORSCHE 2020 (718 BOXSTER) ELECTRIC VACUUM PUMP FOR BRAKE PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2020 (718 BOXSTER) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2020 (718 BOXSTER) SELECTOR MECHANISM MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 2020 (718 BOXSTER) SELECTOR LEVER - PDK - PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2020 (718 BOXSTER) BRAKE AND CLUTCH PEDALS CLUSTER PARTS DIAGRAM")
-part-diagram-703-000.webp "PORSCHE 2020 (718 BOXSTER) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER CLUTCH SLAVE CYLINDER PARTS DIAGRAM")
-part-diagram-703-100.webp "PORSCHE 2020 (718 BOXSTER) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER CLUTCH SLAVE CYLINDER HOSE PARTS DIAGRAM")
-part-diagram-704-000.webp "PORSCHE 2020 (718 BOXSTER) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2020 (718 BOXSTER) CAR BODY PARTS DIAGRAM")
-part-diagram-801-002.webp "PORSCHE 2020 (718 BOXSTER) BUNGS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 2020 (718 BOXSTER) FRONT END (COMPLETE) PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2020 (718 BOXSTER) FRONT END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2020 (718 BOXSTER) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2020 (718 BOXSTER) FLOOR PLATES CENTER PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 2020 (718 BOXSTER) REAR END PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2020 (718 BOXSTER) WING PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2020 (718 BOXSTER) SCUTTLE PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2020 (718 BOXSTER) SIDE PART PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2020 (718 BOXSTER) TRIM UNDERBODY PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2020 (718 BOXSTER) TRIMS WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-801-090.webp "PORSCHE 2020 (718 BOXSTER) SIDE MEMBER TRIM AND AIR GUIDE ENGINE BAY PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2020 (718 BOXSTER) BUMPER FRONT PARTS DIAGRAM")
-part-diagram-802-003.webp "PORSCHE 2020 (718 BOXSTER) BUMPER FRONT SPORT DESIGN PACKAGE AND GTS PARTS DIAGRAM")
-part-diagram-802-004.webp "PORSCHE 2020 (718 BOXSTER) BUMPER FRONT GTS PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 2020 (718 BOXSTER) AIR GUIDE FRONT BUMPER PARTS DIAGRAM")
-part-diagram-802-013.webp "PORSCHE 2020 (718 BOXSTER) AIR GUIDE FRONT BUMPER SPORT DESIGN PACKAGE AND GTS PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 2020 (718 BOXSTER) AIR GUIDE FRONT BUMPER SPORT DESIGN PACKAGE AND GTS PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 2020 (718 BOXSTER) BUMPER REAR PARTS DIAGRAM")
-part-diagram-802-023.webp "PORSCHE 2020 (718 BOXSTER) BUMPER REAR GTS SPORT DESIGN PACKAGE PARTS DIAGRAM")
-part-diagram-802-025.webp "PORSCHE 2020 (718 BOXSTER) BUMPER REAR GTS 4.0 PARTS DIAGRAM")
-part-diagram-802-030.webp "PORSCHE 2020 (718 BOXSTER) FASTENERS REAR BUMPER PARTS DIAGRAM")
-part-diagram-802-060.webp "PORSCHE 2020 (718 BOXSTER) BUMPER CARRIER FRONT PARTS DIAGRAM")
-part-diagram-802-070.webp "PORSCHE 2020 (718 BOXSTER) BUMPER CARRIER REAR PARTS DIAGRAM")
-part-diagram-802-075.webp "PORSCHE 2020 (718 BOXSTER) BUMPER CARRIER REAR GTS 4.0 PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2020 (718 BOXSTER) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2020 (718 BOXSTER) COVER REAR PARTS DIAGRAM")
-part-diagram-803-006.webp "PORSCHE 2020 (718 BOXSTER) COVER REAR PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 2020 (718 BOXSTER) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2020 (718 BOXSTER) DOOR SHELL DOOR LOCK PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2020 (718 BOXSTER) DOOR SEAL AND TRIM PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 2020 (718 BOXSTER) DOOR HANDLE, EXTERIOR PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2020 (718 BOXSTER) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2020 (718 BOXSTER) WINDSCREEN SIDE WINDOW REAR WINDOW PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2020 (718 BOXSTER) LUGGAGE COMPARTMENT TRIM FRONT PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 2020 (718 BOXSTER) LUGGAGE COMPARTMENT TRIM REAR PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2020 (718 BOXSTER) FLOORING PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2020 (718 BOXSTER) TRIM INNER SILL PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 2020 (718 BOXSTER) SIDE PANEL TRIM B-PILLAR PARTS DIAGRAM")
-part-diagram-807-025.webp "PORSCHE 2020 (718 BOXSTER) TRIMS ENGINE BAY PARTS DIAGRAM")
-part-diagram-807-030.webp "PORSCHE 2020 (718 BOXSTER) TRIMS ROLL BAR PARTS DIAGRAM")
-part-diagram-807-055.webp "PORSCHE 2020 (718 BOXSTER) A-PILLAR WINDSHIELD FRAME PARTS DIAGRAM")
-part-diagram-807-065.webp "PORSCHE 2020 (718 BOXSTER) SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-067.webp "PORSCHE 2020 (718 BOXSTER) SUN VIZORS LEATHER ALCANTARA PARTS DIAGRAM")
-part-diagram-807-080.webp "PORSCHE 2020 (718 BOXSTER) BODY NOISE INSULATION PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES SLUSH TECHNOLOGY PARTS DIAGRAM")
-part-diagram-808-002.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES LEATHERETTE/LEATHER PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES SLUSH TECHNOLOGY LEATHER PACKAGE PARTS DIAGRAM")
-part-diagram-808-007.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES LEATHERETTE/LEATHER PARTS DIAGRAM")
-part-diagram-808-008.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL GTS ACCESSORIES LEATHERETTE ALCANTARA PARTS DIAGRAM")
-part-diagram-808-009.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL GTS ACCESSORIES LEATHERETTE ALCANTARA DINAMICA PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES LEATHER PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES LEATHER PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM LEATHER PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES LEATHER TRIM MAHAGONI PARTS DIAGRAM")
-part-diagram-808-040.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM CARBON PARTS DIAGRAM")
-part-diagram-808-050.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM ALUMINIUM, BRUSHED PARTS DIAGRAM")
-part-diagram-808-060.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL LEATHER ACCESSORIES TRIM PAINTED PARTS DIAGRAM")
-part-diagram-808-070.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL LEATHER ACCESSORIES MOLDING FOR DOOR TRIM PAINTED PANEL BLACK PARTS DIAGRAM")
-part-diagram-808-075.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM LEATHER BLACK PARTS DIAGRAM")
-part-diagram-808-200.webp "PORSCHE 2020 (718 BOXSTER) DOOR TRIM GTS (LEATHER/ALCANTARA) ACCESSORIES TRIM GALVANO SILVER PARTS DIAGRAM")
-part-diagram-808-210.webp "PORSCHE 2020 (718 BOXSTER) DOOR TRIM GTS (LEATHER/ALCANTARA) ACCESSORIES TRIM BRUSHED ALUMINIUM/BLACK PARTS DIAGRAM")
-part-diagram-808-220.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM CARBON PARTS DIAGRAM")
-part-diagram-808-310.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM LEATHER BLACK PARTS DIAGRAM")
-part-diagram-808-400.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM SILVER GTS 4.0 PARTS DIAGRAM")
-part-diagram-808-410.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM ANODISED GTS 4.0 ALUMINIUM PARTS DIAGRAM")
-part-diagram-808-420.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM LEATHER GTS 4.0 PARTS DIAGRAM")
-part-diagram-808-440.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM CARBON GTS 4.0 PARTS DIAGRAM")
-part-diagram-808-450.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM ALU-BRUSHED GTS 4.0 PARTS DIAGRAM")
-part-diagram-808-460.webp "PORSCHE 2020 (718 BOXSTER) DOOR PANEL ACCESSORIES TRIM PANEL FOR DOOR TRIM PAINTED GTS 4.0 PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2020 (718 BOXSTER) INSTRUMENT PANEL TRIM UPPER PART WITH: FASTENERS PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 2020 (718 BOXSTER) ACCESSORIES INSTRUMENT PANEL TRIM UPPER PART PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2020 (718 BOXSTER) GLOVE BOX AND TRIM (DRIVERS SIDE) PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2020 (718 BOXSTER) RETAINING FRAME DASHBOARD PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 2020 (718 BOXSTER) CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-809-050.webp "PORSCHE 2020 (718 BOXSTER) EXTERIOR MIRROR INTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2020 (718 BOXSTER) INSCRIPTIONS/LETTERING MOLDINGS PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2020 (718 BOXSTER) CONVERTIBLE TOP COVERING MOULDED HEADLINER PARTS DIAGRAM")
-part-diagram-811-002.webp "PORSCHE 2020 (718 BOXSTER) COVER - TOP MOULDED HEADLINER PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 2020 (718 BOXSTER) TOP FRAME FRONT ROOF FRAME CATCH PARTS DIAGRAM")
-part-diagram-811-007.webp "PORSCHE 2020 (718 BOXSTER) TOP FRAME FRONT ROOF FRAME CATCH PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 2020 (718 BOXSTER) TOP FRAME INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-811-012.webp "PORSCHE 2020 (718 BOXSTER) TOP FRAME INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 2020 (718 BOXSTER) CONVERTIBLE TOP SEAL WATER COLLECTING TRAY PARTS DIAGRAM")
-part-diagram-811-017.webp "PORSCHE 2020 (718 BOXSTER) CONVERTIBLE TOP SEAL WATER COLLECTING TRAY PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 2020 (718 BOXSTER) CONVERTIBLE TOP STOWAGE BOX ELECTRIC MOTOR WIRE SET PARTS DIAGRAM")
-part-diagram-811-022.webp "PORSCHE 2020 (718 BOXSTER) CONVERTIBLE TOP WIRE SET PARTS DIAGRAM")
-part-diagram-811-050.webp "PORSCHE 2020 (718 BOXSTER) FLAP SIDE CONVERTIBLE TOP PARTS DIAGRAM")
-part-diagram-811-055.webp "PORSCHE 2020 (718 BOXSTER) WINDBREAK PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2020 (718 BOXSTER) THREE-POINT SAFETY BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2020 (718 BOXSTER) ROLL BAR PARTS DIAGRAM")
-part-diagram-812-050.webp "PORSCHE 2020 (718 BOXSTER) AIRBAG PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 2020 (718 BOXSTER) HEATER SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 2020 (718 BOXSTER) AIR GUIDE PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2020 (718 BOXSTER) AIR CONDITIONING AND INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2020 (718 BOXSTER) REFRIGERANT CIRCUIT FRONT PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2020 (718 BOXSTER) REFRIGERANT CIRCUIT REFRIGERANT LINE DRIER PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 2020 (718 BOXSTER) REFRIGERANT CIRCUIT UNDERBODY AND REAR END PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 2020 (718 BOXSTER) COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2020 (718 BOXSTER) SEAT FRONT SPORTS SEAT SPORTS SEAT PLUS BUCKET SEAT NO LONGER AVAILABLE TRIM COVER PANEL PARTS DIAGRAM")
-part-diagram-817-002.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART SEAT COVERS SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-003.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART SEAT OCCUPIED RECOGNITION D - 23.11.2020>> PARTS DIAGRAM")
-part-diagram-817-004.webp "PORSCHE 2020 (718 BOXSTER) BACKREST SHELL SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-006.webp "PORSCHE 2020 (718 BOXSTER) BACKREST FRAME LUMBAR SUPPORT SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-008.webp "PORSCHE 2020 (718 BOXSTER) SEAT FRAME SPORTS SEAT ACCESSORIES BRACKET FIRE EXTINGUISHERS PARTS DIAGRAM")
-part-diagram-817-009.webp "PORSCHE 2020 (718 BOXSTER) SEAT PADDING FRAME SPORTS SEAT SEAT OCCUPIED RECOGNITION PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS SWITCH CONTROL UNIT ELECTRIC MOTOR SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-012.webp "PORSCHE 2020 (718 BOXSTER) HEATER ELEMENT BACKREST BOLSTER HEATER ELEM. BACKREST HEATER ELEMENT SEAT AND SEAT SIDE HEATER ELEMENT PARTS DIAGRAM")
-part-diagram-817-017.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART SEAT COVERS PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART SEAT OCCUPIED RECOGNITION D - 23.11.2020>> PARTS DIAGRAM")
-part-diagram-817-019.webp "PORSCHE 2020 (718 BOXSTER) BACKREST SHELL SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-021.webp "PORSCHE 2020 (718 BOXSTER) BACKREST FRAME SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-022.webp "PORSCHE 2020 (718 BOXSTER) LUMBAR SUPPORT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-023.webp "PORSCHE 2020 (718 BOXSTER) SEAT FRAME SPORTS SEAT PLUS ACCESSORIES REPAIR SET SEAT OCCUPIED RECOGNITION TRIM FOR SWITCH PARTS DIAGRAM")
817-023 Seat frame Sports seat Plus Accessories repair set seat occupied recognition Trim for switch -part-diagram-817-024.webp "PORSCHE 2020 (718 BOXSTER) SEAT PADDING FRAME SPORTS SEAT PLUS REPAIR SET SEAT OCCUPIED RECOGNITION PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS SWITCH CONTROL UNIT ELECTRIC MOTOR SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-060.webp "PORSCHE 2020 (718 BOXSTER) BUCKET SEAT FOLDING (COMPLETE) NO LONGER AVAILABLE PARTS DIAGRAM")
-part-diagram-817-062.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART FOLDING SEAT COVER SEAT AND BACKREST SURFACE BUCKET SEAT PARTS DIAGRAM")
-part-diagram-817-064.webp "PORSCHE 2020 (718 BOXSTER) BUCKET SEAT FOLDING SEAT FRAME ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-066.webp "PORSCHE 2020 (718 BOXSTER) BACKREST SHELL BUCKET SEAT FOLDING ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-300.webp "PORSCHE 2020 (718 BOXSTER) FOAM PART BACKREST COVER SEAT COVER BUCKET SEAT PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2020 (718 BOXSTER) REPAIR SET 1 SET OF LOCK CYLINDERS PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2020 (718 BOXSTER) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2020 (718 BOXSTER) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-901-004.webp "PORSCHE 2020 (718 BOXSTER) CONTROL UNITS FRONT END REAR END HANDHELD TRANSMITTER IGNITION/STARTER SWITCH AERIAL SENSOR FOR INTERIOR MONITORING PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 2020 (718 BOXSTER) CONTROL UNIT CRASH SENSOR FOR AIRBAG PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2020 (718 BOXSTER) CENTRAL ELECTRICS DASHBOARD PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 2020 (718 BOXSTER) CENTRAL ELECTRICS REAR LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-004.webp "PORSCHE 2020 (718 BOXSTER) STARTER ALTERNATOR PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 2020 (718 BOXSTER) STARTER ALTERNATOR EARTH LINE PARTS DIAGRAM")
-part-diagram-902-006.webp "PORSCHE 2020 (718 BOXSTER) BATTERY POTENTIAL DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS PASSENGER COMPARTMENT AND PART SECTION WIRING HARNESS PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS FRONT DASHBOARD TRIM STEERING FRONT AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS DOORS CENTRE CONSOLE CONTROL UNIT DOORS CONVERTIBLE TOP CONTROL PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS REAR TRIM ENGINE GEARBOX REAR AXLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 2020 (718 BOXSTER) WIRING LOOMS AIRBAG FOR VEHICLES WITH SEAT BELTS PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2020 (718 BOXSTER) FANFARE SIGNAL HORN ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2020 (718 BOXSTER) INTERIOR LIGHTING DOOR WARNING LIGHT FOOTWELL LIGHT LUGGAGE COMPARTMENT LAMP GLOVE BOX LIGHT LIGHT EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2020 (718 BOXSTER) SWITCH CONTROL PANEL AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 2020 (718 BOXSTER) CONSOLE ROOF PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2020 (718 BOXSTER) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2020 (718 BOXSTER) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2020 (718 BOXSTER) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 2020 (718 BOXSTER) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 2020 (718 BOXSTER) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
905-000 Headlights Additional headlight Turn signal indicator side marker light Turn signal repeater -part-diagram-905-001.webp "PORSCHE 2020 (718 BOXSTER) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
905-001 Headlights Additional headlight Turn signal indicator side marker light Turn signal repeater -part-diagram-905-003.webp "PORSCHE 2020 (718 BOXSTER) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 2020 (718 BOXSTER) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT REAR FOG LIGHT PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D >>- 31.05.2020 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D - 01.06.2020>> PARTS DIAGRAM")
-part-diagram-906-010.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D >>- 30.05.2020 PARTS DIAGRAM")
-part-diagram-906-011.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D - 01.06.2020>> PARTS DIAGRAM")
-part-diagram-906-020.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D >>- 31.05.2020 PARTS DIAGRAM")
-part-diagram-906-021.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D - 01.06.2020>> PARTS DIAGRAM")
-part-diagram-906-050.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D >>- 31.05.2020 PARTS DIAGRAM")
-part-diagram-906-051.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D - 01.06.2020>> PARTS DIAGRAM")
-part-diagram-906-060.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D >>- 31.05.2020 PARTS DIAGRAM")
-part-diagram-906-061.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH D - 01.06.2020>> PARTS DIAGRAM")
-part-diagram-906-070.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH PARTS DIAGRAM")
-part-diagram-906-080.webp "PORSCHE 2020 (718 BOXSTER) COMBI-INSTRUMENT STOPWATCH PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2020 (718 BOXSTER) CONTROL PANEL NAVIGATION SYSTEM CENTRAL COMPUTER TV MICROPHONE CAMERA PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2020 (718 BOXSTER) SD MEMORY CARD FOR UPDATING THE NAVIGATION DATA PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 2020 (718 BOXSTER) AERIAL SINGLE WIRE PARTS DIAGRAM")
-part-diagram-911-004.webp "PORSCHE 2020 (718 BOXSTER) FOR MODELS WITH TELEPHONE AND EMERGENCY CALL PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2020 (718 BOXSTER) LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2020 (718 BOXSTER) AMPLIFIERS PARTS DIAGRAM")
-part-diagram-911-020.webp "PORSCHE 2020 (718 BOXSTER) SOUND ACTUATOR FOR ENGINE SOUND SYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2020 (718 BOXSTER) TOOL JACK PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2020 (718 BOXSTER) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-010.webp "PORSCHE 2020 (718 BOXSTER) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-030.webp "PORSCHE 2020 (718 BOXSTER) SIGNS/NOTICES D - MJ 2022>> PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2020 (718 BOXSTER) PAINT TOUCH-UP APPLICATOR PAINTS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2020 (718 BOXSTER) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - GEARBOX BUT WITHOUT: FLYWHEEL MANUAL GEARBOX INCLUDED COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-101-001.webp "PORSCHE 2020 (718 BOXSTER) REPLACEMENT ENGINE FOR VEHICLES WITH A PETROL PARTICULATE FILTER BUT WITHOUT: CLUTCH PLATE - PDK - GEARBOX BUT WITHOUT: FLYWHEEL MANUAL GEARBOX INCLUDED COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-101-002.webp "PORSCHE 2020 (718 BOXSTER) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2020 (718 BOXSTER) CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-101-006.webp "PORSCHE 2020 (718 BOXSTER) CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2020 (718 BOXSTER) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-101-011.webp "PORSCHE 2020 (718 BOXSTER) POLY-V-BELT BELT TENSIONER DAMPER PARTS DIAGRAM")
-part-diagram-101-050.webp "PORSCHE 2020 (718 BOXSTER) BASE ENGINE SEE TECHNICAL INFORMATION 27/13 PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 2020 (718 BOXSTER) CRANKSHAFT PARTS DIAGRAM")
-part-diagram-102-001.webp "PORSCHE 2020 (718 BOXSTER) CRANKSHAFT CONROD FLYWHEEL PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 2020 (718 BOXSTER) PISTON PARTS DIAGRAM")
-part-diagram-102-006.webp "PORSCHE 2020 (718 BOXSTER) PISTON PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD WITH: VALVE CYLINDER HEAD GASKET CYLINDER HEAD COVER PARTS DIAGRAM")
-part-diagram-103-001.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD CYLINDER HEAD GASKET VALVE COVER PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD ACCESSORIES INLET/OUTLET VALVE PARTS DIAGRAM")
-part-diagram-103-006.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD INDIVIDUAL PARTS VALVE PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD INDIVIDUAL PARTS SEALING PLUG SENSORS PARTS DIAGRAM")
-part-diagram-103-008.webp "PORSCHE 2020 (718 BOXSTER) CYLINDER HEAD COVER PLATES PARTS DIAGRAM")
