porsche 2005 (carrera gt) belt tensioner - belt drive parts diagram

101-010 - BELT TENSIONER - BELT DRIVE

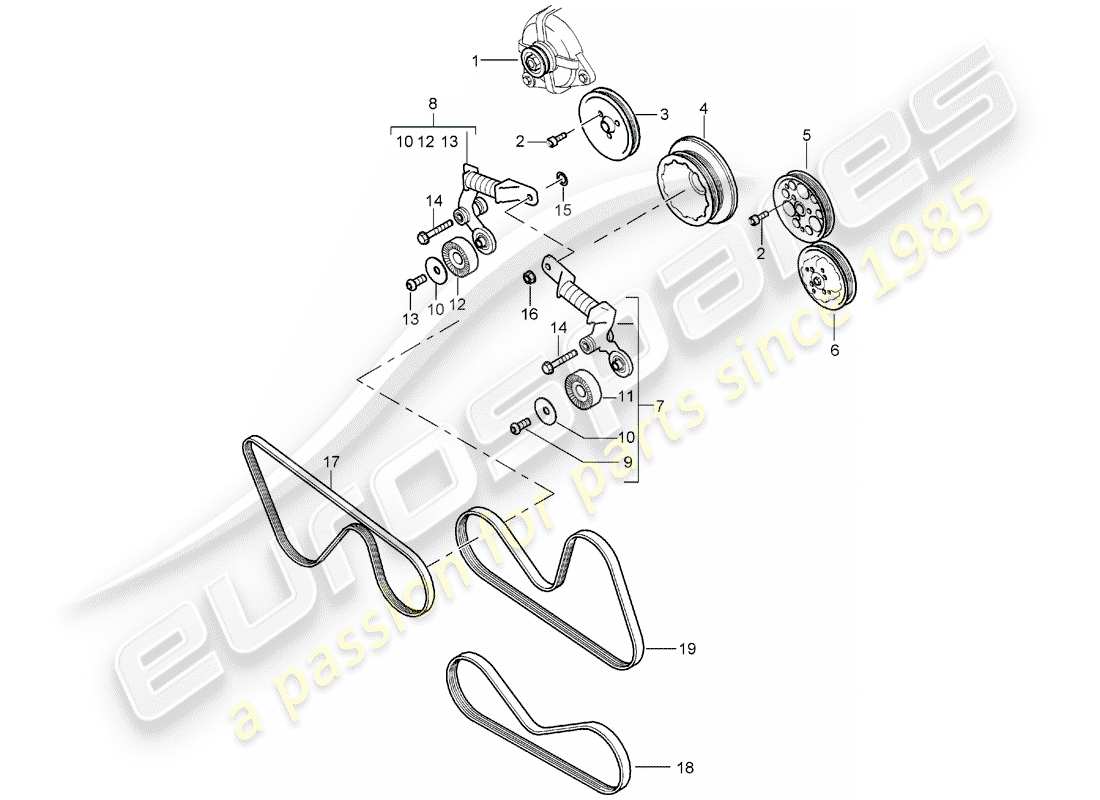

Porsche 2005 (Carrera GT) BELT TENSIONER - BELT DRIVE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              -
                              PULLEY - ALTERNATOR - SEE ILLUSTRATION:
                              --902-005
                              # 2
                              MPN: 90011905202
                              SCREW, CHEESE HD. - M 8 X 16 - NO LONGER USE THE PART HERE
                              from £1.42
                              from £1.42
                              SCREW, CHEESE HD. - M8 X 16 Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 90011905201
                              SCREW, CHEESE HD. - M 8 X 16
                              from £1.39
                              from £1.39
                              SCREW, CHEESE HD. - M 8 X 16 Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 98010610600
                              pulley - water pump
                              from £485.18
                              from £485.18
                              pulley - water pump Genuine Porsche Part - New (to order)
                              # 4
                              -
                              VIBRATION DAMPER - CRANKSHAFT - SEE ILLUSTRATION:
                              --102-000
                              # 5
                              MPN: 98014751100
                              pulley - Power-steering pump
                              from £289.85
                              from £289.85
                              pulley - Power-steering pump Genuine Porsche Part - New (to order)
                              # 6
                              -
                              PULLEY - COMPRESSOR - SEE ILLUSTRATION:
                              --813-015
                              # 7
                              MPN: 98010235101
                              belt tensioning damper
                              from £718.48
                              from £718.48
                              belt tensioning damper Genuine Porsche Part - New (to order)
                              # 8
                              MPN: 98010235201
                              belt tensioning damper
                              from £718.48
                              from £718.48
                              belt tensioning damper Genuine Porsche Part - New (to order)
                              # 9
                              MPN: 99907328109
                              SCREW, ROUND HD. - M 10 LH X 27
                              from £28.61
                              from £28.61
                              SCREW, ROUND HD. - M 10 LH X 27 Genuine Porsche Part - New (to order)
                              # 10
                              MPN: 98010239100
                              WASHER DISC
                              from £7.96
                              from £7.96
                              WASHER DISC Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 98010237100
                              belt tensioner
                              from £166.23
                              from £166.23
                              belt tensioner Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 98010237200
                              belt tensioner
                              from £166.23
                              from £166.23
                              belt tensioner Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 99907328909
                              screw, round hd. - M 10 X 27
                              from £24.89
                              from £24.89
                              screw, round hd. - M 10 X 27 Genuine Porsche Part - New (to order)
                              # 14
                              MPN: 90037819809
                              SCREW, HEX. HD. - M 10 X 75
                              from £10.01
                              from £10.01
                              SCREW, HEX. HD. - M 10 X 75 Genuine Porsche Part - New (to order)
                              # 15
                              MPN: 98010275100
                              WASHER - 16 X 0,14 X 8,1
                              from £27.23
                              from £27.23
                              WASHER - 16 X 0,14 X 8,1 Genuine Porsche Part - New (to order)
                              # 16
                              MPN: 90037700302
                              hex. nut - M 8
                              hex. nut - VM 8 Genuine Porsche Part - New (to order)
                              # 17
                              MPN: 98010225202
                              v-ribbed belt
                              from £190.57
                              from £190.57
                              v-ribbed belt Genuine Porsche Part - New (to order)
                              # 18
                              MPN: 98010225300
                              v-ribbed belt - without air conditioner
                              (PR:574)
                              from £192.42
                              from £192.42
                              v-ribbed belt - without air conditioner Genuine Porsche Part - New (to order)
                              # 19
                              MPN: 98010225102
                              V-RIBBED BELT - WITH AIR CONDITIONER
                              (PR:572)
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
