4800 (4.5 Litre 8 Cyliner Engine (340 Horsepower / 250 Kilowatt with Engine Code: 4800 and installed 05/2002-05/2006) | 4850 (4.5 Litre 8 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: 4850 and installed 05/2002-05/2006)
porsche 2005 (cayenne e1 9pa) fuel collection pipe parts diagram

107-005 - FUEL COLLECTION PIPE

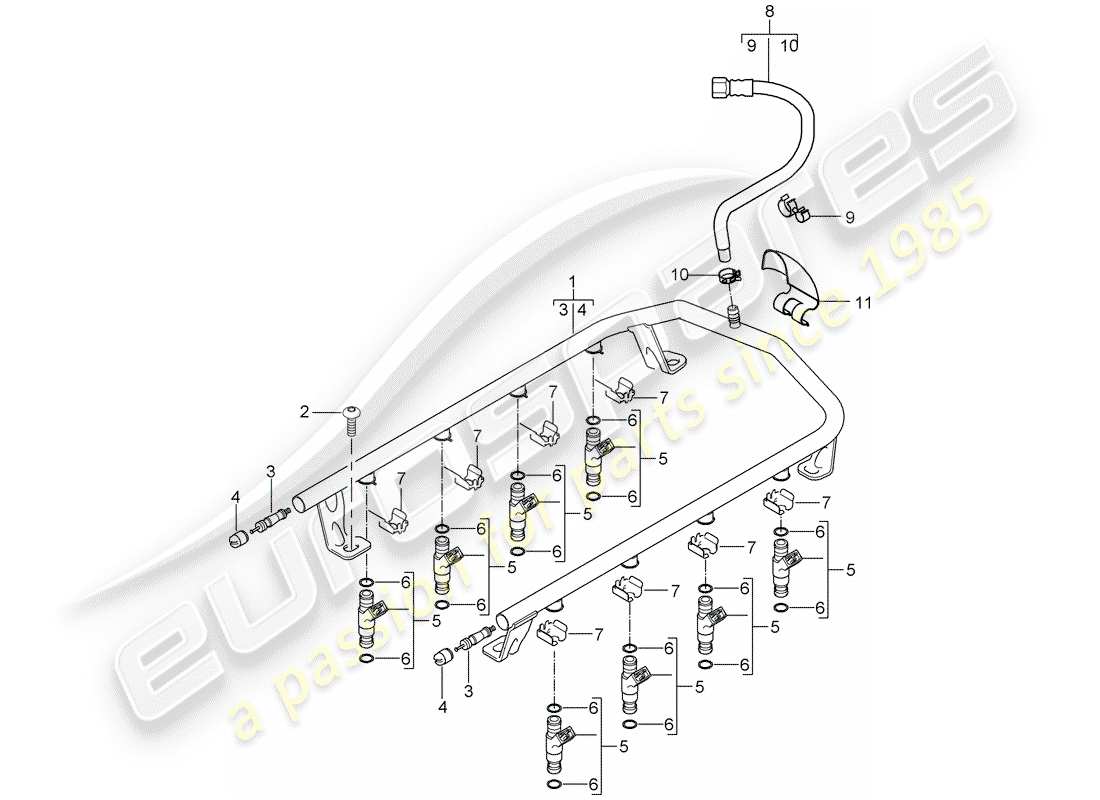

Porsche 2005 (Cayenne E1 9PA) Fuel collection pipe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 94811011301
                  FUEL COLLECTION PIPE
                  FUEL COLLECTION PIPE
                  FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                  # 1
                  MPN: 94811011302
                  FUEL COLLECTION PIPE
                  FUEL COLLECTION PIPE
                  FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                  # 1
                  MPN: 94811011303
                  FUEL COLLECTION PIPE
                  from £172.64
                  from £172.64
                  FUEL COLLECTION PIPE Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 9990732360A
                  FILLISTER HD. BOLT M 6 X 10
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 3
                  MPN: 94811021700
                  VALVE INSERT
                  from £26.93
                  from £26.93
                  VALVE INSERT Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 94811021800
                  CAP CLOSURE
                  from £13.31
                  from £13.31
                  CAP Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 94860513000
                  INJECTION VALVE
                  INJECTION VALVE
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 5
                  MPN: 94860513001
                  INJECTION VALVE
                  INJECTION VALVE
                  INJECTOR Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 94860513002
                  INJECTION VALVE
                  4800 (4.5 Litre 8 Cyliner Engine (340 Horsepower / 250 Kilowatt with Engine Code: 4800 and installed 05/2002-05/2006)
                  from £243.70
                  from £243.70
                  This part replaces part number 94860513000
                  INJECTOR Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 94860513101
                  INJECTION VALVE
                  INJECTION VALVE
                  INJECTOR Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 94860513102
                  INJECTION VALVE
                  4850 (4.5 Litre 8 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: 4850 and installed 05/2002-05/2006)
                  from £243.70
                  from £243.70
                  INJECTOR Genuine Porsche Part - New (to order)
                  # 6
                  MPN: 99970757440
                  O-RING 7,52 X 3,51
                  from £6.77
                  from £6.77
                  O-RING Genuine Porsche Part - New In stock
                  # 7
                  MPN: 94811041300
                  Retaining Clip
                  from £8.44
                  from £8.44
                  Retaining Clip Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 95511029510
                  FUEL LINE
                  FUEL LINE
                  FUEL LINE Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 95511029511
                  FUEL LINE
                  from £52.50
                  from £52.50
                  FUEL LINE Genuine Porsche Part - New (to order)
                  # 9
                  MPN: N 10422601
                  BRACKET A 03-14 X C 01-16
                  from £2.62
                  from £2.62
                  BRACKET Genuine Porsche Part - New (to order)
                  # 10
                  MPN: N 90686701
                  SPRING BAND CLAMP B 14 X 12
                  from £0.84
                  from £0.84
                  SPRING CLIP Genuine Porsche Part - New (to order)
                  SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                  SPRING CLAMP B14X12 Genuine Lamborghini - New (to order)
                  # 11
                  MPN: 95511040101
                  COVER PLATE
                  from £5.33
                  from £5.33
                  COVER PLATE Genuine Porsche Part - New (to order)
