porsche 2005 (cayenne e1 9pa) glove box parts diagram

809-010 - GLOVE BOX

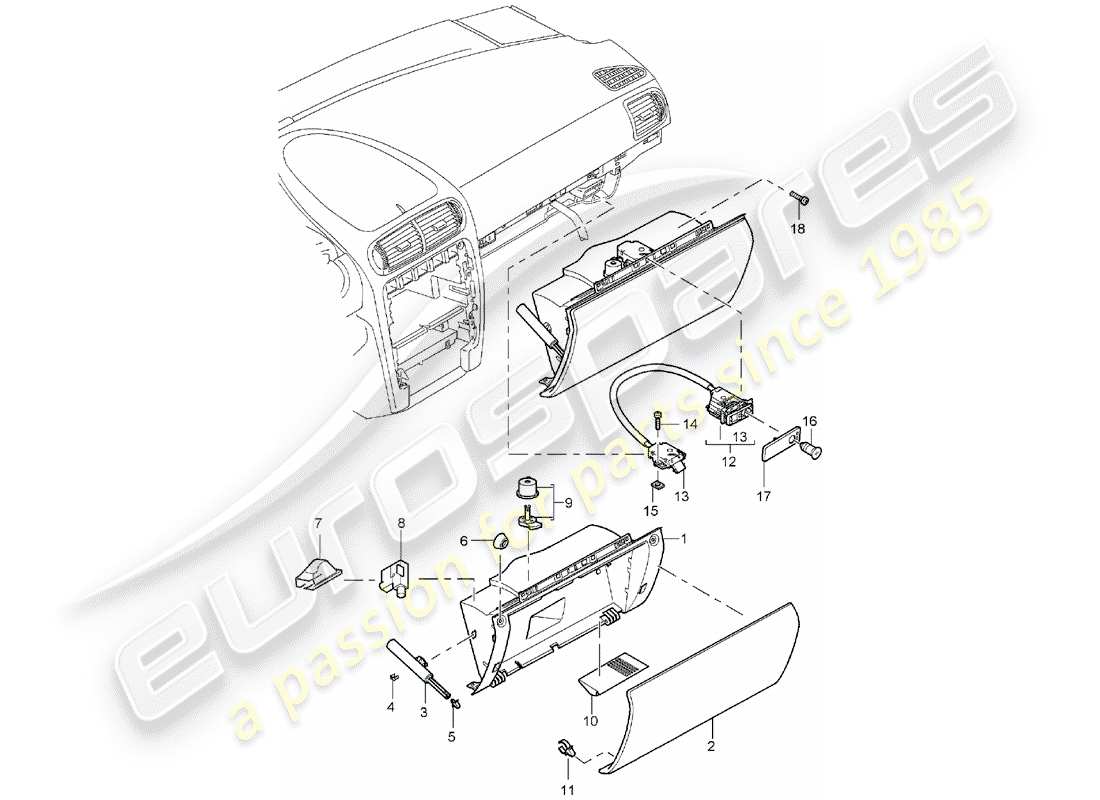

Porsche 2005 (Cayenne E1 9PA) Glove box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 95555211801A03
                                  STORAGE FRAME GLOVE BOX - BLACK
                                  from £154.15
                                  from £154.15
                                  This part replaces part number 95555211801
                                  Black Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552120005Q2
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHERETTE - BLACK
                                  P4N1 (Padded dashboard)
                                  from £268.91
                                  from £268.91
                                  This part replaces part number 95555212000
                                  Black Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552120005R3
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHERETTE - STEEL GREY
                                  P4N1 (Padded dashboard)
                                  from £268.91
                                  from £268.91
                                  This part replaces part number 95555212000
                                  STEEL GREY Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552120005S4
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHERETTE - SAND BEIGE
                                  P4N1 (Padded dashboard)
                                  from £268.91
                                  from £268.91
                                  This part replaces part number 95555212000
                                  SAND BEIGE Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552120005Y5
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHERETTE - PALM GREEN
                                  P4N1 (Padded dashboard)
                                  from £268.91
                                  from £268.91
                                  This part replaces part number 95555212000
                                  PALM GREEN Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552121004P1
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHER - PALM GREEN
                                  P4N8 (Dashboard with genuine leather)
                                  from £320.32
                                  from £320.32
                                  This part replaces part number 95555212100
                                  PALM GREEN Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552121006B7
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHER - STEEL GREY
                                  P4N8 (Dashboard with genuine leather)
                                  from £320.32
                                  from £320.32
                                  This part replaces part number 95555212100
                                  STEEL GREY Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552121008G1
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHER - SAND BEIGE
                                  P4N8 (Dashboard with genuine leather)
                                  from £320.32
                                  from £320.32
                                  This part replaces part number 95555212100
                                  SAND BEIGE Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 955552121008YR
                                  GLOVE COMPARTMENT LID WITH: FLAP LEATHER - BLACK
                                  P4N8 (Dashboard with genuine leather)
                                  from £320.32
                                  from £320.32
                                  This part replaces part number 95555212100
                                  Black Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 95555212200
                                  Damper Glove box
                                  from £108.46
                                  from £108.46
                                  DAMPER Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 95555210700
                                  RETAINING CLIP DAMPER
                                  from £0.52
                                  from £0.52
                                  Retaining Clip Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: 95555212300
                                  STOP DAMPER
                                  from £14.02
                                  from £14.02
                                  STOP Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 95555212400
                                  STOP BUFFER GLOVE BOX
                                  from £1.37
                                  from £1.37
                                  JOUNCE BUMPER Genuine Porsche Part - New (to order)
                                  # 7
                                  -
                                  GLOVE BOX LIGHT SEE ILLUSTRATION: 903-004
                                  # 8
                                  -
                                  CONTACT SWITCH FOR GLOVE BOX LIGHT SEE ILLUSTRATION: 903-004
                                  # 9
                                  MPN: 95557070100
                                  AIR VENT LOWER GLOVE BOX
                                  from £145.30
                                  from £145.30
                                  AIR VENT Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 95555212500
                                  INSERT GLOVE BOX D >>- MJ 2004
                                  from £10.95
                                  from £10.95
                                  INSERT Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 95555212600
                                  BRACKET INK PEN HOLDER GLOVE COMPARTMENT LID
                                  from £12.11
                                  from £12.11
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 95555212701
                                  HOUSING FOR LOCK FOR GLOVE COMPARTMENT
                                  from £25.72
                                  from £25.72
                                  HOUSING Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 95555212800
                                  CATCH GLOVE BOX
                                  from £12.11
                                  from £12.11
                                  CATCH Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: N 90698601
                                  HEXAGON SOCKET HEAD PANEL BOLT ST 4,2 X 16 FOR CATCH
                                  from £0.47
                                  from £0.47
                                  HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New (to order)
                                  HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                  # 15
                                  MPN: N 90698801
                                  SPEED NUT 4,2 X 16 X12 FOR CATCH
                                  from £0.48
                                  from £0.48
                                  SPEED NUT Genuine Porsche Part - New (to order)
                                  SPEED NUT Genuine Bentley Part - New (to order)
                                  SNAP NUT CLAMP ST4.2X16X12.3 Genuine Lamborghini - New In stock
                                  # 16
                                  MPN: 99655291500
                                  LOCK CYLINDERS GLOVE BOX WHEN ORDERING, PLEASE PROVIDE THE VEHICLE IDENTIFICATION AND THE LOCK NUMBER
                                  LOCK CYLINDER - GLOVE BOX - WHEN ORDERING, PLEASE PROVIDE - THE VEHICLE IDENTIFICATION - AND THE LOCK NUMBER - Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 955552449005X2
                                  TRIM PAINTED FOR LOCK FOR GLOVE COMPARTMENT PLASTIC - SILVER MAT CHROME
                                  P5MA (Decorative inlays - paint, painted plastic)
                                  from £15.79
                                  from £15.79
                                  This part replaces part number 95555244900
                                  Silver mat chrome Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 955552450004W9
                                  TRIM FOR LOCK FOR GLOVE COMPARTMENT - SATIN ALUMINIUM
                                  P5MG (Burr maple wood package, dark high gloss) | P5TE (Aluminium sport package) | P5TF (Olive wood package, light high gloss) | P5TK (Decorative inlays, grained olive wood)
                                  This part replaces part number 95555245000
                                  SATIN ALUMINIUM Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: N 90698601
                                  HEXAGON SOCKET HEAD PANEL BOLT ST 4,2 X 16 FOR GLOVE BOX
                                  from £0.47
                                  from £0.47
                                  HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New (to order)
                                  HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
