porsche 2006 (cayenne e1 9pa) air con./heating/aux. heater supply pipe return line to use before: f >>9p-6la41 356 f >>9p-6la80 630 parts diagram

813-010 - Air con./heating/aux. heater supply pipe return line to use before: F >>9P-6LA41 356 F >>9P-6LA80 630

Porsche 2006 (Cayenne E1 9PA) Air con./heating/aux. heater supply pipe return line to use before: F >>9P-6LA41 356 F >>9P-6LA80 630 Parts Diagram

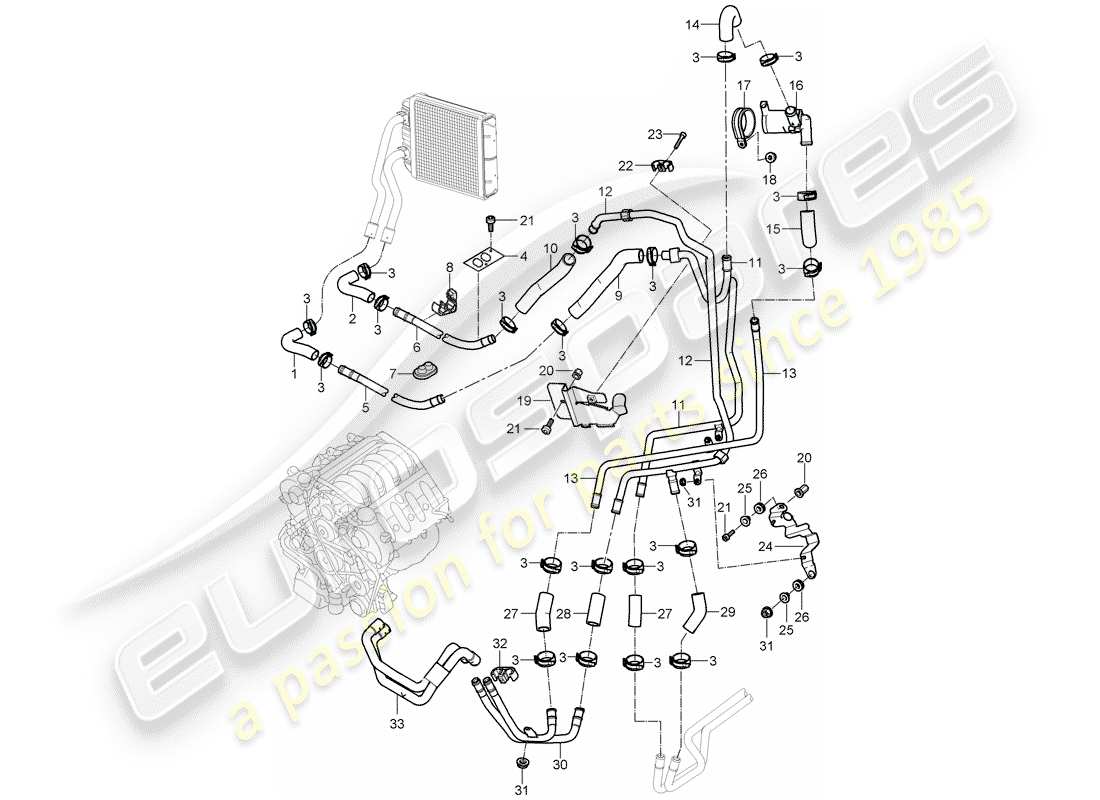

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 95557258100
                                                  HEATING HOSE LHD
                                                  PL0L (Left-hand drive version)
                                                  from £11.33
                                                  from £11.33
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 1
                                                  MPN: 95557258101
                                                  HEATING HOSE RHD HEAT EXCHANGER
                                                  PL0R (Right-hand drive version)
                                                  from £12.54
                                                  from £12.54
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 2
                                                  MPN: 95557298300
                                                  HEATING HOSE LHD
                                                  PL0L (Left-hand drive version)
                                                  from £14.90
                                                  from £14.90
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 2
                                                  MPN: 95557258100
                                                  HEATING HOSE RHD HEAT EXCHANGER
                                                  PL0R (Right-hand drive version)
                                                  from £11.33
                                                  from £11.33
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 4
                                                  MPN: 95557275800
                                                  SEALING STRIP
                                                  from £4.91
                                                  from £4.91
                                                  SEALING STRIP Genuine Porsche Part - New (to order)
                                                  # 5
                                                  MPN: 95557268200
                                                  COOLANT PIPE LHD
                                                  PL0L (Left-hand drive version)
                                                  from £41.55
                                                  from £41.55
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 5
                                                  MPN: 95557268201
                                                  Coolant pipe rhd
                                                  PL0R (Right-hand drive version)
                                                  from £39.93
                                                  from £39.93
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 6
                                                  MPN: 95557268300
                                                  COOLANT PIPE LHD
                                                  PL0L (Left-hand drive version)
                                                  from £62.70
                                                  from £62.70
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 6
                                                  MPN: 95557268301
                                                  Coolant pipe rhd
                                                  PL0R (Right-hand drive version)
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 7
                                                  MPN: 95557278100
                                                  GROMMET
                                                  from £9.71
                                                  from £9.71
                                                  GROMMET Genuine Porsche Part - New (to order)
                                                  # 8
                                                  MPN: 95557214500
                                                  RETAINING CLIP RHD
                                                  PL0R (Right-hand drive version)
                                                  from £5.05
                                                  from £5.05
                                                  Retaining Clip Genuine Porsche Part - New (to order)
                                                  # 9
                                                  MPN: 95557278501
                                                  HEATING HOSE
                                                  from £13.55
                                                  from £13.55
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 10
                                                  MPN: 95557278602
                                                  HEATING HOSE
                                                  from £13.55
                                                  from £13.55
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 11
                                                  MPN: 95557240000
                                                  WATER PIPE
                                                  WATER PIPE
                                                  from £59.42
                                                  from £59.42
                                                  WATER PIPE Genuine Porsche Part - New (to order)
                                                  # 12
                                                  MPN: 95557240500
                                                  WATER PIPE TO USE BEFORE: F >>9P-5LA43 487 F >>9P-5LA81 701
                                                  from £70.28
                                                  from £70.28
                                                  WATER PIPE Genuine Porsche Part - New (to order)
                                                  # 12
                                                  MPN: 95557292601
                                                  Coolant pipe to use after: F 9P-5LA43 488>>F 9P-5LA81 702>>
                                                  Coolant pipe to use after: F 9P-5LA43 488>>F 9P-5LA81 702>>
                                                  from £70.28
                                                  from £70.28
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 13
                                                  MPN: 95557268900
                                                  COOLANT PIPE
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 13
                                                  MPN: 95557268901
                                                  COOLANT PIPE
                                                  COOLANT PIPE
                                                  from £51.90
                                                  from £51.90
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 14
                                                  MPN: 95557258801
                                                  HEATING HOSE
                                                  from £13.85
                                                  from £13.85
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 15
                                                  MPN: 95557258400
                                                  HEATING HOSE
                                                  from £8.66
                                                  from £8.66
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 16
                                                  MPN: 95557215003
                                                  COOLANT PUMP
                                                  from £223.88
                                                  from £223.88
                                                  WATER PUMP Genuine Porsche Part - New (to order)
                                                  # 17
                                                  MPN: N 90942301
                                                  CLAMP
                                                  from £6.19
                                                  from £6.19
                                                  CLAMP Genuine Porsche Part - New (to order)
                                                  RETAINING CLAMP D1-48X15 Genuine Lamborghini - New (to order)
                                                  # 18
                                                  MPN: 90037701001
                                                  HEXAGON NUT M6 TO USE BEFORE: F >>9P-5LA43 487 F >>9P-5LA81 701
                                                  from £0.59
                                                  from £0.59
                                                  This part replaces part number 90037701009
                                                  hex. nut - M 6 Genuine Porsche Part - New In stock
                                                  # 18
                                                  MPN: N 0147733
                                                  SOCKET HEAD BOLT M6 X 20 TO USE AFTER: F 9P-5LA43 488>>F 9P-5LA81 702>>
                                                  from £0.47
                                                  from £0.47
                                                  SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                  # 19
                                                  MPN: 95557240601
                                                  BRACKET COOLANT PUMP
                                                  from £34.03
                                                  from £34.03
                                                  BRACKET Genuine Porsche Part - New (to order)
                                                  # 20
                                                  MPN: N 90263104
                                                  RIVETTED CAP NUT M6
                                                  from £0.79
                                                  from £0.79
                                                  RIVETTED CAP NUT Genuine Porsche Part - New (to order)
                                                  RIVETTED CAP NUT Genuine Bentley Part - New (to order)
                                                  RIVETTED CAP NUT Genuine Lamborghini - New (to order)
                                                  # 21
                                                  MPN: N 10451404
                                                  HEXAGON SOCKET FLAT HEAD BOLT M6 X 16
                                                  from £0.48
                                                  from £0.48
                                                  HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                  HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                  SCREW Genuine Lamborghini - New In stock
                                                  # 22
                                                  MPN: 95557205501
                                                  CLIP
                                                  from £4.95
                                                  from £4.95
                                                  CLIP Genuine Porsche Part - New (to order)
                                                  # 23
                                                  MPN: N 10620901
                                                  SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6 X 30
                                                  from £1.31
                                                  from £1.31
                                                  BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                  HEXALOBULAR SOCKET PAN HEAD BOLT M6X30 Genuine Lamborghini - New In stock
                                                  # 24
                                                  MPN: 95557295000
                                                  BRACKET COOLANT PIPE
                                                  BRACKET Genuine Porsche Part - New (to order)
                                                  # 25
                                                  MPN: 95557212100
                                                  BUSH
                                                  from £1.37
                                                  from £1.37
                                                  BUSHING Genuine Porsche Part - New (to order)
                                                  # 26
                                                  MPN: 95557209500
                                                  RUBBER GROMMET
                                                  from £1.14
                                                  from £1.14
                                                  RUBBER GROMMET Genuine Porsche Part - New (to order)
                                                  # 27
                                                  MPN: 95557258900
                                                  HEATING HOSE
                                                  from £9.64
                                                  from £9.64
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 28
                                                  MPN: 95557278400
                                                  HEATING HOSE
                                                  from £12.53
                                                  from £12.53
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 29
                                                  MPN: 95557279300
                                                  HEATING HOSE
                                                  from £9.64
                                                  from £9.64
                                                  heater hose Genuine Porsche Part - New (to order)
                                                  # 30
                                                  MPN: 95557269800
                                                  HEATER PIPE
                                                  HEATER PIPE
                                                  from £40.74
                                                  from £40.74
                                                  HEATER PIPE Genuine Porsche Part - New (to order)
                                                  # 30
                                                  MPN: 95557269802
                                                  HEATER PIPE
                                                  from £50.42
                                                  from £50.42
                                                  HEATER PIPE Genuine Porsche Part - New (to order)
                                                  # 31
                                                  MPN: 90037701001
                                                  HEXAGON NUT M6
                                                  from £0.59
                                                  from £0.59
                                                  This part replaces part number 90037701009
                                                  hex. nut - M 6 Genuine Porsche Part - New In stock
                                                  # 32
                                                  MPN: 95557205500
                                                  CLIP HEATER PIPE
                                                  CLIP Genuine Porsche Part - New (to order)
                                                  # 33
                                                  -
                                                  COOLANT HOSE ENGINE SEE ILLUSTRATION: 105-025
