059D (3.0 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 059D and installed 01/2007-05/2010)
porsche 2010 (cayenne e1 9pa) valve cover parts diagram

103-007 - valve cover

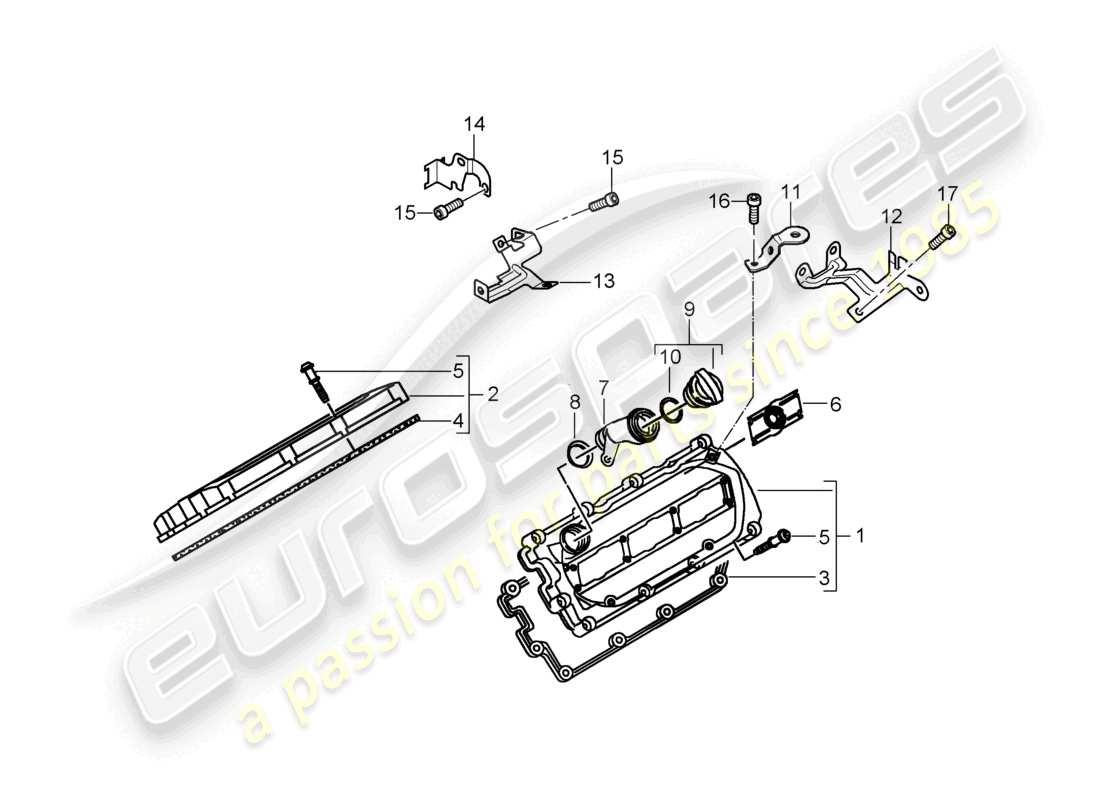

Porsche 2010 (Cayenne E1 9PA) Valve cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 95510513510
                            VALVE COVER CYLINDERS 4-6
                            VALVE COVER CYLINDERS 4-6
                            valve cover Genuine Porsche Part - New (to order)
                            # 1
                            MPN: 95510513511
                            VALVE COVER CYLINDERS 4-6
                            from £237.78
                            from £237.78
                            valve cover Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 95510513610
                            VALVE COVER CYLINDERS 1-3
                            VALVE COVER CYLINDERS 1-3
                            valve cover Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 95510513611
                            VALVE COVER CYLINDERS 1-3
                            from £237.78
                            from £237.78
                            valve cover Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 95510523110
                            SEAL CYLINDERS 4-6
                            from £61.31
                            from £61.31
                            GASKET Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 95510523210
                            SEAL CYLINDERS 1-3
                            from £61.31
                            from £61.31
                            GASKET Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 95510534310
                            FLAT ROUND HEAD BOLT WITH: GUIDE SLEEVE
                            from £8.40
                            from £8.40
                            SCREW, ROUND HD Genuine Porsche Part - New (to order)
                            # 6
                            -
                            END CAP SEE ILLUSTRATION: 107-008
                            # 7
                            MPN: 95510711500
                            FUEL FILLER NECK ENGINE OIL
                            from £26.24
                            from £26.24
                            FILLER NECK Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 95510728700
                            SEAL RING
                            from £10.02
                            from £10.02
                            SEAL RING Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 95510448510
                            END CAP
                            END CAP
                            SEALING CAP Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 95810448500
                            END CAP
                            END CAP
                            SEALING CAP Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 95810448510
                            END CAP
                            from £15.02
                            from £15.02
                            SEALING CAP Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 95510733600
                            SEAL
                            SEAL
                            GASKET Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 95810453600
                            SEAL
                            from £7.07
                            from £7.07
                            GASKET Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 95560684500
                            BRACKET
                            from £4.99
                            from £4.99
                            BRACKET Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 95560684600
                            BRACKET
                            from £11.46
                            from £11.46
                            BRACKET Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 95560650200
                            BRACKET
                            from £11.82
                            from £11.82
                            BRACKET Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 95560650300
                            BRACKET
                            from £11.46
                            from £11.46
                            BRACKET Genuine Porsche Part - New (to order)
                            # 15
                            MPN: N 10335206
                            HEXAGON SOCKET FLAT HEAD BOLT M 6 X 12
                            from £0.78
                            from £0.78
                            HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                            HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                            HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                            # 16
                            MPN: N 10170302
                            ROUND HD. SCREW M 6 X 10
                            from £0.61
                            from £0.61
                            ROUND HD. SCREW Genuine Porsche Part - New (to order)
                            Genuine Bentley Part (no longer available to order)
                            HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New (to order)
                            # 17
                            MPN: N 10346904
                            HEXAGON SOCKET HEAD COLLARED BOLT (COMBI) M 6 X 12
                            from £0.84
                            from £0.84
                            hexagon socket head Genuine Porsche Part - New (to order)
