porsche 2010 (cayenne e1 9pa) intake manifold oil sump parts diagram

104-070 - Intake manifold oil sump

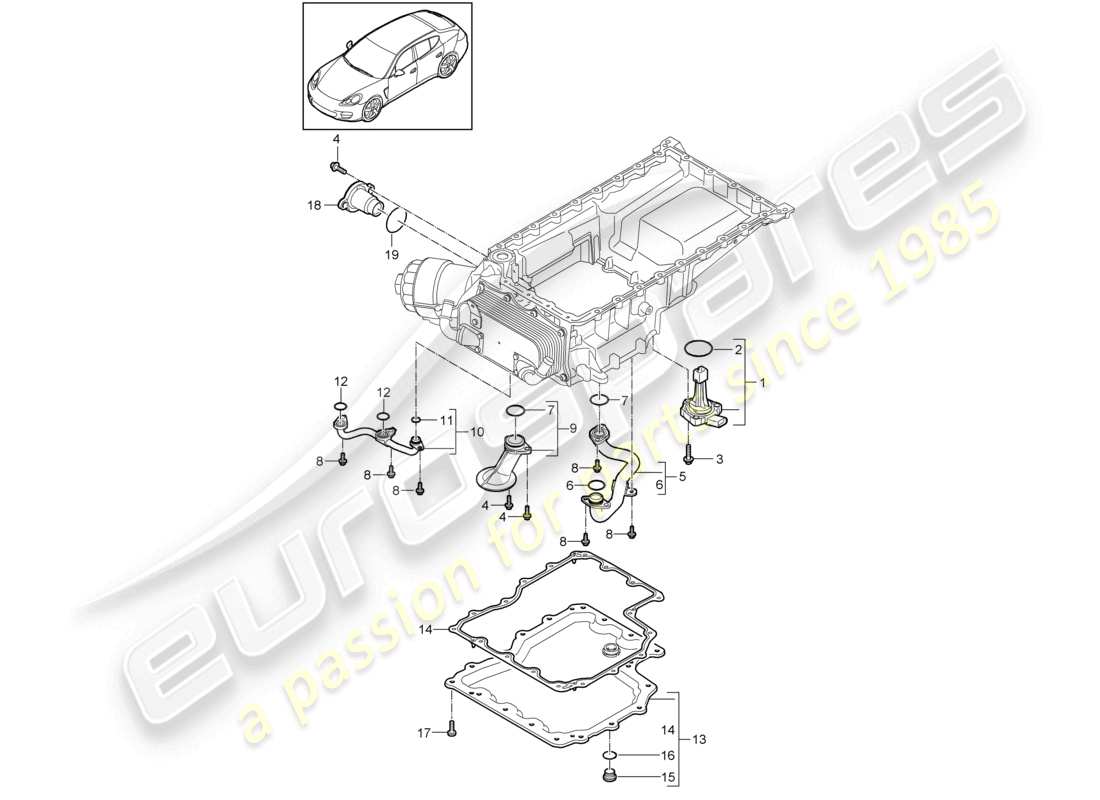

Porsche 2010 (Cayenne E1 9PA) Intake manifold oil sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 94860616002
                                      OIL LEVEL SENSOR D >>- MJ 2013
                                      from £125.56
                                      from £125.56
                                      OIL LEVEL SENSOR Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 94860617000
                                      OIL LEVEL SENSOR D - MJ 2014>>
                                      from £122.84
                                      from £122.84
                                      OIL LEVEL SENSOR Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 038103196B
                                      SEAL RING
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 3
                                      MPN: 90038507201
                                      TORX SCREW BM 6 X 25
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 4
                                      MPN: 90038501901
                                      TORX SCREW M 6 X 20
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 5
                                      MPN: 94610703120
                                      OIL PIPE
                                      from £171.78
                                      from £171.78
                                      OIL PIPE Genuine Porsche Part - New (to order)
                                      # 6
                                      MPN: 99970758540
                                      O-RING 22 X 3
                                      from £4.67
                                      from £4.67
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 99970754740
                                      O-RING 28 X 3
                                      from £2.29
                                      from £2.29
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 90038500901
                                      HEXAGON HEAD BOLT M 6 X 16
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 9
                                      MPN: 94610703020
                                      INTAKE MANIFOLD
                                      from £53.02
                                      from £53.02
                                      INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 94610703321
                                      OIL PIPE WITH: O-RING
                                      OIL PIPE Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: 99970756840
                                      O-RING 12 X 3
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 12
                                      MPN: 99970756740
                                      O-RING 17 X 3
                                      from £2.29
                                      from £2.29
                                      O-RING Genuine Porsche Part - New In stock
                                      # 13
                                      MPN: 94610701522
                                      oil sump
                                      oil sump
                                      OIL PAN Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 94610701523
                                      oil sump
                                      oil sump
                                      OIL PAN Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 94610701524
                                      oil sump
                                      from £154.46
                                      from £154.46
                                      OIL PAN Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: 94610727521
                                      GASKET FOR OIL SUMP
                                      from £48.28
                                      from £48.28
                                      GASKET FOR OIL PAN Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 90021902031
                                      SEALING PLUG M 18 X 1,5
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 16
                                      MPN: 90012310630
                                      SEAL RING A 18 X 24
                                      from £1.43
                                      from £1.43
                                      This part replaces part number 90012300930
                                      OIL DRAIN PLUG SEAL RING, A 18 X 24 Genuine Porsche Part - New In stock
                                      # 17
                                      MPN: 99907334401
                                      FLAT ROUND HEAD BOLT M 6 X 20
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 18
                                      MPN: 94810731320
                                      FLANGE
                                      from £23.41
                                      from £23.41
                                      FLANGE Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: 99970757040
                                      O-RING 44,0 X 3,0
                                      from £4.52
                                      from £4.52
                                      O-RING Genuine Porsche Part - New (to order)
