059D (3.0 Litre 6 Cyliner Engine (239 Horsepower / 176 Kilowatt with Engine Code: 059D and installed 01/2007-05/2010)
porsche 2010 (cayenne e1 9pa) high pressure pump parts diagram

107-009 - high pressure pump

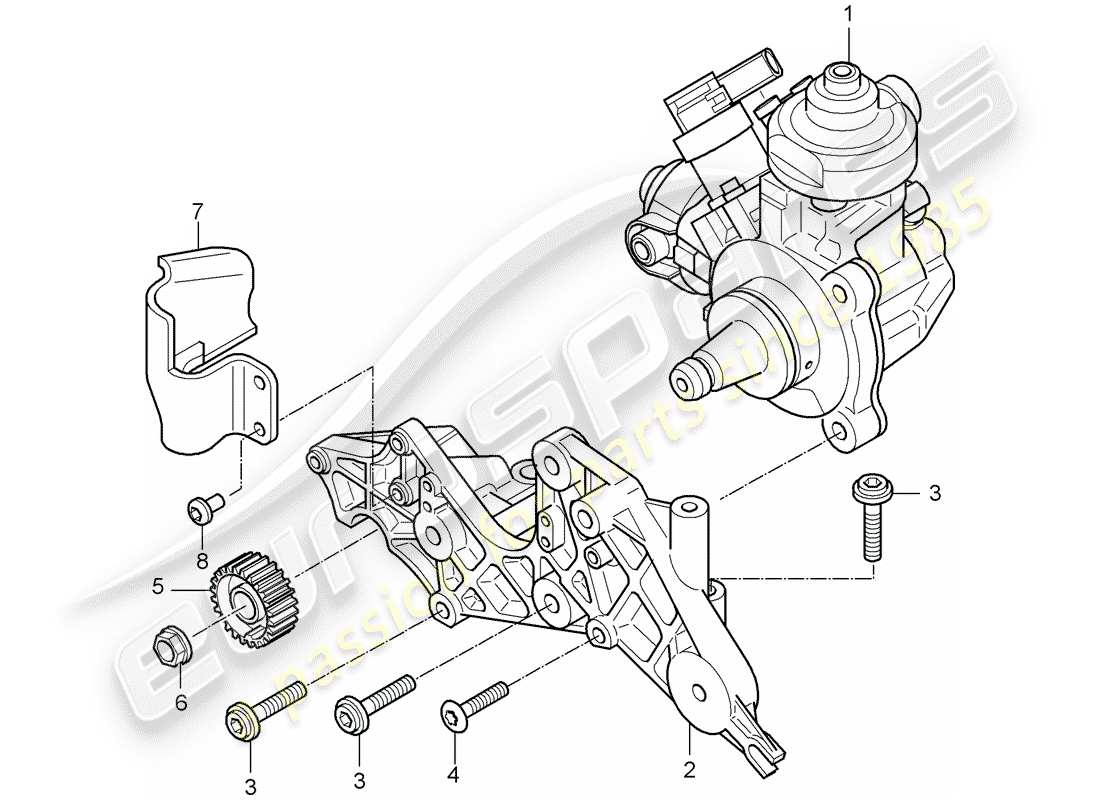

Porsche 2010 (Cayenne E1 9PA) high pressure pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 95511031620
                high pressure pump only in conj. with: 1 set of fuel lines 955.110.030.00 059.130.300.DF
                high pressure pump only in conj. with: 1 set of fuel lines 955.110.030.00 059.130.300.DF
                from £1,009.35
                from £1,009.35
                high pressure pump Genuine Porsche Part - New (to order)
                # 1
                MPN: 95811031621
                high pressure pump only in conj. with: 1 set of fuel lines 955.110.030.01 059.130.300.EH
                high pressure pump only in conj. with: 1 set of fuel lines 955.110.030.01 059.130.300.EH
                high pressure pump Genuine Porsche Part - New (to order)
                # 1
                MPN: 95811031622
                high pressure pump only in conj. with: 1 set of fuel lines 955.110.030.01 059.130.300.EH
                from £2,085.36
                from £2,085.36
                high pressure pump Genuine Porsche Part - New (to order)
                # 2
                MPN: 95511015000
                Console
                from £179.27
                from £179.27
                BRACKET Genuine Porsche Part - New (to order)
                # 3
                MPN: N 91026602
                OVAL HEAD LOCATING BOLT WITH MULTI-POINT SOCKET HEAD M 8 X 35
                from £1.86
                from £1.86
                FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                # 4
                MPN: N 91068001
                HEXAGON SOCKET FLAT HEAD BOLT M 6 X 28
                from £0.73
                from £0.73
                HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                PAN HEAD SCREW Genuine Lamborghini - New (to order)
                # 5
                MPN: 95511011100
                TOOTHED BELT PULLEY
                from £54.09
                from £54.09
                TOOTHED BELT PULLEY Genuine Porsche Part - New (to order)
                # 6
                MPN: WHT002244
                HEXAGON COLLAR NUT M 18 X 1,5
                from £2.66
                from £2.66
                shouldered hex. nut Genuine Porsche Part - New (to order)
                HEXAGON COLLAR NUT Genuine Bentley Part - New (to order)
                # 7
                MPN: 95511038000
                PROTECTIVE PLATE
                from £10.08
                from £10.08
                PROTECTIVE PLATE Genuine Porsche Part - New (to order)
                # 8
                MPN: N 10451405
                OVAL HEXAGON SOCKET HEAD BOLT M 6 X 16
                from £0.70
                from £0.70
                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
