4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) | 4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010)

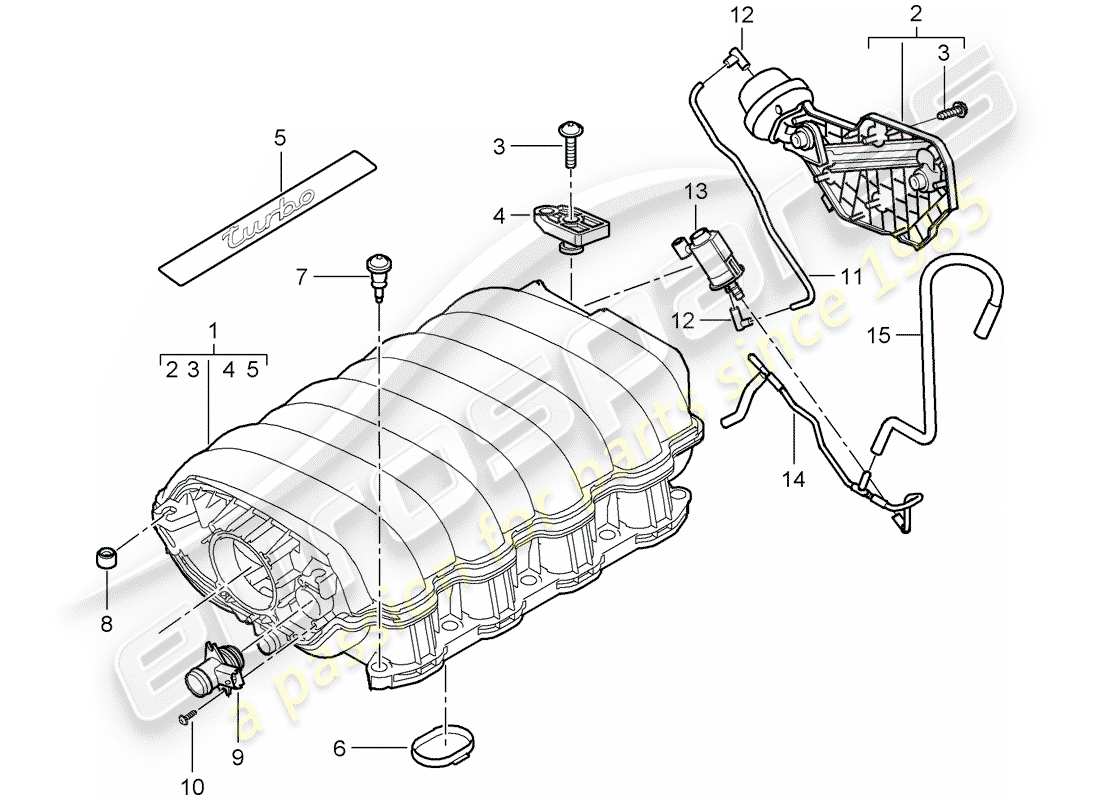

porsche 2010 (cayenne e1 9pa) intake air distributor parts diagram

107-010 - intake air distributor

Porsche 2010 (Cayenne E1 9PA) intake air distributor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 94811001602
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001603
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001604
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001605
          intake air distributor
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) with, PE0A (No campaign version, basic equipment)
          from £423.17
          from £423.17
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001620
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001621
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001622
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001623
          intake air distributor
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) with, PE0W (GTS version) | PE2D (Special model Transsyberia) | PE1T (Sondermodell CAYENNE. Porsche Design Edition 3)
          from £423.17
          from £423.17
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001652
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001653
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001654
          intake air distributor
          4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) with, PE0A (No campaign version, basic equipment)
          from £423.17
          from £423.17
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001660
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001661
          intake air distributor
          intake air distributor
          intake air distributor Genuine Porsche Part - New (to order)
          # 1
          MPN: 94811001662
          intake air distributor
          4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) with, PE81 (Enhanced performance engine) | PE8A (Turbo S)
          from £784.03
          from £784.03
          intake air distributor Genuine Porsche Part - New (to order)
          # 2
          MPN: 94811011602
          REPAIR SET THROTTLE CONTROL ELEMENT
          REPAIR SET THROTTLE CONTROL ELEMENT
          repair kit Genuine Porsche Part - New (to order)
          # 2
          MPN: 94811011620
          REPAIR SET THROTTLE CONTROL ELEMENT
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £71.57
          from £71.57
          repair kit Genuine Porsche Part - New (to order)
          # 3
          MPN: 99991900601
          FILLISTER HD. BOLT 5 X 16 M >>9 05540 M >>G 9 04964
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £0.59
          from £0.59
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 3
          MPN: 99991900601
          FILLISTER HD. BOLT 5 X 16 M 9 05541 >>M G 9 04965 >>
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £0.59
          from £0.59
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 3
          MPN: 99991900601
          FILLISTER HD. BOLT 5 X 16 M 9 01689 >>M T 9 02243 >>M S 9 00562 >>
          4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010)
          from £0.59
          from £0.59
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 4
          MPN: 94811025600
          COVER WITH: O-RING M 9 06822 >>M G 9 06076 >>M 9 01689 >>M T 9 02243 >>M S 9 00562 >>
          , 4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) | E0A, 4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) | E0W, E2D, E1T, 4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) | E0A, 4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) | E8A, 4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) | E81
          from £9.12
          from £9.12
          COVER Genuine Porsche Part - New (to order)
          # 5
          MPN: 94811021670
          TRIM WITH INSCRIPTION PLASTIC
          4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) with, PE0A (No campaign version, basic equipment)
          from £26.72
          from £26.72
          TRIM WITH INSCRIPTION Genuine Porsche Part - New (to order)
          # 5
          MPN: 94811021600
          TRIM WITH INSCRIPTION CARBON
          4851 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) 4851 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4851 and installed 01/2007-05/2010) with, PE81 (Enhanced performance engine) | PE8A (Turbo S)
          from £49.47
          from £49.47
          TRIM WITH INSCRIPTION Genuine Porsche Part - New (to order)
          # 6
          MPN: 94811014601
          SEAL
          from £8.00
          from £8.00
          GASKET Genuine Porsche Part - New In stock
          # 7
          MPN: 94811014201
          SECURING ELEMENT
          SECURING ELEMENT
          ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
          # 7
          MPN: 94811014202
          SECURING ELEMENT
          from £11.13
          from £11.13
          ATTACHMENT ELEMENT Genuine Porsche Part - New (to order)
          # 8
          MPN: 95511023600
          BALL SOCKET
          from £3.32
          from £3.32
          BALL SOCKET Genuine Porsche Part - New (to order)
          # 9
          MPN: 94860513900
          heater element
          from £78.94
          from £78.94
          heater element Genuine Porsche Part - New (to order)
          # 10
          MPN: 99991900601
          FILLISTER HD. BOLT 5 X 16
          from £0.59
          from £0.59
          FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
          # 11
          MPN: 94811013600
          PIPE
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £12.75
          from £12.75
          TUBE Genuine Porsche Part - New (to order)
          # 12
          MPN: 94811012600
          CONNECTING PIECE
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £8.31
          from £8.31
          CONNECTING PIECE Genuine Porsche Part - New (to order)
          # 13
          MPN: 99660512301
          Change-over valve Electric
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 14
          MPN: 94811035800
          VACUUM LINE
          4801 (4.8 Litre 8 Cyliner Engine (384 Horsepower / 283 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010) 4801 (4.8 Litre 8 Cyliner Engine (405 Horsepower / 298 Kilowatt with Engine Code: 4801 and installed 01/2007-05/2010)
          from £54.49
          from £54.49
          VACUUM LINE Genuine Porsche Part - New (to order)
