PG0R (Tiptronic s)
-part-diagram-340-001.webp)

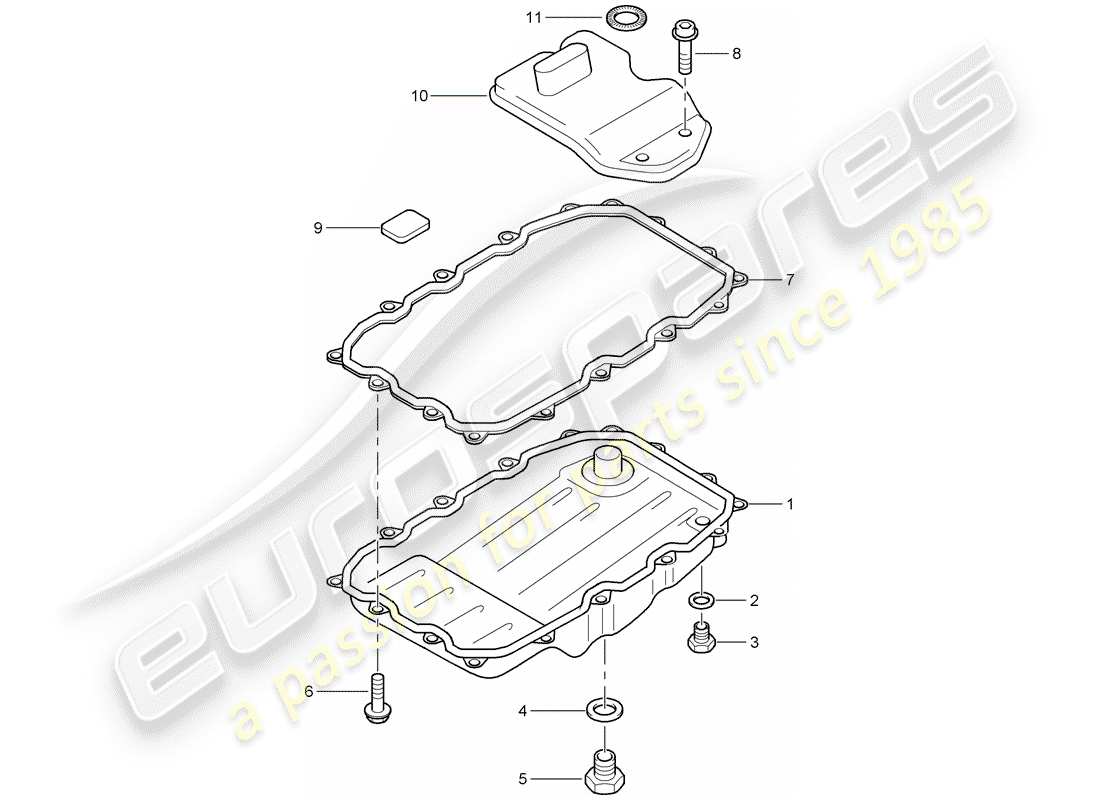

340-001 - Tiptronic oil filter oil sump
Porsche 2010 (Cayenne E1 9PA) Tiptronic oil filter oil sump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 95532102501
oil sump
from £218.16
from £218.16
# 2
MPN: 95532118101
SEAL RING 16,7 X 11,9
from £3.26
from £3.26
# 3
MPN: WHT000206A
DRAIN PLUG M 10 X 9
from £3.93
from £3.93
# 4
MPN: 95532137900
SEAL RING
from £3.81
from £3.81
# 5
MPN: WHT000323A
SEALING PLUG M 24 X 1,5 X 14
from £10.89
from £10.89
# 6
MPN: WHT000326A
HEXAGON HEAD BOLT (COMBI) M 6 X 25
from £1.38
from £1.38
# 7
MPN: 95539701600
GASKET FOR OIL SUMP
from £68.30
from £68.30
# 8
MPN: WHT000322
HEXAGON HEAD BOLT (COMBI) M 6 X 12
from £0.72
from £0.72
# 9
MPN: 95532136800
MAGNET FOR OIL SUMP
from £11.84
from £11.84
# 10
MPN: 95530740301
OIL FILTER
from £50.38
from £50.38
This part replaces part number 95530740300
# 11
MPN: 95532544300
SEAL
from £8.45
from £8.45
