porsche 2011 (cayenne e2 92a) coolant cooling system 4 fluid reservoir d - mj 2012>> parts diagram

105-047 - Coolant cooling system 4 Fluid reservoir D - MJ 2012>>

Porsche 2011 (Cayenne E2 92A) Coolant cooling system 4 Fluid reservoir D - MJ 2012>> Parts Diagram

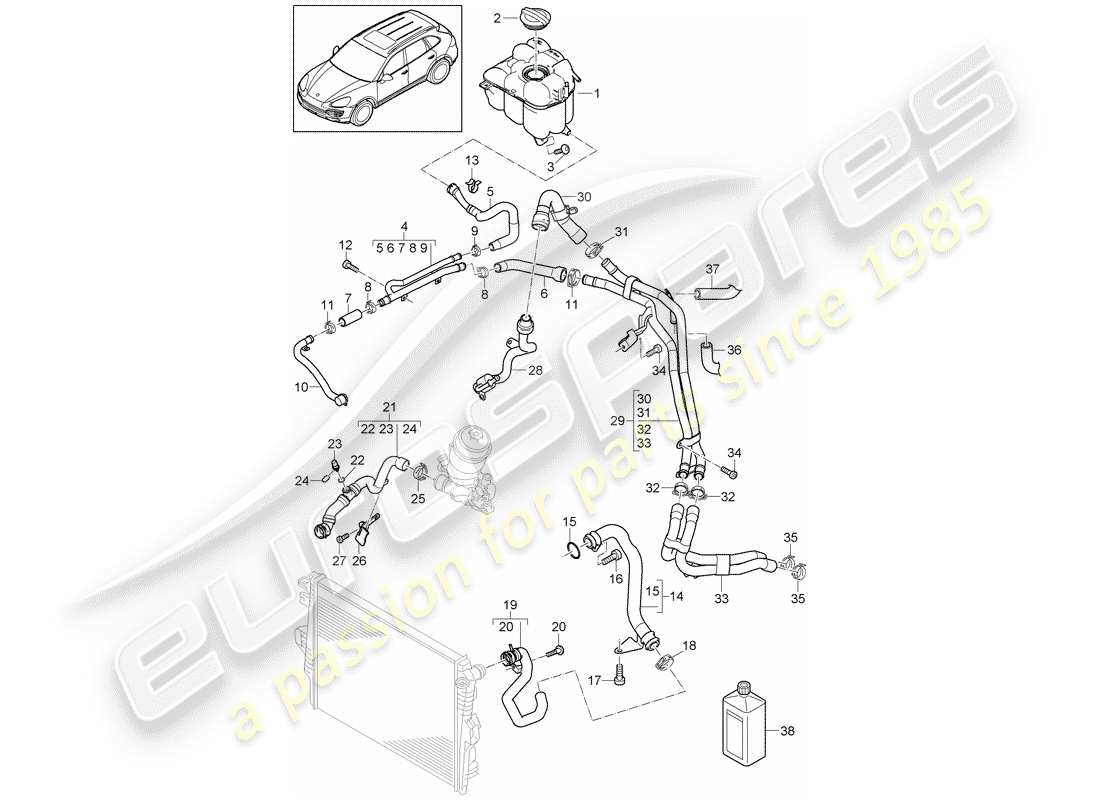

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 95810615100
                                                              COOLANT EXPANSION TANK
                                                              COOLANT EXPANSION TANK
                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 95810615102
                                                              COOLANT EXPANSION TANK
                                                              from £143.81
                                                              from £143.81
                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                              # 2
                                                              MPN: 95810644700
                                                              COVER
                                                              from £25.35
                                                              from £25.35
                                                              COVER Genuine Porsche Part - New (to order)
                                                              # 3
                                                              MPN: N 91140401
                                                              Hexagon socket oval head bolt M6X20 (combi)
                                                              from £0.82
                                                              from £0.82
                                                              HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
                                                              # 4
                                                              MPN: 95810604400
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              from £206.67
                                                              from £206.67
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 5
                                                              MPN: 95810645200
                                                              COOLANT HOSE
                                                              from £76.24
                                                              from £76.24
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 6
                                                              MPN: 95810657300
                                                              COOLANT HOSE
                                                              from £41.74
                                                              from £41.74
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 7
                                                              MPN: 95810643000
                                                              COOLANT HOSE
                                                              from £19.74
                                                              from £19.74
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 8
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 9
                                                              MPN: N 90686901
                                                              Spring band clamp B23X12
                                                              from £0.65
                                                              from £0.65
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                              # 10
                                                              -
                                                              COOLANT PIPE SEE ILLUSTRATION: 105-052
                                                              # 11
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 12
                                                              MPN: N 10335206
                                                              Hexagon socket flat M6X12 head bolt
                                                              from £0.78
                                                              from £0.78
                                                              HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                              HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                              # 13
                                                              MPN: N 90926302
                                                              CABLE HOLDER 22X33,5X0,6
                                                              from £1.32
                                                              from £1.32
                                                              CABLE HOLDER Genuine Porsche Part - New (to order)
                                                              CABLE HOLDER Genuine Bentley Part - New (to order)
                                                              # 14
                                                              MPN: 95810607100
                                                              COOLANT PIPE
                                                              from £77.81
                                                              from £77.81
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 15
                                                              MPN: N 90275302
                                                              O-RING 32X3
                                                              from £2.73
                                                              from £2.73
                                                              O-RING Genuine Porsche Part - New (to order)
                                                              # 16
                                                              MPN: N 10451408
                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                              from £0.74
                                                              from £0.74
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                              # 16
                                                              MPN: N 10451405
                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                              from £0.70
                                                              from £0.70
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                              # 17
                                                              MPN: N 10700201
                                                              HEXAGON SOCKET HEAD BOLT M6X22
                                                              from £1.12
                                                              from £1.12
                                                              HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                              HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                                                              # 18
                                                              MPN: N 90687201
                                                              Spring band clamp B40X12
                                                              Spring band clamp B40X12
                                                              from £1.45
                                                              from £1.45
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B40X12 Genuine Lamborghini - New In stock
                                                              # 18
                                                              MPN: 99951266509
                                                              HOSE CLAMP B40X12
                                                              from £1.78
                                                              from £1.78
                                                              HOSE CLAMP Genuine Porsche Part - New (to order)
                                                              # 19
                                                              MPN: 95810640140
                                                              COOLANT HOSE D >>- MJ 2014
                                                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £106.80
                                                              from £106.80
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 19
                                                              MPN: 95810640140
                                                              COOLANT HOSE D - MJ 2015>>
                                                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £106.80
                                                              from £106.80
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 19
                                                              MPN: 95810640160
                                                              COOLANT HOSE D - MJ 2015>>
                                                              PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI)
                                                              from £56.07
                                                              from £56.07
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 20
                                                              MPN: 95811083010
                                                              SPACER BUSH INCLUDED FASTENING SCREW
                                                              from £6.33
                                                              from £6.33
                                                              SPACER BUSHING Genuine Porsche Part - New (to order)
                                                              # 21
                                                              MPN: 95810640250
                                                              COOLANT HOSE
                                                              from £151.12
                                                              from £151.12
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 22
                                                              MPN: N 90316801
                                                              O-RING 19,6X3,65
                                                              from £2.48
                                                              from £2.48
                                                              O-RING Genuine Porsche Part - New In stock
                                                              O-RING Genuine Bentley Part - New (to order)
                                                              # 23
                                                              MPN: 95510612501
                                                              TEMPERATURE SENSOR
                                                              from £53.39
                                                              from £53.39
                                                              TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                              # 24
                                                              MPN: 95510614300
                                                              RETAINING SPRING
                                                              from £1.84
                                                              from £1.84
                                                              RETAINING SPRING Genuine Porsche Part - New (to order)
                                                              # 25
                                                              MPN: N 90926501
                                                              Spring band clamp B47X12
                                                              from £4.48
                                                              from £4.48
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B47X12 Genuine Lamborghini - New In stock
                                                              # 26
                                                              MPN: 95810656910
                                                              RETAINER FOR COOLANT HOSE
                                                              from £5.52
                                                              from £5.52
                                                              RETAINER FOR COOLANT Genuine Porsche Part - New (to order)
                                                              # 27
                                                              MPN: N 10632003
                                                              Oval socket head bolt M6X16 with hex drive
                                                              from £0.48
                                                              from £0.48
                                                              oval socket head bolt Genuine Porsche Part - New (to order)
                                                              OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                              # 28
                                                              -
                                                              COOLANT PIPE SEE ILLUSTRATION: 105-052
                                                              # 29
                                                              MPN: 95810604000
                                                              COOLANT PIPE INCLUDED COOLANT HOSE D >>- MJ 2014
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £154.44
                                                              from £154.44
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604000
                                                              COOLANT PIPE INCLUDED D - MJ 2015>>
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £154.44
                                                              from £154.44
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604001
                                                              COOLANT PIPE INCLUDED COOLANT HOSE D - MJ 2015>>
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £97.49
                                                              from £97.49
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604010
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604011
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              PL0L (Left-hand drive version) | P1N3 (Speed-dependent power-assisted steering (servotronic) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £267.14
                                                              from £267.14
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604012
                                                              COOLANT PIPE INCLUDED COOLANT HOSE D - MJ 2015>>
                                                              PL0L (Left-hand drive version) | P1N3 (Speed-dependent power-assisted steering (servotronic) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £155.76
                                                              from £155.76
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604020
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              PL0R (Right-hand drive version) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI)
                                                              from £267.14
                                                              from £267.14
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: 95810604021
                                                              COOLANT PIPE INCLUDED COOLANT HOSE
                                                              PL0R (Right-hand drive version) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI)
                                                              from £155.76
                                                              from £155.76
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: N 10716001
                                                              SPRING BAND CLAMP 12,5X8,4 FOR INJECTION VALVE UREA SOLUTION ADBLUE
                                                              PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £0.83
                                                              from £0.83
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP A12.5X8.4 Genuine Lamborghini - New (to order)
                                                              # 30
                                                              MPN: 95810642000
                                                              COOLANT HOSE
                                                              from £28.35
                                                              from £28.35
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 31
                                                              MPN: N 10558701
                                                              Spring band clamp 27X12
                                                              from £0.85
                                                              from £0.85
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              # 32
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 33
                                                              MPN: 95810607320
                                                              COOLANT HOSE D >>- MJ 2014
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £68.86
                                                              from £68.86
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607320
                                                              COOLANT HOSE D - MJ 2015>>
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £68.86
                                                              from £68.86
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607321
                                                              COOLANT HOSE D - MJ 2015>>
                                                              PL0L (Left-hand drive version) | P1N1 (Power steering) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £68.86
                                                              from £68.86
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607330
                                                              COOLANT HOSE
                                                              COOLANT HOSE
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607331
                                                              COOLANT HOSE
                                                              PL0L (Left-hand drive version) | P1N3 (Speed-dependent power-assisted steering (servotronic) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI)
                                                              from £72.50
                                                              from £72.50
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607332
                                                              COOLANT HOSE
                                                              PL0L (Left-hand drive version) | P1N3 (Speed-dependent power-assisted steering (servotronic) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £58.83
                                                              from £58.83
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607340
                                                              COOLANT HOSE
                                                              PL0R (Right-hand drive version) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI)
                                                              from £72.50
                                                              from £72.50
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 33
                                                              MPN: 95810607341
                                                              COOLANT HOSE
                                                              PL0R (Right-hand drive version) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI)
                                                              from £58.83
                                                              from £58.83
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 34
                                                              MPN: N 10632002
                                                              Oval socket head bolt M6X16 with hex drive
                                                              from £0.47
                                                              from £0.47
                                                              oval socket head bolt Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New (to order)
                                                              # 34
                                                              MPN: N 91096701
                                                              Oval hexagon socket head bolt M6X16 D - MJ 2015>>
                                                              PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
                                                              from £0.64
                                                              from £0.64
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                              # 35
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 36
                                                              -
                                                              COOLANT HOSE SEE ILLUSTRATION, ITEM: 360-010,16
                                                              # 37
                                                              -
                                                              COOLANT HOSE SEE ILLUSTRATION, ITEM: 360-010,17
                                                              # 38
                                                              MPN: 00004330147
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: 00004330515
                                                              COOLANT ADDITIVE 1.0 LTR. BASF G12 ++
                                                              from £9.95
                                                              from £9.95
                                                              COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                                              # 38
                                                              MPN: 00004330148
                                                              Coolant additive 20ltr.
                                                              Coolant additive 20ltr.
                                                              COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: 00004330516
                                                              COOLANT ADDITIVE 20LTR. BASF G12 ++
                                                              from £121.31
                                                              from £121.31
                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: 00004320439
                                                              CLEANING SOLUTION 20ltr.
                                                              CLEANING SOLUTION 20ltr.
                                                              from £98.88
                                                              from £98.88
                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: 00004330564
                                                              CLEANING SOLUTION 20ltr.
                                                              from £82.13
                                                              from £82.13
                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
