PD19 (6-cyl. spark-ignition engine, 3.0 l/245 kW (HYBRID))
porsche 2011 (cayenne e2 92a) coolant cooling system 4 electric drive d >>- mj 2014 parts diagram

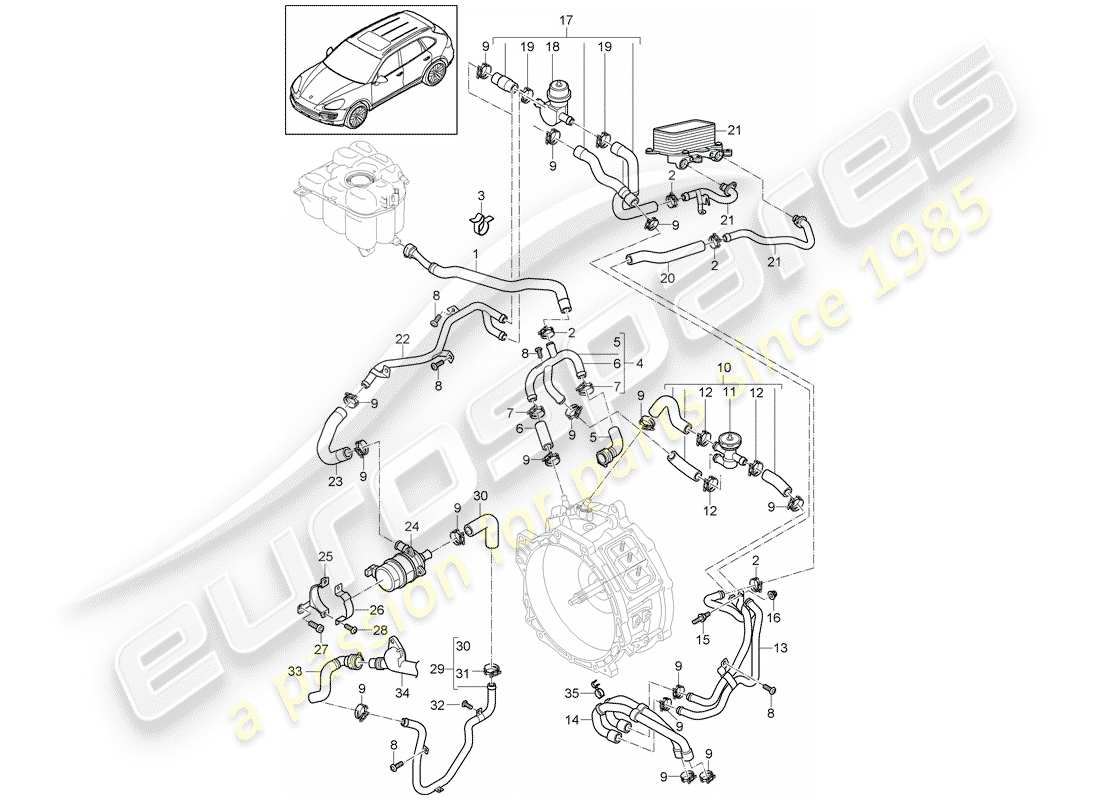

105-065 - Coolant cooling system 4 Electric drive D >>- MJ 2014

Porsche 2011 (Cayenne E2 92A) Coolant cooling system 4 Electric drive D >>- MJ 2014 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 1
                                                                MPN: 95810626110
                                                                COOLANT HOSE
                                                                from £60.05
                                                                from £60.05
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 2
                                                                MPN: N 90686901
                                                                Spring band clamp B23X12
                                                                from £0.62
                                                                from £0.62
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                                SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                                # 3
                                                                MPN: N 90926302
                                                                CABLE HOLDER 22X33,5X0,6
                                                                from £1.32
                                                                from £1.32
                                                                CABLE HOLDER Genuine Porsche Part - New (to order)
                                                                CABLE HOLDER Genuine Bentley Part - New (to order)
                                                                # 4
                                                                MPN: 95810637000
                                                                COOLANT PIPE INCLUDED COOLANT HOSE
                                                                from £126.30
                                                                from £126.30
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 5
                                                                MPN: 95810637300
                                                                COOLANT HOSE
                                                                from £39.22
                                                                from £39.22
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 6
                                                                MPN: 95810637310
                                                                COOLANT HOSE
                                                                from £16.24
                                                                from £16.24
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 7
                                                                MPN: N 90687001
                                                                SPRING BAND CLAMP B27X12X1,7
                                                                from £4.75
                                                                from £4.75
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                # 8
                                                                MPN: N 91042301
                                                                OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                from £0.55
                                                                from £0.55
                                                                This part replaces part number 99907313001
                                                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                                # 8
                                                                MPN: N 10632003
                                                                Oval socket head bolt M6X16 with hex drive
                                                                from £0.48
                                                                from £0.48
                                                                oval socket head bolt Genuine Porsche Part - New (to order)
                                                                OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                                # 9
                                                                MPN: N 90687001
                                                                SPRING BAND CLAMP B27X12X1,7
                                                                from £4.75
                                                                from £4.75
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                # 10
                                                                MPN: 95810637402

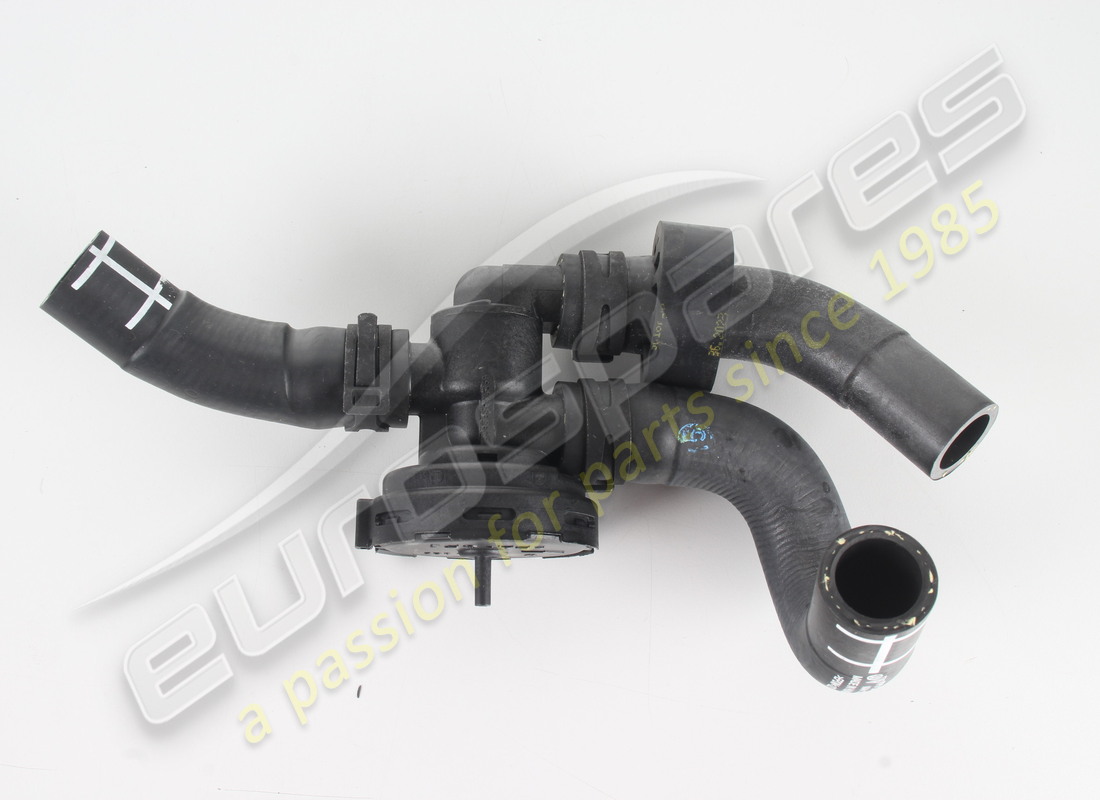

                                                                COOLANT HOSE INCLUDED VACUUM VALVE
                                                                from £124.91
                                                                from £124.91
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 11
                                                                MPN: 95810660500
                                                                vacuum valve
                                                                from £111.34
                                                                from £111.34
                                                                vacuum valve Genuine Porsche Part - New (to order)
                                                                # 12
                                                                MPN: N 90687001
                                                                SPRING BAND CLAMP B27X12X1,7
                                                                from £4.75
                                                                from £4.75
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                # 13
                                                                MPN: 95810636500
                                                                COOLANT PIPE
                                                                COOLANT PIPE
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 13
                                                                MPN: 95810636501
                                                                COOLANT PIPE
                                                                from £149.50
                                                                from £149.50
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 14
                                                                MPN: 95810607310
                                                                COOLANT HOSE
                                                                from £93.04
                                                                from £93.04
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 15
                                                                MPN: N 91082401
                                                                DOUBLE STUD WITH HEXAGON DRIVE M8X25/M8X12
                                                                from £4.41
                                                                from £4.41
                                                                DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                # 16
                                                                MPN: N 02300316
                                                                HEXAGON NUT M8
                                                                from £0.47
                                                                from £0.47
                                                                HEX. NUT Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                PREV.TORQUE TYPE Genuine Lamborghini - New (to order)
                                                                # 17
                                                                MPN: 95810635620
                                                                COOLANT HOSE INCLUDED HEATER VALVE
                                                                from £113.57
                                                                from £113.57
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 18
                                                                MPN: 95857280900
                                                                HEATER VALVE
                                                                from £61.57
                                                                from £61.57
                                                                HEATER VALVE Genuine Porsche Part - New (to order)
                                                                # 19
                                                                MPN: N 90687001
                                                                SPRING BAND CLAMP B27X12X1,7
                                                                from £4.75
                                                                from £4.75
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                # 20
                                                                MPN: 95810635710
                                                                COOLANT HOSE
                                                                from £28.25
                                                                from £28.25
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 21
                                                                -
                                                                ATF PREHEATER COOLANT PIPE FEED COOLANT PIPE RETURN SEE ILLUSTRATION: 360-020 POS.4/11/14
                                                                # 22
                                                                MPN: 95810636600
                                                                COOLANT PIPE
                                                                COOLANT PIPE
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 22
                                                                MPN: 95810636601
                                                                COOLANT PIPE
                                                                from £113.57
                                                                from £113.57
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 23
                                                                MPN: 95810635800
                                                                COOLANT HOSE
                                                                from £28.25
                                                                from £28.25
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 24
                                                                MPN: 95860656700
                                                                COOLANT PUMP ELECTRIC
                                                                from £523.91
                                                                from £523.91
                                                                WATER PUMP Genuine Porsche Part - New (to order)
                                                                # 25
                                                                MPN: 95810657910
                                                                BRACKET
                                                                from £18.83
                                                                from £18.83
                                                                BRACKET Genuine Porsche Part - New (to order)
                                                                # 26
                                                                MPN: 95810657920
                                                                BRACKET
                                                                from £11.86
                                                                from £11.86
                                                                BRACKET Genuine Porsche Part - New (to order)
                                                                # 27
                                                                MPN: N 10524202
                                                                HEX SOCKET HEAD LOCATING BOLT M10X12
                                                                from £0.89
                                                                from £0.89
                                                                HEX SOCKET HEAD LOCATING BOLT Genuine Porsche Part - New (to order)
                                                                12-POINT SOCKET BOLT Genuine Lamborghini - New (to order)
                                                                # 28
                                                                MPN: N 10451405
                                                                OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                from £0.70
                                                                from £0.70
                                                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                # 29
                                                                MPN: 95810637101
                                                                COOLANT PIPE INCLUDED COOLANT HOSE
                                                                from £92.64
                                                                from £92.64
                                                                water tube Genuine Porsche Part - New (to order)
                                                                # 30
                                                                MPN: 95810635720
                                                                COOLANT HOSE
                                                                from £28.25
                                                                from £28.25
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 31
                                                                MPN: N 90687001
                                                                SPRING BAND CLAMP B27X12X1,7
                                                                from £4.75
                                                                from £4.75
                                                                SPRING CLIP Genuine Porsche Part - New (to order)
                                                                Genuine Bentley Part (no longer available to order)
                                                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                # 32
                                                                MPN: N 10750001
                                                                Hexagon socket flat M6X16 head bolt
                                                                Hexagon socket flat M6X16 head bolt
                                                                from £0.72
                                                                from £0.72
                                                                HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                                HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                                # 32
                                                                MPN: N 10632003
                                                                Oval socket head bolt M6X16 with hex drive
                                                                from £0.48
                                                                from £0.48
                                                                oval socket head bolt Genuine Porsche Part - New (to order)
                                                                OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                                # 33
                                                                MPN: 95810635630
                                                                COOLANT HOSE
                                                                from £28.25
                                                                from £28.25
                                                                WATER HOSE Genuine Porsche Part - New (to order)
                                                                # 34
                                                                -
                                                                COOLANT PIPE SEE ILLUSTRATION, ITEM: 105-060,18
                                                                # 35
                                                                MPN: N 10758701
                                                                HOSE BRACKET A01-10XA14-22 ONLY IN CONJ. WITH: 958.611.235.00 EARTH LINE D >>- MJ 2011
                                                                from £5.09
                                                                from £5.09
                                                                BRACKET FOR HOSE Genuine Porsche Part - New (to order)
