PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder) | PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
porsche 2012 (cayenne e2 92a) coolant cooling system coolant expansion tank parts diagram

105-035 - Coolant cooling system Coolant expansion tank

Porsche 2012 (Cayenne E2 92A) Coolant cooling system Coolant expansion tank Parts Diagram

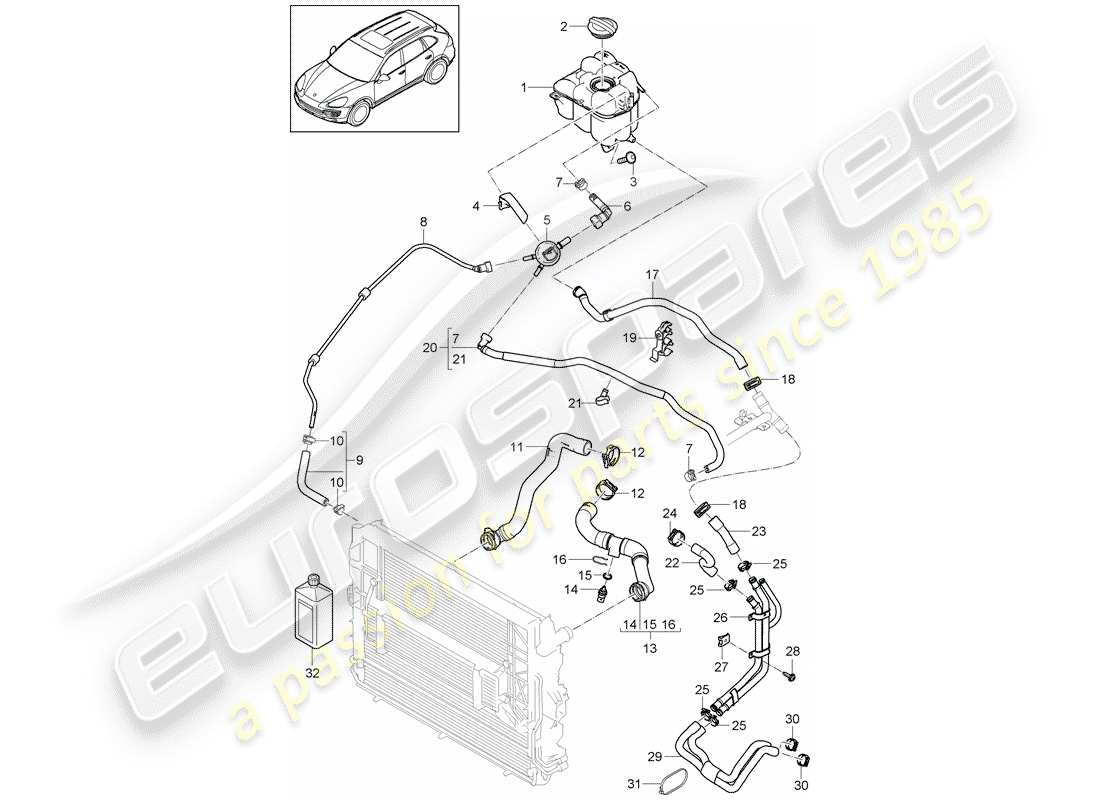

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 95810615100
                                COOLANT EXPANSION TANK
                                COOLANT EXPANSION TANK
                                COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                # 1
                                MPN: 95810615102
                                COOLANT EXPANSION TANK
                                from £143.81
                                from £143.81
                                COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                # 2
                                MPN: 95810644700
                                COVER
                                from £25.35
                                from £25.35
                                COVER Genuine Porsche Part - New (to order)
                                # 3
                                MPN: N 91140401
                                Hexagon socket oval head bolt M6X20 (combi)
                                from £0.82
                                from £0.82
                                HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
                                # 4
                                MPN: 95810644900
                                BRACKET BLEED VALVE
                                from £2.68
                                from £2.68
                                BRACKET Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 7P5121671
                                Bleed valve
                                Bleed valve
                                Bleed valve Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 7P5121671A
                                Bleed valve
                                from £10.97
                                from £10.97
                                Bleed valve Genuine Porsche Part - New (to order)
                                # 6
                                MPN: 95810631201
                                VENT HOSE
                                from £15.31
                                from £15.31
                                VENT HOSE Genuine Porsche Part - New (to order)
                                # 7
                                MPN: N 90686701
                                Spring band clamp B14X12
                                from £0.84
                                from £0.84
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                # 8
                                MPN: 95810631005
                                breather line
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PE0A (No campaign version, basic equipment)
                                from £26.60
                                from £26.60
                                breather line Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 95810631040
                                breather line
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PE0W (GTS version)
                                from £26.60
                                from £26.60
                                breather line Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 95810631005
                                breather line
                                PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2))
                                from £26.60
                                from £26.60
                                breather line Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 95810631050
                                breather line
                                PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder) | PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £26.26
                                from £26.26
                                breather line Genuine Porsche Part - New (to order)
                                # 9
                                MPN: 95810631101
                                VENT HOSE
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2))
                                from £12.35
                                from £12.35
                                VENT HOSE Genuine Porsche Part - New (to order)
                                # 9
                                MPN: 95810631140
                                VENT HOSE
                                PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £12.35
                                from £12.35
                                VENT HOSE Genuine Porsche Part - New (to order)
                                # 9
                                MPN: 95810631110
                                COOLANT PIPE
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £50.59
                                from £50.59
                                water tube Genuine Porsche Part - New (to order)
                                # 9
                                MPN: N 90817003
                                HEXAGON SOCKET HEAD PANEL BOLT TP6X17 FOR ATTACHMENT TO: COOLANT PIPE RADIATOR GRILLE
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £0.47
                                from £0.47
                                HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                SCREW TP6X17-Q Genuine Lamborghini - New In stock
                                # 10
                                MPN: N 90986501
                                SPRING BAND CLAMP B14,5X12
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £0.91
                                from £0.91
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                SPRING CLAMP Genuine Lamborghini - New (to order)
                                # 10
                                MPN: N 90686701
                                SPRING BAND CLAMP B14X12 FOR ATTACHMENT TO: POS.8 AND POS.13
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £0.84
                                from £0.84
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                # 11
                                MPN: 95810640200
                                Coolant hose feed
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £39.80
                                from £39.80
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 11
                                MPN: 95810640270
                                COOLANT HOSE FEED INCLUDED TEMPERATURE SENSOR
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £70.71
                                from £70.71
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 12
                                MPN: N 90926501
                                Spring band clamp B47X12
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £4.48
                                from £4.48
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                SPRING CLAMP B47X12 Genuine Lamborghini - New In stock
                                # 12
                                MPN: 99951266709
                                HOSE CLAMP B44X12
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £4.52
                                from £4.52
                                Hose Clamp - 44 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 95810640100
                                COOLANT HOSE RETURN
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £66.68
                                from £66.68
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 95810640170
                                Coolant hose return without: Temperature sensor
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £67.14
                                from £67.14
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 14
                                MPN: 95510612501
                                TEMPERATURE SENSOR
                                from £53.39
                                from £53.39
                                TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                # 15
                                MPN: N 90316801
                                O-RING 19,6X3,65
                                from £2.48
                                from £2.48
                                O-RING Genuine Porsche Part - New In stock
                                O-RING Genuine Bentley Part - New (to order)
                                # 16
                                MPN: 95510614300
                                RETAINING SPRING
                                from £1.84
                                from £1.84
                                RETAINING SPRING Genuine Porsche Part - New (to order)
                                # 17
                                MPN: 95810626100
                                COOLANT HOSE
                                COOLANT HOSE
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 17
                                MPN: 95810626101
                                COOLANT HOSE
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £31.82
                                from £31.82
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 17
                                MPN: 95810655050
                                COOLANT HOSE SEE ILLUSTRATION, ITEM: 360-060,19
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £109.85
                                from £109.85
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 18
                                MPN: 95551240500
                                CLAMP B29X12
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £2.53
                                from £2.53
                                CLAMP Genuine Porsche Part - New (to order)
                                # 19
                                MPN: 95810651000
                                LINE HOLDER D >>- MJ 2014
                                from £2.58
                                from £2.58
                                LINE HOLDER Genuine Porsche Part - New (to order)
                                # 19
                                MPN: 95810651010
                                LINE HOLDER D - MJ 2015>>
                                from £2.58
                                from £2.58
                                LINE HOLDER Genuine Porsche Part - New (to order)
                                # 20
                                MPN: 95810642200
                                VENT HOSE
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £23.98
                                from £23.98
                                VENT HOSE Genuine Porsche Part - New (to order)
                                # 20
                                MPN: 95810642210
                                VENT HOSE
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £23.98
                                from £23.98
                                VENT HOSE Genuine Porsche Part - New (to order)
                                # 21
                                MPN: N 10422601
                                BRACKET A03-14XC01-16
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £2.62
                                from £2.62
                                BRACKET Genuine Porsche Part - New (to order)
                                # 22
                                MPN: 95510632210
                                COOLANT HOSE ONLY IN CONJ. WITH: 948.106.061.20 DISTRIBUTOR TUBE WITH: PIPE UNION M >>E 03741 M >>E 00996
                                , D6V, D58
                                from £20.24
                                from £20.24
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 22
                                MPN: 95810632210
                                COOLANT HOSE ONLY IN CONJ. WITH: 948.106.061.21 DISTRIBUTOR TUBE WITH: THREADED UNION M E 03742 >>M E 00997 >>
                                , D6V, D58, 4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014)
                                from £13.44
                                from £13.44
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 22
                                MPN: 95810632210
                                COOLANT HOSE
                                PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder) | PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £13.44
                                from £13.44
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 23
                                MPN: 95810632300
                                COOLANT HOSE
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £20.24
                                from £20.24
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 23
                                -
                                COOLANT HOSE ONLY FOR POSITION: 17
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                # 24
                                MPN: 95551240700
                                CLAMP
                                from £2.03
                                from £2.03
                                CLAMP Genuine Porsche Part - New (to order)
                                # 25
                                MPN: N 90687001
                                Spring band clamp B27X12
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £4.75
                                from £4.75
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                Genuine Bentley Part (no longer available to order)
                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                # 25
                                MPN: N 90687001
                                Spring band clamp B27X12
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £4.75
                                from £4.75
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                Genuine Bentley Part (no longer available to order)
                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                # 26
                                MPN: 95810636000
                                COOLANT PIPE
                                PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW) | PDT5 (4.8 litre turbo engine, 8-cylinder)
                                from £103.42
                                from £103.42
                                water tube Genuine Porsche Part - New (to order)
                                # 26
                                MPN: 95810636040
                                COOLANT PIPE
                                PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                                from £187.21
                                from £187.21
                                water tube Genuine Porsche Part - New (to order)
                                # 27
                                MPN: 95597184700
                                CABLE TERMINAL
                                from £0.47
                                from £0.47
                                CABLE CLAMP Genuine Porsche Part - New (to order)
                                # 28
                                MPN: N 10632003
                                Oval socket head bolt M6X16 with hex drive
                                from £0.48
                                from £0.48
                                oval socket head bolt Genuine Porsche Part - New (to order)
                                OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                # 29
                                MPN: 95810607300
                                COOLANT HOSE
                                from £47.33
                                from £47.33
                                WATER HOSE Genuine Porsche Part - New (to order)
                                # 30
                                MPN: N 90687001
                                SPRING BAND CLAMP B27X12X1,7
                                from £4.75
                                from £4.75
                                SPRING CLIP Genuine Porsche Part - New (to order)
                                Genuine Bentley Part (no longer available to order)
                                SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                # 31
                                MPN: 95510640900
                                CABLE TIES
                                from £2.58
                                from £2.58
                                TIE WRAP Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330103
                                COOLANT ADDITIVE 1.0 LTR.
                                COOLANT ADDITIVE 1.0 LTR.
                                COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330147
                                COOLANT ADDITIVE 1.0 LTR.
                                COOLANT ADDITIVE 1.0 LTR.
                                COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330515
                                COOLANT ADDITIVE 1.0 LTR.
                                from £9.95
                                from £9.95
                                COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                # 32
                                MPN: 00004330104
                                Coolant additive 20ltr.
                                Coolant additive 20ltr.
                                COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330148
                                Coolant additive 20ltr.
                                Coolant additive 20ltr.
                                COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330516
                                Coolant additive 20ltr.
                                from £121.31
                                from £121.31
                                COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004320439
                                CLEANING SOLUTION 20ltr.
                                CLEANING SOLUTION 20ltr.
                                from £98.88
                                from £98.88
                                CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                # 32
                                MPN: 00004330564
                                CLEANING SOLUTION 20ltr.
                                from £82.13
                                from £82.13
                                CLEANING SOLUTION Genuine Porsche Part - New (to order)
