PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
porsche 2013 (cayenne e2 92a) coolant cooling system 4 fluid reservoir d >>- mj 2011 parts diagram

105-045 - Coolant cooling system 4 Fluid reservoir D >>- MJ 2011

Porsche 2013 (Cayenne E2 92A) Coolant cooling system 4 Fluid reservoir D >>- MJ 2011 Parts Diagram

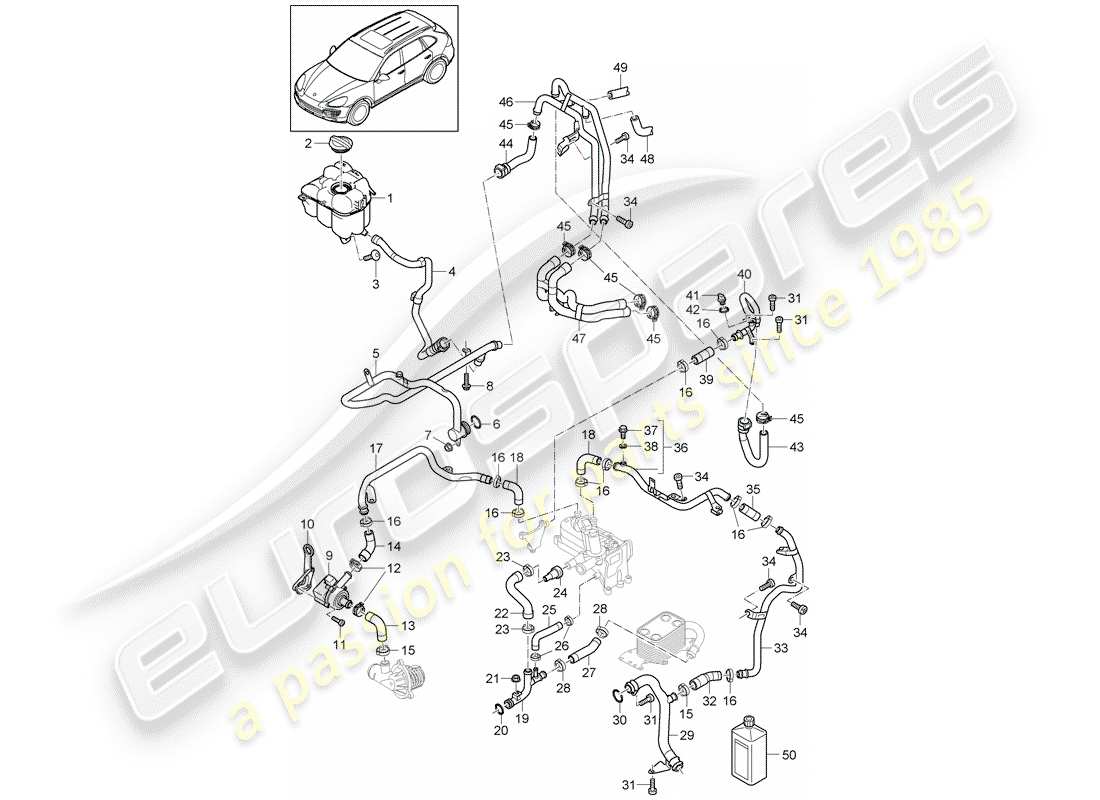

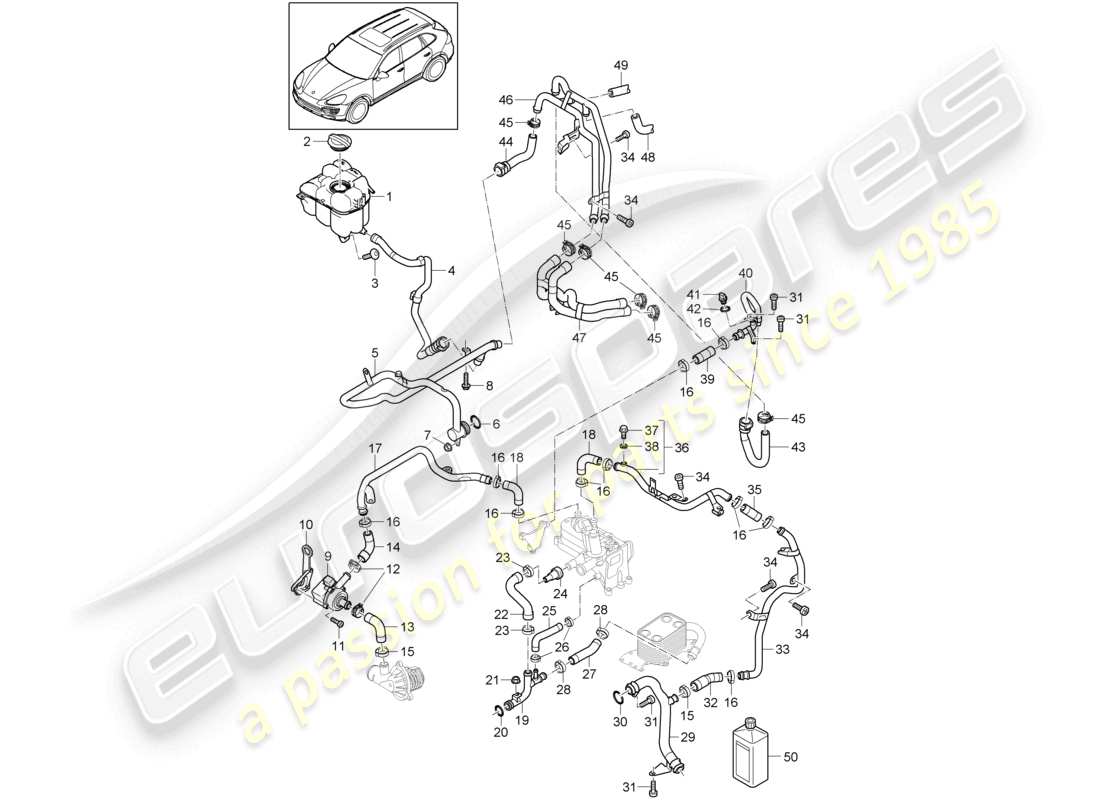

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Key
                                                                                              Price
                                                                                              # 1
                                                                                              MPN: 95810615100
                                                                                              COOLANT EXPANSION TANK
                                                                                              COOLANT EXPANSION TANK
                                                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                                                              # 1
                                                                                              MPN: 95810615102
                                                                                              COOLANT EXPANSION TANK
                                                                                              from £143.81
                                                                                              from £143.81
                                                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                                                              # 2
                                                                                              MPN: 95810644700
                                                                                              COVER
                                                                                              from £25.35
                                                                                              from £25.35
                                                                                              COVER Genuine Porsche Part - New (to order)
                                                                                              # 3
                                                                                              MPN: N 91140401
                                                                                              Hexagon socket oval head bolt M6X20 (combi)
                                                                                              from £0.82
                                                                                              from £0.82
                                                                                              HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                                                                              HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
                                                                                              # 4
                                                                                              MPN: 95810626120
                                                                                              COOLANT HOSE
                                                                                              from £47.98
                                                                                              from £47.98
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 5
                                                                                              MPN: 95510647502
                                                                                              COOLANT PIPE
                                                                                              from £618.75
                                                                                              from £618.75
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 6
                                                                                              MPN: N 90465003
                                                                                              O-RING 23X2,6
                                                                                              from £2.05
                                                                                              from £2.05
                                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                                              O-RING Genuine Bentley Part - New (to order)
                                                                                              # 7
                                                                                              MPN: N 90488005
                                                                                              HEX. NUT WITH WASHER M6
                                                                                              from £1.15
                                                                                              from £1.15
                                                                                              HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                                                              HEXAGON NUT W. M6 Genuine Lamborghini - New (to order)
                                                                                              # 8
                                                                                              MPN: N 10170302
                                                                                              ROUND HD. SCREW M6X10
                                                                                              from £0.61
                                                                                              from £0.61
                                                                                              ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                                                              Genuine Bentley Part (no longer available to order)
                                                                                              HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New (to order)
                                                                                              # 9
                                                                                              MPN: 95510631200
                                                                                              ADDITIONAL COOLANT PUMP ONLY IN CONJ. WITH: 955.104.305.20 TRANSPORTATION SHACKLE 059.103.392.AC
                                                                                              from £270.56
                                                                                              from £270.56
                                                                                              WATER PUMP Genuine Porsche Part - New (to order)
                                                                                              # 9
                                                                                              MPN: 95810631300
                                                                                              ADDITIONAL COOLANT PUMP ONLY IN CONJ. WITH: 955.104.305.30 TRANSPORTATION SHACKLE 059.103.392.AE
                                                                                              from £219.29
                                                                                              from £219.29
                                                                                              WATER PUMP Genuine Porsche Part - New (to order)
                                                                                              # 10
                                                                                              MPN: 95510430520
                                                                                              TRANSPORTATION SHACKLE ONLY IN CONJ. WITH: 955.106.312.00 ADDITIONAL COOLANT PUMP 059.121.012.A
                                                                                              from £101.54
                                                                                              from £101.54
                                                                                              TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                                                              # 10
                                                                                              MPN: 95510430530
                                                                                              TRANSPORTATION SHACKLE ONLY IN CONJ. WITH: 958.106.313.00 ADDITIONAL COOLANT PUMP 059.121.012.B
                                                                                              from £101.54
                                                                                              from £101.54
                                                                                              TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                                                                              # 11
                                                                                              MPN: WHT002306
                                                                                              SELF-TAPPING SCREW 3,5X12
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              SCREW, THREAD CUTTING Genuine Porsche Part - New (to order)
                                                                                              SELF-TAPPING SCREW Genuine Bentley Part - New (to order)
                                                                                              PAN HEAD BOLT TP3.5X12.0 Genuine Lamborghini - New In stock
                                                                                              # 12
                                                                                              MPN: N 90687001
                                                                                              SPRING BAND CLAMP B27X12X1,7
                                                                                              from £4.75
                                                                                              from £4.75
                                                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                              Genuine Bentley Part (no longer available to order)
                                                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                              # 13
                                                                                              MPN: 95510630200
                                                                                              COOLANT HOSE
                                                                                              from £19.17
                                                                                              from £19.17
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 14
                                                                                              MPN: 95510630400
                                                                                              COOLANT HOSE
                                                                                              from £10.51
                                                                                              from £10.51
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 15
                                                                                              MPN: N 90409501
                                                                                              Ear crimp hose clamp 28,6X7X0,6
                                                                                              from £0.59
                                                                                              from £0.59
                                                                                              EAR HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                              EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                              CLAMP Genuine Lamborghini - New In stock
                                                                                              # 16
                                                                                              MPN: N 10202001
                                                                                              Ear crimp hose clamp 24,1X7X0,6
                                                                                              from £1.07
                                                                                              from £1.07
                                                                                              EAR HOSE CLAMP Genuine Porsche Part - New In stock
                                                                                              EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                              CLAMP Genuine Lamborghini - New (to order)
                                                                                              # 17
                                                                                              MPN: 95810656400
                                                                                              COOLANT PIPE
                                                                                              from £53.31
                                                                                              from £53.31
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 18
                                                                                              MPN: 95810630500
                                                                                              COOLANT HOSE
                                                                                              from £10.08
                                                                                              from £10.08
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 19
                                                                                              MPN: 95510606300
                                                                                              COOLANT PIPE
                                                                                              from £90.87
                                                                                              from £90.87
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 20
                                                                                              MPN: N 90365304
                                                                                              O-RING 20X3
                                                                                              from £2.05
                                                                                              from £2.05
                                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                                              O-RING Genuine Bentley Part - New (to order)
                                                                                              O-RING Genuine Lamborghini - New In stock
                                                                                              # 21
                                                                                              MPN: N 90488005
                                                                                              HEX. NUT WITH WASHER M6
                                                                                              from £1.15
                                                                                              from £1.15
                                                                                              HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                                                              HEXAGON NUT W. M6 Genuine Lamborghini - New (to order)
                                                                                              # 22
                                                                                              MPN: 95810650300
                                                                                              COOLANT HOSE
                                                                                              from £13.73
                                                                                              from £13.73
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 23
                                                                                              MPN: N 90409501
                                                                                              Ear crimp hose clamp 28,6X7X0,6
                                                                                              from £0.59
                                                                                              from £0.59
                                                                                              EAR HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                              EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                              CLAMP Genuine Lamborghini - New In stock
                                                                                              # 24
                                                                                              MPN: 95510631301
                                                                                              THERMOSTAT
                                                                                              from £72.86
                                                                                              from £72.86
                                                                                              THERMOSTAT Genuine Porsche Part - New (to order)
                                                                                              # 25
                                                                                              MPN: 95810650400
                                                                                              COOLANT HOSE
                                                                                              from £8.14
                                                                                              from £8.14
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 26
                                                                                              MPN: N 10233401
                                                                                              Ear crimp hose clamp 16,2X7X0,6
                                                                                              from £1.39
                                                                                              from £1.39
                                                                                              EAR HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                              EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                              CLAMP Genuine Lamborghini - New (to order)
                                                                                              # 27
                                                                                              MPN: 95510637300
                                                                                              COOLANT HOSE
                                                                                              from £14.51
                                                                                              from £14.51
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 28
                                                                                              MPN: N 10202001
                                                                                              Ear crimp hose clamp 24,1X7X0,6
                                                                                              from £1.07
                                                                                              from £1.07
                                                                                              EAR HOSE CLAMP Genuine Porsche Part - New In stock
                                                                                              EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                              CLAMP Genuine Lamborghini - New (to order)
                                                                                              # 29
                                                                                              MPN: 95510607100
                                                                                              COOLANT PIPE CONSOLE VANE PUMP
                                                                                              from £81.08
                                                                                              from £81.08
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 30
                                                                                              MPN: N 90275302
                                                                                              O-RING 32X3
                                                                                              from £2.73
                                                                                              from £2.73
                                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                                              # 31
                                                                                              MPN: N 10451405
                                                                                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                                              from £0.70
                                                                                              from £0.70
                                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                                              HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                              # 32
                                                                                              MPN: 95510630700
                                                                                              COOLANT HOSE WITH NON-RETURN HOSE
                                                                                              from £24.02
                                                                                              from £24.02
                                                                                              WATER COOLANT HOSE WITH Genuine Porsche Part - New (to order)
                                                                                              # 33
                                                                                              MPN: 95810652100
                                                                                              COOLANT PIPE
                                                                                              from £251.71
                                                                                              from £251.71
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 34
                                                                                              MPN: N 10632002
                                                                                              Oval socket head bolt M6X16 with hex drive
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              oval socket head bolt Genuine Porsche Part - New (to order)
                                                                                              Genuine Bentley Part (no longer available to order)
                                                                                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New (to order)
                                                                                              # 35
                                                                                              MPN: 95810656200
                                                                                              COOLANT HOSE
                                                                                              from £8.14
                                                                                              from £8.14
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 36
                                                                                              MPN: 95810652200
                                                                                              COOLANT PIPE
                                                                                              from £76.49
                                                                                              from £76.49
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 37
                                                                                              MPN: N 90483204
                                                                                              HEXAGON BOLT M6X8
                                                                                              from £1.25
                                                                                              from £1.25
                                                                                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                                              # 38
                                                                                              MPN: N 0138042
                                                                                              SEAL RING 6X10
                                                                                              from £1.84
                                                                                              from £1.84
                                                                                              SEAL RING - DISCONTINUED PART Genuine Porsche Part - New In stock
                                                                                              # 39
                                                                                              MPN: 95810655700
                                                                                              COOLANT HOSE
                                                                                              from £6.56
                                                                                              from £6.56
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 40
                                                                                              MPN: 95810626500
                                                                                              COOLANT PIPE
                                                                                              from £80.59
                                                                                              from £80.59
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 41
                                                                                              MPN: 95560622100
                                                                                              TEMPERATURE SENSOR ALSO USE: 1x WHT 002 287 B
                                                                                              TEMPERATURE SENSOR ALSO USE: 1x WHT 002 287 B
                                                                                              from £41.78
                                                                                              from £41.78
                                                                                              TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                                              # 41
                                                                                              MPN: 958919523
                                                                                              TEMPERATURE SENSOR ALSO USE: 1x WHT 002 287 B
                                                                                              from £53.39
                                                                                              from £53.39
                                                                                              TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                                                              # 42
                                                                                              MPN: WHT002287B
                                                                                              O-RING 5,6X2
                                                                                              from £1.94
                                                                                              from £1.94
                                                                                              O-RING Genuine Porsche Part - New (to order)
                                                                                              O-RING Genuine Bentley Part - New (to order)
                                                                                              O-RING Genuine Lamborghini - New (to order)
                                                                                              # 43
                                                                                              MPN: 95510657400
                                                                                              COOLANT HOSE
                                                                                              from £33.46
                                                                                              from £33.46
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 44
                                                                                              MPN: 95510657300
                                                                                              COOLANT HOSE
                                                                                              from £41.36
                                                                                              from £41.36
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 45
                                                                                              MPN: N 90687001
                                                                                              SPRING BAND CLAMP B27X12X1,7
                                                                                              from £4.75
                                                                                              from £4.75
                                                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                              Genuine Bentley Part (no longer available to order)
                                                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                              # 46
                                                                                              MPN: 95810636010
                                                                                              COOLANT PIPE
                                                                                              from £182.79
                                                                                              from £182.79
                                                                                              water tube Genuine Porsche Part - New (to order)
                                                                                              # 47
                                                                                              MPN: 95810607320
                                                                                              COOLANT HOSE
                                                                                              PL0L (Left-hand drive version) | P1N1 (Power steering)
                                                                                              from £68.86
                                                                                              from £68.86
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 47
                                                                                              MPN: 95810607330
                                                                                              COOLANT HOSE
                                                                                              COOLANT HOSE
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 47
                                                                                              MPN: 95810607331
                                                                                              COOLANT HOSE
                                                                                              PL0L (Left-hand drive version) | P1N3 (Speed-dependent power-assisted steering (servotronic)
                                                                                              from £72.50
                                                                                              from £72.50
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 47
                                                                                              MPN: 95810607340
                                                                                              COOLANT HOSE
                                                                                              PL0R (Right-hand drive version)
                                                                                              from £72.50
                                                                                              from £72.50
                                                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                                                              # 48
                                                                                              -
                                                                                              COOLANT HOSE SEE ILLUSTRATION, ITEM: 360-010,16
                                                                                              # 49
                                                                                              -
                                                                                              COOLANT HOSE SEE ILLUSTRATION, ITEM: 360-010,17
                                                                                              # 50
                                                                                              MPN: 00004330112
                                                                                              COOLANT ADDITIVE 1.0 LTR.
                                                                                              COOLANT ADDITIVE 1.0 LTR.
                                                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004330147
                                                                                              COOLANT ADDITIVE 1.0 LTR.
                                                                                              COOLANT ADDITIVE 1.0 LTR.
                                                                                              COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004330515
                                                                                              COOLANT ADDITIVE 1.0 LTR. BASF G12 ++
                                                                                              from £9.95
                                                                                              from £9.95
                                                                                              COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                                                                              # 50
                                                                                              MPN: 00004330113
                                                                                              Coolant additive 20ltr.
                                                                                              Coolant additive 20ltr.
                                                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004330148
                                                                                              Coolant additive 20ltr.
                                                                                              Coolant additive 20ltr.
                                                                                              COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004330516
                                                                                              COOLANT ADDITIVE 20LTR. BASF G12 ++
                                                                                              from £121.31
                                                                                              from £121.31
                                                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004320439
                                                                                              CLEANING SOLUTION 20ltr.
                                                                                              CLEANING SOLUTION 20ltr.
                                                                                              from £98.88
                                                                                              from £98.88
                                                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                                                              # 50
                                                                                              MPN: 00004330564
                                                                                              CLEANING SOLUTION 20ltr.
                                                                                              from £82.13
                                                                                              from £82.13
                                                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
