PDD8 (8-cylinder diesel engine 4.2 l KW TDI)
porsche 2013 (cayenne e2 92a) coolant cooling system 4 coolant expansion tank parts diagram

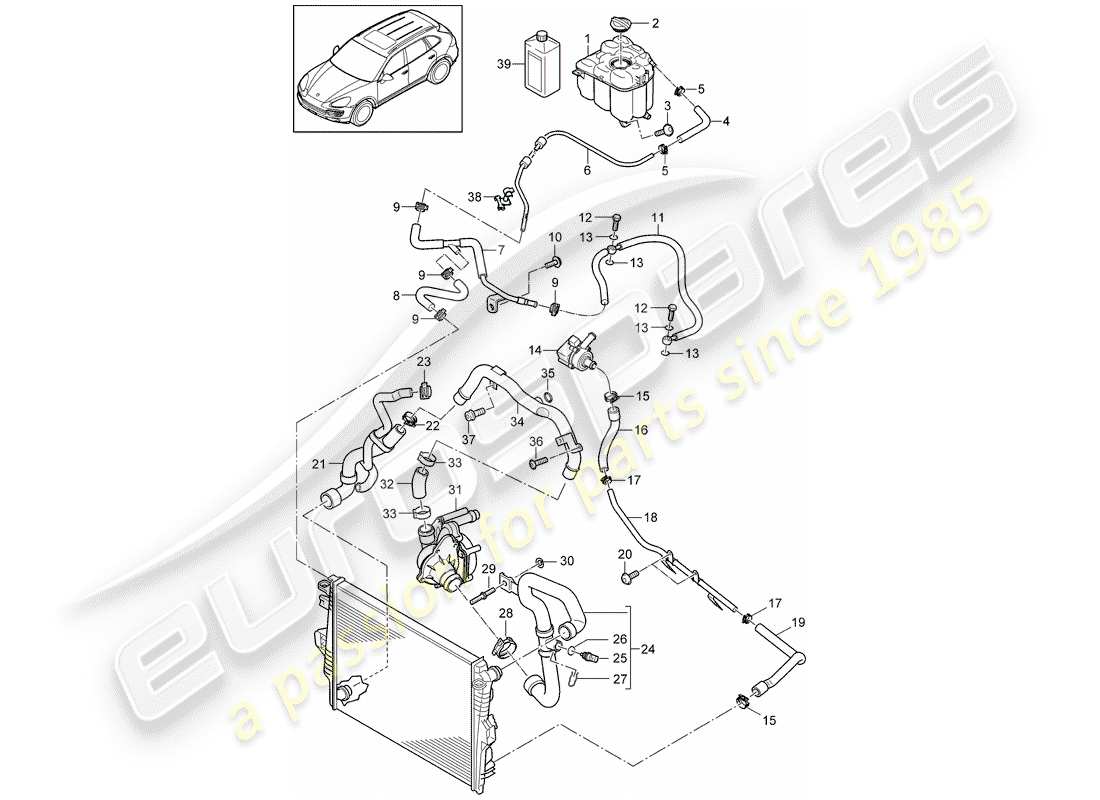

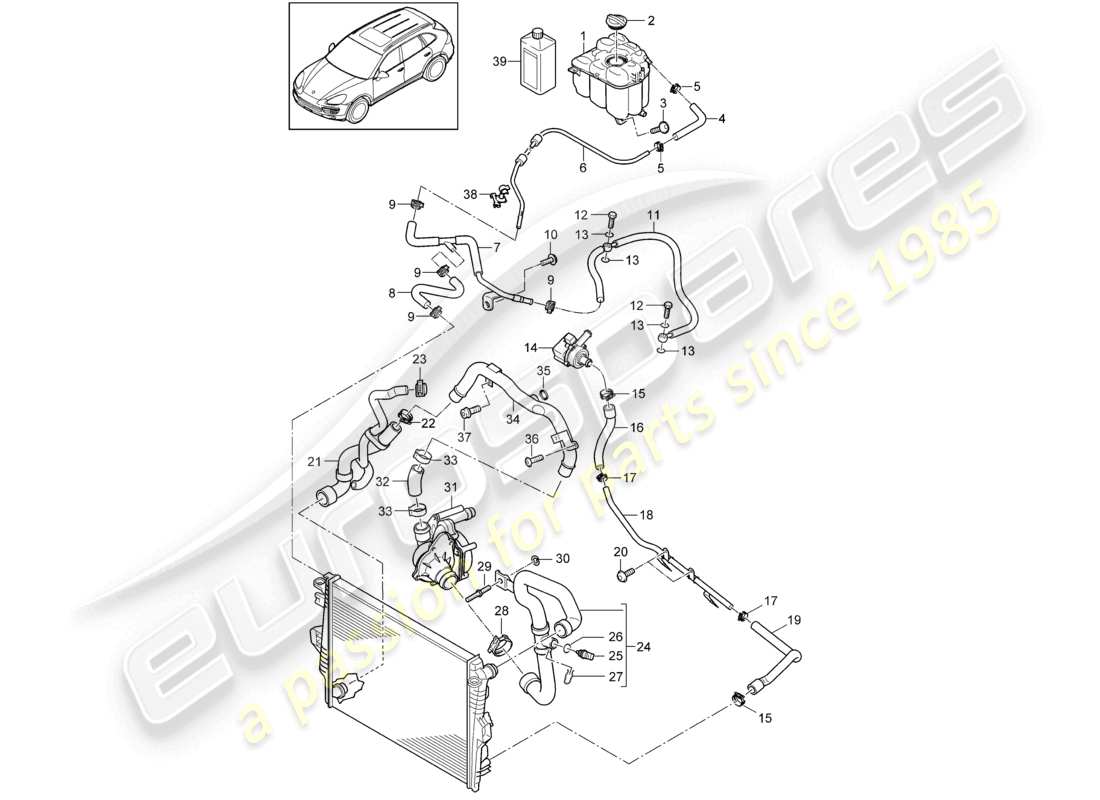

105-070 - Coolant cooling system 4 Coolant expansion tank

Porsche 2013 (Cayenne E2 92A) Coolant cooling system 4 Coolant expansion tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 1
                                                                          MPN: 95810615100
                                                                          COOLANT EXPANSION TANK
                                                                          COOLANT EXPANSION TANK
                                                                          COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                                          # 1
                                                                          MPN: 95810615102
                                                                          COOLANT EXPANSION TANK
                                                                          from £143.81
                                                                          from £143.81
                                                                          COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                                          # 2
                                                                          MPN: 95810644700
                                                                          COVER
                                                                          from £25.35
                                                                          from £25.35
                                                                          COVER Genuine Porsche Part - New (to order)
                                                                          # 3
                                                                          MPN: N 91140401
                                                                          Hexagon socket oval head bolt M6X20 (combi)
                                                                          from £0.82
                                                                          from £0.82
                                                                          HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
                                                                          # 4
                                                                          MPN: 95810635900
                                                                          VENT HOSE
                                                                          from £8.79
                                                                          from £8.79
                                                                          VENT HOSE Genuine Porsche Part - New (to order)
                                                                          # 5
                                                                          MPN: 99951265009
                                                                          HOSE CLAMP B14X12
                                                                          from £0.91
                                                                          from £0.91
                                                                          Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                                                                          # 6
                                                                          MPN: 95810631010
                                                                          BREATHER LINE D >>- MJ 2014
                                                                          from £37.40
                                                                          from £37.40
                                                                          VENT TUBE Genuine Porsche Part - New (to order)
                                                                          # 6
                                                                          MPN: 95810631011
                                                                          BREATHER LINE D - MJ 2015>>
                                                                          from £15.46
                                                                          from £15.46
                                                                          VENT TUBE Genuine Porsche Part - New (to order)
                                                                          # 7
                                                                          MPN: 95810631120
                                                                          breather line
                                                                          from £25.65
                                                                          from £25.65
                                                                          breather line Genuine Porsche Part - New (to order)
                                                                          # 8
                                                                          MPN: 95810631130
                                                                          VENT HOSE
                                                                          from £18.45
                                                                          from £18.45
                                                                          VENT HOSE Genuine Porsche Part - New (to order)
                                                                          # 9
                                                                          MPN: 99951265009
                                                                          HOSE CLAMP B14X12
                                                                          from £0.91
                                                                          from £0.91
                                                                          Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                                                                          # 10
                                                                          MPN: N 90817003
                                                                          HEXAGON SOCKET HEAD PANEL BOLT TP6X17
                                                                          from £0.47
                                                                          from £0.47
                                                                          HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                                                          HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                                                          SCREW TP6X17-Q Genuine Lamborghini - New In stock
                                                                          # 11
                                                                          MPN: 95810638600
                                                                          VENT HOSE
                                                                          from £47.76
                                                                          from £47.76
                                                                          VENT HOSE Genuine Porsche Part - New (to order)
                                                                          # 12
                                                                          MPN: N 91043801
                                                                          BANJO BOLT 8
                                                                          from £11.08
                                                                          from £11.08
                                                                          BANJO BOLT Genuine Porsche Part - New (to order)
                                                                          BANJO BOLT 8-3 Genuine Lamborghini - New (to order)
                                                                          # 13
                                                                          MPN: N 0138076
                                                                          SEAL RING A8X11,5
                                                                          from £1.84
                                                                          from £1.84
                                                                          SEAL RING Genuine Porsche Part - New (to order)
                                                                          # 14
                                                                          -
                                                                          ADDITIONAL COOLANT PUMP SEE ILLUSTRATION: 105-075
                                                                          # 15
                                                                          MPN: 99951265809
                                                                          HOSE CLAMP B27X12
                                                                          from £2.29
                                                                          from £2.29
                                                                          HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                          # 16
                                                                          MPN: 95810655120
                                                                          COOLANT HOSE
                                                                          from £35.17
                                                                          from £35.17
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 17
                                                                          MPN: N 90686901
                                                                          Spring band clamp B23X12
                                                                          from £0.64
                                                                          from £0.64
                                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                                          SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                                          # 18
                                                                          MPN: 95810646510
                                                                          COOLANT PIPE
                                                                          from £125.30
                                                                          from £125.30
                                                                          water tube Genuine Porsche Part - New (to order)
                                                                          # 19
                                                                          MPN: 95810655140
                                                                          COOLANT HOSE
                                                                          from £36.96
                                                                          from £36.96
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 20
                                                                          MPN: N 10451408
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                          from £0.74
                                                                          from £0.74
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                          # 21
                                                                          MPN: 95810640260
                                                                          COOLANT HOSE
                                                                          from £80.93
                                                                          from £80.93
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 22
                                                                          MPN: 99951266509
                                                                          HOSE CLAMP B40X12
                                                                          from £1.78
                                                                          from £1.78
                                                                          HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                          # 23
                                                                          MPN: N 90686901
                                                                          Spring band clamp B23X12
                                                                          from £0.65
                                                                          from £0.65
                                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                                          SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                                          # 24
                                                                          MPN: 95810640150
                                                                          COOLANT HOSE
                                                                          from £87.70
                                                                          from £87.70
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 25
                                                                          MPN: 95510612501
                                                                          TEMPERATURE SENSOR
                                                                          from £53.39
                                                                          from £53.39
                                                                          TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                                          # 26
                                                                          MPN: N 90316801
                                                                          O-RING 19,6X3,65
                                                                          from £2.48
                                                                          from £2.48
                                                                          O-RING Genuine Porsche Part - New In stock
                                                                          O-RING Genuine Bentley Part - New (to order)
                                                                          # 27
                                                                          MPN: 95510614300
                                                                          RETAINING SPRING
                                                                          from £1.84
                                                                          from £1.84
                                                                          RETAINING SPRING Genuine Porsche Part - New (to order)
                                                                          # 28
                                                                          MPN: N 90926501
                                                                          Spring band clamp B47X12
                                                                          from £4.48
                                                                          from £4.48
                                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                                          SPRING CLAMP B47X12 Genuine Lamborghini - New In stock
                                                                          # 29
                                                                          MPN: N 91100601
                                                                          DOUBLE STUD WITH HEXAGON DRIVE 6X19/M6X19
                                                                          from £0.71
                                                                          from £0.71
                                                                          DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                          # 30
                                                                          MPN: N 90959501
                                                                          CLAMPING WASHER 5X22
                                                                          from £0.47
                                                                          from £0.47
                                                                          CLAMPING WASHER Genuine Porsche Part - New (to order)
                                                                          # 31
                                                                          -
                                                                          COOLANT PUMP SEE ILLUSTRATION, ITEM: 105-017,1
                                                                          # 32
                                                                          MPN: 95810640600
                                                                          COOLANT HOSE
                                                                          from £8.14
                                                                          from £8.14
                                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                                          # 33
                                                                          MPN: N 10557301
                                                                          Ear crimp hose clamp 41X7X0,6
                                                                          from £3.05
                                                                          from £3.05
                                                                          EAR HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                          # 34
                                                                          MPN: 95810667100
                                                                          COOLANT PIPE
                                                                          from £174.61
                                                                          from £174.61
                                                                          water tube Genuine Porsche Part - New (to order)
                                                                          # 35
                                                                          MPN: N 90713203
                                                                          O-RING 31X3
                                                                          O-RING 31X3
                                                                          from £2.16
                                                                          from £2.16
                                                                          O-RING Genuine Porsche Part - New (to order)
                                                                          O-RING Genuine Bentley Part - New (to order)
                                                                          # 35
                                                                          MPN: N 90713202
                                                                          SEAL RING 31X3
                                                                          from £3.04
                                                                          from £3.04
                                                                          SEAL RING Genuine Porsche Part - New (to order)
                                                                          O-RING Genuine Lamborghini - New In stock
                                                                          # 36
                                                                          MPN: N 10451408
                                                                          OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                          from £0.74
                                                                          from £0.74
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                          HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                                          # 37
                                                                          MPN: N 91136101
                                                                          SOCKET HEAD BOLT WITH M8X14 INNER MULTIPOINT HEAD
                                                                          from £1.38
                                                                          from £1.38
                                                                          SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                                          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                                                                          # 38
                                                                          MPN: N 10815301
                                                                          HOSE BRACKET A25-6,7XC01-8
                                                                          from £6.65
                                                                          from £6.65
                                                                          BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 00004330147
                                                                          COOLANT ADDITIVE 1.0 LTR.
                                                                          COOLANT ADDITIVE 1.0 LTR.
                                                                          COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 00004330515
                                                                          COOLANT ADDITIVE 1.0 LTR.
                                                                          from £9.95
                                                                          from £9.95
                                                                          COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                                                          # 39
                                                                          MPN: 00004330148
                                                                          Coolant additive 20ltr.
                                                                          Coolant additive 20ltr.
                                                                          COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 00004330516
                                                                          Coolant additive 20ltr.
                                                                          from £121.31
                                                                          from £121.31
                                                                          COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 00004320439
                                                                          CLEANING SOLUTION 20ltr.
                                                                          CLEANING SOLUTION 20ltr.
                                                                          from £98.88
                                                                          from £98.88
                                                                          CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                                          # 39
                                                                          MPN: 00004330564
                                                                          CLEANING SOLUTION 20ltr.
                                                                          from £82.13
                                                                          from £82.13
                                                                          CLEANING SOLUTION Genuine Porsche Part - New (to order)
