PD19 (6-cyl. spark-ignition engine, 3.0 l/245 kW (HYBRID))
porsche 2014 (cayenne e2 92a) coolant cooling system 4 electric drive d - mj 2015>> parts diagram

105-066 - Coolant cooling system 4 Electric drive D - MJ 2015>>

Porsche 2014 (Cayenne E2 92A) Coolant cooling system 4 Electric drive D - MJ 2015>> Parts Diagram

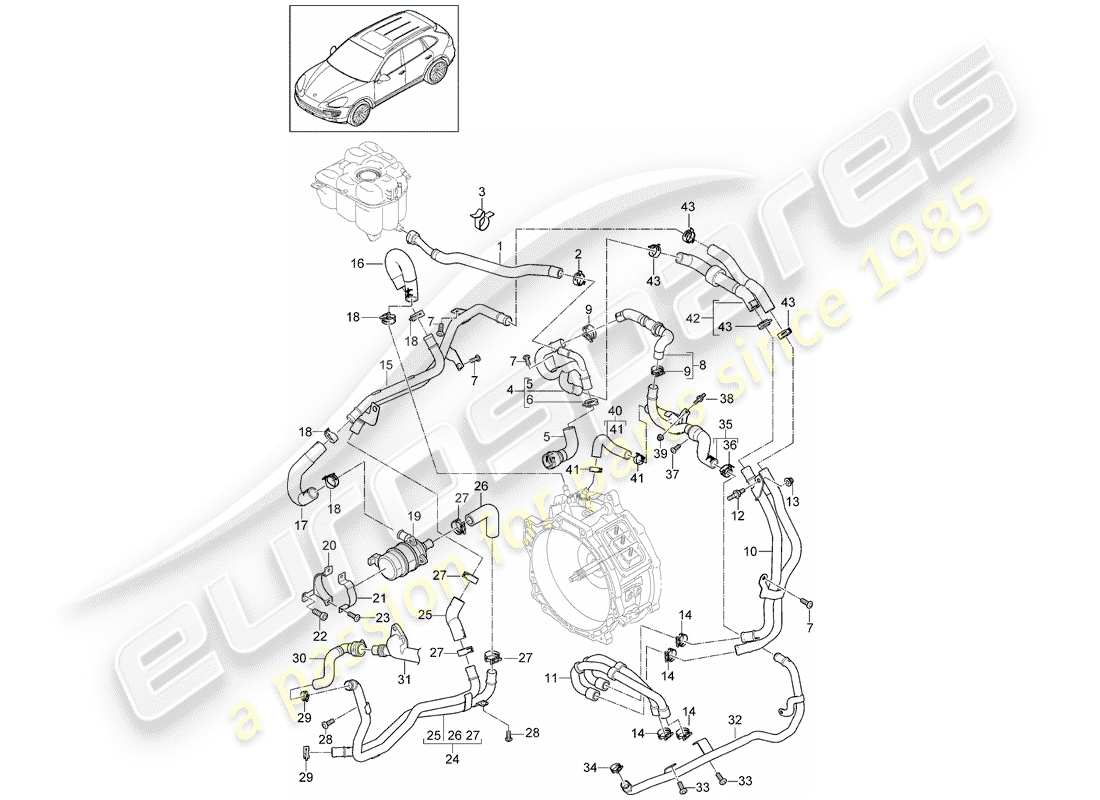

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Key
                                                                                        Price
                                                                                        # 1
                                                                                        MPN: 95810626110
                                                                                        COOLANT HOSE
                                                                                        from £60.05
                                                                                        from £60.05
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 2
                                                                                        MPN: N 90686901
                                                                                        Spring band clamp B23X12
                                                                                        from £0.65
                                                                                        from £0.65
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                                                        SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                                                        # 3
                                                                                        MPN: N 90926302
                                                                                        CABLE HOLDER 22X33,5X0,6
                                                                                        from £1.32
                                                                                        from £1.32
                                                                                        CABLE HOLDER Genuine Porsche Part - New (to order)
                                                                                        CABLE HOLDER Genuine Bentley Part - New (to order)
                                                                                        # 4
                                                                                        MPN: 95810637020
                                                                                        COOLANT PIPE INCLUDED COOLANT HOSE
                                                                                        from £100.58
                                                                                        from £100.58
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 5
                                                                                        MPN: 95810637300
                                                                                        COOLANT HOSE
                                                                                        from £39.22
                                                                                        from £39.22
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 6
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 7
                                                                                        MPN: N 10632003
                                                                                        Oval socket head bolt M6X16 with hex drive
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        oval socket head bolt Genuine Porsche Part - New (to order)
                                                                                        OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                                                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                                                        # 8
                                                                                        MPN: 95810637410
                                                                                        COOLANT HOSE INCLUDED THERMOSTAT
                                                                                        from £93.61
                                                                                        from £93.61
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 9
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 10
                                                                                        MPN: 95810636520
                                                                                        COOLANT PIPE
                                                                                        from £116.10
                                                                                        from £116.10
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 11
                                                                                        MPN: 95810607310
                                                                                        COOLANT HOSE
                                                                                        from £93.04
                                                                                        from £93.04
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 12
                                                                                        MPN: N 91082401
                                                                                        DOUBLE STUD WITH HEXAGON DRIVE M8X25/M8X12
                                                                                        from £4.41
                                                                                        from £4.41
                                                                                        DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                                        # 13
                                                                                        MPN: N 02300316
                                                                                        HEXAGON NUT M8
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        HEX. NUT Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        PREV.TORQUE TYPE Genuine Lamborghini - New (to order)
                                                                                        # 14
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 15
                                                                                        MPN: 95810636610
                                                                                        COOLANT PIPE
                                                                                        from £116.10
                                                                                        from £116.10
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 16
                                                                                        MPN: 95810635820
                                                                                        COOLANT HOSE
                                                                                        from £22.98
                                                                                        from £22.98
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 17
                                                                                        MPN: 95810635810
                                                                                        COOLANT HOSE
                                                                                        from £22.98
                                                                                        from £22.98
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 18
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 19
                                                                                        MPN: 95860656700
                                                                                        COOLANT PUMP ELECTRIC
                                                                                        from £523.91
                                                                                        from £523.91
                                                                                        WATER PUMP Genuine Porsche Part - New (to order)
                                                                                        # 20
                                                                                        MPN: 95810657910
                                                                                        BRACKET
                                                                                        from £18.83
                                                                                        from £18.83
                                                                                        BRACKET Genuine Porsche Part - New (to order)
                                                                                        # 21
                                                                                        MPN: 95810657920
                                                                                        BRACKET
                                                                                        from £11.86
                                                                                        from £11.86
                                                                                        BRACKET Genuine Porsche Part - New (to order)
                                                                                        # 22
                                                                                        MPN: N 10524202
                                                                                        HEX SOCKET HEAD LOCATING BOLT M10X12
                                                                                        from £0.89
                                                                                        from £0.89
                                                                                        HEX SOCKET HEAD LOCATING BOLT Genuine Porsche Part - New (to order)
                                                                                        12-POINT SOCKET BOLT Genuine Lamborghini - New (to order)
                                                                                        # 23
                                                                                        MPN: N 10451405
                                                                                        OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                                                        from £0.70
                                                                                        from £0.70
                                                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                                                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                                        HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                        # 24
                                                                                        MPN: 95810637120
                                                                                        COOLANT PIPE INCLUDED COOLANT HOSE
                                                                                        from £131.51
                                                                                        from £131.51
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 25
                                                                                        MPN: 95810635730
                                                                                        COOLANT HOSE
                                                                                        from £20.75
                                                                                        from £20.75
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 26
                                                                                        MPN: 95810635720
                                                                                        COOLANT HOSE
                                                                                        from £28.25
                                                                                        from £28.25
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 27
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 28
                                                                                        MPN: N 10632003
                                                                                        Oval socket head bolt M6X16 with hex drive
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        oval socket head bolt Genuine Porsche Part - New (to order)
                                                                                        OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                                                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                                                        # 29
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 30
                                                                                        MPN: 95810635630
                                                                                        COOLANT HOSE
                                                                                        from £28.25
                                                                                        from £28.25
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 31
                                                                                        -
                                                                                        COOLANT PIPE SEE ILLUSTRATION, ITEM: 105-060,18
                                                                                        # 32
                                                                                        MPN: 95810636530
                                                                                        COOLANT PIPE
                                                                                        from £116.10
                                                                                        from £116.10
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 33
                                                                                        MPN: N 10225202
                                                                                        HEXAGON HEAD BOLT (COMBI) M8X12
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                                                                                        HEXAGON HEAD BOLT (COMBI) Genuine Bentley Part - New (to order)
                                                                                        # 34
                                                                                        MPN: 99951268309
                                                                                        HOSE CLAMP B23X12
                                                                                        from £2.29
                                                                                        from £2.29
                                                                                        Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New In stock
                                                                                        HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                        # 35
                                                                                        MPN: 95810637030
                                                                                        COOLANT PIPE INCLUDED COOLANT HOSE
                                                                                        from £104.96
                                                                                        from £104.96
                                                                                        water tube Genuine Porsche Part - New (to order)
                                                                                        # 36
                                                                                        MPN: 99951268309
                                                                                        HOSE CLAMP B23X12
                                                                                        from £2.29
                                                                                        from £2.29
                                                                                        Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New In stock
                                                                                        HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                        # 37
                                                                                        MPN: N 02300316
                                                                                        HEXAGON NUT M8
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        HEX. NUT Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        PREV.TORQUE TYPE Genuine Lamborghini - New (to order)
                                                                                        # 38
                                                                                        MPN: N 91061301
                                                                                        DOUBLE STUD WITH HEXAGON DRIVE M6X10/M6X10
                                                                                        from £3.49
                                                                                        from £3.49
                                                                                        DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                                                                        DOUBLE SCREW Genuine Lamborghini - New (to order)
                                                                                        # 39
                                                                                        MPN: N 02300214
                                                                                        HEXAGON NUT, SELF-LOCKING M6
                                                                                        from £0.96
                                                                                        from £0.96
                                                                                        HEX. NUT, SELF-LOCKING Genuine Porsche Part - New (to order)
                                                                                        HEXAGON NUT, SELF-LOCKING Genuine Bentley Part - New (to order)
                                                                                        PREV.TORQUE TYPE M6 Genuine Lamborghini - New (to order)
                                                                                        # 40
                                                                                        MPN: 95810637320
                                                                                        COOLANT HOSE
                                                                                        from £16.46
                                                                                        from £16.46
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 41
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                                                        # 42
                                                                                        MPN: 95810637330
                                                                                        COOLANT HOSE
                                                                                        from £28.10
                                                                                        from £28.10
                                                                                        WATER HOSE Genuine Porsche Part - New (to order)
                                                                                        # 43
                                                                                        MPN: N 90687001
                                                                                        SPRING BAND CLAMP B27X12X1,7
                                                                                        from £4.75
                                                                                        from £4.75
                                                                                        SPRING CLIP Genuine Porsche Part - New (to order)
                                                                                        Genuine Bentley Part (no longer available to order)
                                                                                        SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
