P9AH (4-zone air conditioning system)
porsche 2014 (cayenne e2 92a) refrigerant circuit front with: 4-zone air-conditioning system air conditioning d >>- mj 2016 parts diagram

813-061 - refrigerant circuit front with: 4-zone air-conditioning system Air conditioning D >>- MJ 2016

Porsche 2014 (Cayenne E2 92A) refrigerant circuit front with: 4-zone air-conditioning system Air conditioning D >>- MJ 2016 Parts Diagram

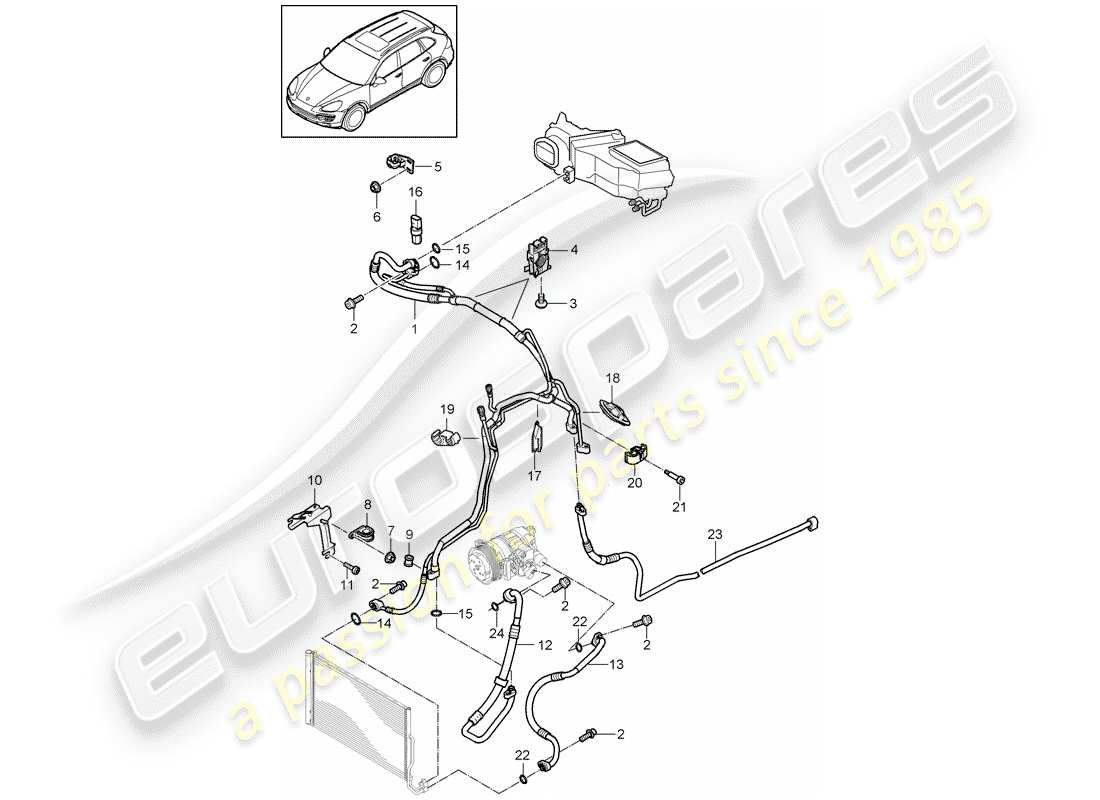

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 95857374106
                              PRESSURE LINE LHD
                              PRESSURE LINE LHD
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374126
                              PRESSURE LINE LHD CONDENSER EXPANSION VALVE
                              PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2)) | PL0L (Left-hand drive version) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374110
                              PRESSURE LINE LHD D >>- MJ 2011
                              PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PL0L (Left-hand drive version)
                              from £327.34
                              from £327.34
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374120
                              PRESSURE LINE LHD
                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PL0L (Left-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95882074170
                              REFRIGERANT LINE LHD PRESSURE LINE EXPANSION VALVE
                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PD51 (6-Zylinder-Dieselmotor 3,0 L/184 KW TDI)
                              from £333.66
                              from £333.66
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374111
                              PRESSURE LINE LHD
                              PD11 (6-cylinder petrol engine 3.0/245 kW) | PL0L (Left-hand drive version) | PCH.
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95882074165
                              REFRIGERANT LINE LHD CONDENSER COMPRESSOR EXPANSION VALVE
                              PD11 (6-cylinder petrol engine 3.0/245 kW) | PL0L (Left-hand drive version)
                              from £347.86
                              from £347.86
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374129
                              PRESSURE LINE LHD CONDENSER EXPANSION VALVE
                              PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PL0L (Left-hand drive version) | PCH.
                              from £295.12
                              from £295.12
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374132
                              PRESSURE LINE LHD CONDENSER EXPANSION VALVE
                              PDD8 (8-cylinder diesel engine 4.2 l KW TDI) | PL0L (Left-hand drive version)
                              from £297.91
                              from £297.91
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374143
                              PRESSURE LINE LHD CONDENSER EXPANSION VALVE
                              PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder) | PL0L (Left-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374206
                              Pressure line rhd
                              PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2)) | PL0R (Right-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374208
                              Pressure line rhd
                              PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PL0R (Right-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374223
                              Pressure line rhd
                              PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PL0R (Right-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374223
                              Pressure line rhd
                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PL0R (Right-hand drive version)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374230
                              PRESSURE LINE RHD CONDENSER EXPANSION VALVE
                              PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PL0R (Right-hand drive version)
                              from £271.76
                              from £271.76
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374234
                              PRESSURE LINE RHD CONDENSER EXPANSION VALVE
                              PDD8 (8-cylinder diesel engine 4.2 l KW TDI) | PL0R (Right-hand drive version)
                              from £284.60
                              from £284.60
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 95857374240
                              PRESSURE LINE RHD CONDENSER EXPANSION VALVE
                              PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder) | PL0R (Right-hand drive version)
                              from £295.12
                              from £295.12
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 2
                              MPN: N 10414402
                              Socket head bolt with M8X28 hexagon socket head
                              from £1.38
                              from £1.38
                              BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                              SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                              HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                              # 3
                              MPN: N 91123501
                              HEXAGON SOCKET FLAT 5X14 HEAD BOLT LHD
                              PL0L (Left-hand drive version)
                              from £0.54
                              from £0.54
                              HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 95857305500
                              CLIP LHD
                              PL0L (Left-hand drive version)
                              from £3.25
                              from £3.25
                              CLIP Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 95857305501
                              CLIP RHD
                              PL0R (Right-hand drive version)
                              from £5.01
                              from £5.01
                              CLIP Genuine Porsche Part - New (to order)
                              # 6
                              MPN: N 90455301
                              Hexagon collar nut 5 rhd
                              PL0R (Right-hand drive version)
                              from £1.16
                              from £1.16
                              shouldered hex. nut Genuine Porsche Part - New (to order)
                              NUT Genuine Bentley Part - New (to order)
                              # 7
                              MPN: N 01508210
                              HEXAGON COLLAR NUT M6
                              P without D1V, P without D11, P without D43
                              from £0.47
                              from £0.47
                              Genuine Porsche Part (no longer available to order)
                              Genuine Bentley Part (no longer available to order)
                              HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                              # 8
                              MPN: N 0206473
                              CLAMP
                              PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2)) | PD19 (6-cyl. spark-ignition engine, 3.0 l/245 kW (HYBRID))
                              from £2.62
                              from £2.62
                              CLAMP Genuine Porsche Part - New (to order)
                              CLAMP Genuine Bentley Part - New (to order)
                              HOLDING CLIP Genuine Lamborghini - New (to order)
                              # 9
                              MPN: N 0206517
                              CLAMP
                              from £0.88
                              from £0.88
                              CLAMP Genuine Porsche Part - New (to order)
                              CLAMP Genuine Bentley Part - New (to order)
                              HOLDING CLIP Genuine Lamborghini - New In stock
                              # 10
                              MPN: 95882089300
                              BRACKET LOWER
                              from £20.00
                              from £20.00
                              BRACKET Genuine Porsche Part - New (to order)
                              # 11
                              MPN: N 91096701
                              OVAL HEXAGON SOCKET HEAD BOLT M6X16
                              from £0.64
                              from £0.64
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                              HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                              # 12
                              MPN: 95857374400
                              REFRIGERANT LINE
                              PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2))
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 95857374404
                              REFRIGERANT LINE
                              PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2))
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 95857374402
                              REFRIGERANT LINE
                              PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW)
                              from £65.99
                              from £65.99
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 95857374406
                              REFRIGERANT LINE D >>- MJ 2016
                              PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                              from £111.22
                              from £111.22
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372100
                              PRESSURE LINE
                              PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2))
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372102
                              PRESSURE LINE D >>- MJ 2012
                              PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI)
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372103
                              PRESSURE LINE
                              PD11 (6-cylinder petrol engine 3.0/245 kW)
                              from £143.20
                              from £143.20
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372104
                              PRESSURE LINE
                              PD43 (6-cylinder diesel engine 3.0 l/180 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI) | PDV7 (6-cylinder diesel engine 3.0 l/193 kW TDI)
                              from £259.93
                              from £259.93
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372110
                              PRESSURE LINE
                              PD58 (8-cyl. spark-ign. engine, 4.8 l/368 kW biturbo (E2)) | PD6V (8-cyl. spark-ignition engine, 4.8 l/294 kW DFI (E2)) | PDT5 (4.8 litre turbo engine, 8-cylinder) | PDT1 (8-cylinder biturbo engine, 4.8 l 382 kW)
                              from £107.77
                              from £107.77
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372150
                              REFRIGERANT LINE CONDENSER
                              PDU2 (6-cylinder turbo engine, 3.6 l 309 kW) | PDU3 (3.6 litre turbo engine, 6-cylinder)
                              REFRIGERANT LINE Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 95857372115
                              PRESSURE LINE
                              PDD8 (8-cylinder diesel engine 4.2 l KW TDI)
                              from £259.93
                              from £259.93
                              PRESSURE LINE Genuine Porsche Part - New (to order)
                              # 14
                              MPN: 95557374900
                              O-RING
                              from £4.34
                              from £4.34
                              O-RING Genuine Porsche Part - New In stock
                              # 15
                              MPN: 95557374902
                              O-RING
                              from £4.32
                              from £4.32
                              O-RING Genuine Porsche Part - New In stock
                              # 16
                              MPN: 95561313703
                              Pressure sensor use if required:
                              from £88.34
                              from £88.34
                              This part replaces part number 95561313702
                              PRESSURE SENSOR Genuine Porsche Part - New (to order)
                              # 17
                              MPN: 95857366700
                              GROMMET
                              from £11.04
                              from £11.04
                              GROMMET Genuine Porsche Part - New (to order)
                              # 18
                              MPN: 95857366800
                              GROMMET
                              from £11.04
                              from £11.04
                              GROMMET Genuine Porsche Part - New (to order)
                              # 19
                              MPN: 95557375900
                              BRACKET
                              from £3.58
                              from £3.58
                              BRACKET Genuine Porsche Part - New (to order)
                              # 20
                              MPN: 95557218000
                              DUAL CLIP
                              from £5.66
                              from £5.66
                              DUAL CLAMP Genuine Porsche Part - New (to order)
                              # 21
                              MPN: N 10510301
                              Hexagon socket head M6X35 bolt
                              from £0.84
                              from £0.84
                              HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                              HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                              # 22
                              MPN: 95557209400
                              O-RING 11,0X2,5
                              O-RING 11,0X2,5
                              O-RING Genuine Porsche Part - New (to order)
                              # 22
                              MPN: 95557374901
                              O-RING
                              from £4.53
                              from £4.53
                              O-RING Genuine Porsche Part - New In stock
                              # 23
                              -
                              see illustration: 813-065
                              # 24
                              MPN: 95557374903
                              O-RING 23.8X2.4-N
                              from £3.87
                              from £3.87
                              O-RING Genuine Porsche Part - New (to order)
