PD50 (6-cylinder diesel engine, 3.0 l/176 kW TDI) | PD1V (6-cylinder diesel engine 3.0/155 kW TDI)
porsche 2015 (cayenne e2 92a) coolant cooling system 4 d >>- mj 2011 parts diagram

105-050 - Coolant cooling system 4 D >>- MJ 2011

Porsche 2015 (Cayenne E2 92A) Coolant cooling system 4 D >>- MJ 2011 Parts Diagram

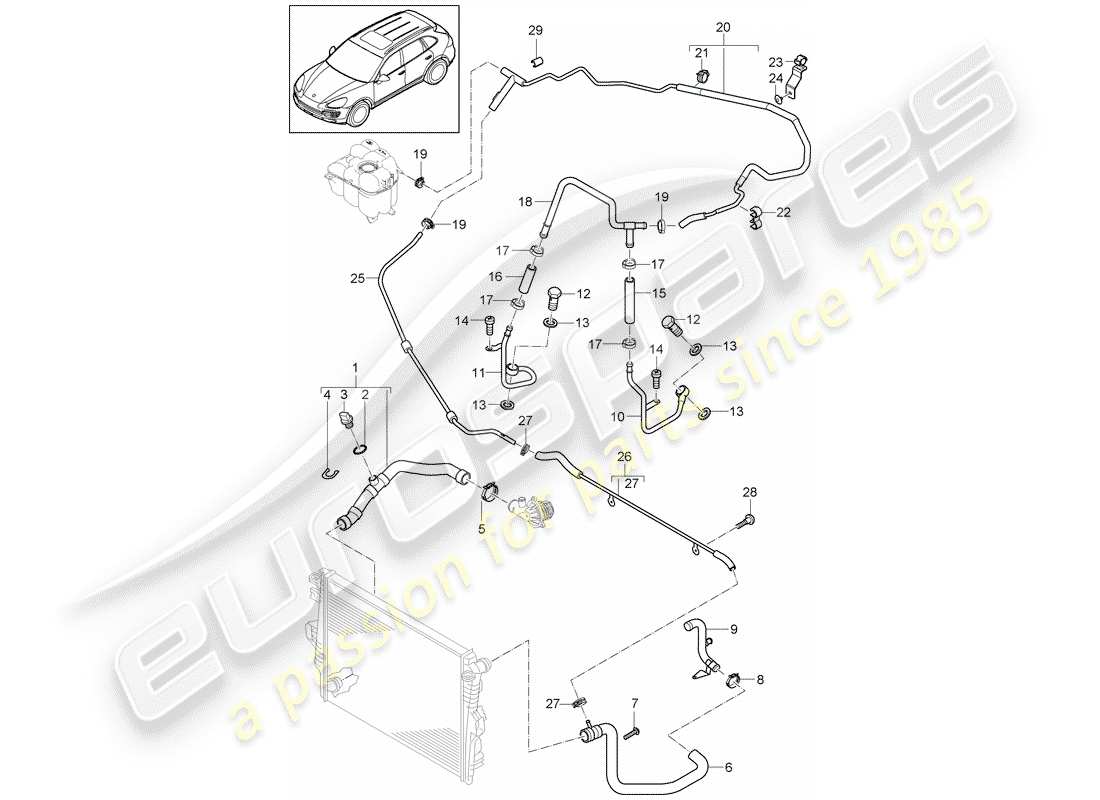

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 1
                                                          MPN: 95810640230
                                                          COOLANT HOSE
                                                          from £92.34
                                                          from £92.34
                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                          # 2
                                                          MPN: N 90316801
                                                          O-RING 19,6X3,65
                                                          from £2.48
                                                          from £2.48
                                                          O-RING Genuine Porsche Part - New In stock
                                                          O-RING Genuine Bentley Part - New (to order)
                                                          # 3
                                                          MPN: 95510612501
                                                          TEMPERATURE SENSOR
                                                          from £53.39
                                                          from £53.39
                                                          TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                                          # 4
                                                          MPN: 95510614300
                                                          RETAINING SPRING
                                                          from £1.84
                                                          from £1.84
                                                          RETAINING SPRING Genuine Porsche Part - New (to order)
                                                          # 5
                                                          MPN: N 90926501
                                                          Spring band clamp B47X12
                                                          from £4.48
                                                          from £4.48
                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                          SPRING CLAMP B47X12 Genuine Lamborghini - New In stock
                                                          # 6
                                                          MPN: 95810640130
                                                          COOLANT HOSE
                                                          from £98.56
                                                          from £98.56
                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                          # 7
                                                          MPN: 95811083000
                                                          SPACER BUSH INCLUDED FASTENING SCREW
                                                          from £4.91
                                                          from £4.91
                                                          SPACER BUSHING Genuine Porsche Part - New (to order)
                                                          # 8
                                                          MPN: N 90687201
                                                          Spring band clamp B40X12
                                                          from £1.45
                                                          from £1.45
                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                          SPRING CLAMP B40X12 Genuine Lamborghini - New In stock
                                                          # 9
                                                          -
                                                          COOLANT PIPE SEE ILLUSTRATION, ITEM: 105-045,29
                                                          # 10
                                                          MPN: 95810639900
                                                          COOLANT PIPE
                                                          from £64.35
                                                          from £64.35
                                                          water tube Genuine Porsche Part - New (to order)
                                                          # 11
                                                          MPN: 95810639800
                                                          COOLANT PIPE
                                                          from £41.26
                                                          from £41.26
                                                          water tube Genuine Porsche Part - New (to order)
                                                          # 12
                                                          MPN: N 91043801
                                                          BANJO BOLT 8
                                                          from £11.08
                                                          from £11.08
                                                          BANJO BOLT Genuine Porsche Part - New (to order)
                                                          BANJO BOLT 8-3 Genuine Lamborghini - New (to order)
                                                          # 13
                                                          MPN: N 0138076
                                                          SEAL RING 8X11,5
                                                          from £1.84
                                                          from £1.84
                                                          SEAL RING Genuine Porsche Part - New (to order)
                                                          # 14
                                                          MPN: N 10248003
                                                          SOCKET HEAD BOLT WITH M6X14 INNER MULTIPOINT HEAD
                                                          from £1.04
                                                          from £1.04
                                                          SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                                          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                                                          # 15
                                                          MPN: 95810625500
                                                          COOLANT HOSE
                                                          from £6.56
                                                          from £6.56
                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                          # 16
                                                          MPN: 95810625600
                                                          COOLANT HOSE
                                                          from £10.88
                                                          from £10.88
                                                          WATER HOSE Genuine Porsche Part - New (to order)
                                                          # 17
                                                          MPN: N 10233401
                                                          Ear crimp hose clamp 16,2X7X0,6
                                                          from £1.39
                                                          from £1.39
                                                          EAR HOSE CLAMP Genuine Porsche Part - New (to order)
                                                          EAR CRIMP HOSE CLAMP Genuine Bentley Part - New (to order)
                                                          CLAMP Genuine Lamborghini - New (to order)
                                                          # 18
                                                          MPN: 95810628600
                                                          COOLANT PIPE
                                                          from £24.11
                                                          from £24.11
                                                          water tube Genuine Porsche Part - New (to order)
                                                          # 19
                                                          MPN: N 90686701
                                                          Spring band clamp B14X12
                                                          from £0.84
                                                          from £0.84
                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                          SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                                          # 20
                                                          MPN: 95810631030
                                                          breather line
                                                          breather line
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 20
                                                          MPN: 95810631031
                                                          breather line
                                                          from £203.61
                                                          from £203.61
                                                          This part replaces part number 95810631030
                                                          breather line Genuine Porsche Part - New (to order)
                                                          # 21
                                                          MPN: 95511042300
                                                          LINE HOLDER 5X14
                                                          from £4.29
                                                          from £4.29
                                                          LINE HOLDER Genuine Porsche Part - New (to order)
                                                          # 22
                                                          MPN: N 10590101
                                                          BRACKET 11X6
                                                          from £2.49
                                                          from £2.49
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 23
                                                          MPN: 95810656900
                                                          BRACKET
                                                          from £16.88
                                                          from £16.88
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 24
                                                          MPN: N 90708802
                                                          SPEED NUT
                                                          from £0.47
                                                          from £0.47
                                                          SPEED NUT Genuine Porsche Part - New (to order)
                                                          Genuine Bentley Part (no longer available to order)
                                                          # 25
                                                          MPN: 95810631010
                                                          breather line
                                                          from £37.40
                                                          from £37.40
                                                          VENT TUBE Genuine Porsche Part - New (to order)
                                                          # 26
                                                          MPN: 95810631110
                                                          COOLANT PIPE INCLUDED COOLANT HOSE
                                                          from £50.59
                                                          from £50.59
                                                          water tube Genuine Porsche Part - New (to order)
                                                          # 27
                                                          MPN: N 90686701
                                                          Spring band clamp B14X12
                                                          from £0.84
                                                          from £0.84
                                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                                          SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                          SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                                          # 28
                                                          MPN: N 90817003
                                                          HEXAGON SOCKET HEAD PANEL BOLT TP6X17
                                                          from £0.47
                                                          from £0.47
                                                          HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                                          HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                                          SCREW TP6X17-Q Genuine Lamborghini - New In stock
                                                          # 29
                                                          MPN: N 10716201
                                                          SPACER RING B8X18X20
                                                          from £1.34
                                                          from £1.34
                                                          SPACER RING Genuine Porsche Part - New (to order)
                                                          SPLINED SLEEVE B8X18X20 Genuine Lamborghini - New (to order)
