812-050 - AIRBAG

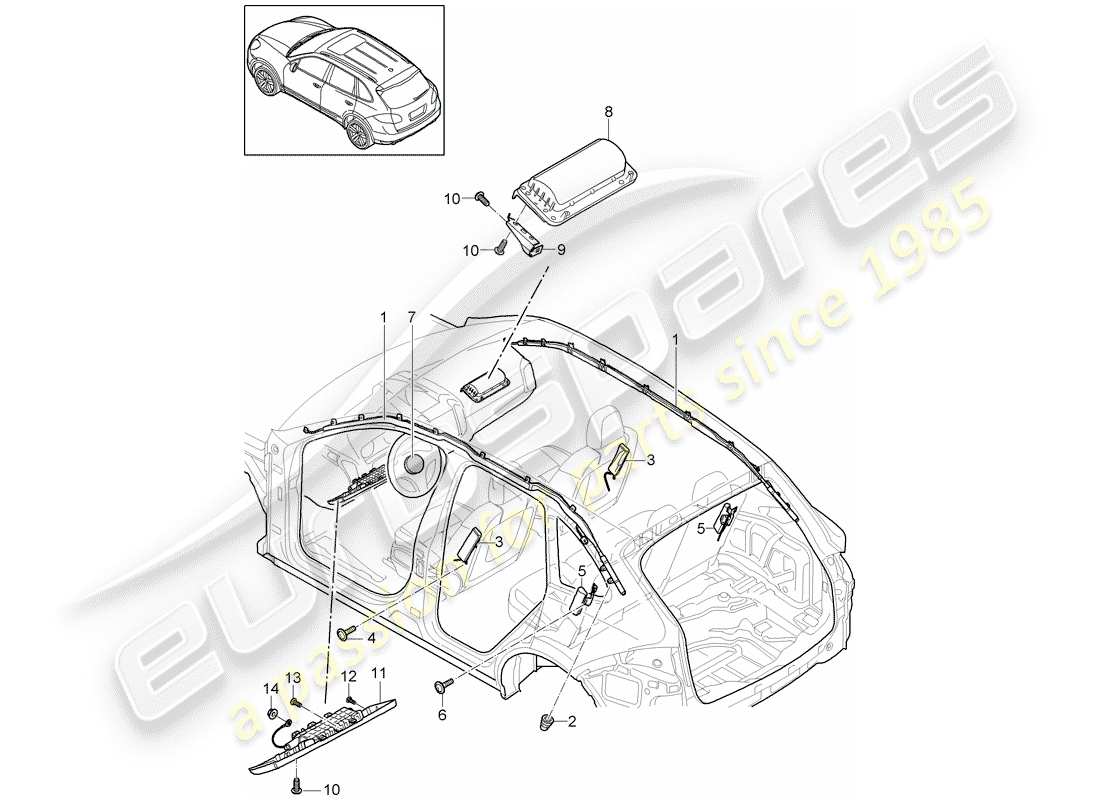

Porsche 2015 (Cayenne E2 92A) Airbag Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
-
CONTROL UNIT AIRBAG SENSORS SEE ILLUSTRATION: 901-005
# 1
MPN: 95880306900
Airbag unit left Head airbag unit D >>- MJ 2014
Airbag unit left Head airbag unit D >>- MJ 2014
# 1
MPN: 95880306901
Airbag unit left Head airbag unit D >>- MJ 2014
# 1
MPN: 95880306902
AIRBAG UNIT LEFT HEAD AIRBAG UNIT D - MJ 2015>>
from £431.88
from £431.88
# 1
MPN: 95880307000
Airbag unit right Head airbag unit D >>- MJ 2014
Airbag unit right Head airbag unit D >>- MJ 2014
# 1
MPN: 95880307001
Airbag unit right Head airbag unit D >>- MJ 2014
# 1
MPN: 95880307002
AIRBAG UNIT RIGHT HEAD AIRBAG UNIT D - MJ 2015>>
from £431.88
from £431.88
# 2
MPN: 95561841921
domed cap nut M6 for Head airbag unit
from £0.96
from £0.96
# 3
MPN: 95852124100
Side airbag unit left front Seat
Side airbag unit left front Seat
# 3
MPN: 95852124101
Side airbag unit left front Seat
P4X3 (Front side airbag with head airbag) | P4X4 (Side-airbag, front and rear with curtain airbag)
# 3
MPN: 95852124200
Side airbag unit right front Seat
Side airbag unit right front Seat
# 3
MPN: 95852124201
Side airbag unit right front Seat
P4X3 (Front side airbag with head airbag) | P4X4 (Side-airbag, front and rear with curtain airbag)
# 4
MPN: N 91042301
OVAL HEXAGON SOCKET HEAD BOLT M6X16 FOR AIRBAG
from £0.55
from £0.55
This part replaces part number 99907313001
# 5
MPN: 95852244101
SIDE AIRBAG UNIT LEFT REAR SEAT
P4X4 (Side-airbag, front and rear with curtain airbag) | P3NW (Rear seats, split backrest can be folded down)
# 5
MPN: 95852244201
SIDE AIRBAG UNIT RIGHT REAR SEAT
P4X4 (Side-airbag, front and rear with curtain airbag) | P3NW (Rear seats, split backrest can be folded down)
from £267.15
from £267.15
# 6
MPN: N 91042301
OVAL HEXAGON SOCKET HEAD BOLT M6X16 FOR AIRBAG
from £0.55
from £0.55
This part replaces part number 99907313001
# 7
MPN: 958803074004U0
AIRBAG UNIT STEERING WHEEL D >>- MJ 2014 - PLATINUM GREY -MD
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour)
This part replaces part number 95880307400
# 7
MPN: 958803074006W0
AIRBAG UNIT STEERING WHEEL D >>- MJ 2014 - LUXOR BEIGE -MC
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour)
This part replaces part number 95880307400
# 7
MPN: 958803074005Q0
AIRBAG UNIT STEERING WHEEL D >>- MJ 2014 - BLACK -MA,77
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour)
This part replaces part number 95880307400
# 7
MPN: 958803075008T3
AIRBAG UNIT STEERING WHEEL LEATHER D >>- MJ 2014 - PLATINUM GREY -LD,YD
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather)
This part replaces part number 95880307500
# 7
MPN: 958803075009J9
AIRBAG UNIT STEERING WHEEL LEATHER D >>- MJ 2014 - LUXOR BEIGE -LE,YE
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather)
This part replaces part number 95880307500
# 7
MPN: 958803075006H6
AIRBAG UNIT STEERING WHEEL LEATHER D >>- MJ 2014 - ESPRESSO -VA,VB
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather)
This part replaces part number 95880307500
# 7
MPN: 95880307500DE1
AIRBAG UNIT STEERING WHEEL LEATHER D >>- MJ 2014 - UMBER -LF,TX,TY,YF
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather)
This part replaces part number 95880307500
# 7
MPN: 95880307500A34
AIRBAG UNIT STEERING WHEEL LEATHER D >>- MJ 2014 - BLACK -LC,MF,MI,TA, TB,TW,YA,YB, YC,77
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather)
This part replaces part number 95880307500
# 7
MPN: 95880320100OA6
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- AGATE GREY -MB
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P1A2 (Engine variant without reduced compression)
from £776.59
from £776.59
This part replaces part number 95880320100
# 7
MPN: 958803201006W0
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- LUXOR BEIGE -MC
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P1A2 (Engine variant without reduced compression)
from £814.79
from £814.79
This part replaces part number 95880320100
# 7
MPN: 958803201005Q0
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- BLACK -LG,LH,MA,77
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P1A2 (Engine variant without reduced compression)
This part replaces part number 95880320100
# 7
MPN: 95880320101OA6
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- AGATE GREY -MB
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P0F5 (Fuel system for diesel engine)
from £776.59
from £776.59
This part replaces part number 95880320101
# 7
MPN: 958803201016W0
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- LUXOR BEIGE -MC
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P0F5 (Fuel system for diesel engine)
This part replaces part number 95880320101
# 7
MPN: 958803201015Q0
AIRBAG UNIT FOR STEERING WHEEL D - MJ 2015>>- BLACK -LG,LH,MA,77
P4N1 (Padded dashboard) | P4N9 (Upholstered dashboard, two-colour) | P0F5 (Fuel system for diesel engine)
This part replaces part number 95880320101
# 7
MPN: 95880320102A34
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- BLACK -LC,LG,LH,MF, MI,TA,YA,YC
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P1A2 (Engine variant without reduced compression)
This part replaces part number 95880320102
# 7
MPN: 95880320102OE5
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- AGATE GREY -MG,ML
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P1A2 (Engine variant without reduced compression)
from £919.53
from £919.53
This part replaces part number 95880320102
# 7
MPN: 95880320102OK6
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- SADDLE BROWN -ME,MH,MJ,MK
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P1A2 (Engine variant without reduced compression)
This part replaces part number 95880320102
# 7
MPN: 958803201026H6
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- ESPRESSO -VA,VB
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P1A2 (Engine variant without reduced compression)
from £822.90
from £822.90
This part replaces part number 95880320102
# 7
MPN: 958803201029J9
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- LUXOR BEIGE -LE,YE
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P1A2 (Engine variant without reduced compression)
This part replaces part number 95880320102
# 7
MPN: 95880320103A34
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- BLACK -LC,LG,LH,MF, MI,TA,YA,YC
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P0F5 (Fuel system for diesel engine)
This part replaces part number 95880320103
# 7
MPN: 95880320103OE5
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- AGATE GREY -MG,ML
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P0F5 (Fuel system for diesel engine)
This part replaces part number 95880320103
# 7
MPN: 95880320103OK6
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- SADDLE BROWN -ME,MH,MJ,MK
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P0F5 (Fuel system for diesel engine)
from £861.31
from £861.31
This part replaces part number 95880320103
# 7
MPN: 958803201036H6
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- ESPRESSO -VA,VB
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P0F5 (Fuel system for diesel engine)
This part replaces part number 95880320103
# 7
MPN: 958803201039J9
AIRBAG UNIT STEERING WHEEL LEATHER D - MJ 2015>>- LUXOR BEIGE -LE,YE
P4N3 (Switch panel in two-tone leather w. decor. stitching) | P4N4 (Dashboard in two-colour natural leather) | P4N5 (Dashboard in natural leather) | P4N8 (Dashboard with genuine leather) | P0F5 (Fuel system for diesel engine)
from £919.53
from £919.53
This part replaces part number 95880320103
# 8
MPN: 95880307100
AIRBAG UNIT (passenger side)
from £1,104.82
from £1,104.82
# 9
MPN: 95880307200
BRACKET FOR AIRBAG LEFT AIRBAG UNIT (PASSENGER SIDE)
from £20.19
from £20.19
# 9
MPN: 95880307250
BRACKET FOR AIRBAG RIGHT AIRBAG UNIT (PASSENGER SIDE)
from £20.19
from £20.19
# 10
MPN: N 91093502
HEXAGON SOCKET OVAL HEAD BOLT, SELF-LOCKING
from £0.63
from £0.63
# 11
MPN: 95880306100DF2
AIRBAG UNIT LEFT LOWER DASHBOARD - LIGHT TARTUFO -TY
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100DJ3
AIRBAG UNIT LEFT LOWER DASHBOARD - TITANIUM BLUE -TW
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 958803061003S0
AIRBAG UNIT LEFT LOWER DASHBOARD - COGNAC -VB
This part replaces part number 95880306100
# 11
MPN: 958803061005V0
AIRBAG UNIT LEFT LOWER DASHBOARD - CREAM -LG,MJ,TX
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100DE1
AIRBAG UNIT LEFT LOWER DASHBOARD - UMBER -LF,YF
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 958803061006W0
AIRBAG UNIT LEFT LOWER DASHBOARD - LUXOR BEIGE -LE,MC,MK,TB, YE,77
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 958803061003T0
AIRBAG UNIT LEFT LOWER DASHBOARD - ESPRESSO -VA
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 958803061004U0
AIRBAG UNIT LEFT LOWER DASHBOARD - PLATINUM GREY -LD,MD,YD
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 958803061005Q0
AIRBAG UNIT LEFT LOWER DASHBOARD - BLACK -LC,MA,MF,YA, YB,YC
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100OA6
AIRBAG UNIT LEFT LOWER DASHBOARD - AGATE GREY -MB,MG,ML
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100OE1
AIRBAG UNIT LEFT LOWER DASHBOARD - CARRERA RED -TA
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100OL7
AIRBAG UNIT LEFT LOWER DASHBOARD - SADDLE BROWN -ME,MH,MI
from £733.48
from £733.48
This part replaces part number 95880306100
# 11
MPN: 95880306100OB8
AIRBAG UNIT LEFT LOWER DASHBOARD - COHIBA BROWN -LH
from £733.48
from £733.48
This part replaces part number 95880306100
# 12
MPN: N 90698606
Hexagon socket head panel bolt 4,2X16
from £0.49
from £0.49
# 13
MPN: N 10569501
ROUND-HEAD SCREW WITH INNER M5X16 HEXAGON SOCKET HEAD
from £1.04
from £1.04
# 14
MPN: N 01508210
HEXAGON COLLAR NUT M6 EARTH LINE
from £0.47
from £0.47
-part-diagram-813-000.webp "PORSCHE 2015 (CAYENNE E2 92A) HOSE WATER BOX PARTS DIAGRAM")
-part-diagram-813-002.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER HYBRID WATER BOX WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER PUMP INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-813-007.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER CHINA PUMP INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER WHEEL HOUSING SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 2015 (CAYENNE E2 92A) HOSE WHEEL HOUSING HEATER HYBRID PARTS DIAGRAM")
-part-diagram-813-016.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER HYBRID FOR HIGH-VOLTAGE SYSTEM HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-813-017.webp "PORSCHE 2015 (CAYENNE E2 92A) HEATER HYBRID FOR HIGH-VOLTAGE SYSTEM HEAT EXCHANGER WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-813-018.webp "PORSCHE 2015 (CAYENNE E2 92A) HYBRID BATTERY REAR HEATER PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2015 (CAYENNE E2 92A) HOSE WHEEL HOUSING WITH: AIR CONDITIONING AND AUXILIARY HEATER SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-023.webp "PORSCHE 2015 (CAYENNE E2 92A) HOSE WHEEL HOUSING WITH: AIR CONDITIONING AND AUXILIARY HEATER SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PIPE REAR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR GUIDE PARTS DIAGRAM")
-part-diagram-813-035.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR DUCT SYSTEM FOR AIR OUTLET AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR DISTRIBUTION HOUSING FRONT EVAPORATOR HEAT EXCHANGER INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 2015 (CAYENNE E2 92A) HEAT., VENT. AND AC SYSTEM REAR INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-058.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT WITH: ZUSATZKLIMAANLAGE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-813-059.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT WITH: ZUSATZKLIMAANLAGE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-813-060.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT WITH: REFRIGERANT CIRCUIT REAR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-813-061.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT WITH: 4-ZONE AIR-CONDITIONING SYSTEM AIR CONDITIONING D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-813-062.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FOR VEHICLES WITH HYBRID DRIVE PARTS DIAGRAM")
-part-diagram-813-063.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT 2-ZONE AIR-CONDITIONING SYSTEM D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-064.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT 4-ZONE AIR-CONDITIONING SYSTEM WITH: REFRIGERANT CIRCUIT REAR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-065.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FOR VEHICLES WITH HYBRID DRIVE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-066.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT 2-ZONE AIR-CONDITIONING SYSTEM R1234YF D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-067.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT FRONT 4-ZONE AIR-CONDITIONING SYSTEM WITH: REFRIGERANT CIRCUIT REAR R1234YF D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-068.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT HYBRID R1234YF D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-069.webp "PORSCHE 2015 (CAYENNE E2 92A) REFRIGERANT CIRCUIT REAR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-813-070.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR AIR CONDITIONING D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-813-071.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR AIR CONDITIONING D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-072.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR AIR CONDITIONING PETR. ENGINE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-073.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR DIESEL AIR CONDITIONING R1234YF D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-074.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR AIR CONDITIONING FOR VEHICLES WITH HYBRID DRIVE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-813-075.webp "PORSCHE 2015 (CAYENNE E2 92A) CONDENSER AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-813-080.webp "PORSCHE 2015 (CAYENNE E2 92A) AUXILIARY HEATER FUEL SYSTEM AND SILENCER BRACKET SEE ILLUSTRATION: 813-085 PARTS DIAGRAM")
-part-diagram-813-085.webp "PORSCHE 2015 (CAYENNE E2 92A) BRACKET AUXILIARY HEATER PARTS DIAGRAM")
-part-diagram-813-090.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER WATER BOX FRESH AIR INTAKE PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2015 (CAYENNE E2 92A) FRONT SEATS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-002.webp "PORSCHE 2015 (CAYENNE E2 92A) FOAM PART SEAT AND BACKREST COVER STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-004.webp "PORSCHE 2015 (CAYENNE E2 92A) SEAT FRAME STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-008.webp "PORSCHE 2015 (CAYENNE E2 92A) FOAM PART SEAT AND BACKREST COVER COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2015 (CAYENNE E2 92A) SEAT FRAME COMFORT SEAT SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-012.webp "PORSCHE 2015 (CAYENNE E2 92A) FOAM PART SEAT AND BACKREST COVER SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-014.webp "PORSCHE 2015 (CAYENNE E2 92A) FOAM PART SEAT COVER BACKREST COVER PARTS DIAGRAM")
-part-diagram-817-016.webp "PORSCHE 2015 (CAYENNE E2 92A) BACKREST SUPPORT ADJUSTMENT SEAT SIDE SUPPORT ADJUSTMENT PARTS DIAGRAM")
-part-diagram-817-020.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER BACKREST SHELL PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 2015 (CAYENNE E2 92A) BACKREST FRAME FRAME FOR SEAT WITH: ADJUSTER UNIT PARTS DIAGRAM")
-part-diagram-817-030.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS STANDARD SEAT COMFORT SEAT SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-035.webp "PORSCHE 2015 (CAYENNE E2 92A) BACK SEAT BACKREST ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 2015 (CAYENNE E2 92A) SEAT CUSHION REAR COMFORT SEAT FOAM PART SEAT COVERS HEATER ELEMENT-SEAT PARTS DIAGRAM")
-part-diagram-817-045.webp "PORSCHE 2015 (CAYENNE E2 92A) SEAT CUSHION REAR SPORTS SEAT FOAM PART SEAT COVER HEATER ELEMENT PARTS DIAGRAM")
-part-diagram-817-050.webp "PORSCHE 2015 (CAYENNE E2 92A) BACK SEAT BACKREST REAR STANDARD SEAT COMFORT SEAT FOAM PART BACKREST COVER HEATER ELEMENT PARTS DIAGRAM")
-part-diagram-817-055.webp "PORSCHE 2015 (CAYENNE E2 92A) BACK SEAT BACKREST REAR SPORTS SEAT FOAM PART SEAT COVERS HEATER ELEMENT-SEAT PARTS DIAGRAM")
-part-diagram-817-060.webp "PORSCHE 2015 (CAYENNE E2 92A) HEAD RESTRAINT ACCESSORIES BACKREST FRAME THROUGH-LOAD APERTURE WITH SKISACK PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2015 (CAYENNE E2 92A) REPAIR KITS (LOCK AND KEY SET) COMPRISING: LOCK FOR GLOVE BOX LOCK CYLINDERS EMERGENCY KEY HANDHELD TRANSMITTER PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2015 (CAYENNE E2 92A) IGNITION SYSTEM D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-001.webp "PORSCHE 2015 (CAYENNE E2 92A) IGNITION SYSTEM D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-002.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL UNITS ENGINE GEARBOX CONNECTION F LOCK CONTROL UNIT OIL PUMP TOW HITCH REVERSING CAMERA PARKING AID CONTROL UNIT FOR GATEWAY ADAPTIVE SUSPENSION - PDCC - REAR LID ELECTRONIC PARKING BRAKE FUEL PUMP CONTROL UNIT FOR STOP-START SYSTEM D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL UNITS ENGINE GEARBOX CONNECTION F LOCK CONTROL UNIT OIL PUMP TOW HITCH REVERSING CAMERA PARKING AID CONTROL UNIT FOR GATEWAY ADAPTIVE SUSPENSION - PDCC - REAR LID ELECTRONIC PARKING BRAKE FUEL PUMP STOP-START SYSTEM D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-004.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL UNITS FRONT END REAR END HANDHELD TRANSMITTER IGNITION/STARTER SWITCH CONTROL UNIT FOR OPENING GARAGE DOOR CONTROL UNIT FOR DISTANCE REGULATION RECEIVER UNIT AUXILIARY HEATER CONTROL UNIT FOR LANE CHANGE ASSIST AUXILIARY HEATER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL UNITS CONTROL UNIT (BCM) FOR CONV. SYSTEM & OB POWER SUPPLY FRONT END REAR END HANDHELD TRANSMITTER IGNITION/STARTER SWITCH CONTROL UNIT FOR OPENING GARAGE DOOR CONTROL UNIT FOR DISTANCE REGULATION RECEIVER UNIT AUXILIARY HEATER CONTROL UNIT FOR L PARTS DIAGRAM")
-part-diagram-901-006.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL UNIT CRASH SENSOR FOR AIRBAG AIRBAG PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 2015 (CAYENNE E2 92A) TRACTION MOTOR FOR ELEC. DRIVE ELECTRIC MOTOR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-012.webp "PORSCHE 2015 (CAYENNE E2 92A) TRACTION MOTOR FOR ELEC. DRIVE ELECTRIC MOTOR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-020.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER AND CONTROL ELECTRONICS- FOR ELECTRIC DRIVE FOR VEHICLES WITH HYBRID DRIVE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-022.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER AND CONTROL ELECTRONICS- FOR ELECTRIC DRIVE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-024.webp "PORSCHE 2015 (CAYENNE E2 92A) LOUDSPEAKER CONTROL UNIT FOR ENGINE NOISE PRODUCTION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-030.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS FOR VEHICLES WITH HYBRID DRIVE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-035.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS FOR VEHICLES WITH HYBRID DRIVE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-037.webp "PORSCHE 2015 (CAYENNE E2 92A) HEAT EXCHANGER REAR END BATTERY INTERIEUR CHARGER BATTERY CHARGING SOCKET D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-040.webp "PORSCHE 2015 (CAYENNE E2 92A) HYBRID BATTERY D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-045.webp "PORSCHE 2015 (CAYENNE E2 92A) HYBRID BATTERY D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-901-046.webp "PORSCHE 2015 (CAYENNE E2 92A) BATTERY MODULE HYBRID MODULE BATTERY SEE TECHNICAL INFORMATION 139/20 PARTS DIAGRAM")
-part-diagram-901-050.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR GUIDE FOR VEHICLES WITH HYBRID DRIVE BATTERY D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-901-055.webp "PORSCHE 2015 (CAYENNE E2 92A) CENTRAL CONTROL UNIT CHARGER UNIVERSAL CHARGING STATION USE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2015 (CAYENNE E2 92A) CENTRAL ELECTRICS FUSE BOX D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 2015 (CAYENNE E2 92A) CENTRAL ELECTRICS FUSE BOX D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-002.webp "PORSCHE 2015 (CAYENNE E2 92A) STARTER ALTERNATOR EARTH LINE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-003.webp "PORSCHE 2015 (CAYENNE E2 92A) STARTER ALTERNATOR EARTH LINE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-004.webp "PORSCHE 2015 (CAYENNE E2 92A) BATTERY POTENTIAL DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-902-006.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS ENGINE BAY GEARBOX D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-007.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS ENGINE BAY GEARBOX D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-008.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS ENGINE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-009.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS ENGINE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS PASSENGER COMPARTMENT BUMPER FRONT END ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY FRONT AXLE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS PASSENGER COMPARTMENT BUMPER FRONT END ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY FRONT AXLE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS CONTROL UNITS DOORS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-016.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS CONTROL UNITS DOORS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS REAR END ROOF TRIM ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY REAR AXLE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-902-021.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS REAR END ROOF TRIM ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY REAR AXLE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 2015 (CAYENNE E2 92A) FIBRE OPTIC WAVE CONDUCTOR D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-902-051.webp "PORSCHE 2015 (CAYENNE E2 92A) FIBRE OPTIC WAVE CONDUCTOR D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 2015 (CAYENNE E2 92A) WIRING LOOMS AIRBAG SEAT BELTS PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2015 (CAYENNE E2 92A) FANFARE SIGNAL HORN ALARM HORN D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-903-001.webp "PORSCHE 2015 (CAYENNE E2 92A) FANFARE SIGNAL HORN ALARM HORN D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-903-002.webp "PORSCHE 2015 (CAYENNE E2 92A) INTERIOR LIGHTING LUGGAGE COMPARTMENT LAMP DOOR WARNING LIGHT FOOTWELL LIGHT LIGHT EXTERIOR MIRROR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-903-003.webp "PORSCHE 2015 (CAYENNE E2 92A) INTERIOR LIGHT LUGGAGE COMPARTMENT LAMP DOOR WARNING LIGHT FOOTWELL LIGHT LIGHT EXTERIOR MIRROR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2015 (CAYENNE E2 92A) SWITCH CONTROL PANEL AIR CONDITIONING D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SWITCH CONTROL PANEL AIR CONDITIONING D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 2015 (CAYENNE E2 92A) CONSOLE ROOF SEE WORKSHOP MANUAL D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-903-007.webp "PORSCHE 2015 (CAYENNE E2 92A) CONSOLE ROOF SEE WORKSHOP MANUAL D - MJ 2014>>- MJ 2016 PARTS DIAGRAM")
-part-diagram-903-008.webp "PORSCHE 2015 (CAYENNE E2 92A) CONSOLE ROOF SEE WORKSHOP MANUAL D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2015 (CAYENNE E2 92A) STEERING COLUMN SWITCH D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-903-011.webp "PORSCHE 2015 (CAYENNE E2 92A) STEERING COLUMN SWITCH D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-905-001.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHTS LED TURN SIGNAL REPEATER FOG LIGHTS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-905-002.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-905-003.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHTS XENON TURN SIGNAL REPEATER FOG LIGHTS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-905-004.webp "PORSCHE 2015 (CAYENNE E2 92A) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-905-006.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR LIGHT ADDITIONAL BRAKE LIGHT LICENCE PLATE LIGHT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-905-007.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR LIGHT ADDITIONAL BRAKE LIGHT LICENCE PLATE LIGHT D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT COMPASS DIAL BLACK SILVER D >>- MJ 2012 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT KOMPASS STOPWATCH DIAL BLACK SILVER D - MJ 2015>>- MJ 2016 PARTS DIAGRAM")
-part-diagram-906-002.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT DIAL COLOURED D >>- MJ 2012 PARTS DIAGRAM")
-part-diagram-906-003.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT DIAL COLOURED D - MJ 2015>>- MJ 2016 PARTS DIAGRAM")
-part-diagram-906-004.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT COMPASS DIAL BLACK SILVER SEE ILLUSTRATION: 906-003 D - MJ 2013>>- MJ 2014 PARTS DIAGRAM")
-part-diagram-906-006.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT COLOURED DIAL D - MJ 2013>>- MJ 2014 PARTS DIAGRAM")
-part-diagram-906-007.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT COMPASS STOPWATCH DIAL BLACK SILVER D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-906-008.webp "PORSCHE 2015 (CAYENNE E2 92A) COMBI-INSTRUMENT DIAL COLOURED D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2015 (CAYENNE E2 92A) NAVIGATION SYSTEM RADIO UNIT RECEIVER UNIT FOR TV RECEPTION REVERSING CAMERA CAMERA EXTERIOR MIRROR MULTIMEDIA INTERFACE CAMERA WINDSCREEN D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL PANEL NAVIGATION SYSTEM CENTRAL COMPUTER TV MICROPHONE CAMERA D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 2015 (CAYENNE E2 92A) ELECTRIC PARTS FOR NAVIGATION SYSTEM PREPARATION JAPAN D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-003.webp "PORSCHE 2015 (CAYENNE E2 92A) AERIAL AMPLIFIER AERIAL CONNECTING LINE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-004.webp "PORSCHE 2015 (CAYENNE E2 92A) AERIAL AMPLIFIER AERIAL CONNECTING LINE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2015 (CAYENNE E2 92A) EMERGENCY CALL MODULE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-006.webp "PORSCHE 2015 (CAYENNE E2 92A) LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-911-007.webp "PORSCHE 2015 (CAYENNE E2 92A) SD MEMORY CARD FOR UPDATING THE NAVIGATION DATA D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2015 (CAYENNE E2 92A) AMPLIFIERS TELEPHONE PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-015.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-020.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL PUMP INTAKE MANIFOLD OIL SUMP PARTS DIAGRAM")
-part-diagram-104-030.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-035.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL PUMP VACUUM PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-040.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-045.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL-CONDUCTING HOUSING OIL PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-050.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE MANIFOLD OIL SUMP PARTS DIAGRAM")
-part-diagram-104-055.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL INT.PIPE W. ASSEMBLY PARTS OIL SUMP PARTS DIAGRAM")
-part-diagram-104-060.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER CONSOLE OIL COOLER D >>- MJ 2011 PARTS DIAGRAM")
-part-diagram-104-065.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER CONSOLE OIL COOLER D - MJ 2012>> PARTS DIAGRAM")
-part-diagram-104-070.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER CONSOLE OIL COOLER PARTS DIAGRAM")
-part-diagram-104-075.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER FLANGE OIL COOLER PARTS DIAGRAM")
-part-diagram-104-080.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER CONSOLE OIL COOLER PARTS DIAGRAM")
-part-diagram-104-085.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL FILTER CONSOLE OIL COOLER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-002.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-017.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PUMP PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-105-022.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-105-025.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-027.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 2 PARTS DIAGRAM")
-part-diagram-105-030.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLER FOR COOLANT PARTS DIAGRAM")
-part-diagram-105-035.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-040.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 FLUID RESERVOIR PARTS DIAGRAM")
-part-diagram-105-045.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 FLUID RESERVOIR D >>- MJ 2011 PARTS DIAGRAM")
-part-diagram-105-047.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 FLUID RESERVOIR D - MJ 2012>> PARTS DIAGRAM")
-part-diagram-105-050.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 D >>- MJ 2011 PARTS DIAGRAM")
-part-diagram-105-052.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM D - MJ 2012>> PARTS DIAGRAM")
-part-diagram-105-055.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-105-056.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-105-057.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-060.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-065.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 ELECTRIC DRIVE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-105-066.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 ELECTRIC DRIVE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-105-067.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 PARTS DIAGRAM")
-part-diagram-105-070.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM 4 COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-075.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-080.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM REAR PARTS DIAGRAM")
-part-diagram-105-085.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT COOLING SYSTEM REAR PARTS DIAGRAM")
-part-diagram-105-095.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR GUIDE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-105-097.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR GUIDE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-007.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS VACUUM LINE PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-015.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-020.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-030.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-040.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-050.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 2015 (CAYENNE E2 92A) THROTTLE VALVE ADAPTER VENTILATION FOR FUEL TANK PARTS DIAGRAM")
-part-diagram-107-002.webp "PORSCHE 2015 (CAYENNE E2 92A) VENTILATION FOR FUEL TANK PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-007.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 2015 (CAYENNE E2 92A) THROTTLE VALVE ADAPTER VENTILATION FOR FUEL TANK CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 2015 (CAYENNE E2 92A) THROTTLE VALVE ADAPTER CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-017.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2015 (CAYENNE E2 92A) THROTTLE VALVE ADAPTER VENTILATION FOR FUEL TANK VACUUM LINE PARTS DIAGRAM")
-part-diagram-107-022.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-024.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING VENTILATION VACUUM LINE PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-026.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-027.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE FUEL LINE HIGH-PRESSURE INJECTOR PARTS DIAGRAM")
-part-diagram-107-037.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP FUEL LINE PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-042.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL COLLECTION PIPE FUEL LINE HIGH-PRESSURE INJECTOR PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 2015 (CAYENNE E2 92A) HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-047.webp "PORSCHE 2015 (CAYENNE E2 92A) HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-052.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE AIR DISTRIBUTOR THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE MANIFOLD PARTS DIAGRAM")
-part-diagram-107-060.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE MANIFOLD PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-062.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE MANIFOLD THROTTLE VALVE ADAPTER AIR GUIDE HOUSING PARTS DIAGRAM")
-part-diagram-107-065.webp "PORSCHE 2015 (CAYENNE E2 92A) COMPRESSOR PARTS DIAGRAM")
-part-diagram-107-067.webp "PORSCHE 2015 (CAYENNE E2 92A) INTAKE MANIFOLD PRESSURE PIPE THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-070.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-071.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE SUCTION LINE PARTS DIAGRAM")
-part-diagram-107-072.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-073.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE SUCTION LINE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-107-075.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-076.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-077.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-080.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-082.webp "PORSCHE 2015 (CAYENNE E2 92A) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-085.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL LINE PRESSURE LINE PARTS DIAGRAM")
-part-diagram-107-090.webp "PORSCHE 2015 (CAYENNE E2 92A) VACUUM RESERVOIR CONTROL LINE PRESSURE LINE PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 2015 (CAYENNE E2 92A) SECONDARY AIR PUMP PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SECONDARY AIR PUMP PARTS DIAGRAM")
-part-diagram-108-010.webp "PORSCHE 2015 (CAYENNE E2 92A) SECONDARY AIR PUMP PARTS DIAGRAM")
-part-diagram-108-050.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS RECIRCULATION VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-108-060.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS RECIRCULATION VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-108-070.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS RECIRCULATION VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE UPPER PARTS DIAGRAM")
-part-diagram-109-010.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-012.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-020.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-030.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-040.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TOOL JACK WARNING TRIANGLE FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TOW HITCH PARTS DIAGRAM")
-part-diagram-003-010.webp "PORSCHE 2015 (CAYENNE E2 92A) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-020.webp "PORSCHE 2015 (CAYENNE E2 92A) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2015 (CAYENNE E2 92A) PAINT TOUCH-UP APPLICATOR PAINTS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE TIPTRONIC A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-002.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE TIPTRONIC A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-007.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-012.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-020.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-022.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-025.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-027.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANKSHAFT PISTON OIL SUMP PARTS DIAGRAM")
-part-diagram-101-030.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-032.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-035.webp "PORSCHE 2015 (CAYENNE E2 92A) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-037.webp "PORSCHE 2015 (CAYENNE E2 92A) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-040.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-045.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-050.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-060.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-065.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-070.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-075.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-080.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER FOR TIMING CHAIN SEALING FLANGE PARTS DIAGRAM")
-part-diagram-101-085.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER FOR TIMING CHAIN SEALING FLANGE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-020.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-030.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-035.webp "PORSCHE 2015 (CAYENNE E2 92A) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-040.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-045.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON PISTON RING PARTS DIAGRAM")
-part-diagram-102-050.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-055.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-060.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-070.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-075.webp "PORSCHE 2015 (CAYENNE E2 92A) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-080.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER POLY-V-BELT PARTS DIAGRAM")
-part-diagram-102-082.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER TENSIONING ROLLER WITH SECURING PARTS IDLER PULLEY PARTS DIAGRAM")
-part-diagram-102-085.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-090.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-092.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-095.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER IDLER PULLEY POLY-V-BELT PARTS DIAGRAM")
-part-diagram-102-097.webp "PORSCHE 2015 (CAYENNE E2 92A) BELT TENSIONER DAMPER POLY-V-BELT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-002.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-017.webp "PORSCHE 2015 (CAYENNE E2 92A) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-022.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-032.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-035.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-037.webp "PORSCHE 2015 (CAYENNE E2 92A) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-040.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE COVER PARTS DIAGRAM")
-part-diagram-103-045.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE COVER PARTS DIAGRAM")
-part-diagram-103-050.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-052.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-055.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-060.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT, VALVES VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-062.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-103-065.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-103-067.webp "PORSCHE 2015 (CAYENNE E2 92A) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-103-070.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-072.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-075.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CAMSHAFT ADJUSTER UNIT PARTS DIAGRAM")
-part-diagram-103-080.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-082.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER CHAIN SPROCKET PARTS DIAGRAM")
-part-diagram-103-085.webp "PORSCHE 2015 (CAYENNE E2 92A) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-087.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE CONTROL TIMING CHAIN W/ TENSION RAIL PARTS DIAGRAM")
-part-diagram-103-090.webp "PORSCHE 2015 (CAYENNE E2 92A) TOOTHED BELT TOOTHED BELT GUARD PARTS DIAGRAM")
-part-diagram-103-095.webp "PORSCHE 2015 (CAYENNE E2 92A) TOOTHED BELT TOOTHED BELT GUARD PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL BAFFLE PLATE OIL PUMP PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL BAFFLE PLATE OIL PUMP PARTS DIAGRAM")
-part-diagram-109-050.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-060.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-109-070.webp "PORSCHE 2015 (CAYENNE E2 92A) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK WITH: ACCESSORIES PARTS DIAGRAM")
-part-diagram-201-002.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK WITH: ACCESSORIES PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK WITH: ACCESSORIES PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK FUEL PUMP SUCTION JET PUMP PARTS DIAGRAM")
-part-diagram-201-012.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK FUEL PUMP SUCTION JET PUMP PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK FUEL PUMP SUCTION JET PUMP PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL TANK ACCESSORIES PARTS DIAGRAM")
-part-diagram-201-025.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL LINE UNDERBODY PARTS DIAGRAM")
-part-diagram-201-030.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL SYSTEM FUEL LINE UNDERBODY PARTS DIAGRAM")
-part-diagram-201-035.webp "PORSCHE 2015 (CAYENNE E2 92A) FUEL SYSTEM FUEL LINE FUEL FILTER PARTS DIAGRAM")
-part-diagram-201-040.webp "PORSCHE 2015 (CAYENNE E2 92A) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-201-045.webp "PORSCHE 2015 (CAYENNE E2 92A) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-202-007.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST GAS TURBOCHARGER CATALYTIC CONVERTER LAMBDA PROBE PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-202-017.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-202-018.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM CATALYTIC CONVERTER DIESEL PARTICULATE FILTER CONTROL LINE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-202-021.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM CATALYTIC CONVERTER DIESEL PARTICULATE FILTER CONTROL LINE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-202-022.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE WITH CATALYST DIESEL PARTICULATE FILTER CONTROL LINE PARTS DIAGRAM")
-part-diagram-202-023.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM CATALYTIC CONVERTER INJECTOR FOR REDUCTION AGENT NOX SENSOR 2 PARTICLE SENSOR PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER PARTS DIAGRAM")
-part-diagram-202-026.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE WITH: CATALYTIC CONVERTER DIESEL PARTICULATE FILTER CONTROL LINE PARTS DIAGRAM")
-part-diagram-202-027.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE CATALYTIC CONVERTER DIESEL PARTICULATE FILTER CONTROL LINE PARTS DIAGRAM")
-part-diagram-202-028.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TREATMENT SYSTEM FOR VEHICLES WITH SELECTIVE CATALYTIC REDUCTION (SCR) PARTS DIAGRAM")
-part-diagram-202-029.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TREATMENT SYSTEM FOR VEHICLES WITH SELECTIVE CATALYTIC REDUCTION (SCR) PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-035.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM SPORT VERSION FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-037.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM SPORT VERSION FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-040.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-041.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-045.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-050.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE REAR SILENCER TAILPIPE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-202-051.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE REAR SILENCER TAILPIPE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-202-053.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM EXHAUST PIPE REAR SILENCER TAILPIPE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-202-055.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-057.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER TAILPIPE PARTS DIAGRAM")
-part-diagram-202-060.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-061.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-062.webp "PORSCHE 2015 (CAYENNE E2 92A) OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-065.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-202-067.webp "PORSCHE 2015 (CAYENNE E2 92A) COOLANT PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-070.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER OIL PIPE PARTS DIAGRAM")
-part-diagram-202-080.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-085.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-090.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST GAS TURBOCHARGER ALTERNATOR COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-202-095.webp "PORSCHE 2015 (CAYENNE E2 92A) EXHAUST SYSTEM TEMPERATURE SENSOR NOX SENSOR PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 2015 (CAYENNE E2 92A) COUPLING PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 2015 (CAYENNE E2 92A) COUPLING FOR VEHICLES WITH HYBRID DRIVE PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 2015 (CAYENNE E2 92A) CONTROL AND REGULATING UNIT HYDRAULIC ELECTRIC MOTOR PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 2015 (CAYENNE E2 92A) MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 2015 (CAYENNE E2 92A) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 2015 (CAYENNE E2 92A) FRONT AXLE DIFFERENTIAL READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 2015 (CAYENNE E2 92A) TRANSFER BOX READY FOR INSTALLATION D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-305-015.webp "PORSCHE 2015 (CAYENNE E2 92A) TRANSFER BOX READY FOR INSTALLATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-305-020.webp "PORSCHE 2015 (CAYENNE E2 92A) TRANSFER BOX READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-305-030.webp "PORSCHE 2015 (CAYENNE E2 92A) CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-305-040.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE DIFFERENTIAL READY FOR INSTALLATION WITHOUT: LIMITED SLIP DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-050.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE DIFFERENTIAL READY FOR INSTALLATION WITH: LIMITED SLIP DIFFERENTIAL ELECTRIC PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-306-010.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-306-020.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-306-030.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-306-040.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-306-050.webp "PORSCHE 2015 (CAYENNE E2 92A) MOUNTING PARTS FOR ENGINE AND TRANSMISSION PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TRANSFER BOX TRANSMISSION CARRIER CONSOLE PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2015 (CAYENNE E2 92A) 8-SPEED AUTOMATIC GEARBOX TIPTRONIC D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2015 (CAYENNE E2 92A) 8-SPEED AUTOMATIC GEARBOX TIPTRONIC D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-320-010.webp "PORSCHE 2015 (CAYENNE E2 92A) 8-SPEED AUTOMATIC GEARBOX TIPTRONIC ACCESSORIES PARTS DIAGRAM")
-part-diagram-320-020.webp "PORSCHE 2015 (CAYENNE E2 92A) 8-SPEED AUTOMATIC GEARBOX TIPTRONIC INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-330-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC CONVERTER CLUTCH PLATE PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-360-010.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-360-020.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-360-030.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-360-040.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER OIL PIPE PARTS DIAGRAM")
-part-diagram-360-050.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-360-060.webp "PORSCHE 2015 (CAYENNE E2 92A) TIPTRONIC GEAR OIL COOLER COOLANT COOLING SYSTEM OIL PIPE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION SUB-FRAME WISHBONE HEADLIGHT RANGE CONTROL LEVEL SENSOR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-401-001.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION SUB-FRAME WISHBONE HEADLIGHT RANGE CONTROL LEVEL SENSOR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SWIVEL MOUNTING WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 2015 (CAYENNE E2 92A) DRIVE SHAFT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-401-012.webp "PORSCHE 2015 (CAYENNE E2 92A) DRIVE SHAFT D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION STEEL SHOCK ABSORBERS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-402-001.webp "PORSCHE 2015 (CAYENNE E2 92A) STEEL SPRING SUSPENSION STEEL D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR SPRING SHOCK ABSORBERS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-402-007.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR SPRING SHOCK ABSORBERS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-402-010.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-402-012.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-402-015.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR HOSE PARTS DIAGRAM")
-part-diagram-402-020.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR VALVE BLOCK JUNCTION PRESSURE LINE PARTS DIAGRAM")
-part-diagram-402-025.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR PRESSURE LINE RETURN LINE UNDERBODY PARTS DIAGRAM")
-part-diagram-402-030.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR PRESSURE LINE ENGINE BAY OIL CONTAINER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-402-032.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR PRESSURE LINE ENGINE BAY OIL CONTAINER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-402-035.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR PRESSURE LINE ENGINE BAY OIL CONTAINER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-402-037.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR PRESSURE LINE ENGINE BAY OIL CONTAINER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING STEERING GEAR PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING PRESSURE LINE OIL COOLER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-403-012.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING PRESSURE LINE OIL COOLER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-403-017.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING PRESSURE LINE PUMP FOR POWER STEERING ELECTRIC D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-403-019.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING PRESSURE LINE PUMP FOR POWER STEERING ELECTRIC D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-403-020.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING VANE PUMP TANDEM VANE PUMP D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-403-025.webp "PORSCHE 2015 (CAYENNE E2 92A) POWER STEERING VANE PUMP TANDEM VANE PUMP D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-403-030.webp "PORSCHE 2015 (CAYENNE E2 92A) STEERING WHEEL STEERING COLUMN INTERMEDIATE STEERING SHAFT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-403-032.webp "PORSCHE 2015 (CAYENNE E2 92A) STEERING WHEEL D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-403-035.webp "PORSCHE 2015 (CAYENNE E2 92A) STEERING COLUMN INTERMEDIATE STEERING SHAFT D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE WHEEL CARRIER WISHBONE TRACK ROD WHEEL HUB STONE CHIP GUARD D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE SUSPENSION SUB-FRAME HEADLIGHT RANGE CONTROL LEVEL SENSOR STONE CHIP GUARD D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-501-004.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR HOSE PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR VALVE BLOCK PRESSURE LINE RETURN LINE PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 2015 (CAYENNE E2 92A) DRIVE SHAFT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-501-020.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE WHEEL CARRIER WISHBONE TRACK ROD WHEEL HUB STONE CHIP GUARD D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-501-021.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR AXLE SUSPENSION SUB-FRAME HEADLIGHT RANGE CONTROL ADAPTIVE SUSPENSION STONE CHIP GUARD D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-501-023.webp "PORSCHE 2015 (CAYENNE E2 92A) ANTI-ROLL BAR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-501-030.webp "PORSCHE 2015 (CAYENNE E2 92A) DRIVE SHAFT D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION STEEL D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-502-002.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION STEEL D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-502-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION AIR SPRING D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-502-007.webp "PORSCHE 2015 (CAYENNE E2 92A) SUSPENSION AIR SPRING D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2015 (CAYENNE E2 92A) WHEELS/TYRES D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-601-002.webp "PORSCHE 2015 (CAYENNE E2 92A) WHEELS/TYRES D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 2015 (CAYENNE E2 92A) TYRE PRESSURE CONTROL SYSTEM D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-601-006.webp "PORSCHE 2015 (CAYENNE E2 92A) TYRE PRESSURE CONTROL SYSTEM D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 2015 (CAYENNE E2 92A) DISC BRAKE FRONT AXLE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-602-002.webp "PORSCHE 2015 (CAYENNE E2 92A) DISC BRAKE FRONT AXLE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 2015 (CAYENNE E2 92A) DISC BRAKE REAR AXLE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-603-002.webp "PORSCHE 2015 (CAYENNE E2 92A) DISC BRAKE REAR AXLE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-603-010.webp "PORSCHE 2015 (CAYENNE E2 92A) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE MASTER CYLINDER BRAKE SERVO VACUUM LINE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-604-002.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE MASTER CYLINDER BRAKE SERVO VACUUM LINE D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE LINE FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE LINE FRONT AXLE UNDERBODY REAR AXLE PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2015 (CAYENNE E2 92A) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-605-002.webp "PORSCHE 2015 (CAYENNE E2 92A) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-606-000.webp "PORSCHE 2015 (CAYENNE E2 92A) ADAPTIVE SUSPENSION COMPRESSOR PRESSURE ACCUMULATOR ACCELERATOR SENSOR PARTS DIAGRAM")
-part-diagram-606-005.webp "PORSCHE 2015 (CAYENNE E2 92A) ADAPTIVE SUSPENSION AIR LINE PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2015 (CAYENNE E2 92A) SELECTOR MECHANISM MANUAL GEARBOX D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 2015 (CAYENNE E2 92A) SELECTOR LEVER TIPTRONIC D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-701-003.webp "PORSCHE 2015 (CAYENNE E2 92A) SELECTOR LEVER TIPTRONIC D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE PEDAL TIPTRONIC D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-702-002.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE PEDAL TIPTRONIC D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 2015 (CAYENNE E2 92A) BRAKE AND CLUTCH PEDALS CLUSTER MANUAL GEARBOX D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-702-008.webp "PORSCHE 2015 (CAYENNE E2 92A) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER HYDRAULIC CLUTCH PIPE D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 2015 (CAYENNE E2 92A) ACCELERATOR PEDAL D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-702-012.webp "PORSCHE 2015 (CAYENNE E2 92A) ACCELERATOR PEDAL THROTTLE CONTROL D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2015 (CAYENNE E2 92A) CAR BODY PARTS DIAGRAM")
-part-diagram-801-002.webp "PORSCHE 2015 (CAYENNE E2 92A) BUNGS PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2015 (CAYENNE E2 92A) FRONT END INDIVIDUAL PARTS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2015 (CAYENNE E2 92A) FRONT END 2ND GENERATION INDIVIDUAL PARTS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2015 (CAYENNE E2 92A) FLOOR PLATES PARTS DIAGRAM")
-part-diagram-801-022.webp "PORSCHE 2015 (CAYENNE E2 92A) FLOOR PLATES CENTER PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 2015 (CAYENNE E2 92A) FRAME PARTS DIAGRAM")
-part-diagram-801-028.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR END D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-030.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR END PARTS DIAGRAM")
-part-diagram-801-032.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR END LOCK CARRIER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2015 (CAYENNE E2 92A) WING GENERATION 1 PARTS DIAGRAM")
-part-diagram-801-042.webp "PORSCHE 2015 (CAYENNE E2 92A) WING 2ND GENERATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2015 (CAYENNE E2 92A) ROOF SCUTTLE PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2015 (CAYENNE E2 92A) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 2015 (CAYENNE E2 92A) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM UNDERBODY HEAT INSULATION D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-801-072.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM UNDERBODY HEAT INSULATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM WHEEL HOUSING D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-801-080.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM WHEEL HOUSING 2. GENERATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM FRONT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM FRONT 2ND GENERATION D - MJ 2015>>BASIC PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM FRONT TURBO GTS 2. GENERATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-802-030.webp "PORSCHE 2015 (CAYENNE E2 92A) CARRIER FRONT D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-802-035.webp "PORSCHE 2015 (CAYENNE E2 92A) CARRIER FRONT D - MJ 2015>>2ND GENERATION PARTS DIAGRAM")
-part-diagram-802-040.webp "PORSCHE 2015 (CAYENNE E2 92A) AIR GUIDE FRONT D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-802-050.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM REAR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-802-060.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM REAR 2. GENERATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2015 (CAYENNE E2 92A) REAR LID PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR SHELL FRONT GASKETS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR SHELL REAR GASKETS PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR HANDLES FRONT DOOR LOCK D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR HANDLES FRONT DOOR LOCK D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR HANDLES REAR DOOR LOCK D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-804-025.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR HANDLES REAR DOOR LOCK D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW REGULATOR FRONT ASSEMBLY CARRIER PARTS DIAGRAM")
-part-diagram-804-040.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW REGULATOR REAR ASSEMBLY CARRIER PARTS DIAGRAM")
-part-diagram-804-050.webp "PORSCHE 2015 (CAYENNE E2 92A) ROLLER BLIND REAR DOOR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-804-060.webp "PORSCHE 2015 (CAYENNE E2 92A) ROLLER BLIND REAR DOOR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW GLASSES D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-805-001.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW GLASSES D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW GLASSES SIDE D >>- MJ 2016 PARTS DIAGRAM")
-part-diagram-805-006.webp "PORSCHE 2015 (CAYENNE E2 92A) WINDOW GLASSES SIDE D - MJ 2017>> PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2015 (CAYENNE E2 92A) FLOORING FRONT PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 2015 (CAYENNE E2 92A) FLOORING REAR PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR PANEL FRONT WITH: DAMPING PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2015 (CAYENNE E2 92A) DOOR PANEL REAR WITH: DAMPING PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM UPPER A-PILLAR B-PILLAR C-PILLAR AND DEFORMATION ELEMENT PARTS DIAGRAM")
-part-diagram-807-025.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM LOWER A-PILLAR B-PILLAR C-PILLAR SILL TRIM STRIP INSCRIPTIONS/LETTERING PARTS DIAGRAM")
-part-diagram-807-030.webp "PORSCHE 2015 (CAYENNE E2 92A) ROOF TRIM HEAD AIRBAG UNIT AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-807-035.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIMS REAR LID PARTS DIAGRAM")
-part-diagram-807-040.webp "PORSCHE 2015 (CAYENNE E2 92A) ACCESSORIES SPARE WHEEL BRACKET SPARE WHEEL TRIM PARTS DIAGRAM")
-part-diagram-807-045.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM SIDE FOR LUGGAGE COMPARTMENT D-PILLAR D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-807-047.webp "PORSCHE 2015 (CAYENNE E2 92A) LUGGAGE BOOT TRIMS SIDE D-PILLAR D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-807-050.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM LUGGAGE COMPARTMENT ACCESSORIES THROUGH-LOAD APERTURE PARTS DIAGRAM")
-part-diagram-807-055.webp "PORSCHE 2015 (CAYENNE E2 92A) COVER FOR LUGGAGE BOOT NET PARTITION ACCESSORIES LUGGAGE COMPARTMENT INLAY SKI BAG PARTS DIAGRAM")
-part-diagram-807-060.webp "PORSCHE 2015 (CAYENNE E2 92A) SOUND ABSORBER TRIM ENGINE BAY D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-807-061.webp "PORSCHE 2015 (CAYENNE E2 92A) SOUND ABSORBER TRIM ENGINE BAY D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-807-065.webp "PORSCHE 2015 (CAYENNE E2 92A) SOUND ABSORBER PASSENGER COMPARTMENT FRONT END PARTS DIAGRAM")
-part-diagram-807-070.webp "PORSCHE 2015 (CAYENNE E2 92A) SOUND ABSORBER FOR LUGGAGE COMPARTMENT PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2015 (CAYENNE E2 92A) RETAINING FRAME FOR DASHBOARD PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 2015 (CAYENNE E2 92A) INSTRUMENT PANEL TRIM ACCESSORIES PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2015 (CAYENNE E2 92A) GLOVE BOX PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2015 (CAYENNE E2 92A) CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-809-025.webp "PORSCHE 2015 (CAYENNE E2 92A) SUN VIZORS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-809-027.webp "PORSCHE 2015 (CAYENNE E2 92A) SUN VIZORS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-809-030.webp "PORSCHE 2015 (CAYENNE E2 92A) INTERIOR MIRROR EXTERIOR MIRROR ACCESSORIES D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-809-040.webp "PORSCHE 2015 (CAYENNE E2 92A) INTERIOR MIRROR EXTERIOR MIRROR ACCESSORIES 2. GENERATION D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2015 (CAYENNE E2 92A) INSCRIPTIONS/LETTERING UPPER MOLDINGS OUTER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-810-002.webp "PORSCHE 2015 (CAYENNE E2 92A) INSCRIPTIONS/LETTERING UPPER MOLDINGS OUTER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 2015 (CAYENNE E2 92A) MOLDINGS LOWER OUTER D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-810-008.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIM LOWER OUTER D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-810-010.webp "PORSCHE 2015 (CAYENNE E2 92A) TRIMS ACCESSORIES SILL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2015 (CAYENNE E2 92A) GLASS SLIDING ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 2015 (CAYENNE E2 92A) GLASS ROOF ACCESSORIES COVER WATER DRAINAGE HOSE PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 2015 (CAYENNE E2 92A) GLASS ROOF FRAME ACCESSORIES PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2015 (CAYENNE E2 92A) THREE-POINT SAFETY BELT FRONT BELT LATCH PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2015 (CAYENNE E2 92A) SEAT BELTS REAR BELT LATCH PARTS DIAGRAM")
