4802 (4.8 Litre 8 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: 4802 and installed 05/2010-05/2014) 4802 (4.8 Litre 8 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: 4802 and installed 05/2012-05/2014) | 4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014) | CFTB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFTB and installed 05/2014-05/2018) | CFT (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFT and installed 05/2017-05/2018) | CYXA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYXA and installed 05/2015-05/2018) | CYX (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYX and installed 05/2009-05/2018)
porsche 2017 (cayenne e2 92a) engine cover parts diagram

103-040 - ENGINE COVER

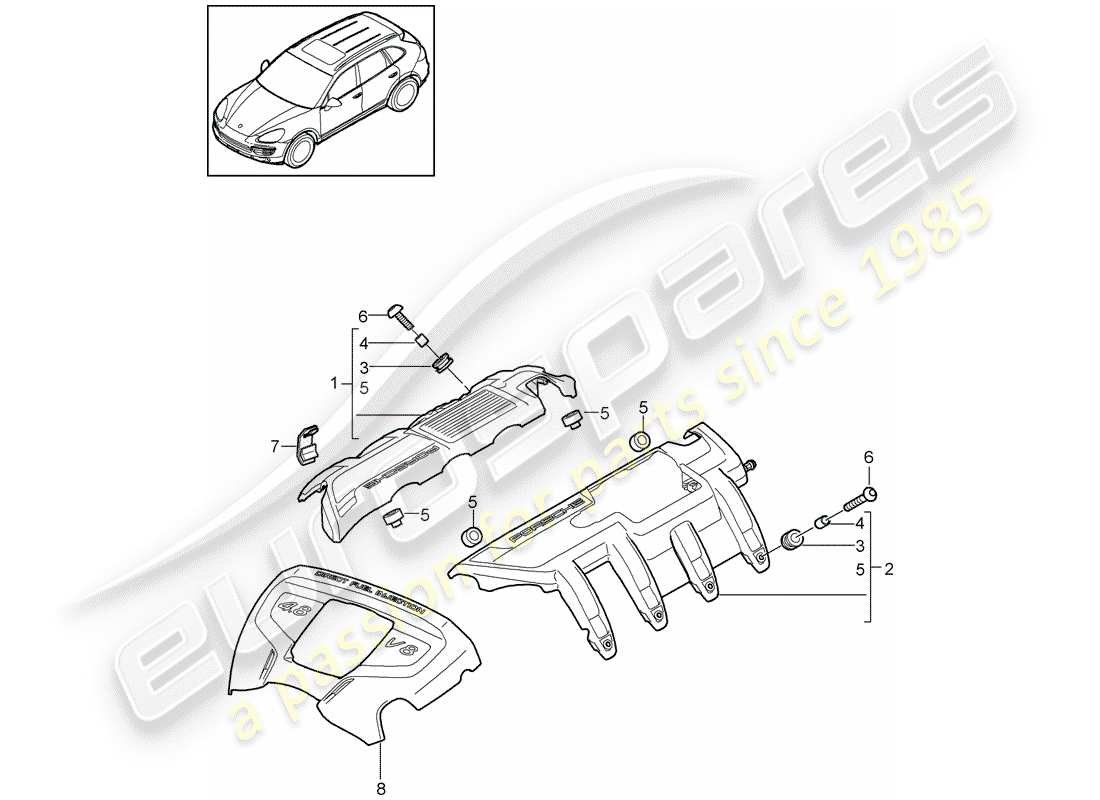

Porsche 2017 (Cayenne E2 92A) Engine cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 7PP103908
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 7PP103908B
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 7PP103908C
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          P without 7MG, P without 7MJ, PE0A (No campaign version, basic equipment)
          from £86.80
          from £86.80
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 7PP103908C
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          CFTB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFTB and installed 05/2014-05/2018) | CFT (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFT and installed 05/2017-05/2018) with, P without 7MG, P without 7MJ, P without 7MM
          from £86.80
          from £86.80
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 95811005800
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 95811005801
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          CFTB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFTB and installed 05/2014-05/2018) | CFT (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CFT and installed 05/2017-05/2018) with, P7MG (Emissions concept EU 5) | P7MJ (Emissions concept EU 5J) | P7MM (EU6 plus exhaust concept)
          from £40.51
          from £40.51
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 7PP103908A
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014) with, PE81 (Enhanced performance engine) | PE8A (Turbo S) | P without 7MG, P without 7MJ
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 7PP103908D
          Cover Cylinders 1-4 Ignition coil without: Secondary air pump also use: 1x 7PP 972 487 Cap closure
          CYXA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYXA and installed 05/2015-05/2018) | CYX (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYX and installed 05/2009-05/2018) with, P without 7MG, P without 7MJ, P without 7MM
          from £236.89
          from £236.89
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 95811005810
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 95811005811
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014) with, PE81 (Enhanced performance engine) | PE8A (Turbo S) | P7MG (Emissions concept EU 5) | P7MJ (Emissions concept EU 5J)
          from £204.12
          from £204.12
          COVER Genuine Porsche Part - New (to order)
          # 1
          MPN: 95811005811
          Cover Cylinders 1-4 Ignition coil with: Secondary air pump
          CYXA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYXA and installed 05/2015-05/2018) | CYX (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYX and installed 05/2009-05/2018) with, P7MG (Emissions concept EU 5) | P7MJ (Emissions concept EU 5J) | P7MM (EU6 plus exhaust concept)
          from £204.12
          from £204.12
          COVER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP103907
          COVER CYLINDER 5-8 IGNITION COIL D >>- MJ 2014
          PE0A (No campaign version, basic equipment)
          COVER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP103907B
          COVER CYLINDER 5-8 IGNITION COIL D - MJ 2015>>
          PE0A (No campaign version, basic equipment)
          from £86.80
          from £86.80
          COVER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP103907A
          COVER CYLINDER 5-8 IGNITION COIL
          4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014) with, PE81 (Enhanced performance engine) | PE8A (Turbo S)
          from £185.23
          from £185.23
          COVER Genuine Porsche Part - New (to order)
          # 2
          MPN: 7PP103907C
          COVER CYLINDER 5-8 IGNITION COIL
          CYXA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYXA and installed 05/2015-05/2018) | CYX (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYX and installed 05/2009-05/2018)
          from £236.89
          from £236.89
          COVER Genuine Porsche Part - New (to order)
          # 3
          MPN: 95511063800
          GROMMET
          from £3.32
          from £3.32
          GROMMET Genuine Porsche Part - New (to order)
          # 4
          MPN: 7L5103825A
          SLEEVE
          from £3.70
          from £3.70
          SLEEVE Genuine Porsche Part - New (to order)
          # 5
          MPN: 07C103226A
          PUSH-ON CONNECTOR
          from £5.17
          from £5.17
          PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
          # 6
          MPN: WHT003425
          TORX SCREW M5X16
          from £0.47
          from £0.47
          This part replaces part number 95510525500
          TORX SCREW Genuine Porsche Part - New In stock
          # 7
          MPN: 7PP972487
          CAP CLOSURE CYLINDERS 1-4 FOR COVER IGNITION COIL WITHOUT: SECONDARY AIR PUMP
          P without 7MG, P without 7MJ, P without 7MM
          from £2.67
          from £2.67
          CAP Genuine Porsche Part - New (to order)
          # 8
          MPN: 7PP130114
          ENGINE COVER
          PE0A (No campaign version, basic equipment)
          from £84.86
          from £84.86
          ENGINE COVER Genuine Porsche Part - New (to order)
          # 8
          MPN: 7PP130114A
          ENGINE COVER
          4852 (4.8 Litre 8 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: 4852 and installed 05/2010-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: 4852 and installed 05/2011-05/2014) 4852 (4.8 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: 4852 and installed 05/2013-05/2014) with, PE81 (Enhanced performance engine) | PE8A (Turbo S)
          from £554.50
          from £554.50
          ENGINE COVER Genuine Porsche Part - New (to order)
          # 8
          MPN: 7PP130114A
          ENGINE COVER
          CYXA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYXA and installed 05/2015-05/2018) | CYX (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CYX and installed 05/2009-05/2018)
          from £554.50
          from £554.50
          ENGINE COVER Genuine Porsche Part - New (to order)
