PD34 (6-cyl. spark-ignition engine, 3.6 l/220 kW (E2))
porsche 2017 (cayenne e2 92a) coolant cooling system 4 fluid reservoir parts diagram

105-040 - Coolant cooling system 4 Fluid reservoir

Porsche 2017 (Cayenne E2 92A) Coolant cooling system 4 Fluid reservoir Parts Diagram

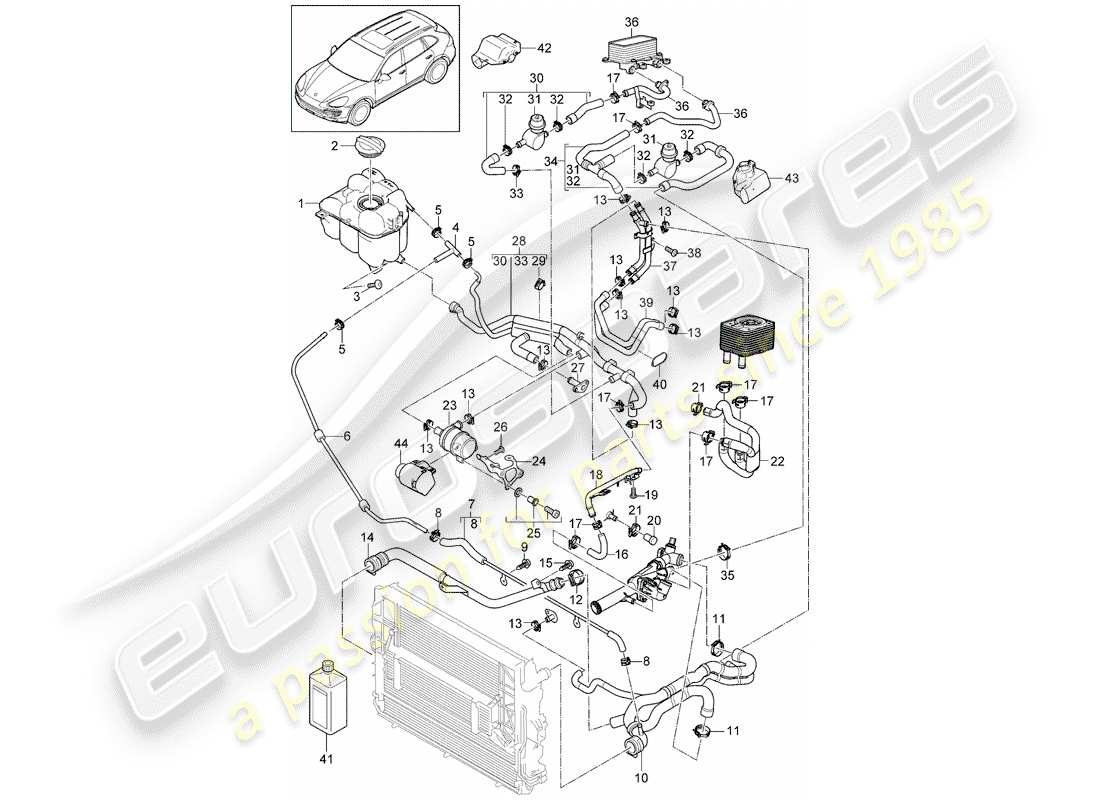

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 1
                                                              MPN: 95810615100
                                                              COOLANT EXPANSION TANK
                                                              COOLANT EXPANSION TANK
                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                              # 1
                                                              MPN: 95810615102
                                                              COOLANT EXPANSION TANK
                                                              from £143.81
                                                              from £143.81
                                                              COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                                              # 2
                                                              MPN: 95810644700
                                                              COVER
                                                              from £25.35
                                                              from £25.35
                                                              COVER Genuine Porsche Part - New (to order)
                                                              # 3
                                                              MPN: N 91140401
                                                              Hexagon socket oval head bolt M6X20 (combi)
                                                              from £0.82
                                                              from £0.82
                                                              HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New In stock
                                                              # 4
                                                              MPN: 95810631210
                                                              T-PIECE
                                                              from £19.59
                                                              from £19.59
                                                              T-connecting socket Genuine Porsche Part - New (to order)
                                                              # 5
                                                              MPN: N 90686701
                                                              Spring band clamp B14X12
                                                              from £0.84
                                                              from £0.84
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                                              # 6
                                                              MPN: 95810631010
                                                              BREATHER LINE D >>- MJ 2014
                                                              from £37.40
                                                              from £37.40
                                                              VENT TUBE Genuine Porsche Part - New (to order)
                                                              # 6
                                                              MPN: 95810631011
                                                              BREATHER LINE D - MJ 2015>>
                                                              from £15.46
                                                              from £15.46
                                                              VENT TUBE Genuine Porsche Part - New (to order)
                                                              # 7
                                                              MPN: 95810631110
                                                              COOLANT PIPE WITH: COOLANT HOSE
                                                              from £50.59
                                                              from £50.59
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 8
                                                              MPN: N 90686701
                                                              Spring band clamp B14X12
                                                              from £0.84
                                                              from £0.84
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B14X12 Genuine Lamborghini - New In stock
                                                              # 9
                                                              MPN: N 90817003
                                                              HEXAGON SOCKET HEAD PANEL BOLT TP6X17
                                                              from £0.47
                                                              from £0.47
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                                              SCREW TP6X17-Q Genuine Lamborghini - New In stock
                                                              # 10
                                                              MPN: 95810640110
                                                              COOLANT HOSE (COMPLETE)
                                                              COOLANT HOSE (COMPLETE)
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 10
                                                              MPN: 95810640111
                                                              COOLANT HOSE (COMPLETE)
                                                              from £118.20
                                                              from £118.20
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 11
                                                              MPN: N 90926501
                                                              Spring band clamp B47X12
                                                              from £4.48
                                                              from £4.48
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B47X12 Genuine Lamborghini - New In stock
                                                              # 12
                                                              MPN: N 90687201
                                                              Spring band clamp B40X12
                                                              Spring band clamp B40X12
                                                              from £1.45
                                                              from £1.45
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B40X12 Genuine Lamborghini - New In stock
                                                              # 12
                                                              MPN: 99951266509
                                                              HOSE CLAMP B40X12
                                                              from £1.78
                                                              from £1.78
                                                              HOSE CLAMP Genuine Porsche Part - New (to order)
                                                              # 13
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 14
                                                              MPN: 95810640210
                                                              COOLANT PIPE INCLUDED COOLANT HOSE D >>- 20.11.2016
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 14
                                                              MPN: 95810640211
                                                              COOLANT PIPE INCLUDED COOLANT HOSE D - 21.11.2016>>
                                                              from £129.31
                                                              from £129.31
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 15
                                                              MPN: N 10473401
                                                              HEXAGON SOCKET HEAD PANEL BOLT 6X20
                                                              HEXAGON SOCKET HEAD PANEL BOLT 6X20
                                                              from £0.49
                                                              from £0.49
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New (to order)
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                                              # 15
                                                              MPN: N 90817003
                                                              HEXAGON SOCKET HEAD PANEL BOLT TP6X17 D >>- 20.11.2016
                                                              from £0.47
                                                              from £0.47
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                                              HEXAGON SOCKET HEAD PANEL BOLT Genuine Bentley Part - New (to order)
                                                              SCREW TP6X17-Q Genuine Lamborghini - New In stock
                                                              # 15
                                                              MPN: N 10473402
                                                              ROUND HD. SCREW TP6X20-Q D - 21.11.2016>>
                                                              from £0.64
                                                              from £0.64
                                                              ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                                              ROUND HD. SCREW Genuine Bentley Part - New (to order)
                                                              SCREW Genuine Lamborghini - New In stock
                                                              # 16
                                                              MPN: 95510635520
                                                              COOLANT HOSE
                                                              from £10.32
                                                              from £10.32
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 17
                                                              MPN: N 90686901
                                                              Spring band clamp B23X12
                                                              from £0.59
                                                              from £0.59
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                              # 18
                                                              MPN: 95810602200
                                                              COOLANT PIPE
                                                              from £30.99
                                                              from £30.99
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 19
                                                              MPN: N 90989901
                                                              Oval socket head bolt TP6X18 with hex drive
                                                              from £0.47
                                                              from £0.47
                                                              oval socket head bolt Genuine Porsche Part - New (to order)
                                                              # 20
                                                              MPN: 95510609901
                                                              BUNGS CRANKCASE HOUSING
                                                              from £13.66
                                                              from £13.66
                                                              PLUG Genuine Porsche Part - New (to order)
                                                              # 21
                                                              MPN: N 90926401
                                                              Spring band clamp 19X12
                                                              from £2.02
                                                              from £2.02
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B19X12 Genuine Lamborghini - New In stock
                                                              # 22
                                                              MPN: 95510605200
                                                              COOLANT HOSE D >>- MJ 2011
                                                              from £41.56
                                                              from £41.56
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 22
                                                              MPN: 95810669640
                                                              COOLANT HOSE OIL COOLER THERMOSTAT HOUSING SEE ILLUSTRATION: 104-065 D - MJ 2012>>
                                                              from £17.64
                                                              from £17.64
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 22
                                                              MPN: 95810669650
                                                              COOLANT HOSE OIL COOLER CRANKCASE HOUSING SEE ILLUSTRATION: 104-065 D - MJ 2012>>
                                                              from £21.55
                                                              from £21.55
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 23
                                                              MPN: 95810631300
                                                              ADDITIONAL COOLANT PUMP
                                                              from £219.29
                                                              from £219.29
                                                              WATER PUMP Genuine Porsche Part - New (to order)
                                                              # 24
                                                              MPN: 95810657930
                                                              BRACKET FOR ADDITIONAL COOLANT PUMP
                                                              from £14.16
                                                              from £14.16
                                                              BRACKET FOR ADDITIONAL WATER Genuine Porsche Part - New (to order)
                                                              # 25
                                                              MPN: 95810690100
                                                              1 SET ATTACHMENT PARTS COMPRISING: RUBBER BUSH 3 PCS SLEEVE 3 PCS HEXAGON HEAD BOLT 3 PCS
                                                              from £30.87
                                                              from £30.87
                                                              1 SET OF SECURING PARTS Genuine Porsche Part - New (to order)
                                                              # 26
                                                              MPN: N 10335207
                                                              Hexagon socket flat head M6X12 bolt, self-locking
                                                              Hexagon socket flat head M6X12 bolt, self-locking
                                                              from £0.79
                                                              from £0.79
                                                              HEXAGON SOCKET FLAT HEAD Genuine Porsche Part - New (to order)
                                                              HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING Genuine Bentley Part - New (to order)
                                                              HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING Genuine Lamborghini - New (to order)
                                                              # 26
                                                              MPN: N 10335206
                                                              Hexagon socket flat M6X12 head bolt
                                                              from £0.78
                                                              from £0.78
                                                              HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                              HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                              # 27
                                                              -
                                                              WATER CONNECTION SEE ILLUSTRATION, ITEM: 105-005,5
                                                              # 28
                                                              MPN: 95810605600
                                                              COOLANT HOSE (COMPLETE)
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £115.48
                                                              from £115.48
                                                              WATER HOSE Genuine Porsche Part - New In stock
                                                              # 28
                                                              MPN: 95810605610
                                                              COOLANT HOSE (COMPLETE)
                                                              PG0L (6-speed manual transmission for all-wheel drive vehicle)
                                                              from £83.50
                                                              from £83.50
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 29
                                                              MPN: N 10660001
                                                              BRACKET 22X6,5
                                                              from £2.14
                                                              from £2.14
                                                              BRACKET Genuine Porsche Part - New (to order)
                                                              BRACKET Genuine Bentley Part - New (to order)
                                                              BRACKET Genuine Lamborghini - New (to order)
                                                              # 30
                                                              MPN: 95810654920
                                                              COOLANT HOSE INCLUDED VALVE IF REQUIRED USE ALSO ITEM: 42 HEAT INSULATION SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £80.93
                                                              from £80.93
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 31
                                                              MPN: 95857280900
                                                              Heater valve If required use also item: 42 UND 43 Heat insulation See workshop manual Group: 8 803655 SY4215
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £61.57
                                                              from £61.57
                                                              HEATER VALVE Genuine Porsche Part - New (to order)
                                                              # 31
                                                              MPN: 95857280900
                                                              Heater valve If required use also item: 43 Heat insulation See workshop manual 8 Group: 803655 SY4215
                                                              PG0L (6-speed manual transmission for all-wheel drive vehicle)
                                                              from £61.57
                                                              from £61.57
                                                              HEATER VALVE Genuine Porsche Part - New (to order)
                                                              # 32
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 32
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              PG0L (6-speed manual transmission for all-wheel drive vehicle)
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 33
                                                              MPN: N 90687001
                                                              SPRING BAND CLAMP B27X12X1,7
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £4.75
                                                              from £4.75
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              Genuine Bentley Part (no longer available to order)
                                                              SPRING CLAMP B27X12 Genuine Lamborghini - New In stock
                                                              # 34
                                                              MPN: 95810655020
                                                              COOLANT HOSE INCLUDED VALVE IF REQUIRED USE ALSO ITEM: 43 HEAT INSULATION SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              PG1G (8-speed automatic gearbox for all-wheel drive)
                                                              from £102.16
                                                              from £102.16
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 34
                                                              MPN: 95810655030
                                                              COOLANT HOSE INCLUDED VALVE IF REQUIRED USE ALSO ITEM: 43 HEAT INSULATION SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              PG0L (6-speed manual transmission for all-wheel drive vehicle)
                                                              from £46.40
                                                              from £46.40
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 35
                                                              MPN: N 90687101
                                                              Spring band clamp B32X12
                                                              from £2.95
                                                              from £2.95
                                                              SPRING CLIP Genuine Porsche Part - New (to order)
                                                              SPRING BAND CLAMP Genuine Bentley Part - New (to order)
                                                              SPRING CLAMP B32X12 Genuine Lamborghini - New In stock
                                                              # 36
                                                              -
                                                              ATF PREHEATER COOLANT PIPE FEED COOLANT PIPE RETURN SEE ILLUSTRATION: 360-030 POS.4/11/14
                                                              # 37
                                                              MPN: 95810636020
                                                              COOLANT PIPE
                                                              from £90.22
                                                              from £90.22
                                                              water tube Genuine Porsche Part - New (to order)
                                                              # 38
                                                              MPN: N 10632003
                                                              Oval socket head bolt M6X16 with hex drive
                                                              from £0.48
                                                              from £0.48
                                                              oval socket head bolt Genuine Porsche Part - New (to order)
                                                              OVAL SOCKET HEAD BOLT WITH HEX DRIVE Genuine Bentley Part - New (to order)
                                                              HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                                              # 39
                                                              MPN: 95510607400
                                                              COOLANT HOSE
                                                              from £61.87
                                                              from £61.87
                                                              WATER HOSE Genuine Porsche Part - New (to order)
                                                              # 40
                                                              MPN: 95510640900
                                                              CABLE TIES
                                                              from £2.58
                                                              from £2.58
                                                              TIE WRAP Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330112
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330147
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE 1.0 LTR.
                                                              COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330515
                                                              COOLANT ADDITIVE 1.0 LTR. BASF G12 ++
                                                              from £9.95
                                                              from £9.95
                                                              COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                                              # 41
                                                              MPN: 00004330113
                                                              Coolant additive 20ltr.
                                                              Coolant additive 20ltr.
                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330148
                                                              Coolant additive 20ltr.
                                                              Coolant additive 20ltr.
                                                              COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330516
                                                              COOLANT ADDITIVE 20LTR. BASF G12 ++
                                                              from £121.31
                                                              from £121.31
                                                              COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004320439
                                                              CLEANING SOLUTION 20ltr.
                                                              CLEANING SOLUTION 20ltr.
                                                              from £98.88
                                                              from £98.88
                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                              # 41
                                                              MPN: 00004330564
                                                              CLEANING SOLUTION 20ltr.
                                                              from £82.13
                                                              from £82.13
                                                              CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                                              # 42
                                                              MPN: 95810665310
                                                              HEAT INSULATION HEATER VALVE SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              P6EA (Without additional body covers, side stone guards) | P6EC (Underbody protection, rear axle) | PRUS
                                                              from £16.00
                                                              from £16.00
                                                              heat deflector Genuine Porsche Part - New (to order)
                                                              # 42
                                                              MPN: 95810665310
                                                              HEAT INSULATION HEATER VALVE SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              P6EB (Additional body covers, stone guards and partial cover)
                                                              from £16.00
                                                              from £16.00
                                                              heat deflector Genuine Porsche Part - New (to order)
                                                              # 43
                                                              MPN: 95810665320
                                                              HEAT INSULATION HEATER VALVE SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215
                                                              P6EA (Without additional body covers, side stone guards) | P6EC (Underbody protection, rear axle) | PRUS
                                                              from £16.00
                                                              from £16.00
                                                              heat deflector Genuine Porsche Part - New (to order)
                                                              # 43
                                                              MPN: 95810665320
                                                              HEAT INSULATION SEE WORKSHOP MANUAL GROUP: 8 803655 SY4215 HEATER VALVE
                                                              P6EB (Additional body covers, stone guards and partial cover)
                                                              from £16.00
                                                              from £16.00
                                                              heat deflector Genuine Porsche Part - New (to order)
                                                              # 44
                                                              MPN: 9A712165300
                                                              HEAT REFLECTIVE MAT COOLANT PUMP
                                                              from £13.93
                                                              from £13.93
                                                              HEAT REFLECTIVE MAT Genuine Porsche Part - New (to order)
