porsche 2020 (cayenne e3 9ya/9yb) cylinder head parts diagram

103-000 - CYLINDER HEAD

Porsche 2020 (Cayenne E3 9YA/9YB) Cylinder head Parts Diagram

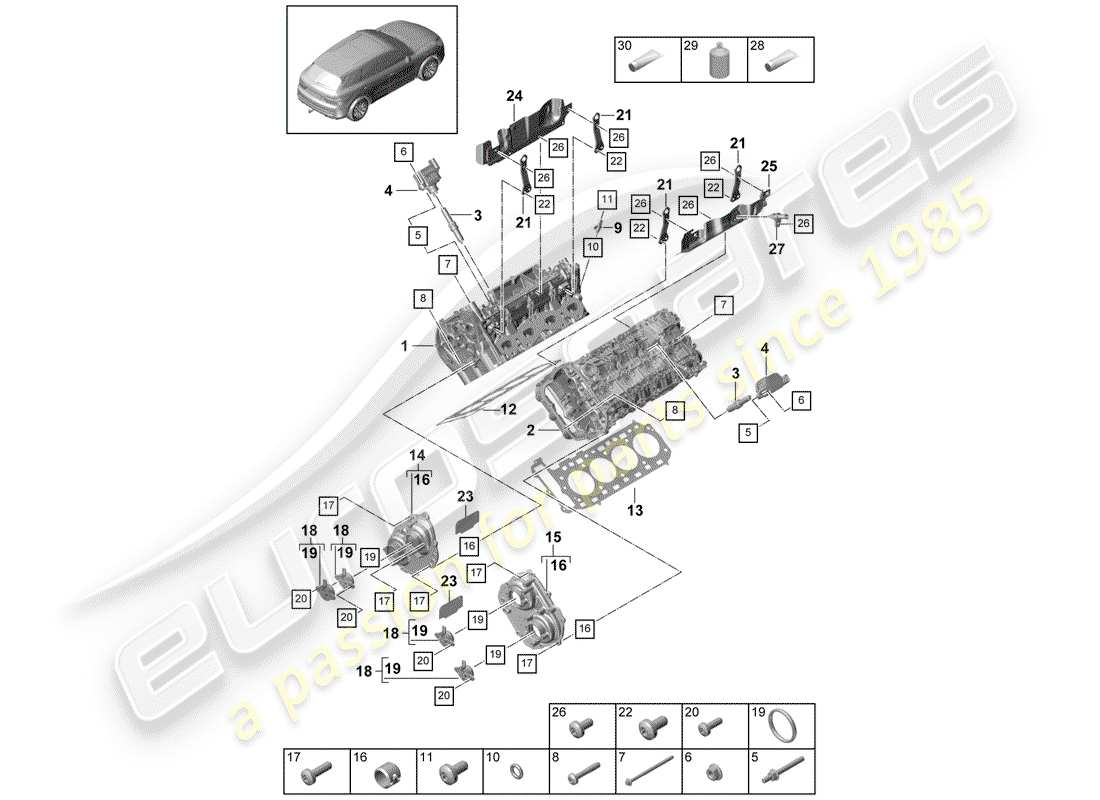

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 9A710306100
                                      COMPLETE CYLINDER HEAD CYLINDER 5-8 BUT WITHOUT: CAMSHAFT
                                      COMPLETE CYLINDER HEAD CYLINDER 5-8 BUT WITHOUT: CAMSHAFT
                                      from £3,173.97
                                      from £3,173.97
                                      CYLINDER HEAD, COMPLETE Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: PAB103061
                                      COMPLETE CYLINDER HEAD CYLINDER 5-8 BUT WITHOUT: CAMSHAFT
                                      from £5,318.25
                                      from £5,318.25
                                      CYLINDER HEAD, COMPLETE Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 9A710306200
                                      COMPLETE CYLINDER HEAD CYLINDERS 1-4 BUT WITHOUT: CAMSHAFT D >>- 02.08.2018
                                      from £4,453.88
                                      from £4,453.88
                                      CYLINDER HEAD, COMPLETE Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: PAB103062
                                      COMPLETE CYLINDER HEAD CYLINDERS 1-4 BUT WITHOUT: CAMSHAFT D - 03.08.2018>>
                                      from £5,318.25
                                      from £5,318.25
                                      CYLINDER HEAD, COMPLETE Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 9A790560100
                                      SPARK PLUG NGK 8 ALSO USE: 1X 000 043 210 83
                                      DCUA (4.0 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: DCUA and installed 05/2017-05/2023) | DCUD (4.0 Litre 8 Cyliner Engine (460 Horsepower / 338 Kilowatt with Engine Code: DCUD and installed 01/2017-05/2023) | DCU (4.0 Litre 8 Cyliner Engine (549 Horsepower / 404 Kilowatt with Engine Code: DCU and installed 05/2017-05/2023)
                                      from £25.86
                                      from £25.86
                                      SPARK PLUG Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 9A790560101
                                      SPARK PLUG NGK 8 ALSO USE: 1X 000 043 210 83
                                      DWN (4.0 Litre 8 Cyliner Engine (640 Horsepower / 471 Kilowatt with Engine Code: DWN and installed 01/2017-05/2023) | DWNA (4.0 Litre 8 Cyliner Engine (640 Horsepower / 471 Kilowatt with Engine Code: DWNA and installed 01/2017-05/2023)
                                      from £27.24
                                      from £27.24
                                      SPARK PLUG Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 95890511001
                                      IGNITION COIL
                                      IGNITION COIL
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 4
                                      MPN: PAC905110A
                                      ignition coil with spark plug connector D >>- 16.05.2021
                                      ignition coil with spark plug connector D >>- 16.05.2021
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 4
                                      MPN: 9A7905110
                                      IGNITION COIL WITH SPARK PLUG CONNECTOR D - 17.05.2021>>
                                      from £64.96
                                      from £64.96
                                      This part replaces part number 95890511001 - and 1 more. Click to view details
                                      IGNITION COIL WITH SPARK PLUG CONNECTOR Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: N 10825101
                                      DOUBLE STUD WITH HEXAGON DRIVE M6X45-M6X12
                                      from £0.95
                                      from £0.95
                                      DOUBLE HEX. HD. BOLT Genuine Porsche Part - New (to order)
                                      DOUBLE HEX. HD. BOLT Genuine Lamborghini - New (to order)
                                      # 6
                                      MPN: N 01508210
                                      HEXAGON COLLAR NUT M6
                                      HEXAGON COLLAR NUT M6
                                      from £0.47
                                      from £0.47
                                      Genuine Porsche Part (no longer available to order)
                                      HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                      # 6
                                      MPN: PAF015082
                                      HEXAGON COLLAR NUT M6
                                      from £1.58
                                      from £1.58
                                      This part replaces part number N 01508210
                                      shouldered hex. nut Genuine Porsche Part - New In stock
                                      # 7
                                      MPN: 9A700839500
                                      12-POINT head bolt M10X170X120
                                      from £10.73
                                      from £10.73
                                      12 POINT SOCKET HEAD SCREW Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: N 10554005
                                      ROUND HD. SCREW M6X35
                                      ROUND HD. SCREW M6X35
                                      from £1.81
                                      from £1.81
                                      Genuine Porsche Part (no longer available to order)
                                      SCREW M6X35 Genuine Lamborghini - New In stock
                                      # 8
                                      MPN: PAF105540
                                      ROUND HD. SCREW M6X35
                                      from £2.04
                                      from £2.04
                                      This part replaces part number N 10554005
                                      ROUND HD. SCREW Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 95860662320
                                      Temperature sensor also use: 1x WHT 002 287 B 1x 000 043 305 01
                                      Temperature sensor also use: 1x WHT 002 287 B 1x 000 043 305 01
                                      from £82.32
                                      from £82.32
                                      TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: PAB919523
                                      Temperature sensor also use: 1x WHT 002 287 B 1x 000 043 305 01
                                      from £58.66
                                      from £58.66
                                      TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: WHT002287B
                                      O-RING 5,6X2
                                      from £2.76
                                      from £2.76
                                      O-RING Genuine Porsche Part - New (to order)
                                      O-RING Genuine Lamborghini - New (to order)
                                      # 11
                                      MPN: N 91126601
                                      OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                      from £0.58
                                      from £0.58
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                      # 12
                                      MPN: 9A710338300
                                      CYLINDER HEAD GASKET CYLINDER 5-8
                                      CYLINDER HEAD GASKET CYLINDER 5-8
                                      from £64.85
                                      from £64.85
                                      CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: PAB103383A
                                      CYLINDER HEAD GASKET CYLINDER 5-8
                                      CYLINDER HEAD GASKET CYLINDER 5-8
                                      from £83.89
                                      from £83.89
                                      CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: PAB103383C
                                      CYLINDER HEAD GASKET CYLINDER 5-8
                                      from £83.49
                                      from £83.49
                                      CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 9A710338301
                                      CYLINDER HEAD GASKET CYLINDERS 1-4
                                      CYLINDER HEAD GASKET CYLINDERS 1-4
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 13
                                      MPN: PAB103383
                                      CYLINDER HEAD GASKET CYLINDERS 1-4
                                      from £91.30
                                      from £91.30
                                      This part replaces part number 9A710338301
                                      CYLINDER HEAD GASKET Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: 9A710928506
                                      COVER CYLINDER 5-8 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      COVER CYLINDER 5-8 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      from £42.70
                                      from £42.70
                                      COVER Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: PAB109285
                                      COVER CYLINDER 5-8 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      from £42.70
                                      from £42.70
                                      COVER Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 9A710928606
                                      COVER CYLINDERS 1-4 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      COVER CYLINDERS 1-4 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      from £43.56
                                      from £43.56
                                      COVER Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: PAB109286
                                      COVER CYLINDERS 1-4 TIMING CHAIN ALSO USE: 1x 000 043 305 10 1x 000 043 209 93
                                      from £43.56
                                      from £43.56
                                      COVER Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 95810113900
                                      DOWEL SLEEVE 8,2X6,5
                                      from £0.47
                                      from £0.47
                                      SLEEVE Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: N 10124306
                                      Hexagon socket flat M6X20 head bolt
                                      from £0.87
                                      from £0.87
                                      This part replaces part number 99907334401 - and 1 more. Click to view details
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                      HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                      # 18
                                      MPN: 9A710925901
                                      SOLENOID VALVE
                                      SOLENOID VALVE
                                      from £30.97
                                      from £30.97
                                      SOLENOID VALVE Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 9A710925902
                                      SOLENOID VALVE
                                      SOLENOID VALVE
                                      from £31.90
                                      from £31.90
                                      SOLENOID VALVE Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: PAC109259
                                      SOLENOID VALVE
                                      from £45.69
                                      from £45.69
                                      SOLENOID VALVE Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: 9A790614500
                                      SEAL RING
                                      from £3.93
                                      from £3.93
                                      SEAL RING Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: N 91126601
                                      OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                      from £0.53
                                      from £0.53
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                                      # 21
                                      MPN: 9A710339200
                                      TRANSPORTATION SHACKLE
                                      from £9.67
                                      from £9.67
                                      TRANSPORTATION SHACKLE Genuine Porsche Part - New (to order)
                                      # 22
                                      MPN: N 10664801
                                      Socket head collared bolt with M8X20 inner multipoint head D >>- 19.09.2021
                                      from £1.00
                                      from £1.00
                                      SOCKET HD. SCREW WITH POLYGON Genuine Porsche Part - New (to order)
                                      12-POINT SOCKET M8X20 Genuine Lamborghini - New In stock
                                      # 22
                                      MPN: PAF910488
                                      Socket head collared bolt with M8X20 inner multipoint head D - 20.09.2021>>
                                      from £2.43
                                      from £2.43
                                      SCREW Genuine Porsche Part - New (to order)
                                      # 23
                                      MPN: PAB97146100
                                      HEAT INSULATION
                                      from £11.93
                                      from £11.93
                                      heat deflector Genuine Porsche Part - New (to order)
                                      # 24
                                      MPN: PAB11936301
                                      AIR GUIDE LEFT
                                      AIR GUIDE LEFT
                                      AIR DUCT Genuine Porsche Part - New (to order)
                                      # 24
                                      MPN: PAB119363
                                      AIR GUIDE LEFT CYLINDER HEAD
                                      from £33.88
                                      from £33.88
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 25
                                      MPN: PAB11936401
                                      AIR GUIDE RIGHT
                                      AIR GUIDE RIGHT
                                      from £37.17
                                      from £37.17
                                      AIR DUCT Genuine Porsche Part - New (to order)
                                      # 25
                                      MPN: PAB119364
                                      AIR GUIDE RIGHT CYLINDER HEAD
                                      from £46.61
                                      from £46.61
                                      AIR GUIDE Genuine Porsche Part - New (to order)
                                      # 26
                                      MPN: N 10335207
                                      Hexagon socket flat head M6X12 bolt, self-locking
                                      from £0.82
                                      from £0.82
                                      HEXAGON SOCKET FLAT HEAD Genuine Porsche Part - New (to order)
                                      HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING Genuine Lamborghini - New (to order)
                                      # 27
                                      MPN: 9A791950110
                                      TEMPERATURE SENSOR
                                      from £56.82
                                      from £56.82
                                      TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                      # 28
                                      MPN: N 10335207
                                      HEXAGON SOCKET FLAT HEAD M6X12 BOLT, SELF-LOCKING D >>- 08.07.2018
                                      from £0.82
                                      from £0.82
                                      HEXAGON SOCKET FLAT HEAD Genuine Porsche Part - New (to order)
                                      HEXAGON SOCKET FLAT HEAD BOLT, SELF-LOCKING Genuine Lamborghini - New (to order)
                                      # 28
                                      MPN: PAF910423
                                      OVAL HEXAGON SOCKET HEAD BOLT M6X16 D - 09.07.2018>>
                                      from £0.72
                                      from £0.72
                                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                      # 29
                                      MPN: 00004330510
                                      SEALANT 50ML LOCTITE 5970
                                      from £27.36
                                      from £27.36
                                      This part replaces part number 00004330039 - and 1 more. Click to view details
                                      SEALANT Genuine Porsche Part - New (to order)
                                      # 30
                                      MPN: 00004320993
                                      CLEANING SOLUTION 100ML ANTI-CORROSION AGENT LOCTITE 7515
                                      from £18.50
                                      from £18.50
                                      CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                      # 31
                                      MPN: 00004321083
                                      grease 20 gram for MOLYCOTE Ignition coil G5008
                                      from £22.74
                                      from £22.74
                                      GREASE Genuine Porsche Part - New (to order)
                                      # 31
                                      MPN: 00004330501
                                      GREASE 50 GRAM SYNTHESO GLEP TO BE USED FOR ITEM: 9
                                      from £20.50
                                      from £20.50
                                      This part replaces part number 00004320468
                                      GREASE Genuine Porsche Part - New (to order)
