PT5R (R4 TFSI 2.0-litre basic engine components)
porsche 2021 (cayenne e3 9ya/9yb) coolant cooling system parts diagram

105-087 - COOLANT COOLING SYSTEM

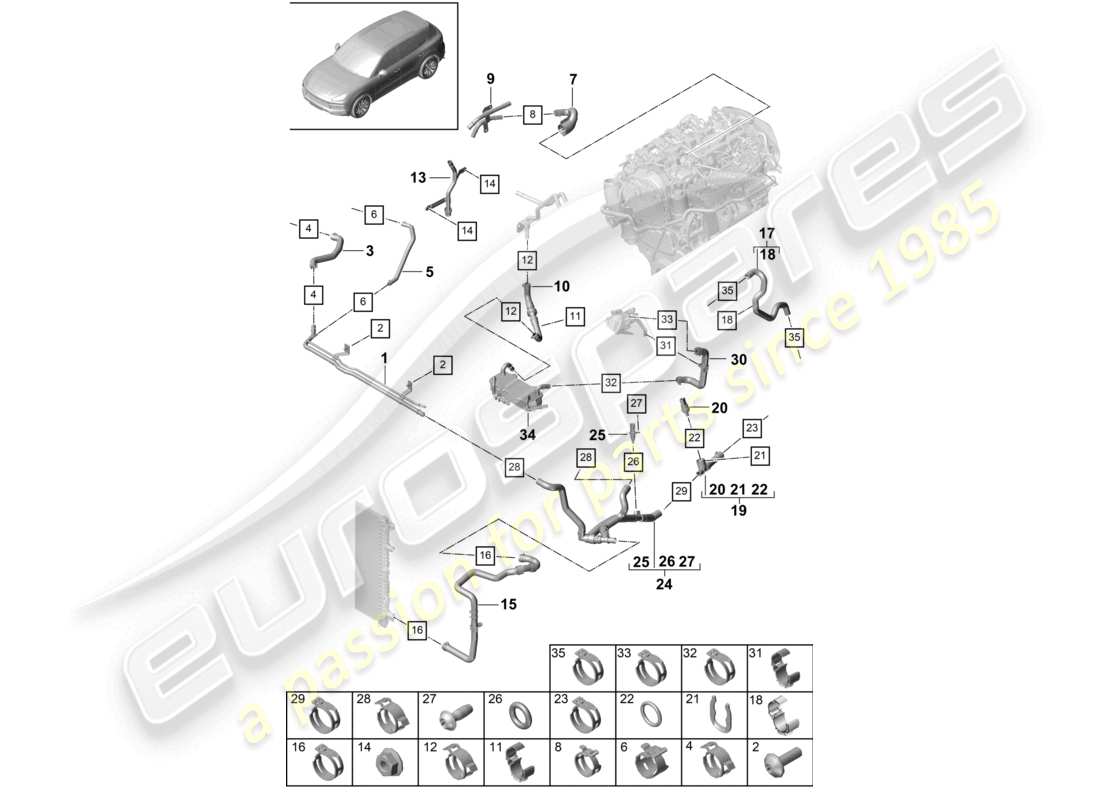

Porsche 2021 (Cayenne E3 9YA/9YB) Coolant cooling system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: PAB145637B
                                          COOLANT PIPE RETURN
                                          from £95.30
                                          from £95.30
                                          COOLANT PIPE Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: N 10714801
                                          OVAL HEXAGON SOCKET HEAD BOLT M6X18
                                          from £0.54
                                          from £0.54
                                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                          HEXALOBULAR SOCKETM6X18 Genuine Lamborghini - New In stock
                                          # 3
                                          MPN: PAB145932A
                                          COOLANT HOSE
                                          from £17.23
                                          from £17.23
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 4
                                          MPN: 99951268309
                                          HOSE CLAMP B23X12
                                          from £2.29
                                          from £2.29
                                          Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: PAB145932B
                                          COOLANT HOSE
                                          from £17.23
                                          from £17.23
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 6
                                          MPN: 99951265009
                                          HOSE CLAMP B14X12
                                          from £0.91
                                          from £0.91
                                          Hose Clamp - B 14 X 12 Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: PAB819337
                                          COOLANT HOSE
                                          from £33.36
                                          from £33.36
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 8
                                          MPN: N 91200801
                                          Spring band clamp 23X12
                                          from £6.87
                                          from £6.87
                                          SPRING CLIP Genuine Porsche Part - New (to order)
                                          Genuine Lamborghini - New (to order)
                                          # 9
                                          -
                                          COOLANT PIPE SEE ILLUSTRATION: 105-020
                                          # 10
                                          MPN: PAB122449C
                                          COOLANT HOSE
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £32.94
                                          from £32.94
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 11
                                          MPN: PAF10793901
                                          LINE HOLDER
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £4.73
                                          from £4.73
                                          LINE HOLDER Genuine Porsche Part - New (to order)
                                          # 12
                                          MPN: 99951268309
                                          HOSE CLAMP B23X12
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £2.29
                                          from £2.29
                                          Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: PAB12148550
                                          COOLANT PIPE
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £65.72
                                          from £65.72
                                          water tube Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: N 01508210
                                          HEXAGON COLLAR NUT M6
                                          HEXAGON COLLAR NUT M6
                                          from £0.47
                                          from £0.47
                                          Genuine Porsche Part (no longer available to order)
                                          HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                          # 14
                                          MPN: PAF015082
                                          HEXAGON COLLAR NUT M6
                                          from £1.58
                                          from £1.58
                                          This part replaces part number N 01508210
                                          shouldered hex. nut Genuine Porsche Part - New In stock
                                          # 15
                                          MPN: PAB145947B
                                          COOLANT HOSE
                                          from £74.14
                                          from £74.14
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 99951265809
                                          HOSE CLAMP B27X12
                                          from £2.29
                                          from £2.29
                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                          # 17
                                          -
                                          COOLANT HOSE FEED SEE ILLUSTRATION, ITEM: 105-088,18
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          # 18
                                          MPN: PAB42270500
                                          CLIP
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £2.14
                                          from £2.14
                                          CLIP Genuine Porsche Part - New (to order)
                                          # 19
                                          MPN: PAB145947E
                                          COOLANT HOSE RETURN
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £31.30
                                          from £31.30
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 95510612501
                                          TEMPERATURE SENSOR
                                          from £53.39
                                          from £53.39
                                          TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                          # 21
                                          MPN: 95510614300
                                          RETAINING SPRING
                                          from £1.84
                                          from £1.84
                                          RETAINING SPRING Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: N 90316801
                                          O-RING 19,6X3,65
                                          from £2.96
                                          from £2.96
                                          O-RING Genuine Porsche Part - New In stock
                                          # 23
                                          MPN: 99951265809
                                          HOSE CLAMP B27X12
                                          from £2.29
                                          from £2.29
                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                          # 24
                                          MPN: PAB145947D
                                          COOLANT HOSE
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £70.86
                                          from £70.86
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: PAB145947C
                                          COOLANT HOSE WITH TEMPERATURE SENDER
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £79.18
                                          from £79.18
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 25
                                          MPN: 95860662320
                                          TEMPERATURE SENSOR
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £82.32
                                          from £82.32
                                          TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                          # 26
                                          MPN: WHT002287B
                                          O-RING 5,6X2
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £2.76
                                          from £2.76
                                          O-RING Genuine Porsche Part - New (to order)
                                          O-RING Genuine Lamborghini - New (to order)
                                          # 27
                                          MPN: N 10721401
                                          oval hd. self-tapp fitt. screw TP6X16
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £0.47
                                          from £0.47
                                          TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                                          SCREW TP6X16-Q Genuine Lamborghini - New In stock
                                          # 28
                                          MPN: 99951268309
                                          HOSE CLAMP B23X12
                                          from £2.29
                                          from £2.29
                                          Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 29
                                          MPN: 99951265809
                                          HOSE CLAMP B27X12
                                          from £2.29
                                          from £2.29
                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                          # 30
                                          MPN: PAB122448
                                          COOLANT HOSE (COMPLETE)
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £18.81
                                          from £18.81
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 30
                                          MPN: PAB122448A
                                          COOLANT HOSE (COMPLETE)
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £16.30
                                          from £16.30
                                          COOLANT HOSE Genuine Porsche Part - New (to order)
                                          # 31
                                          MPN: PAF10793901
                                          LINE HOLDER
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £4.73
                                          from £4.73
                                          LINE HOLDER Genuine Porsche Part - New (to order)
                                          # 31
                                          MPN: PAF005377
                                          CABLE HOLDER
                                          P4BD (Emission standard C6b without Real Driving Emissions (RDE) (PN11)) | P7CR (Emissions concept C6B with RDE)
                                          from £6.75
                                          from £6.75
                                          CABLE HOLDER Genuine Porsche Part - New (to order)
                                          # 32
                                          MPN: 99951268309
                                          HOSE CLAMP B23X12
                                          from £2.29
                                          from £2.29
                                          Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 33
                                          MPN: 99951265809
                                          HOSE CLAMP B27X12X1,7
                                          from £2.29
                                          from £2.29
                                          HOSE CLAMP Genuine Porsche Part - New In stock
                                          # 34
                                          -
                                          GEAR OIL COOLER SEE ILLUSTRATION, ITEM: 360-020,1
                                          # 35
                                          MPN: 99951268309
                                          HOSE CLAMP B23X12
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £2.29
                                          from £2.29
                                          Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                          # 35
                                          MPN: 99951265809
                                          HOSE CLAMP B27X12X1,7
                                          P7CM (C6B emissions concept without RDE) | P7GR (Emission standard C5 stage 2)
                                          from £2.29
                                          from £2.29
                                          HOSE CLAMP Genuine Porsche Part - New In stock
