PGH1 (Without rear differential lock) | P0K0 (Without alternative drive system)
porsche 2024 (cayenne e3 9ya/9yb) drive shaft rear axle parts diagram

501-030 - Drive shaft Rear axle

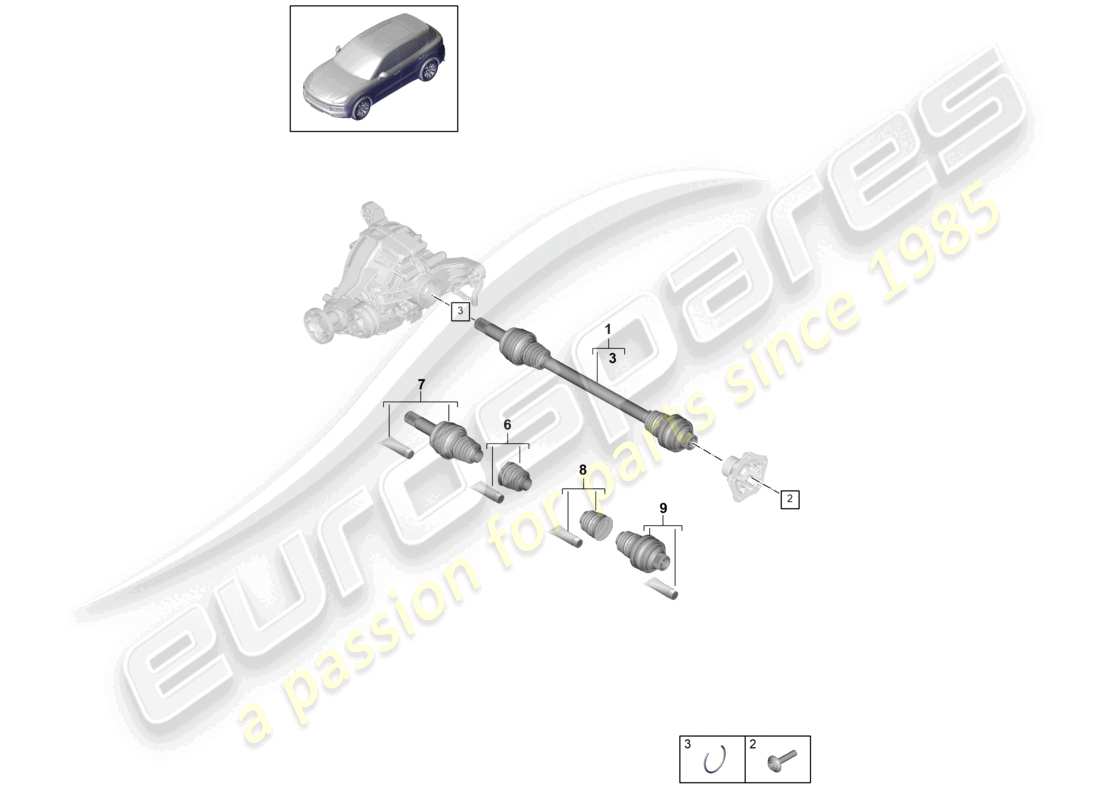

Porsche 2024 (Cayenne E3 9YA/9YB) Drive shaft Rear axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 958501203B
            Drive shaft also use: 2x PAB 407 643
            Drive shaft also use: 2x PAB 407 643
            from £554.93
            from £554.93
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 1
            MPN: PAD501203
            Drive shaft also use: 2x PAB 407 643
            Drive shaft also use: 2x PAB 407 643
            from £653.73
            from £653.73
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 1
            MPN: PAB501203F
            Drive shaft also use: 2x PAB 407 643
            from £734.29
            from £734.29
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 1
            MPN: 958501203C
            DRIVE SHAFT ALSO USE: 2X PAB 407 643 D >>- 10.11.2019
            from £777.27
            from £777.27
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 1
            MPN: PAB501203C
            DRIVE SHAFT ALSO USE: 2X PAB 407 643 D - 11.11.2019>>- 24.07.2022
            from £769.28
            from £769.28
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 1
            MPN: PAB501203G
            DRIVE SHAFT ALSO USE: 2X PAB 407 643 D - 25.07.2022>>
            from £769.28
            from £769.28
            DRIVE SHAFT Genuine Porsche Part - New (to order)
            # 2
            MPN: 8E0407643A
            Socket head bolt with M16X1,5X72 inner multipoint head
            Socket head bolt with M16X1,5X72 inner multipoint head
            from £4.61
            from £4.61
            Genuine Porsche Part (no longer available to order)
            HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - New (to order)
            HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - Used In stock
            # 2
            MPN: PAB407643
            Socket head bolt with M16X1,5X72 inner multipoint head
            from £8.62
            from £8.62
            SCREW Genuine Porsche Part - New (to order)
            # 3
            MPN: 95533212500
            SECURING RING 35X2,6
            from £1.44
            from £1.44
            LOCK RING Genuine Porsche Part - New (to order)
            # 6
            -
            JOINT PROTECTIVE BOOT WITH INNER ASSEMBLY ITEMS AND GREASE INCLUDED IN POSITION: 1
            # 7
            -
            CONSTANT VELOCITY JOINT WITH INNER BOOT, ATTACHMENT PARTS AND GREASE INCLUDED IN POSITION: 1
            # 8
            -
            JOINT PROTECTIVE BOOT WITH OUTER ASSEMBLY ITEMS AND GREASE INCLUDED IN POSITION: 1
            # 9
            -
            CONSTANT VELOCITY JOINT WITH OUTER BOOT, ATTACHMENT PARTS AND GREASE INCLUDED IN POSITION: 1
