P1SA (Without protective plate for engine)
porsche 2024 (cayenne e3 9ya/9yb) trim underbody trim parts diagram

801-076 - Trim Underbody trim

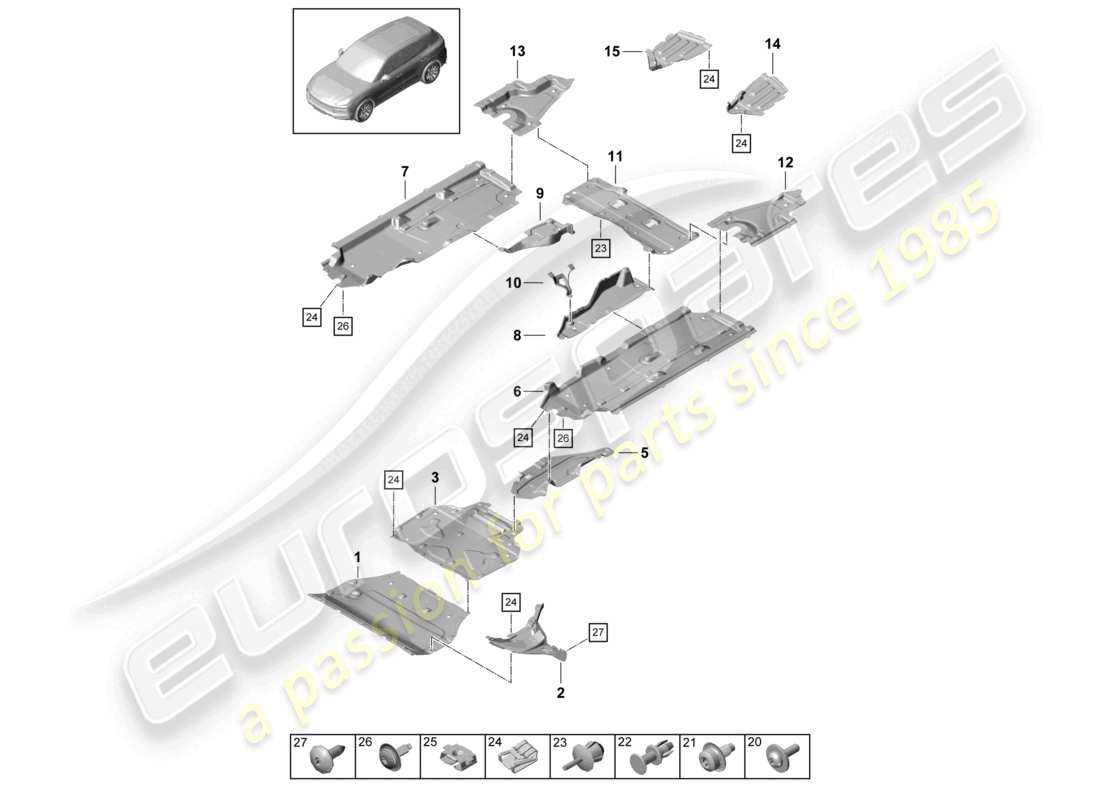

Porsche 2024 (Cayenne E3 9YA/9YB) Trim Underbody trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: PAB825235C
                                    UNDERBODY PROTECTION FRONT
                                    UNDERBODY PROTECTION FRONT
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 1
                                    MPN: PAB825235J
                                    UNDERBODY PROTECTION FRONT
                                    P1P0 (Standard suspension) | P1VH (Installation parts for 6-cylinder engine) | P1VJ (Installation parts for 8-cylinder engine)
                                    from £208.54
                                    from £208.54
                                    This part replaces part number PAB825235C
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: PAB825235E
                                    UNDERBODY PROTECTION FRONT
                                    UNDERBODY PROTECTION FRONT
                                    from £171.10
                                    from £171.10
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: PAB825235F
                                    UNDERBODY PROTECTION FRONT
                                    P1P7 (PDCC/eAWS)
                                    from £208.54
                                    from £208.54
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: PAB825235D
                                    UNDERBODY PROTECTION FRONT
                                    UNDERBODY PROTECTION FRONT
                                    from £171.10
                                    from £171.10
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: PAB825235G
                                    UNDERBODY PROTECTION FRONT
                                    P1P0 (Standard suspension) | P1VG (Installation parts for 4-cylinder engine)
                                    from £208.54
                                    from £208.54
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9Y0825317C OK1
                                    Underbody protection side Air guide left - Matt black
                                    P1VG (Installation parts for 4-cylinder engine)
                                    from £65.17
                                    from £65.17
                                    This part replaces part number 9Y0825317C
                                    MATT BLACK Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9Y0825318C OK1
                                    Underbody protection side Air guide right - Matt black
                                    P1VG (Installation parts for 4-cylinder engine)
                                    from £65.17
                                    from £65.17
                                    This part replaces part number 9Y0825318C
                                    MATT BLACK Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9Y0825317D OK1
                                    Underbody protection side Air guide left - Matt black
                                    P1VH (Installation parts for 6-cylinder engine) | P1VJ (Installation parts for 8-cylinder engine)
                                    from £65.17
                                    from £65.17
                                    This part replaces part number 9Y0825317D
                                    MATT BLACK Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9Y0825318D OK1
                                    Underbody protection side Air guide right - Matt black
                                    P1VH (Installation parts for 6-cylinder engine) | P1VJ (Installation parts for 8-cylinder engine)
                                    from £65.17
                                    from £65.17
                                    This part replaces part number 9Y0825318D
                                    MATT BLACK Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: PAB825236
                                    UNDERBODY TRIM FRONT REAR
                                    UNDERBODY TRIM FRONT REAR
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 3
                                    MPN: PAB825236B
                                    UNDERBODY TRIM
                                    from £116.90
                                    from £116.90
                                    This part replaces part number PAB825236
                                    UNDERBODY TRIM Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: PAB825285
                                    HEAT INSULATION LEFT FRONT TUNNEL
                                    from £112.10
                                    from £112.10
                                    UNDERBODY LINING Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 958 825 101 00
                                    Underbody protection center, left side
                                    Underbody protection center, left side
                                    Underbody protection center, left side Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 9Y0825101C
                                    Underbody protection center, left side
                                    Underbody protection center, left side
                                    from £67.34
                                    from £67.34
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 9Y0825101E
                                    UNDERBODY PROTECTION CENTER SIDE
                                    from £103.73
                                    from £103.73
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 958 825 102 00
                                    Underbody protection center, right side
                                    Underbody protection center, right side
                                    Underbody protection center, right side Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 9Y0825102C
                                    Underbody protection center, left side
                                    Underbody protection center, left side
                                    from £66.02
                                    from £66.02
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 9Y0825102E
                                    UNDERBODY PROTECTION CENTER SIDE
                                    from £101.68
                                    from £101.68
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 8
                                    MPN: 95882520700
                                    UNDERBODY PROTECTION INNER TUNNEL REAR
                                    from £20.29
                                    from £20.29
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 95882520800
                                    UNDERBODY PROTECTION INNER TUNNEL REAR
                                    from £29.11
                                    from £29.11
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 10
                                    MPN: 9Y0825131
                                    BRACKET FRONT TUNNEL
                                    from £20.75
                                    from £20.75
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: 95880403300
                                    AIR GUIDE REAR TUNNEL
                                    from £101.47
                                    from £101.47
                                    AIR DUCT Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: 95882521300
                                    UNDERBODY PROTECTION LEFT SIDE REAR
                                    from £22.01
                                    from £22.01
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 13
                                    MPN: 95882521400
                                    UNDERBODY PROTECTION RIGHT SIDE REAR
                                    from £22.01
                                    from £22.01
                                    UNDERBODY PROTECTION Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 9Y0825095
                                    Cover left rear
                                    from £23.73
                                    from £23.73
                                    COVER Genuine Porsche Part - New (to order)
                                    # 15
                                    MPN: 9Y0825096
                                    COVER RIGHT REAR
                                    from £23.73
                                    from £23.73
                                    COVER Genuine Porsche Part - New (to order)
                                    # 20
                                    MPN: N 90684704
                                    HEXAGON SOCKET HEAD M6X20 BOLT (COMBI)
                                    from £0.59
                                    from £0.59
                                    hexagon socket head Genuine Porsche Part - New (to order)
                                    HEXALOBULAR SOCKETM6X20-S11 Genuine Lamborghini - New (to order)
                                    # 21
                                    MPN: PAF00072900
                                    HEXAGON SOCKET HEAD BOLT M8X20 TO BE USED FOR ITEM: 1
                                    from £2.41
                                    from £2.41
                                    HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                    # 22
                                    MPN: 8K0863788
                                    SPREADER RIVET
                                    from £0.88
                                    from £0.88
                                    Genuine Porsche Part (no longer available to order)
                                    EXPANSION RIVET DURCHM. 14 Genuine Lamborghini - New In stock
                                    # 23
                                    MPN: N 0385494
                                    SPREADER RIVET
                                    from £0.53
                                    from £0.53
                                    Genuine Porsche Part (no longer available to order)
                                    EXPANSION RIVET A-8X12 Genuine Lamborghini - New In stock
                                    # 24
                                    MPN: N 91242501
                                    CLAMPING NUT
                                    from £0.87
                                    from £0.87
                                    This part replaces part number 99950730902 - and 2 more. Click to view details
                                    CLAMPING NUT Genuine Porsche Part - New (to order)
                                    SNAP NUT CLAMP ST4.8X22X18 Genuine Lamborghini - New (to order)
                                    # 25
                                    MPN: PAB825429
                                    CLIP
                                    from £0.74
                                    from £0.74
                                    CLIP Genuine Porsche Part - New (to order)
                                    # 26
                                    MPN: PAF82595100
                                    HEXAGON SOCKET HEAD BOLT M6X20
                                    from £2.41
                                    from £2.41
                                    SCREW Genuine Porsche Part - New (to order)
                                    # 27
                                    MPN: N 91057001
                                    OVAL HEAD PANEL SCREW T5 D >>- 10.08.2021
                                    from £0.57
                                    from £0.57
                                    TAPPING SCREW, FILL. HD Genuine Porsche Part - New (to order)
                                    SCREW TP5X16-Q Genuine Lamborghini - New In stock
                                    # 27
                                    MPN: N 90974701
                                    HEXAGON SOCKET HEAD PANEL BOLT TP5X16 D - 11.08.2021>>
                                    from £0.54
                                    from £0.54
                                    HEXAGON SOCKET HEAD PANEL BOLT Genuine Porsche Part - New In stock
                                    SCREW TP5X16-Q Genuine Lamborghini - New In stock
