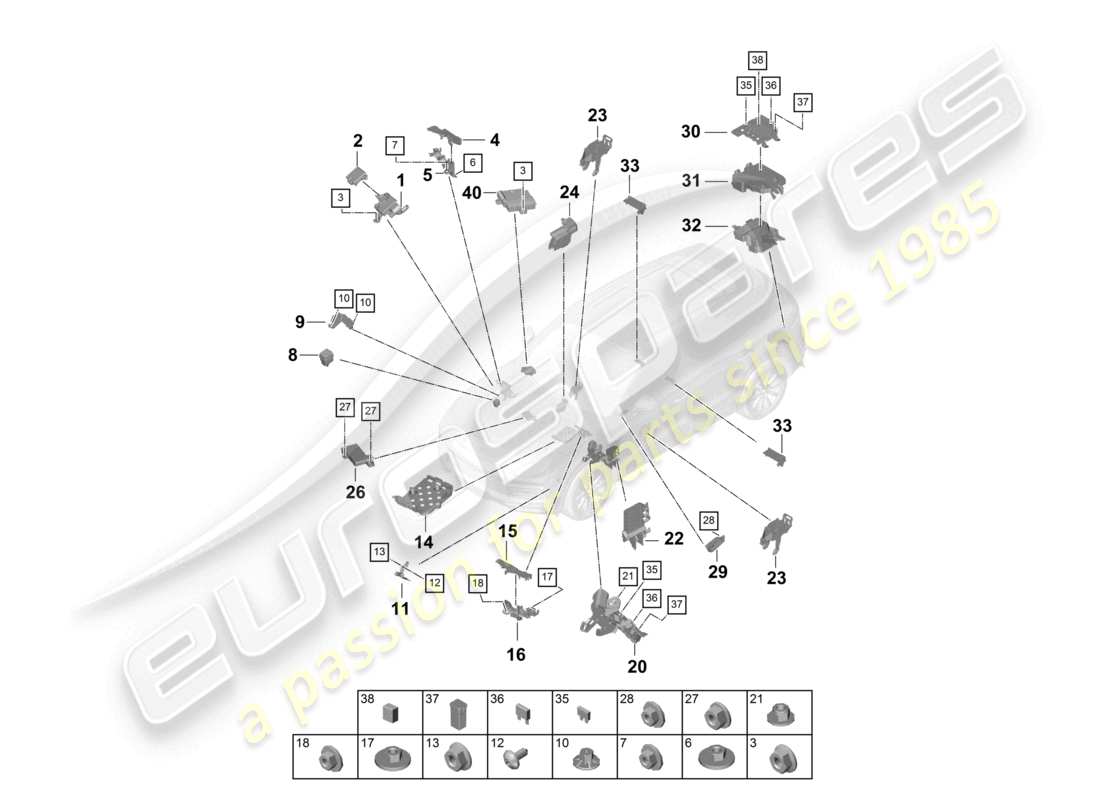

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 1
                                                            MPN: PAB94182300
                                                            POTENTIAL DISTRIBUTOR STARTER
                                                            P0K0 (Without alternative drive system)
                                                            from £172.25
                                                            from £172.25
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 1
                                                            MPN: PAB941823
                                                            POTENTIAL DISTRIBUTOR STARTER
                                                            P0K3 (Hybrid propulsion system PHEV)
                                                            from £143.48
                                                            from £143.48
                                                            POTENTIAL DISTRIBUTOR Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAB941824
                                                            POTENTIAL DISTRIBUTOR WITH: FUSE 70A FUSE 70A FUSE 70A
                                                            PL0L (Left-hand drive version) | PT5R (R4 TFSI 2.0-litre basic engine components) | P0K3 (Hybrid propulsion system PHEV)
                                                            from £37.96
                                                            from £37.96
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAB941824
                                                            POTENTIAL DISTRIBUTOR WITH: FUSE 70A FUSE 70A FUSE 70A
                                                            P0K0 (Without alternative drive system) | P1D3 (Trailer hitch, electrically retractable, ECE R55) | P1D6 (Trailer coupling without tow ball) | P1D7 (Preparation for detachable trailer coupling) | P1D8 (Preparation for detachable trailer coupling usa) | P1D9 (Electric folding trailer coupling) | PL0R (Right-hand drive version) | PT1M (V8 biturbo 4.0-litre basic engine components)
                                                            from £37.96
                                                            from £37.96
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAB941824A
                                                            POTENTIAL DISTRIBUTOR WITH: FUSE 50A FUSE 50A
                                                            PT9I (V6 turbo 3.0-litre basic engine components) | PTV8 (V6 biturbo 2.9-litre basic engine components) | P1D0 (Without trailer hitch) | P0K0 (Without alternative drive system)
                                                            from £37.96
                                                            from £37.96
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAB941824B
                                                            POTENTIAL DISTRIBUTOR WITH: FUSE 70A FUSE 70A
                                                            PT9I (V6 turbo 3.0-litre basic engine components) | PTV8 (V6 biturbo 2.9-litre basic engine components) | P1D3 (Trailer hitch, electrically retractable, ECE R55) | P1D6 (Trailer coupling without tow ball) | P1D7 (Preparation for detachable trailer coupling) | P1D8 (Preparation for detachable trailer coupling usa) | P1D9 (Electric folding trailer coupling) | P0K0 (Without alternative drive system)
                                                            from £37.96
                                                            from £37.96
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 2
                                                            MPN: PAB941824B
                                                            POTENTIAL DISTRIBUTOR WITH: FUSE 70A FUSE 70A
                                                            PT9I (V6 turbo 3.0-litre basic engine components) | P0K3 (Hybrid propulsion system PHEV)
                                                            from £37.96
                                                            from £37.96
                                                            junction box Genuine Porsche Part - New (to order)
                                                            # 3
                                                            MPN: N 01508210
                                                            HEXAGON COLLAR NUT M6
                                                            from £0.47
                                                            from £0.47
                                                            Genuine Porsche Part (no longer available to order)
                                                            HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                                            # 4
                                                            MPN: PAB97187100
                                                            GROMMET RIGHT UPPER WATER BOX
                                                            from £7.92
                                                            from £7.92
                                                            GROMMET Genuine Porsche Part - New (to order)
                                                            # 5
                                                            MPN: PAB97187110
                                                            GROMMET RIGHT LOWER WATER BOX
                                                            from £11.67
                                                            from £11.67
                                                            GROMMET Genuine Porsche Part - New (to order)
                                                            # 6
                                                            MPN: N 90570805
                                                            HEX. NUT, SELF-LOCKING WITH M6 WASHER
                                                            from £1.47
                                                            from £1.47
                                                            HEX. NUT, SELF-LOCKING WITH Genuine Porsche Part - New (to order)
                                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                                            # 7
                                                            MPN: N 91173301
                                                            HEX. NUT WITH WASHER M6
                                                            from £1.10
                                                            from £1.10
                                                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                                            # 8
                                                            MPN: PAB93712400
                                                            RELAY PLATE WATER BOX
                                                            from £11.79
                                                            from £11.79
                                                            RELAY PLATE Genuine Porsche Part - New (to order)
                                                            # 9
                                                            MPN: PAB90728500
                                                            BRACKET FOR RELAY BRACKET WATER BOX
                                                            from £5.65
                                                            from £5.65
                                                            BRACKET FOR RELAY BRACKET Genuine Porsche Part - New (to order)
                                                            # 10
                                                            MPN: N 90757901
                                                            HEXAGON COLLAR NUT
                                                            from £0.95
                                                            from £0.95
                                                            This part replaces part number N 90352101
                                                            shouldered hex. nut Genuine Porsche Part - New (to order)
                                                            HEX.NUT E5 Genuine Lamborghini - New In stock
                                                            # 11
                                                            MPN: 9Y0971362
                                                            BRACKET CONNECTION POINT FRONT END
                                                            from £9.23
                                                            from £9.23
                                                            BRACKET Genuine Porsche Part - New (to order)
                                                            # 12
                                                            MPN: N 10741402
                                                            Hexagon socket flat M6X14 head bolt
                                                            from £0.78
                                                            from £0.78
                                                            HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                            HEXALOBULAR SOCKETM6X14 Genuine Lamborghini - New In stock
                                                            # 13
                                                            MPN: N 01508210
                                                            HEXAGON COLLAR NUT M6
                                                            from £0.47
                                                            from £0.47
                                                            Genuine Porsche Part (no longer available to order)
                                                            HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                                                            # 14
                                                            MPN: PAB90765000
                                                            BRACKET - DME -
                                                            PT1M (V8 biturbo 4.0-litre basic engine components) | PT9I (V6 turbo 3.0-litre basic engine components) | PTV8 (V6 biturbo 2.9-litre basic engine components)
                                                            from £33.87
                                                            from £33.87
                                                            BRACKET Genuine Porsche Part - New (to order)
                                                            # 14
                                                            MPN: PAB907650
                                                            Retainer for control unit -DME -
                                                            P1VG (Installation parts for 4-cylinder engine)
                                                            from £33.87
                                                            from £33.87
                                                            RETAINER FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                                                            # 15
                                                            MPN: PAB97187120
                                                            GROMMET LEFT WATER BOX UPPER
                                                            from £7.92
                                                            from £7.92
                                                            GROMMET Genuine Porsche Part - New (to order)
                                                            # 16
                                                            MPN: PAB97187130
                                                            GROMMET LEFT WATER BOX LOWER
                                                            from £11.67
                                                            from £11.67
                                                            GROMMET Genuine Porsche Part - New (to order)
                                                            # 17
                                                            MPN: PAF90570806
                                                            HEXAGON NUT M6
                                                            HEX. NUT Genuine Porsche Part - New (to order)
                                                            # 18
                                                            MPN: N 91173301
                                                            HEX. NUT WITH WASHER M6
                                                            from £1.10
                                                            from £1.10
                                                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                                            # 18
                                                            -
                                                            PASSENGER COMPARTMENT
                                                            # 20
                                                            MPN: PAB97184510
                                                            RETAINING FRAME LHD FUSE FOOT REST
                                                            P0K0 (Without alternative drive system) | PL0L (Left-hand drive version) | P0K3 (Hybrid propulsion system PHEV)
                                                            from £26.86
                                                            from £26.86
                                                            retaining frame Genuine Porsche Part - New (to order)
                                                            # 21
                                                            MPN: N 90286703
                                                            HEX. NUT, SELF-LOCKING WITH M6 WASHER
                                                            from £1.04
                                                            from £1.04
                                                            HEX. NUT, SELF-LOCKING WITH Genuine Porsche Part - New (to order)
                                                            # 22
                                                            MPN: PAB97184530
                                                            RETAINING FRAME RHD FUSE A-PILLAR
                                                            PL0R (Right-hand drive version)
                                                            from £15.60
                                                            from £15.60
                                                            retaining frame Genuine Porsche Part - New (to order)
                                                            # 23
                                                            MPN: PAB93754500
                                                            RETAINING FRAME CONNECTION POINT SEAT FRONT
                                                            from £14.02
                                                            from £14.02
                                                            retaining frame Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 80A FUSE 300A
                                                            P1A2 (Engine variant without reduced compression) | P0K3 (Hybrid propulsion system PHEV)
                                                            from £180.86
                                                            from £180.86
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459B
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 150A FUSE 200A FUSE 150A
                                                            P0K0 (Without alternative drive system) | P0N1 (Without rear axle steering) | P1P0 (Standard suspension) | P4GF (Windscreen of tinted glass) | P4GL (Windscreen (shatterproof glass)) | P4GS (Heat-reflecting windshield) | PVH0 (Without 48 V island vehicle electrical system)
                                                            from £177.23
                                                            from £177.23
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459A
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 150A FUSE 200A FUSE 300A
                                                            P0K0 (Without alternative drive system) | P0N5 (Rear axle steering) | P1P0 (Standard suspension) | P4GF (Windscreen of tinted glass) | P4GL (Windscreen (shatterproof glass)) | P4GS (Heat-reflecting windshield) | PVH0 (Without 48 V island vehicle electrical system)
                                                            from £177.23
                                                            from £177.23
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459A
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 150A FUSE 200A FUSE 300A
                                                            P0K0 (Without alternative drive system) | P1P0 (Standard suspension) | P4GR (Windscreen, heated insulating glass) | PVH0 (Without 48 V island vehicle electrical system)
                                                            from £177.23
                                                            from £177.23
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459A
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 150A FUSE 200A FUSE 300A
                                                            P0K0 (Without alternative drive system) | P0N1 (Without rear axle steering) | P1P7 (PDCC/eAWS) | P4GF (Windscreen of tinted glass) | P4GL (Windscreen (shatterproof glass)) | P4GS (Heat-reflecting windshield) | P7E0 (Without heat accumulator) | PVH0 (Without 48 V island vehicle electrical system)
                                                            from £177.23
                                                            from £177.23
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 24
                                                            MPN: PAB915459A
                                                            RETAINER FOR BATTERY CENTRAL ELECTRICS WITH ISOLATORS FUSE 150A FUSE 150A FUSE 200A FUSE 300A
                                                            P0K0 (Without alternative drive system) | P1P7 (PDCC/eAWS) | PVH2 (48 V island vehicle electrical system)
                                                            from £177.23
                                                            from £177.23
                                                            BRACKET FOR BATTERY Genuine Porsche Part - New (to order)
                                                            # 26
                                                            MPN: PAB93751700
                                                            JUNCTION RIGHT
                                                            P0K0 (Without alternative drive system) | P without 1P7
                                                            from £56.51
                                                            from £56.51
                                                            DISTRIBUTOR Genuine Porsche Part - New (to order)
                                                            # 26
                                                            MPN: PAB93751710
                                                            JUNCTION RIGHT
                                                            P0K0 (Without alternative drive system) | P1P7 (PDCC/eAWS)
                                                            from £56.51
                                                            from £56.51
                                                            DISTRIBUTOR Genuine Porsche Part - New (to order)
                                                            # 27
                                                            MPN: N 90488004
                                                            HEX. NUT WITH WASHER M6
                                                            from £0.47
                                                            from £0.47
                                                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                                            # 28
                                                            MPN: N 91173301
                                                            HEX. NUT WITH WASHER M6
                                                            from £1.10
                                                            from £1.10
                                                            HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                            HEXAGON NUT W. M6 Genuine Lamborghini - New In stock
                                                            # 29
                                                            MPN: PAB97184550
                                                            BRACKET
                                                            from £3.12
                                                            from £3.12
                                                            BRACKET Genuine Porsche Part - New (to order)
                                                            # 29
                                                            -
                                                            luggage compartment
                                                            # 30
                                                            MPN: PAB97184500
                                                            RETAINING FRAME LUGGAGE COMP. FUSE
                                                            from £11.82
                                                            from £11.82
                                                            retaining frame Genuine Porsche Part - New (to order)
                                                            # 31
                                                            MPN: 95890736800
                                                            RETAINER FOR CONTROL UNITS LUGGAGE COMP. UPPER PART
                                                            from £22.10
                                                            from £22.10
                                                            BRACKET FOR CONTROL UNIT Genuine Porsche Part - New (to order)
                                                            # 32
                                                            MPN: PAB90739200
                                                            BRACKET LUGGAGE COMP. LOWER PART
                                                            from £17.28
                                                            from £17.28
                                                            BRACKET Genuine Porsche Part - New (to order)
                                                            # 33
                                                            MPN: PAB93754520
                                                            CONNECTION POINT REAR
                                                            from £3.42
                                                            from £3.42
                                                            Connection point Genuine Porsche Part - New (to order)
                                                            # 33
                                                            -
                                                            FUSE
                                                            # 35
                                                            MPN: PAF102615C
                                                            FLAT FUSE 10/2X2,8 1A -BLACK-
                                                            from £1.26
                                                            from £1.26
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            # 35
                                                            MPN: N 10261501
                                                            FLAT FUSE 10/2X2,8 5A -LT BROWN-
                                                            from £0.86
                                                            from £0.86
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 35
                                                            MPN: PAF102615
                                                            FLAT FUSE 10/2X2,8 7.5A -BROWN-
                                                            from £1.38
                                                            from £1.38
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            # 35
                                                            MPN: N 10261503
                                                            FLAT FUSE 10/2X2,8 10A -RED-
                                                            from £0.86
                                                            from £0.86
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 35
                                                            MPN: N 10261507
                                                            FLAT FUSE 10/2X2,8 15A -LT BLUE-
                                                            from £0.86
                                                            from £0.86
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 35
                                                            MPN: PAF102615A
                                                            FLAT FUSE 10/2X2,8 20A -YELLOW-
                                                            from £1.38
                                                            from £1.38
                                                            FLAT FUSE 10/2X2,8 Genuine Porsche Part - New (to order)
                                                            # 35
                                                            -
                                                            FUSE
                                                            # 36
                                                            MPN: N 01713117
                                                            FLAT FUSE 19/2X5 3A -VIOLET-
                                                            from £0.69
                                                            from £0.69
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New (to order)
                                                            # 36
                                                            MPN: N 01713116
                                                            FLAT FUSE 19/2X5 5A -LT BROWN-
                                                            from £0.86
                                                            from £0.86
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            BLADE FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 01713118
                                                            FLAT FUSE 19/2X5 7.5A -BROWN-
                                                            from £0.69
                                                            from £0.69
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 10713111
                                                            FUSE 10A -RED-
                                                            FUSE Genuine Porsche Part - New (to order)
                                                            # 36
                                                            MPN: N 01713112
                                                            FLAT FUSE 19/2X5 15A -LT BLUE-
                                                            from £0.69
                                                            from £0.69
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 01713113
                                                            FLAT FUSE 19/2X5 20A -YELLOW-
                                                            from £0.73
                                                            from £0.73
                                                            FLAT FUSE 19/2X5 - 20 AMP Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 01713114
                                                            flat fuse 19/2X5 25A -white-
                                                            from £0.69
                                                            from £0.69
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 01713115
                                                            FLAT FUSE 19/2X5 30A-LT GREEN-
                                                            from £0.54
                                                            from £0.54
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE Genuine Lamborghini - New In stock
                                                            # 36
                                                            MPN: N 01713122
                                                            FLAT FUSE 19/2X5 35A -BLUE/GREEN-
                                                            from £0.78
                                                            from £0.78
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            BLADE FUSE Genuine Lamborghini - New (to order)
                                                            # 36
                                                            MPN: N 01713120
                                                            FLAT FUSE 19/2X5 40A -ORANGE-
                                                            from £0.71
                                                            from £0.71
                                                            FLAT FUSE 19/2X5 Genuine Porsche Part - New (to order)
                                                            FUSE 40 A Genuine Lamborghini - New In stock
                                                            # 36
                                                            -
                                                            FUSE
                                                            # 37
                                                            MPN: PAA911863
                                                            PLUG-IN FUSE 30A -PINK-
                                                            from £5.02
                                                            from £5.02
                                                            BLADE FUSE Genuine Porsche Part - New (to order)
                                                            # 37
                                                            MPN: PAF911863
                                                            PLUG-IN FUSE 40A -GREEN-
                                                            from £8.25
                                                            from £8.25
                                                            BLADE FUSE Genuine Porsche Part - New (to order)
                                                            # 37
                                                            MPN: PAF911863A
                                                            PLUG-IN FUSE 50A -RED-
                                                            from £8.25
                                                            from £8.25
                                                            BLADE FUSE Genuine Porsche Part - New (to order)
                                                            # 37
                                                            -
                                                            RELAY
                                                            # 38
                                                            MPN: 4H0951253C
                                                            RELAY STARTER C FUEL PUMP RELAY
                                                            from £16.08
                                                            from £16.08
                                                            RELAY Genuine Porsche Part - New (to order)
                                                            RELAY Genuine Lamborghini - New (to order)
                                                            # 38
                                                            MPN: 95861502900
                                                            Relay contact close relay
                                                            from £23.76
                                                            from £23.76
                                                            RELAY Genuine Porsche Part - New (to order)
                                                            # 38
                                                            -
                                                            THERMAL FUSE
                                                            # 39
                                                            MPN: PAB937105
                                                            THERMAL FUSE 20A -YELLOW-
                                                            from £23.42
                                                            from £23.42
                                                            THERMO FUSE Genuine Porsche Part - New (to order)
                                                            # 39
                                                            MPN: PAB937105B
                                                            THERMAL FUSE 15A -LT BLUE-
                                                            from £23.42
                                                            from £23.42
                                                            THERMO FUSE Genuine Porsche Part - New (to order)
                                                            # 40
                                                            MPN: PAB937513
                                                            POTENTIAL DISTRIBUTOR
                                                            P0K3 (Hybrid propulsion system PHEV) | P1A2 (Engine variant without reduced compression) | P8GZ (Without alternator)
                                                            from £139.37
                                                            from £139.37
                                                            junction box Genuine Porsche Part - New (to order)
