P0K3 (Hybrid propulsion system PHEV) | PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C) | PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
porsche 2026 (cayenne e3 pa) drive shaft front axle parts diagram

401-110 - Drive shaft Front axle

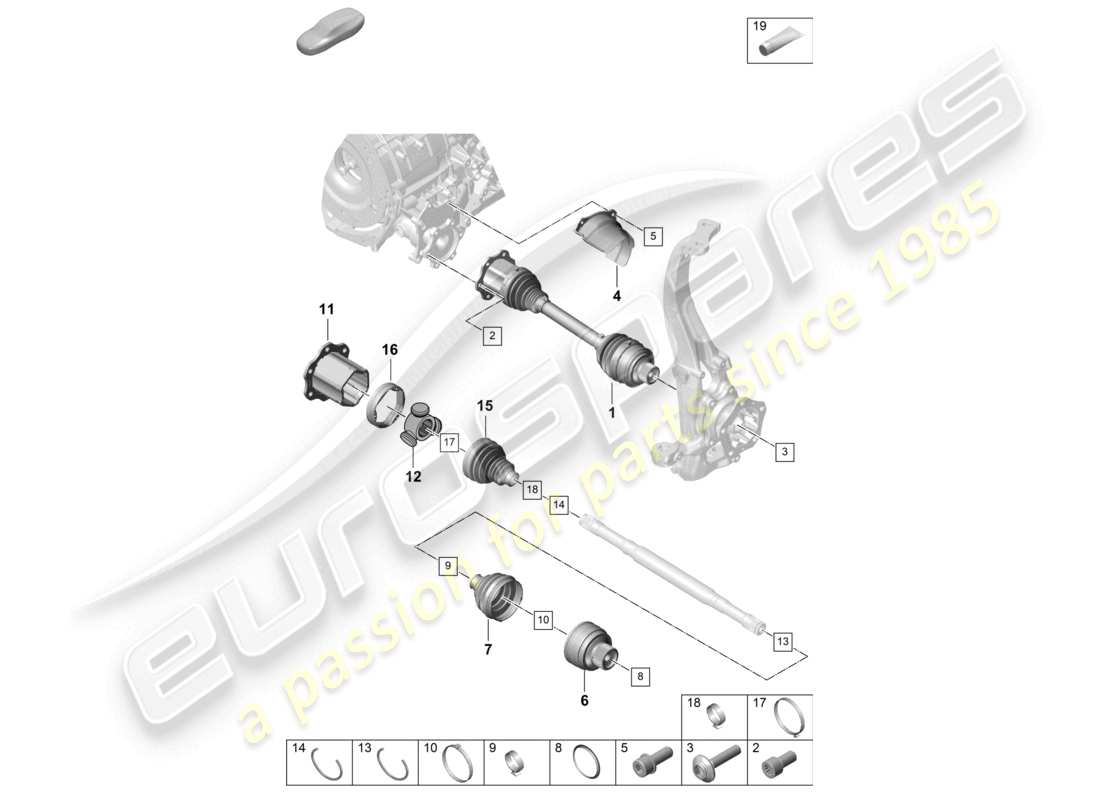

Porsche 2026 (Cayenne E3 PA) Drive shaft Front axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: PAB407271C
      Drive shaft Front axle
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £636.22
      from £636.22
      This part replaces part number 958407271A
      DRIVE SHAFT Genuine Porsche Part - New (to order)
      # 1
      MPN: PAB407271F
      DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £844.08
      from £844.08
      DRIVESHAFT Genuine Porsche Part - New (to order)
      # 2
      MPN: PAF904411
      Socket head bolt with inner M10X20 multipoint head Screw with int. serrations
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £2.53
      from £2.53
      This part replaces part number N 90441102
      SCREW Genuine Porsche Part - New In stock
      # 2
      MPN: N 91175601
      CYLINDER FITTING SCREW WITH M12X1,5X22 INNER MULTIPOINT HEAD
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £2.76
      from £2.76
      CYLINDER HEAD SCREW WITH TORX Genuine Porsche Part - New (to order)
      TRIPLE SQUARE BOLTM12X1.5X22 Genuine Lamborghini - New (to order)
      # 3
      MPN: PAB407643
      Socket head bolt with M16X1,5X72 inner multipoint head
      from £8.62
      from £8.62
      SCREW Genuine Porsche Part - New (to order)
      # 4
      MPN: PAB407720A
      GUARD PLATE RIGHT DRIVE SHAFT FRONT AXLE
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E)
      from £13.99
      from £13.99
      GUARD PLATE Genuine Porsche Part - New (to order)
      # 5
      MPN: N 90415405
      SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E)
      from £1.62
      from £1.62
      BOLT, WITH HEX. SOCKET HD. Genuine Porsche Part - New (to order)
      PAN HEAD BOLT WITHM8X22-S4-S Genuine Lamborghini - New (to order)
      # 6
      MPN: PAB407305E
      OUTER JOINT WITH ROTOR
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £305.78
      from £305.78
      OUTER JOINT WITH ROTOR Genuine Porsche Part - New (to order)
      # 6
      MPN: PAB407305F
      OUTER JOINT WITH ROTOR
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £325.54
      from £325.54
      OUTER JOINT WITH ROTOR Genuine Porsche Part - New (to order)
      # 7
      MPN: 9A740728500
      BELLOWS OUTER
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £18.19
      from £18.19
      BELLOWS Genuine Porsche Part - New (to order)
      # 7
      MPN: PAC407285
      JOINT BOOT OUTER
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £31.65
      from £31.65
      JOINT BOOT Genuine Porsche Part - New (to order)
      # 8
      MPN: N 91170501
      SECURING RING 27,8X2,3
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £4.10
      from £4.10
      LOCK RING Genuine Porsche Part - New (to order)
      # 8
      MPN: PAF911813
      SECURING RING 30X2,5
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £4.25
      from £4.25
      SECURING RING Genuine Porsche Part - New (to order)
      # 9
      MPN: N 10740201
      clamp 35,5X10X0,8
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £3.57
      from £3.57
      Retaining Clip Genuine Porsche Part - New (to order)
      # 9
      MPN: PAF910023
      CLAMP 38X10X0,8
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £6.60
      from £6.60
      CLAMP Genuine Porsche Part - New (to order)
      # 10
      MPN: N 10740101
      CLAMP 98,5X10X1
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £5.99
      from £5.99
      Retaining Clip Genuine Porsche Part - New (to order)
      # 10
      MPN: PAF107541
      CLAMP 107X10X1
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £6.38
      from £6.38
      CLAMP Genuine Porsche Part - New (to order)
      # 11
      MPN: PAB407341
      JOINT INNER
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £143.95
      from £143.95
      JOINT Genuine Porsche Part - New (to order)
      # 11
      MPN: PAB407341B
      JOINT INNER
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £167.93
      from £167.93
      JOINT Genuine Porsche Part - New (to order)
      # 12
      MPN: 95B407363A
      TRIP.ROLL. SPIDER WITH ROLLERS INNER
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £76.97
      from £76.97
      TRIPOD STAR WITH ROLLERS Genuine Porsche Part - New (to order)
      # 12
      MPN: PAD407363
      TRIP.ROLL. SPIDER WITH ROLLERS INNER
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £95.69
      from £95.69
      TRIP.ROLL. SPIDER WITH ROLLERS Genuine Porsche Part - New (to order)
      # 13
      MPN: N 90834501
      SECURING RING 25,4X1,2
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £1.16
      from £1.16
      LOCK RING Genuine Porsche Part - New (to order)
      # 13
      MPN: PAF910806
      SECURING RING 26X1,2
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £4.73
      from £4.73
      SECURING RING Genuine Porsche Part - New (to order)
      # 14
      MPN: N 91116901
      SECURING RING 27,8X1,7
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £1.04
      from £1.04
      LOCK RING Genuine Porsche Part - New (to order)
      # 14
      MPN: PAF908182
      SECURING RING 29X2
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £4.59
      from £4.59
      SECURING RING Genuine Porsche Part - New (to order)
      # 15
      MPN: PAB407283
      JOINT BOOT INNER
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £31.59
      from £31.59
      JOINT BOOT Genuine Porsche Part - New (to order)
      # 15
      MPN: PAC407283
      JOINT BOOT INNER
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £26.83
      from £26.83
      JOINT BOOT Genuine Porsche Part - New (to order)
      # 16
      MPN: PAB407413
      ADAPTER JOINT BOOT
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £6.23
      from £6.23
      ADAPTER Genuine Porsche Part - New (to order)
      # 17
      MPN: PAF106147
      CLAMP 94,5X10X1
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £6.60
      from £6.60
      CLAMP Genuine Porsche Part - New (to order)
      # 17
      MPN: PAC407293
      clamp 94,7X10X0,8
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £9.37
      from £9.37
      CLAMP Genuine Porsche Part - New (to order)
      # 18
      MPN: N 10614801
      CLAMP 34X10X0,8
      PT4H (4-cylinder SI engine 2.0 l unit 06N.E) | PT9I (6-cylinder SI engine 3.0 l unit 06M.C)
      from £0.78
      from £0.78
      Retaining Clip Genuine Porsche Part - New (to order)
      # 18
      MPN: PAC407293A
      clamp 32,5X10X0,8
      PTB5 (8-cylinder SI engine 4.0 l unit 0P3.A)
      from £5.99
      from £5.99
      CLAMP Genuine Porsche Part - New (to order)
      # 19
      MPN: 00004330585
      GREASE 100 GRAM DRIVE SHAFT OUTER
      from £8.66
      from £8.66
      This part replaces part number 00004311002
      GREASE Genuine Porsche Part - New (to order)
