107-005 - FUEL COLLECTION PIPE

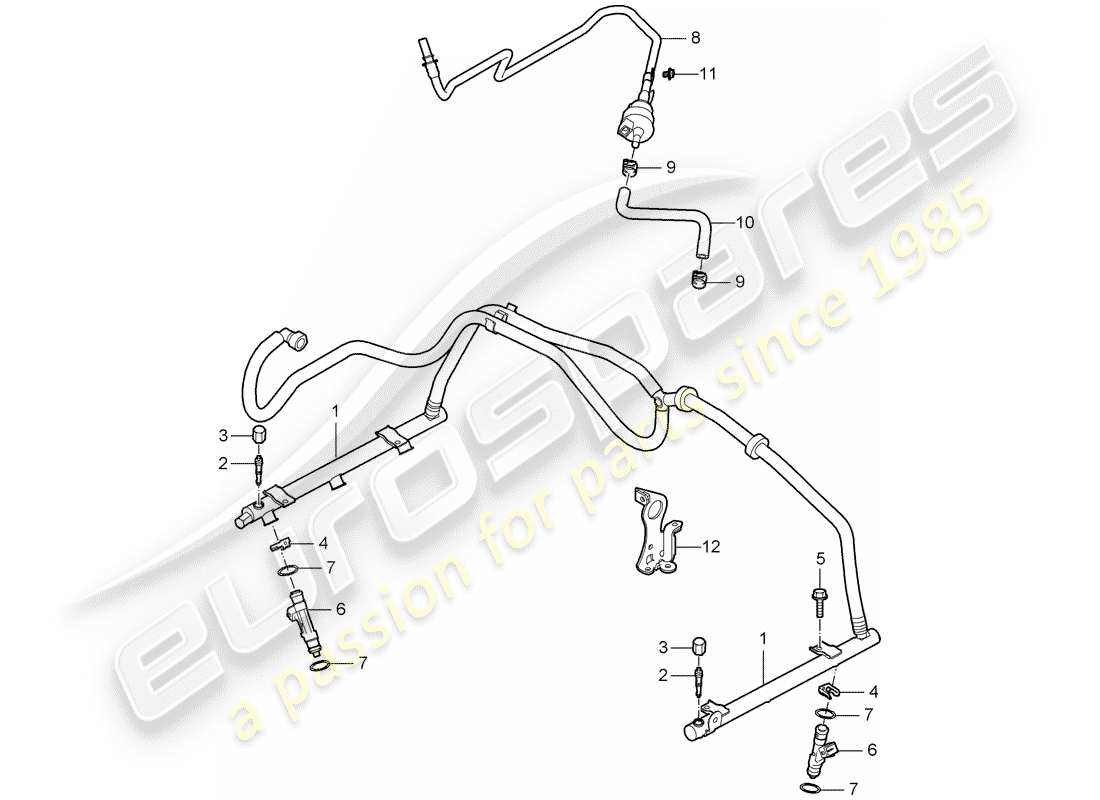

Porsche 2007 (987 Cayman) Fuel collection pipe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 98711003101
FUEL COLLECTION PIPE
# 2
MPN: 99311021700
VALVE
from £10.15
from £10.15
# 3
MPN: 99711021800
CAP CLOSURE
from £7.65
from £7.65
# 4
MPN: 99611011352
Retaining Clip
# 5
MPN: 90038504109
TORX SCREW M 6 X 12
# 6
MPN: 99760512300
INJECTION VALVE
from £177.54
from £177.54
# 7
MPN: 99970757440
O-RING 7,52 X 3,51
from £6.77
from £6.77
# 8
MPN: 98711012800
breather line
# 9
MPN: 99951265009
HOSE CLAMP B 14 X 12
from £0.91
from £0.91
# 10
MPN: 98711023700
HOSE TANK VENTILATION
from £33.28
from £33.28
# 11
MPN: 99991912509
HEXAGON BOLT M 6 X 16
from £2.68
from £2.68
# 12
MPN: 98710121300
RETAINING BAR
from £15.60
from £15.60
