porsche 2007 (987 cayman) fuel tank parts diagram

201-000 - FUEL TANK

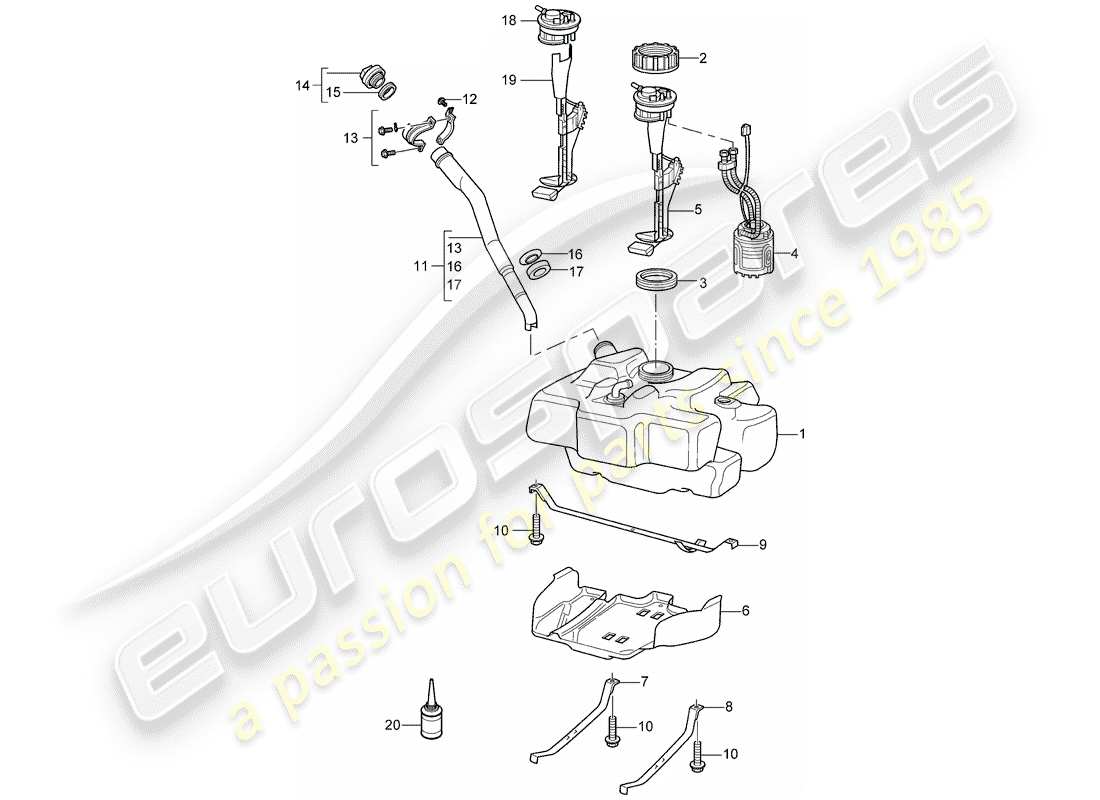

Porsche 2007 (987 Cayman) Fuel tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 99620102105
                            Fuel tank lhd
                            P098 (Left-hand drive version)
                            fuel tank - D - MJ 2002>> Genuine Porsche Part - New (to order)
                            # 1
                            MPN: 99720102201
                            Fuel tank rhd
                            P099 (Right-hand drive version)
                            from £2,050.48
                            from £2,050.48
                            This part replaces part number 99620102203
                            FUEL TANK Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 99620162300
                            UNION NUT
                            from £3.58
                            from £3.58
                            UNION NUT Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 321919133
                            SEAL RING
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 4
                            MPN: 99662013200
                            fuel pump
                            from £312.88
                            from £312.88
                            fuel pump - D - MJ 2002>> Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99662083202
                            SENDER FOR FUEL GAUGE WITH: FLANGE
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 6
                            MPN: 99720133102
                            BOTTOM PROTECTION FOR LHD FUEL TANK
                            P098 (Left-hand drive version)
                            from £74.29
                            from £74.29
                            PROTECTIVE PLATE FOR Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99720133103
                            BOTTOM PROTECTION FOR RHD FUEL TANK
                            P099 (Right-hand drive version)
                            from £74.29
                            from £74.29
                            PROTECTIVE PLATE FOR Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 99620110602
                            TENSIONING STRAP RIGHT
                            STRAP Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 99620110502
                            TENSIONING STRAP LEFT
                            STRAP Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99620110702
                            TENSIONING STRAP LHD
                            P098 (Left-hand drive version)
                            from £34.82
                            from £34.82
                            STRAP Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 99620110800
                            TENSIONING STRAP RHD
                            P099 (Right-hand drive version)
                            from £34.82
                            from £34.82
                            STRAP Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 90007547909
                            BOLT WITH WASHER M 8 X 40
                            Supersession
                            Supersession
                            Genuine Porsche Part (no longer available to order)
                            # 11
                            MPN: 99720104306
                            FUEL FILLER NECK
                            from £261.29
                            from £261.29
                            FILLER NECK Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 99720104307
                            FUEL FILLER NECK
                            P150 (Operation with leaded gas) | P193 (japan version)
                            from £261.29
                            from £261.29
                            FILLER NECK Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 99907334809
                            FILLISTER HD. BOLT M 6 X 12
                            from £0.91
                            from £0.91
                            FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 99720195102
                            BRACKET FOR FILLER NECK (COMPLETE)
                            from £85.75
                            from £85.75
                            BRACKET FOR FILLER NECK Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 99620124103
                            CAP WITH RETAINING STRAP FOR FUEL TANK WITH: STRAP
                            from £11.90
                            from £11.90
                            cap with retaining strap for - fuel tank - with: - Clip Genuine Porsche Part - New (to order)
                            # 14
                            MPN: 99950749940
                            SPREADER RIVET
                            from £0.65
                            from £0.65
                            rivet - 5,0 X 11,5 Genuine Porsche Part - New (to order)
                            # 15
                            MPN: 191201557
                            SEAL RING
                            from £12.37
                            from £12.37
                            seal ring - D - MJ 1999>> Genuine Porsche Part - New In stock
                            # 16
                            MPN: 99620175500
                            SUPPORT WASHER
                            from £8.95
                            from £8.95
                            SUPPORT WASHER Genuine Porsche Part - New (to order)
                            # 17
                            MPN: 99620175300
                            SEAL
                            from £8.95
                            from £8.95
                            GASKET Genuine Porsche Part - New (to order)
                            # 20
                            MPN: 00004320689
                            Multi-purpose additive for Otto engine fuels 100 ML
                            Multi-purpose additive for Otto engine fuels 100 ML
                            MULTI-PURPOSE ADDITIVE - FOR OTTO ENGINE FUELS - DISCONTINUED PART Genuine Porsche Part - New (to order)
                            # 20
                            MPN: 00004320902
                            Multi-purpose additive for Otto engine fuels 100 ML
                            from £10.04
                            from £10.04
                            MULTI-PURPOSE ADDITIVE - FOR OTTO ENGINE FUELS Genuine Porsche Part - New (to order)
