porsche 2007 (987 cayman) compressor parts diagram

813-015 - COMPRESSOR

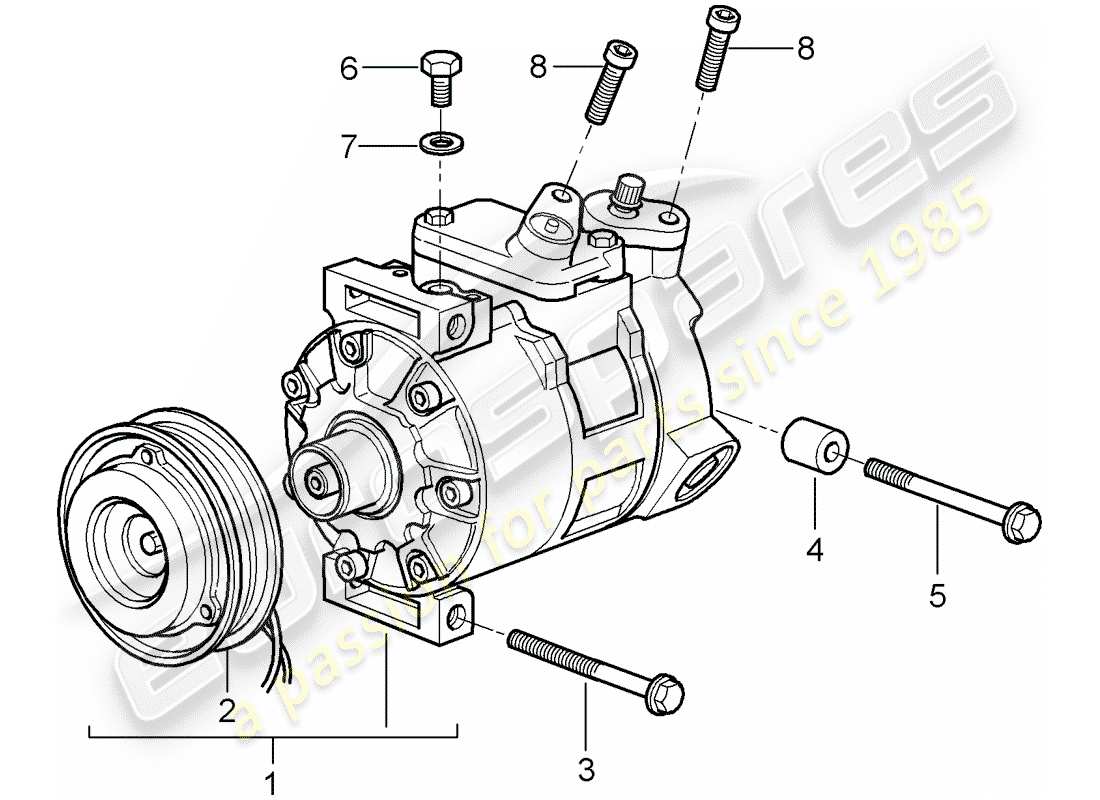

Porsche 2007 (987 Cayman) Compressor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 99612601152
                  COMPRESSOR
                  from £1,610.93
                  from £1,610.93
                  COMPRESSOR Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 99657392600
                  MAGNETIC COUPLING REPAIR SET
                  from £822.35
                  from £822.35
                  MAGNETIC COUPLING Genuine Porsche Part - New (to order)
                  # 3
                  MPN: 90037807509
                  HEXAGON BOLT M 8X90
                  from £2.12
                  from £2.12
                  screw, hex. hd. - M 8X90 Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 99612610252
                  DISTANCE PIECE
                  from £14.35
                  from £14.35
                  SPACER - D >>- MJ 2003 Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 90037813609
                  HEXAGON BOLT M 8X120
                  screw, hex. hd. - M 8X120 Genuine Porsche Part - New (to order)
                  # 6
                  MPN: 99657392601
                  SEALING PLUG
                  from £3.95
                  from £3.95
                  THREADED PLUG Genuine Porsche Part - New (to order)
                  # 7
                  MPN: 99657392602
                  SEAL RING
                  from £3.95
                  from £3.95
                  SEAL RING Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 90006725202
                  SOCKET HEAD BOLT
                  from £5.33
                  from £5.33
                  SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 99612610151
                  Console
                  from £13.89
                  from £13.89
                  BRACKET Genuine Porsche Part - New (to order)
                  # 8
                  MPN: 00004330579
                  COMPRESSOR OIL 250 ML
                  from £35.15
                  from £35.15
                  COMPRESSOR OIL Genuine Porsche Part - New (to order)
