813-025 - REFRIGERANT CIRCUIT

Porsche 2007 (987 Cayman) refrigerant circuit Parts Diagram

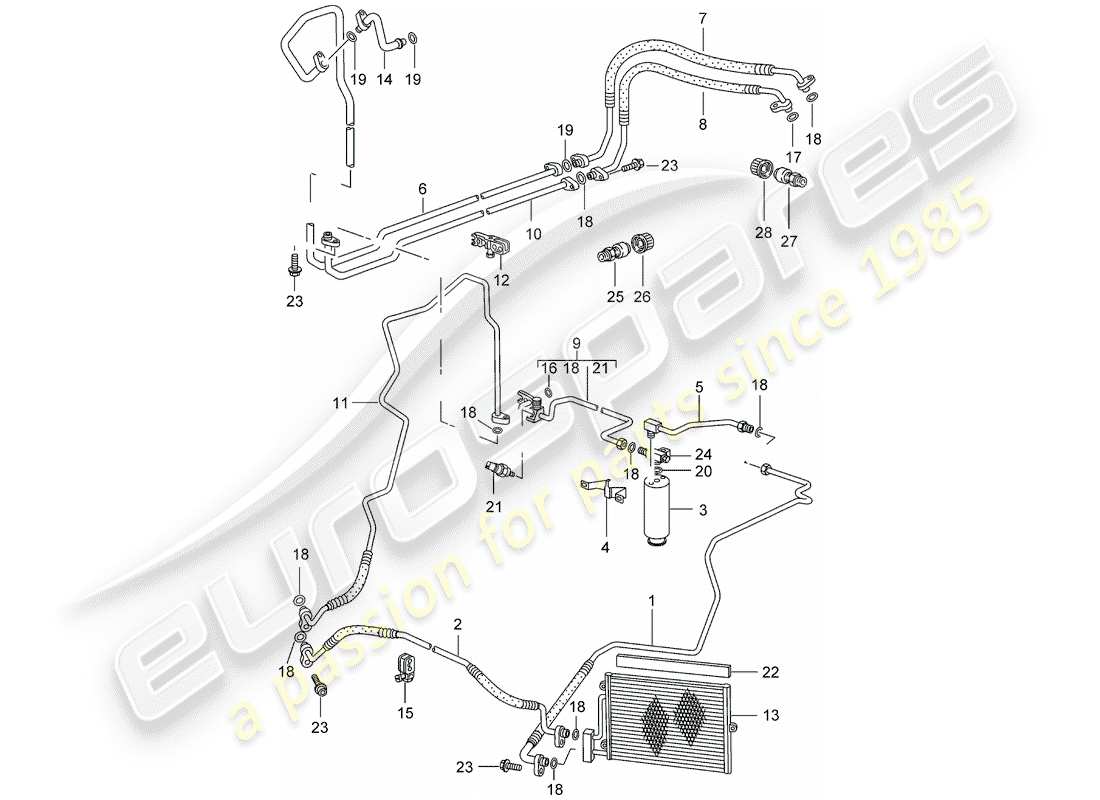

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 99757310502
                                                PRESSURE LINE
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 2
                                                MPN: 99757310300
                                                PRESSURE LINE
                                                from £39.08
                                                from £39.08
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 3
                                                MPN: 94457314301
                                                DRIER
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 4
                                                MPN: 99657345100
                                                BRACKET FOR DRIER
                                                from £11.39
                                                from £11.39
                                                BRACKET FOR DRIER Genuine Porsche Part - New (to order)
                                                # 5
                                                MPN: 99657310600
                                                REFRIGERANT LINE
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 6
                                                MPN: 99657309101
                                                SUCTION LINE
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 7
                                                MPN: 98757309901
                                                SUCTION LINE
                                                9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2005-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                                from £175.38
                                                from £175.38
                                                SUCTION PIPE Genuine Porsche Part - New (to order)
                                                # 8
                                                MPN: 98757309703
                                                PRESSURE LINE
                                                9720 (2.7 Litre 6 Cyliner Engine (244 Horsepower / 180 Kilowatt with Engine Code: 9720 and installed 08/2006-07/2008) | 9721 (3.4 Litre 6 Cyliner Engine (295 Horsepower / 217 Kilowatt with Engine Code: 9721 and installed 08/2005-07/2008) | 9722 (3.4 Litre 6 Cyliner Engine (303 Horsepower / 223 Kilowatt with Engine Code: 9722 and installed 08/2007-07/2008)
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 99757310802
                                                PRESSURE LINE LHD
                                                P098 (Left-hand drive version)
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 99757310801
                                                Pressure line rhd
                                                Pressure line rhd
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 99757310803
                                                Pressure line rhd
                                                P099 (Right-hand drive version)
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 10
                                                MPN: 99657309202
                                                PRESSURE LINE
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 11
                                                MPN: 99757309400
                                                PRESSURE LINE
                                                PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 12
                                                MPN: 99634754300
                                                CABLE HOLDER
                                                from £4.86
                                                from £4.86
                                                CABLE HOLDER Genuine Porsche Part - New In stock
                                                # 13
                                                MPN: 99657311103
                                                CONDENSER
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 14
                                                MPN: 99657309306
                                                SUCTION LINE LHD
                                                P098 (Left-hand drive version)
                                                from £83.97
                                                from £83.97
                                                SUCTION PIPE Genuine Porsche Part - New (to order)
                                                # 14
                                                MPN: 99657309307
                                                SUCTION LINE RHD
                                                P099 (Right-hand drive version)
                                                from £135.40
                                                from £135.40
                                                SUCTION PIPE Genuine Porsche Part - New (to order)
                                                # 15
                                                MPN: 99634754300
                                                CABLE HOLDER
                                                from £4.86
                                                from £4.86
                                                CABLE HOLDER Genuine Porsche Part - New In stock
                                                # 16
                                                MPN: 99970724740
                                                O-RING 7,5X2
                                                from £2.68
                                                from £2.68
                                                O-Ring - NW 8 Genuine Porsche Part - New In stock
                                                # 17
                                                MPN: 99970743941
                                                O-RING 23,8X2,4
                                                from £6.45
                                                from £6.45
                                                O-RING - 23,80X2,40 Genuine Porsche Part - New (to order)
                                                # 18
                                                MPN: 99970743441
                                                O-RING 10,6X2
                                                from £5.61
                                                from £5.61
                                                O-Ring - NW 10 Genuine Porsche Part - New In stock
                                                # 19
                                                MPN: 99970753441
                                                O-RING 17X2
                                                from £5.33
                                                from £5.33
                                                O-RING - 17X2,00 Genuine Porsche Part - New In stock
                                                # 19
                                                MPN: 99970743441
                                                O-RING 10,6X2,0
                                                from £5.61
                                                from £5.61
                                                O-Ring - NW 10 Genuine Porsche Part - New In stock
                                                # 20
                                                MPN: 99970726240
                                                O-RING 6,7X1,8
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 21
                                                MPN: 1K0959126B
                                                Pressure sensor use if required:
                                                Pressure sensor use if required:
                                                PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 95561313701
                                                Pressure sensor use if required:
                                                Pressure sensor use if required:
                                                PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 95561313702
                                                PRESSURE SENSOR
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 21
                                                MPN: 99970755541
                                                O-RING 10,8 X 1,8
                                                from £2.29
                                                from £2.29
                                                O-RING - 10,80X1,82 Genuine Porsche Part - New (to order)
                                                # 22
                                                MPN: 99657371100
                                                COVER TRIM
                                                from £6.96
                                                from £6.96
                                                COVER STRIP Genuine Porsche Part - New (to order)
                                                # 23
                                                MPN: 90006701903
                                                SOCKET HEAD BOLT
                                                from £1.10
                                                from £1.10
                                                This part replaces part number N 0147261
                                                SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                # 24
                                                MPN: 99357324300
                                                DISTRIBUTOR D >>- MJ 2006
                                                distributor piece - for - receiver drier Genuine Porsche Part - New (to order)
                                                # 25
                                                MPN: 99657346500
                                                VALVE SUCTION LINE
                                                from £25.07
                                                from £25.07
                                                VALVE - SUCTION PIPE Genuine Porsche Part - New (to order)
                                                # 26
                                                MPN: 94457366302
                                                CAP
                                                from £7.46
                                                from £7.46
                                                cap - for - valve Genuine Porsche Part - New (to order)
                                                # 27
                                                MPN: 99657346600
                                                PRESSURE VALVE PRESSURE LINE
                                                from £25.66
                                                from £25.66
                                                PRESSURE VALVE / PRESSURE LINE Genuine Porsche Part - New (to order)
                                                # 28
                                                MPN: 94457366301
                                                CAP
                                                from £7.46
                                                from £7.46
                                                cap - for - valve - fuel radiator Genuine Porsche Part - New (to order)
